Summary of Contents for ARMTEL TOP-HS-IP2

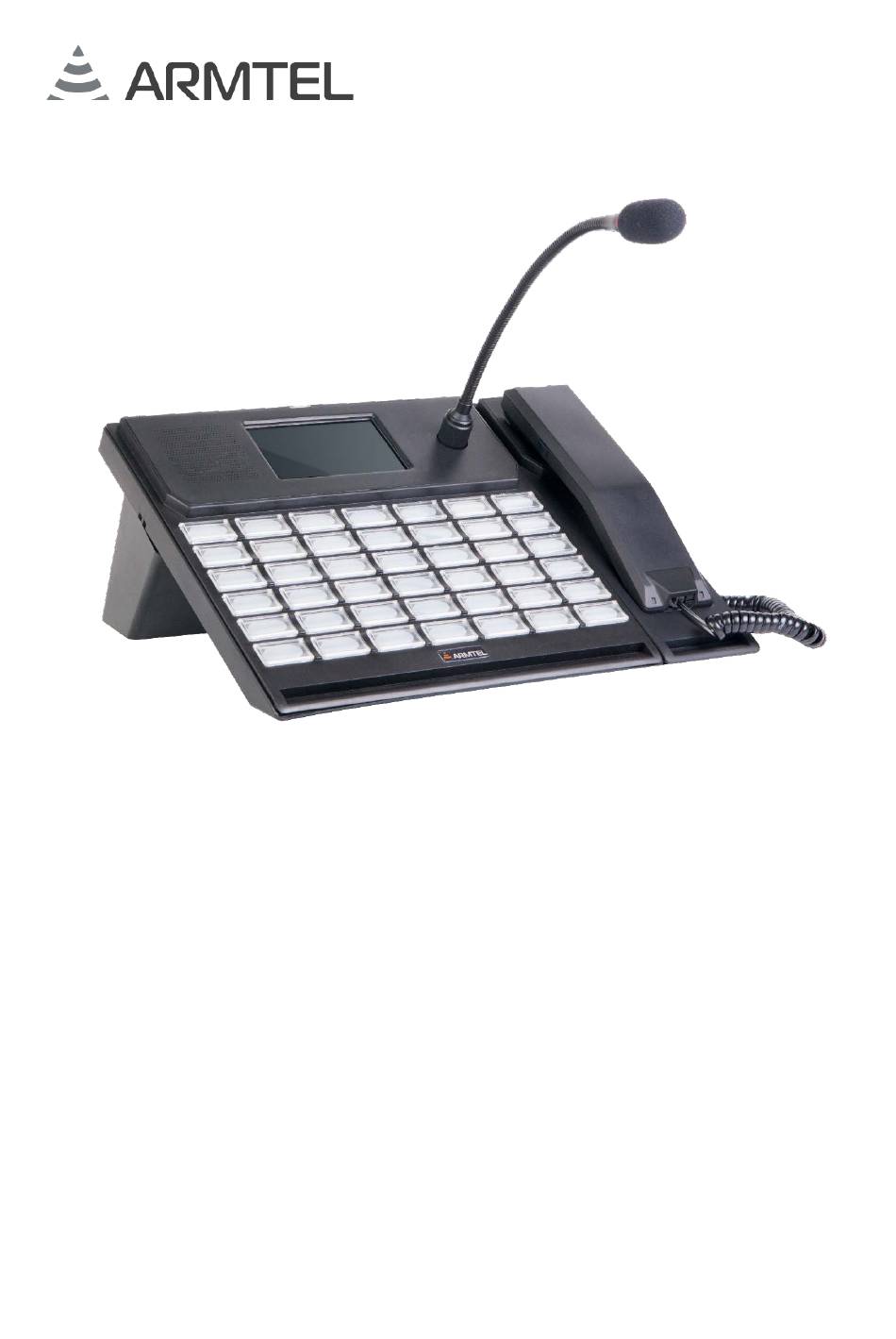

- Page 1 TOP-HS-IP2 HANDSET UNIT RMLT.465484.003UM User Manual Document version 7 26.30.23.000 2021...
- Page 2 © Armtel info@armtel.com...
-
Page 3: Introduction
INTRODUCTION This user manual applies to «TOP-HS-IP2 Handset unit» RMLT.465484.003 manufactured by Armtel LLC, and is intended to familiarize the user with the device and the procedure for its operation at the installation site. Designed for organization of two-way communication as a component of IPN system manufactured by Armtel LLC. -
Page 4: Safety Provisions
During installation and operation observe the safety measures specified by local codes and regulations on electrical safety. TOP-HS-IP2 functions with the power supply of ultra-low 5V DC; no special safety measures specified by local codes and regulations on electrical safety are required. -
Page 5: Table Of Contents
TOP-HS-IP2 HANDSET UNIT User Manual CONTENTS INTRODUCTION ..................................1 SAFETY PROVISIONS ................................2 CONTENTS ....................................3 1 DESCRIPTION AND OPERATION ..........................5 1.1 Product description and operation ........................5 1.1.1 Features ................................5 1.1.2 Main specifications ............................6 1.1.3 Operations conditions ..........................7 1.1.4 Scope of supply .............................. - Page 6 TOP-HS-IP2 HANDSET UNIT User Manual APPENDIX A (reference) Connection ........................25 APPENDIX B (reference) Desktop mounting complete with TOP-DIS-IP2 / TOP-PAD-IP2 ....26 APPENDIX C (reference) Recommendations for flush-mounting of TOP-HS-IP2 ......... 29 page 4/32 armtel.com © Armtel info@armtel.com...
-
Page 7: Description And Operation
ТОР-HS-IP2 can be applied in distributed and centralized digital intercom and Public Address /General Alarm communication systems (based on allotted SIP server manufactured by Armtel LLC) at metal, chemical, oil-processing, oil and gas, energy and transport industries or at facilities of the same type. ТОР-HS-IP2 is designed for installation in control, office rooms and premises. -
Page 8: Main Specifications
− switching the active sound path to the built-in speaker and "Gooseneck" microphone when installing the handset on the base stand. Configuration of TOP-HS-IP2 shall be carried out using the personal computer of the IPN network administrator on which IPN2 RU.RMLT.00041-01 IPN Config Tool software configuration application is installed. -
Page 9: Operations Conditions
Ingress protection of TOP-HS-IP2 complies with IP42. TOP-HS-IP2 complies with the requirements electromagnetic interference according to IEC 61000-6-2:2005, with not lower B quality criterion. The electromagnetic interference from TOP-HS-IP2 does not exceed the codes specified in IEC 61000-6-4:2006. armtel.com page 7/32 info@armtel.com... -
Page 10: Scope Of Supply
TOP-HS-IP2 HANDSET UNIT User Manual 1.1.4 Scope of supply Scope of supply of TOP-HS-IP2 is given in Table Table 2 – Scope of supply Quanty- Identification Name Note ty, pcs. RMLT.465484.003 TOP-HS-IP2 Handset unit RMLT.305636.002 Package Product сomponents HS mounting kit (junction plates RMLT.741522.001 –... -
Page 11: Design
TOP-HS-IP2 HANDSET UNIT User Manual 1.1.5 Design 1.1.5.1 The external appearance and overall dimensions of TOP-HS-IP2 are illustrated Figure a) Top view b) Side view c) Bottom view 1 – base stand; 2 – handset; 3 – socket for communication analogue path cable to connect with TOP-PAD-IP2 or TOP-DIS-IP2;... - Page 12 Above the base stand through the slots in the housing are output connection cables to the TOP-DIS-IR2 or TOP-PAD-IP2: − the analog path of the TOP-HS-IP2 is connected to one of the RJ-22 4P4C connectors; − digital path I C interface –...
-
Page 13: Labeling
TOP-HS-IP2 HANDSET UNIT User Manual 1.1.6 Labeling On the bottom side of TOP-HS-IP2 casing is placed bilingual nameplate. The nameplate contains the following information: name, trademark and reference information of the manufacturer; − product name and description; − permissible operating temperature range;... -
Page 14: Package
User Manual 1.1.7 Package The TOP-HS-IP2 with the assembly kit and documents, which come with the supply package, is packed in consumer package (cardboard box) according to GOST 23088-80. Before packing in consumer package (cardboard box), TOP-HS-IP2 with the assembly kit and operational documentations are placed in plastic film covers that have the corresponding marking. -
Page 15: Description And Operation Of The Product Components
External appearance of main board is given on Figure Figure 3 – TOP-HS-IP2 main board Figure 3 illustrates the following positions: − X1: RJ-25 6P6C socket of the digital path to connect TOP-HS-IP2 Handset unit via I C interface; armtel.com page 13/32 info@armtel.com... -
Page 16: Handset Microphone
The capsular dynamic converter of PDK-3 type complete with the electric resistance module within the range from (300 ± 60) Ohm is applied in TOP-HS-IP2 handset, with the frequency of 1000Hz and frequency response from 300 to 3400 Hz. The variation in frequency response within the stated frequency range not exceeding 10 dB, the efficiency of the converter, at the frequency of 1000Hz is equal to 4Pa. -
Page 17: Intended Use
2.2 Preparation for use Preparation of TOP-HS-IP2 for use shall be carried out by the manufacturer’s representatives, or personnel trained to operate Armtel LLC products. The main preparation of the product for use is carried out during installation and connection: −... -
Page 18: Safety Precautions
TOP-HS-IP2 HANDSET UNIT User Manual 2.3 Safety precautions TOP-HS-IP2 functions with the power supply of ultra-low 5V DC; no special safety measures specified by local codes and regulations on electrical safety are required. To avoid electric shock, do not: − turning on the device with damaged power and interface cables or connectors. -
Page 19: Installation, Connection And Dismantling
2.4.1 Basically, TOP-HS-IP2 should have a desktop-mounting. If TOP-HS-IP2 is desktop-mounted, it is attached to TOP-DIS-IP2 and TOP-PAD-IP2 using aluminum junction plates provided, which should be ordered complete with TOP-HS-IP2 in the requested order. The dimensions of the plates, fixing mode and desktop mounting... -
Page 20: Operation
TOP-HS-IP2 HANDSET UNIT User Manual 2.5 Operation 2.5.1 If TOP-HS-IP2 is used complete with TOP-DIS-IP2 or TOP-PAD-IP2, the full duplex communication mode is established. With communication via TOP-HS-IP2, the microphone, the speakers of the desktop or panel-mounted call stations will be turned off. -
Page 21: Maintenance
− visual inspection of cables connected to TOP-HS-IP2 (they must not be squeezed and the outer sheath should not be damaged); − checking reliability of cable connection to TOP-HS-IP2 – cables should not be tensioned; − removal of dust and dirt from the surface of the product. Depending on the... -
Page 22: Checking Operability
TOP-HS-IP2 HANDSET UNIT User Manual 3.4 Checking operability The operability of TOP-HS-IP2 should be checked when checking the operability of TOP-DIS-IP2 or TOP-PAD-IP2. To test the need to make a call three or four subscribers communications network, while subjectively controlled by the earpiece, clarity and speech intelligibility as the transmission of voice messages, and when listening to. -
Page 23: Pepair
TOP-HS-IP2 HANDSET UNIT User Manual 4 PEPAIR No scheduled repair work is provided for the product. Unscheduled repair shall be performed by the manufacturer at the request of the user. The place, time, procedure and cost of the work shall be agreed with the manufacturer in advance. -
Page 24: Storage
TOP-HS-IP2 HANDSET UNIT User Manual 5 STORAGE Product storage conditions – in the manufacturer’s consumer package in indoors and humidity-controlled storage facilities within temperature range from minus 20 °С to plus 40 °С, and in relative humidity conditions under plus 25 °С. -
Page 25: Transportation
TOP-HS-IP2 HANDSET UNIT User Manual 6 TRANSPORTATION The product shall be transported in consumer package as a packaging unit by road, river, railway and air transport (except unsealed compartments), with compliance with the following conditions: − temperature from minus 20 to plus 40 °С and humidity up to 80 % at 25 °С;... -
Page 26: Disposal
TOP-HS-IP2 HANDSET UNIT User Manual 7 DISPOSAL The product shall not be disposed of together with household waste and must be delivered to a special center for the disposal of electronic products. The operating organization shall be responsible for the disposal of the product. - Page 27 APPENDIX A (REFERENCE) CONNECTION The contacts numbering and external appearance for RJ-22 sockets to connect the analogue path of the TOP-HS-IP2 handset is given in Table A.1. Table А.1 - The contacts numbering and external appearance for RJ-22 sockets to connect the...
- Page 28 TOP-HS-IP2 HANDSET UNIT User Manual APPENDIX B (REFERENCE) DESKTOP MOUNTING COMPLETE WITH TOP-DIS-IP2 / TOP-PAD-IP2 In the scope of supply are included junction plates for to give the construction additional rigidity and stability. External appearance of the junction plate is illustrated at Figure B.1.
- Page 29 The Handset unit is connected to sockets RJ-22 and RJ-25 of the desktop or panel- mounted call station via AUI cables included into the scope of supply for TOP-HS-IP2. The design provides three ways to mount TOP-HS-IP2 to TOP-DIS-IP2 / TOP-PAD-...
- Page 30 TOP-HS-IP2 HANDSET UNIT User Manual Figure B.3 – Available mounting modes of TOP-HS-IP2 page 28/32 armtel.com © Armtel info@armtel.com...
- Page 31 TOP-HS-IP2 HANDSET UNIT User Manual APPENDIX C (REFERENCE) RECOMMENDATIONS FOR FLUSH-MOUNTING OF TOP-HS-IP2 If TOP-HS-IP2 is flush-mounted, the layout is done at the desktop according to Figure C.1: armtel.com page 29/32 info@armtel.com © Armtel...
- Page 32 TOP-HS-IP2 HANDSET UNIT User Manual page 30/32 armtel.com © Armtel info@armtel.com...
- Page 33 B Both left-hand and right-hand mounting methods for the TOP-HS-IP2 can be applicable. Since the height of the TOP-HS-IP2 base stand and the height of the non- flushed part for the base stand of the desktop for panel-mounted call station are equal, the hole for the TOP-HS-IP2 base stand is not cut out.
- Page 34 TOP-HS-IP2 HANDSET UNIT User Manual NOTES page 32/32 armtel.com © Armtel info@armtel.com...
- Page 35 © Armtel...
- Page 36 ARMTEL LLC Tel./fax: +7 (812) 703-41-11 www.armtel.com | info@armtel.com Legal and physical address: 12 buildung 1, Zaporozhskaya street, office 1/2, Saint Petersburg, 192012 TECHNICAL SUPPORT 8-800-500-90-17 (for calls from Russian Federation) +7-812-633-04-02 (for international calls) support@armtel.com MORE INFORMATION ABOUT PRODUCT ON OFFICIAL SITE...
