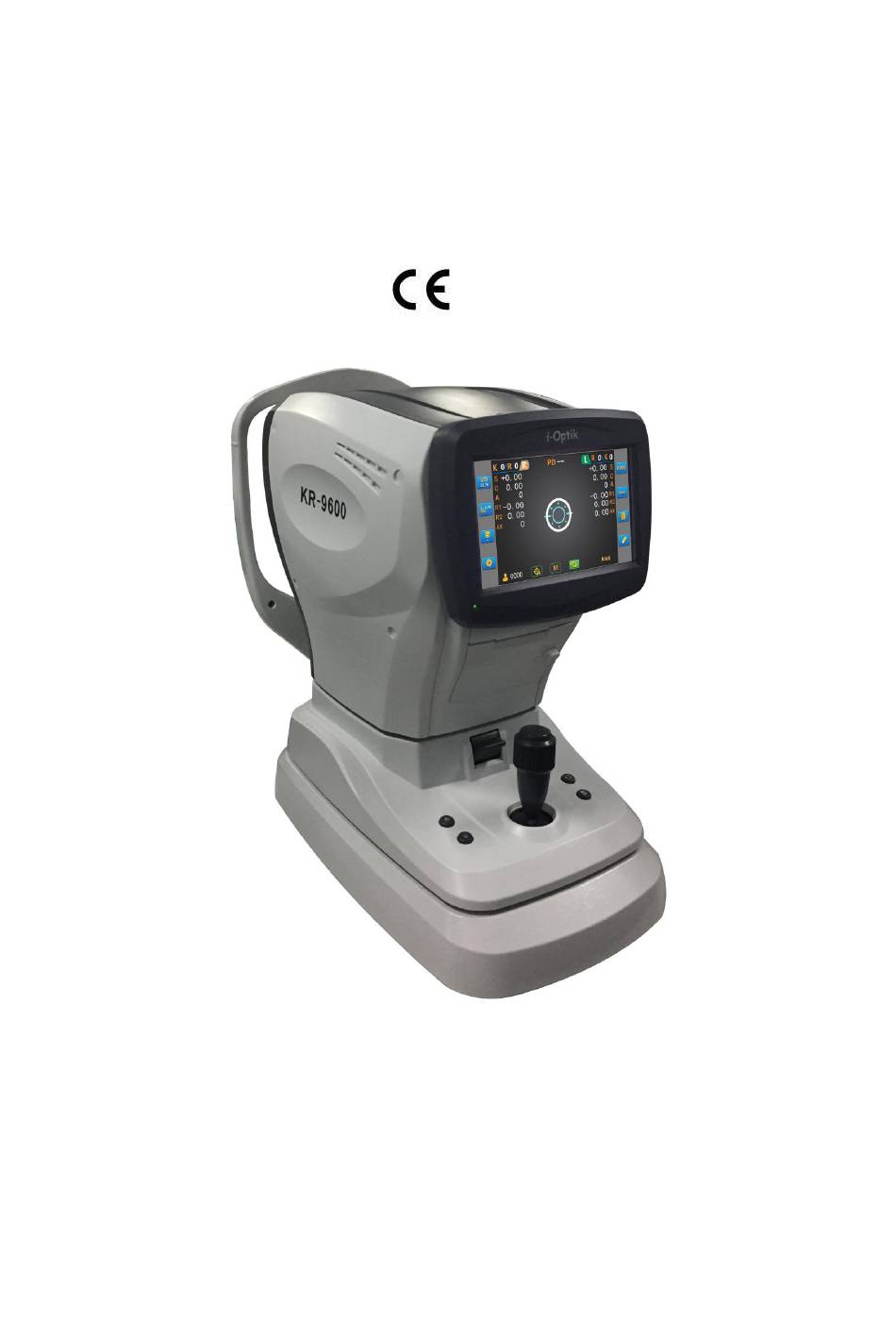

  • Page 1 AUTO REFRACTOMETER RM/KR-9600 OPERATOR’S MANUAL 0120...
  • Page 2 The information contained in this manual has been confirmed before publication.If change the product model without notice.Ningbo Ming Sing Optical R & D Co., Ltd. reserves the right to change the product contained in this manual without notice. The sold products do not involve such changes.

  • Page 3: Table Of Contents

    1. Introduction............................. 1 1.1 Product Features and Use Scope...................1 1.2 Classification.........................1 1.3 Main performance index....................... 2 2. Safety precautions........................... 4 2.1 Safety identification......................4 2.2 Safety precautions before use....................4 2.3 Safety precautions during use....................5 2.4 Safety precautions after use....................6 2.5 Maintenance and check......................6 2.6 Disposal..........................7 3.
  • Page 4 7.1 Outline specification, Contraindication................25 7.2 Service life.......................... 25 7.3 Disclaimer........................... 25 8. After-sale service...........................26 9. Main specifications........................27 10. EMC(Electromagnetic Compatibility）..................28...

  • Page 5: Introduction

    The main difference between the main models KR-9000 is the difference in shape. The principle and intended uses are the same. The classification of appearance according to design serial number: KR/RM-9600 is same. KR/RM-9800 is same. The classification of functional according to model number: KR-9600/9800 is same.RM--9600/9800 is same.

  • Page 6: Main Performance Index

    Atmospheric pressure: 760hPa - 1060hPa Power requirements: Voltage: 100-240V～、50/60Hz Input power: 50VA 1.3 Main performance index 1 Measurable range Spherical power: -25.00 m - +22.00 m 。 Cylindrical power:-10.00 m - +10.00 m 。 Cylindrical axis:0º - 180º PD measurement: 10mm - 85mm Corneal radius:5mm - 10mm (KRseries) Corneal diopter:67.50 m - 33.75 m...
  • Page 7 include left and right eye identification, spherical power and cylindrical power,+/-, axis and degree,etc. e)Auto ref/keratometer has the function of printing test results. f) Optical radiation shall comply with the applicable requirements of ISO15004-2. 5Under the working conditions, the noise should not be greater than 55dB (A). 6 The surface temperature of the device is not more than 15℃.

  • Page 8: Safety Precautions

    2.Safety precautions 2.1 Safety identification In this manual, signal words are used to designate the degree or level of safety alerting. The definitions are as follows. CAUTION: Indicates a potentially hazardous situation which, if not CAUTION avoided, may result in minor or moderate injury or property damage accident.

  • Page 9: Safety Precautions During Use

    Never use a power strip or extension cable to supply the device with power. This may cause  failures and fire. Do not place heavy objects on the power cord. A damaged power cord may cause fire or  electric shock. Switch off the power switch and disconnect the power cord from the power outlet before ...

  • Page 10: Safety Precautions After Use

    MSOC or your authorized distributor. The continued use of the equipment under unusual circumstances may cause a fire or electric  shock. In case of fire, use a dry powder (ABC) fire extinguisher. Never press on the LCD with a hard object such as a ball-point pen. Keep magnetic objects ...

  • Page 11: Disposal

    personnel. The battery of the instrument must be replaced by thetechnical service personnel of MSOC or  other authorized personnel. When the equipment is returned to the company for repair or maintenance, use a clean cloth  dipped in the alcohol disinfection device (especially the area of patient contact). When there is a big difference between the results of the Auto ref/keratometer measurements ...

  • Page 12: Configuration And Functions

    3.Configuration and Functions 3.1 Device configuration Figure 1 instrument view 1．7 inch resistive screen: Display measurement results. The screen can adjust angle. 2．Power pilot lamp: When the instrument is working, the indicator light is bright. 3．Printer: print measurement results. 4．Measurement button: When the measurement button is pressed, measurement starts. 5．Joystick: Adjust the measuring window position forward and backward/ Left and right / up and down.

  • Page 13: Accessories

    7．Reset print key（ ）: Reset print function. 8．Measuring unit: It is functional unit. 9．Locking lever: Fixation the main body to the base. 10．Power switch: Turn on or off the instrument power switch. 11．Forehead rest: Here on the forehead. 12．Measuring window: Measurement of retinal imaging 13．Chinrest: Fixed chin.

  • Page 14: Symbols

    WARNING The instrument accessoriesare provided by MSOC, and the accessories of other manufacturers need to be verified and confirmed before use. 3.3 Symbols The following symbolsare applied to the device. Equipment is to meet the basic requirements of the EU 0120 MDD 93/42/EEC.

  • Page 15: Operation Flow

    clockwise. The window drops when the joystick is turned counterclockwise.Press the button when the focus is completed. Button for chinrest up. Button for chinrest down. Button for reset. Button for print. 3.4Operation flow The design block diagram of the software and user interface is shown below. Through the operating interface,the user can achieve the measurement,data display, image analysis,the parameters and functions of the modification.
  • Page 16 The following introduceseveral main screens in detail: 1. Start screen Center shows the company LOGO,instrument type, company name and other information. 2. Measurement screen As shown in the figure： The function buttons on the screen and the display of each region are as follows: Set button ：...
  • Page 17 chapter. Clear button：Press this button to clear the test record in memory. Display history data button:Press this button to display the measured historical data. Display the symbol of the cylinder: touch this button can be cycle switch. PDMeasurement button: Touch this button to enter the PDMeasurementscreen. Measurement mode switch: Touch this key tocircularlyswitch measurement mode.

  • Page 18: Set Screen Description

    IOL switch button:Touch this key to switch IOL mode. 3.5Set screen description Touching the setting button in the measurement interface, you can enter the parameter settings screen. The buttons on the left side of the screen are all kinds of function parameters: Touch this button to display the REF function parameters.
  • Page 19 RM step:0.12D / 0.25D VERTEX DIST:0 / 12 / 13.5 / 15 CYL SIGN: -/ + /MIX AR CONTINUE:1/3/5 FOGGING: one time/always 2. KER functional parameter: KM unit: MM / D / AVG KM Display: 0.12D / 0.25D REF INDEX: 1.332 / 1.336 / 1.3375 KM CONTINUE 1/3/5 3.Function setting:...
  • Page 20 Language: English / Chinese PD display: OFF / ON Screen Sleep: OFF / 5MIN / 15MIN Beep job: OFF / ON Auto print: OFF / ON RM print: OFF / AVG / STD KR print: OFF / AVG / STD EyePrint: OFF / ON RS232C output: OLD / NEW baud rate: 115200 / 9600 / 4800 / 2400...
  • Page 21 Set information 1 and information 2.Information 1 and information 2 will be printed on the top and foot of the prescription list. 5. Time& Date setting Set the date and time of the instrument.
  • Page 22 Button in the left of the screen respectively expressed: Touch this key to show that REF measures the last ten sets of historical data. Touch this key to show that KER measures the last ten sets of historical data. Touching this button, according to the function set print REF and KER measurement data.

  • Page 23: Installation And Measurement Preparation

    4.Installation and measurement preparation 1．Unlock First, turn“9.Lockinglever”up Then,Use inner hexagon spanner of appendix to turn the screw in Figure 6 anticlockwise. Figure 6 unlock 2．Connect power cord Place the instrument on a horizontal table; Make sure that the power switch is turned off. Then connect the power cord plug to the “18.power inlet”...

  • Page 24: Measurement

    5.Measurement 5.1 Model eye measurement 1．Turn on main body power switch Connect main body to power inlet by power cord, turn on the power. 2．Set model eye Removing the chinrest paper, adjust the position of the model eye seat hole and the chinrest hole to insert the fixing pins after alignment.

  • Page 25: Patient Measurement

    Press the measurement button. If the following things happen, please turn off the power supply in a timely manner, unplug the AC power line and contact the dealer of MSOC. ● Instrument smoke, smell or noise. WARNING ●When liquid or metal enters the instrument. ●When the instrument is dropped or damaged.

  • Page 26: Self-Diagnosis And Maintenance

    6.Self-diagnosis and maintenance 6.1 Troubleshooting When the instrument is abnormal, please try to trouble shoot following the table. When Remedy Turning on power switch, The ·Make sure the power plug is connected to the power inlet. machine has no response. ·Make sure the fuse is installed and not broken.

  • Page 27: Replace Fuse

    ●Do not spray the liquid into the inspection head, otherwise it will cause damage to the instrument. WARNING ●Alcohol and acetone are forbidden. Strong solvents can cause damage. Disinfection: ①Before each patient was tested, the contact area of the patient should be cleaned and disinfected with medical alcohol (Forehead rest and Chinrest).

  • Page 28: Scrap

    ④Once every six months. ⑤ The maintenance shall be carried out at least once a month according to the requirements of cleaning in the section 6.3 in this manual. 6.7 Scrap The disposal of scrap products and accessories comply with the relevant laws and regulations of local government.

  • Page 29: Outline Dimension And Other Instructions

    7.Outline dimension and other instructions 7.1 Outline specification, Contraindication Outline specification: Main body: 487mm×262mm×467mm; Net weight:17kg Power:100-240V～ 50/60Hz,50VA Contraindication: Nothing 7.2 Service life The life time of the Auto Refractometer is 8 years. 7.3 Disclaimer The manufacturer shall be responsible for the safety. Reliability and performance of the product meet the following conditions: （1）Install according to the instruction manual.

  • Page 30: After-Sale Service

    Please fill table according to the following requirements and projects and issued to the agents of MSOC. ①Product model name: RM-9600/KR-9600 RM-9800/KR-9800 Serial number: The number and text recorded on the nameplate Problem Description: A detailed description of the problem...

  • Page 31: Main Specifications

    9.Main specifications Diopter measurement 0，12，13.5，15mm Spherical power（S） -25.00－ +22.00DS （Step 0.12/0.25D） Cylindrical power（C） 0.00－ ±10.00DC （Step 0.12/0.25D） Cylinder axis（A） 0－180°（Step 1°） Astigmatism symbol（CYL：） “—”，“+”，“±” 10 ~ 85 mm Corneal curvature radius：（KR） 5mm - 10mm（Step 0.01mm） Corneal refractive power：（KR） 67.50 m -1 - 33.75 m -1（0.12 m /0.25 m ）...

  • Page 32: Emc

    10.EMC(Electromagnetic Compatibility） Special precautions for electromagnetic compatibility are required for this equipment. And must be installed and used in accordance with the electromagnetic compatibility information specified in this specification. Portable and mobile radio frequency communications equipment may have an impact on the device You must use the cable and accessories provided by this equipment.
  • Page 33 Guidance and manufacturer's declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC60601 Electromagnetic environment - Immunity test Compliance level test level...
  • Page 34 environment - 150kHz - 80MHz communications equipment guidance 3 V/m 3 V/m should be usedno closer to any GB/T 17626.6 80MHZ - 2.5GHZ part of the device, including cables, therecommended Radiated RF separation distance calculated GB/T 17626.3 from the equationapplicable to the frequency of the transmitter.
  • Page 35 Recommended separation distances between portable and mobile RF communications equipment and the device The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the communications equipment.
