PST FM400 Manual

1、 Product Profile
Welcome to choose our company's WIFI smart valve controller,
This product has the characteristics of intelligence, low cost and
high reliability. It can be controlled by distance away, It adopts
WIFI international technology and is fully compatible with WIFI
network.
2、 Product specifications
Power supply voltage
Communication technology
Frequency of communication
Valve pressure
Valve specifications
Close valve time
Open valve time
Torque
Application System
Application Valve type

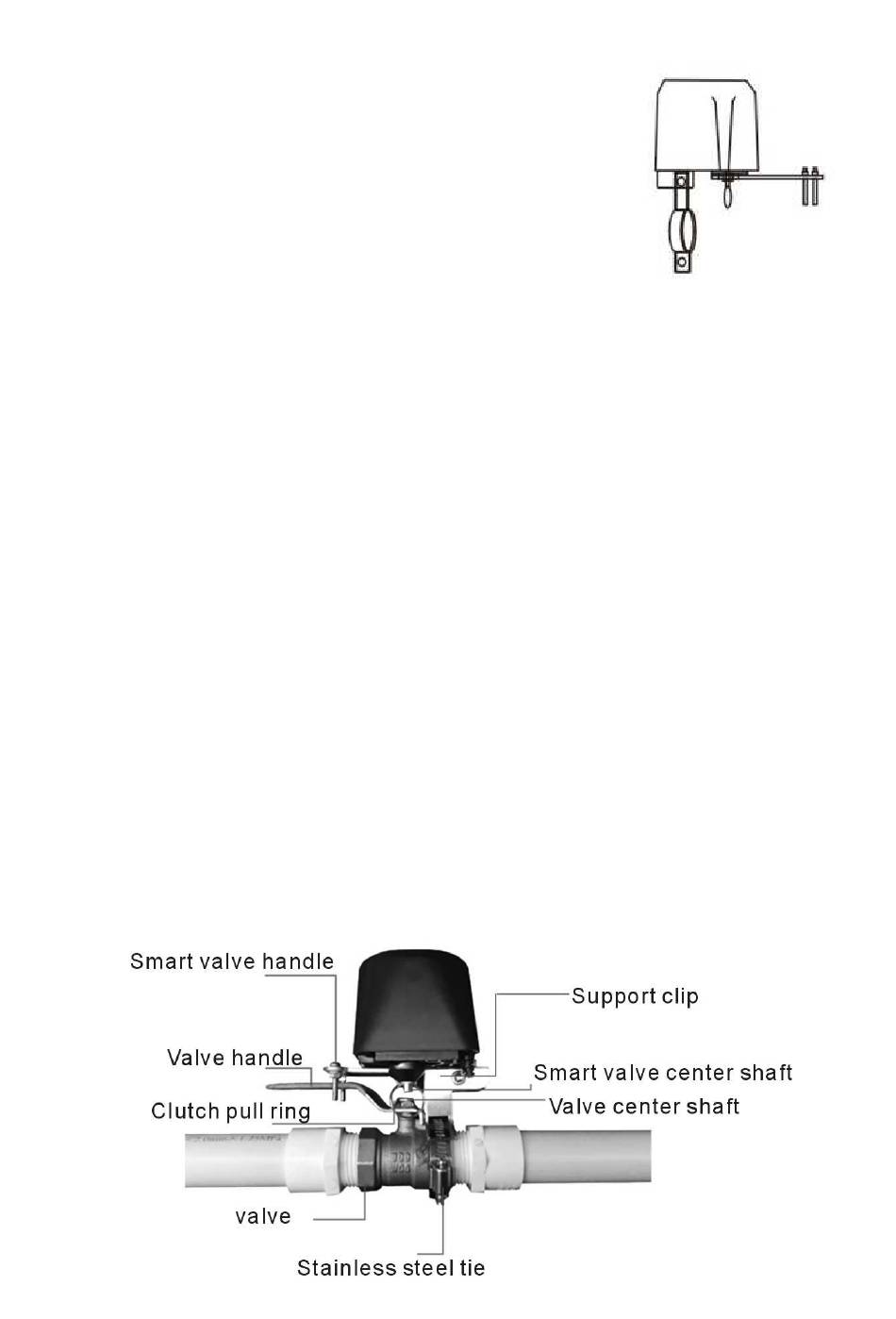

3、 Installation Guide
Install the bracket on the installation ear of the smart valve controller (screw is not tightened first).
①
Fix the mounting bracket on the water pipe or gas pipe (as shown in the figure).
②
Adjust the position of the smart valve controller, so that the output axis of the smart valve
③
controller is in line with the axis of the "water/gas pipe" valve handle. (Fig.) Then tighten the screw
at both ends of the mounting bracket. After the installation of the smart valve controller, Manually
pull down the clutch pull ring, Swing The smart valve controller Transfer handle,Check if the valve
switch is in place.
Tighten the screw of the smart valve controller handle clip according to the diagram
④
Connect the power adapter of 12V/1A.
⑤
Smart Valve controller Manual
12V/1A
WIFI
2.4g
1.6 mpa
4, 6, 1 inch, 1.25 inch
5-10 seconds
5-10 seconds
30-60 kgf.cm
IOS/android
Handle valve
