Summary of Contents for 4Ddoors HST-FS

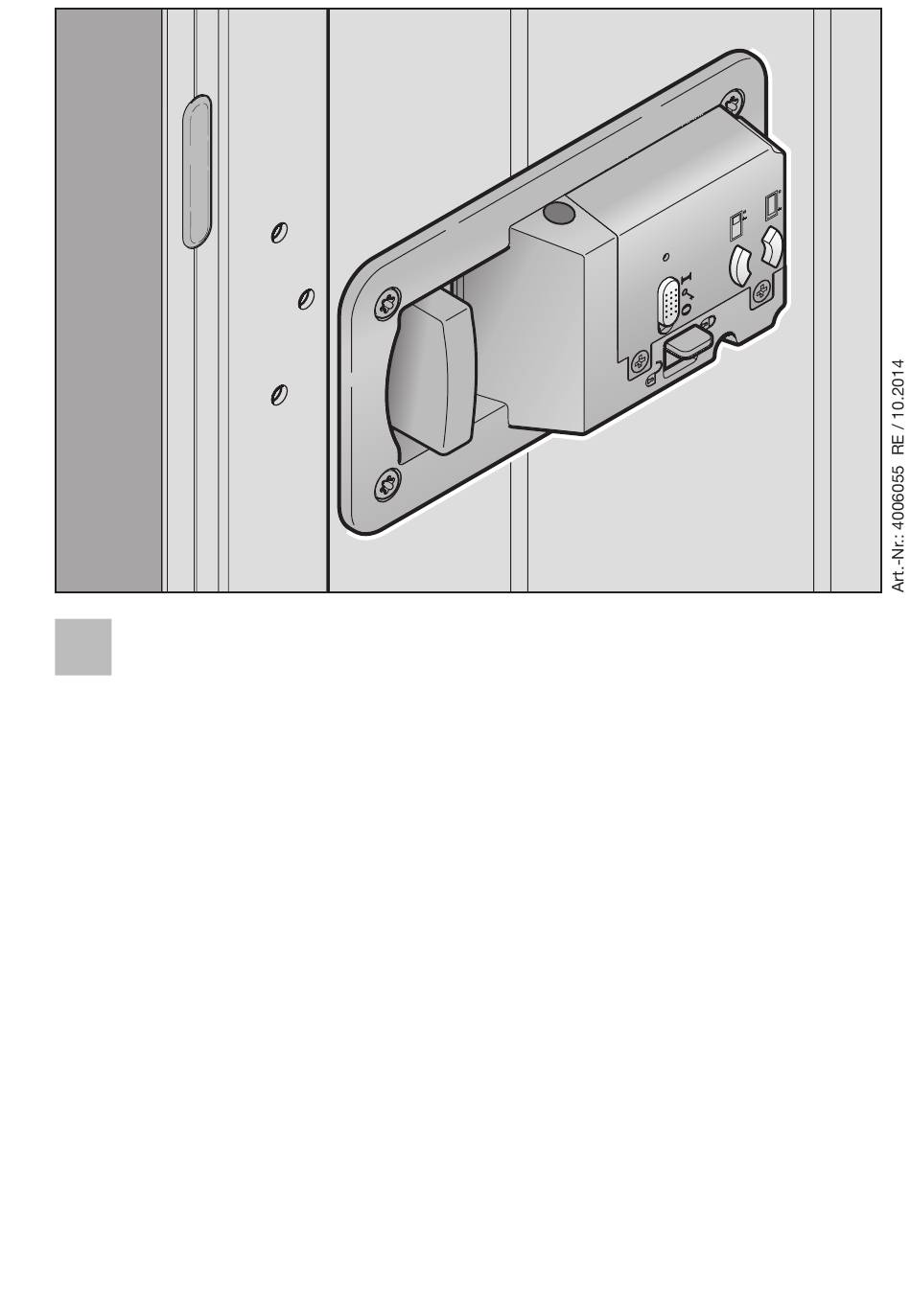

  • Page 1 Instructions for fitting and operation Door handle HST-FS...
  • Page 2 . 19 EN Door handle HST - FS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

  • Page 3: Table Of Contents

    ENGLISH Contents About these instructions ............... . 12 Safety instructions .

  • Page 4: About These Instructions

    ENGLISH About these instructions Read through all of the instructions carefully, as they contain important information about the product. Pay attention to and follow the instructions provided, particularly the safety instructions and warnings. Please keep these instructions in a safe place and make sure that they are available to all users at all times.

  • Page 5: Description Of The Radio Switch

    ENGLISH NOTES: • If there is no separate garage entrance, perform all programming changes and extensions of radio systems from inside the garage. • After programming or extending the radio system, perform a function test. • Only use original components when putting the radio system into service or extending it.

  • Page 6: Operation

    ENGLISH Operation NOTE: If the radio code for the taught-in transmitter button was copied from another hand transmitter beforehand, the transmitter button must be pressed a second time during initial start-up. Each transmitter button is assigned to a radio code. Press the transmitter button whose radio code you want to transmit.

  • Page 7: Teaching In A Radio Code

    ENGLISH 6 .1 Teaching in a radio code 1 . Press the hand transmitter button on hand transmitter A, whose radio code is to be inherited, and keep it pressed. – The radio code is transmitted and the LED is illuminated blue for 2 seconds then goes out.

  • Page 8: Mixed Operation / Bisecur And Fixed Code 868 Mhz

    ENGLISH 6 .2 Mixed operation / BiSecur and fixed code 868 MHz If the BiSecur radio has been set, mixed operation is possible, i.e. existing hand transmitters with an 868 MHz fixed code (grey hand transmitters with blue buttons or the device designation HSD2-868) can be taught in from the BiSecur hand transmitter.

  • Page 9: Led Display

    ENGLISH LED display Blue (BU) Condition Function Illuminated for 2 seconds A radio code is being transmitted Flashes slowly Radio switch is in the learn mode Flashes quickly after slow A valid radio code was detected during the flashing learning run Flashes slowly for 4 seconds Device reset is being performed or completed Flashes quickly for 2 seconds...

  • Page 10: Technical Data

    ENGLISH Technical data Type Door handle HST-FS Frequency 868 MHz Power supply 1× 1,5 V battery, type: AAA (LR03) Perm. ambient temperature – 20 °C to + 60 °C Protection category IP 20 EC Declaration of Conformity (as defined in the R&TTE guideline 1999/5/EC)
  • Page 11 4006055 RE / 10.2014...
