Summary of Contents for JML DriBUDDI Elite

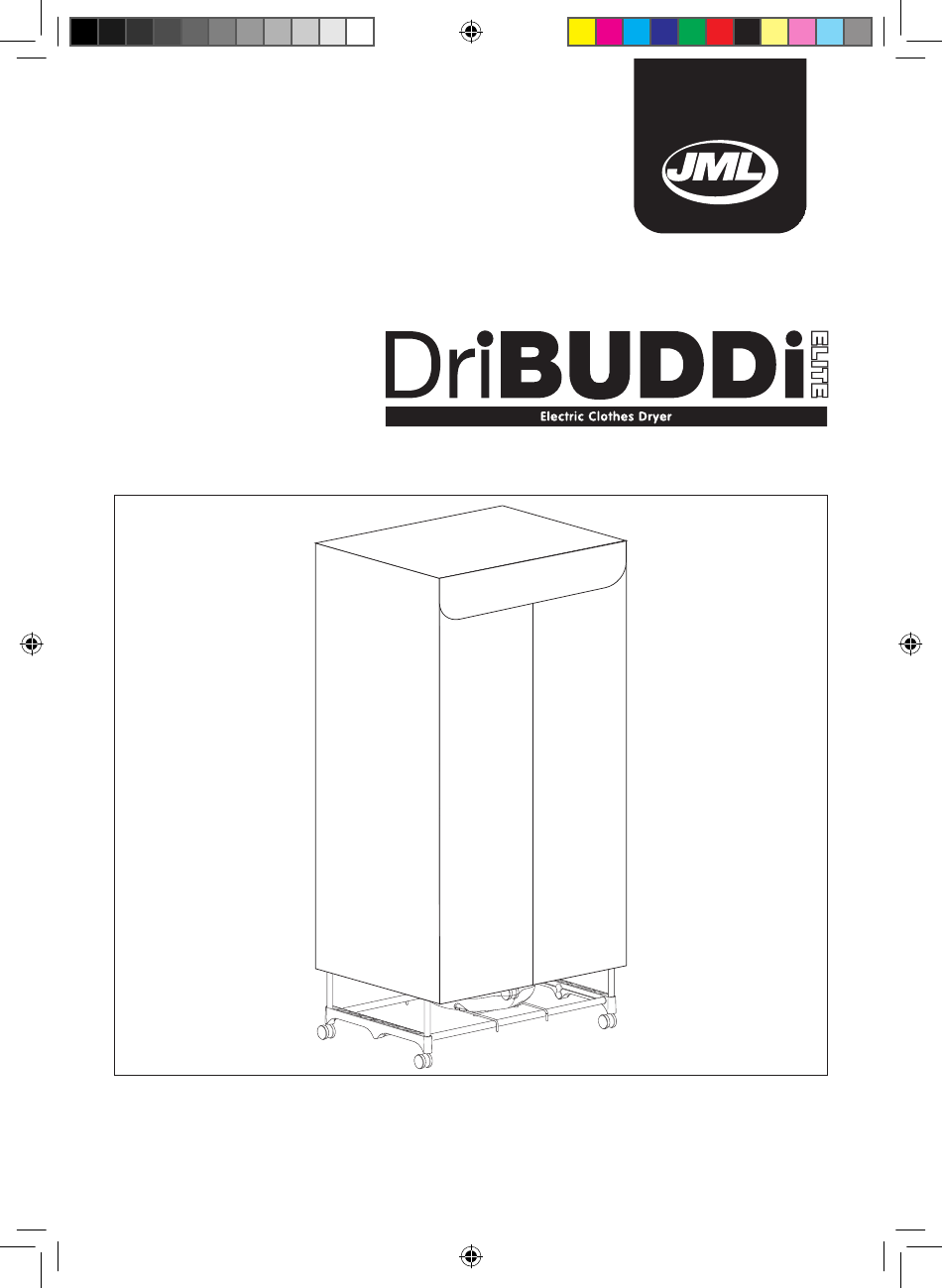

- Page 1 Instructions DBE_INS_A.indd 1 08/11/2013 16:58...
-
Page 2: Table Of Contents
Thank you for purchasing DriBUDDI Elite from JML. To get the best performance from this warm air clothes dryer, please read these instructions in full and retain for future reference. Contents Safety Warnings & Advice ....................3 Your DriBUDDI Elite......................4 Assembling DriBUDDI Elite .................... -
Page 3: Safety Warnings & Advice
Safety Warnings & Advice • DO NOT use DriBUDDI for any purpose other than those described in this manual. • For indoor household use only. • This appliance is not intended for use by anyone with reduced physical, sensory or mental capabilities, or a lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of this appliance by a person responsible for their safety. -
Page 4: Your Dribuddi Elite
Your DriBUDDI Elite 6 x Brackets Motor Unit Top Motor Unit Shelf Motor Unit 2 x Wheels 16 x Poles 2 x Locking Wheels Cover DBE_INS_A.indd 4 08/11/2013 16:58... -
Page 5: Assembling Dribuddi Elite
Your DriBUDDI Elite Assembling DriBUDDI Elite Step 1 Take two Poles and two Brackets and join them together. Step 2 The curved edge of a Bracket should point downwards. Insert wheels into all four empty downward sockets. Note: Two wheels have brake clamps. Place these where you will be able to easily access them when DriBUDDI is in use. - Page 6 Your DriBUDDI Elite Step 4 Unfold the Cover and unzip. Locate the four corner holes at the bottom of the Cover (these are different to the round air holes at the top). Place each of the Poles on the frame through a corner hole, then slide the cover down over the Poles.
- Page 7 Your DriBUDDI Elite Step 6 You can add a third Pole to the middle if you want to hang two rows of smaller items, like children’s clothes or underwear. Step 7 Add four more Poles. DBE_INS_A.indd 7 08/11/2013 16:58...
- Page 8 Your DriBUDDI Elite Step 8 Take the last two Brackets and three Poles and join them together. Place on top of the frame to complete it. Step 9 Step 10 Pull the Cover up and over the frame. Using a Philips-head screwdriver, remove the Motor Unit Top from the Motor Unit.
-
Page 9: Using Dribuddi Elite
1. Plug DriBUDDI into a mains socket and switch on. A light should appear on the Motor Unit, just above the dial. This signifies that DriBUDDI is on. 2. Unzip the Cover and hang your clothes inside DriBUDDI. DriBUDDI Elite can hold up to 15kg of damp clothing. Plastic hangers are recommended. -
Page 10: Recommendations
Recommendations Please Note: DriBUDDI should only be used in a well-ventilated area. If ventilation is lacking, it can also be used near an open window. DO NOT push directly up against a wall; leave at least a gap of an inch so air can circulate. •... -
Page 11: Cleaning & Maintenance
This product is unconditionally guaranteed for one year against all defects of workmanship and materials. This guarantee does not affect your statutory rights. If you have any problems or queries about this product please contact JML. UK Customer Services: 0800 781 7831 (Freephone) ROI Customer Services: 041-978 0003 (Local rate) DBE_INS_A.indd 11... - Page 12 Distributed by JML JML Unit 1 Eastside, Port of Tyne South Shields, NE33 5SP UK Customer Services: 0800 781 7831 (Freephone) ROI Customer Services: 041-978 0003 (Local rate) E-mail: info@JMLgroup.co.uk Product code: V04079 10/13 DBE_INS_A.indd 12 08/11/2013 16:58...
