Operation & Maintenance Manual

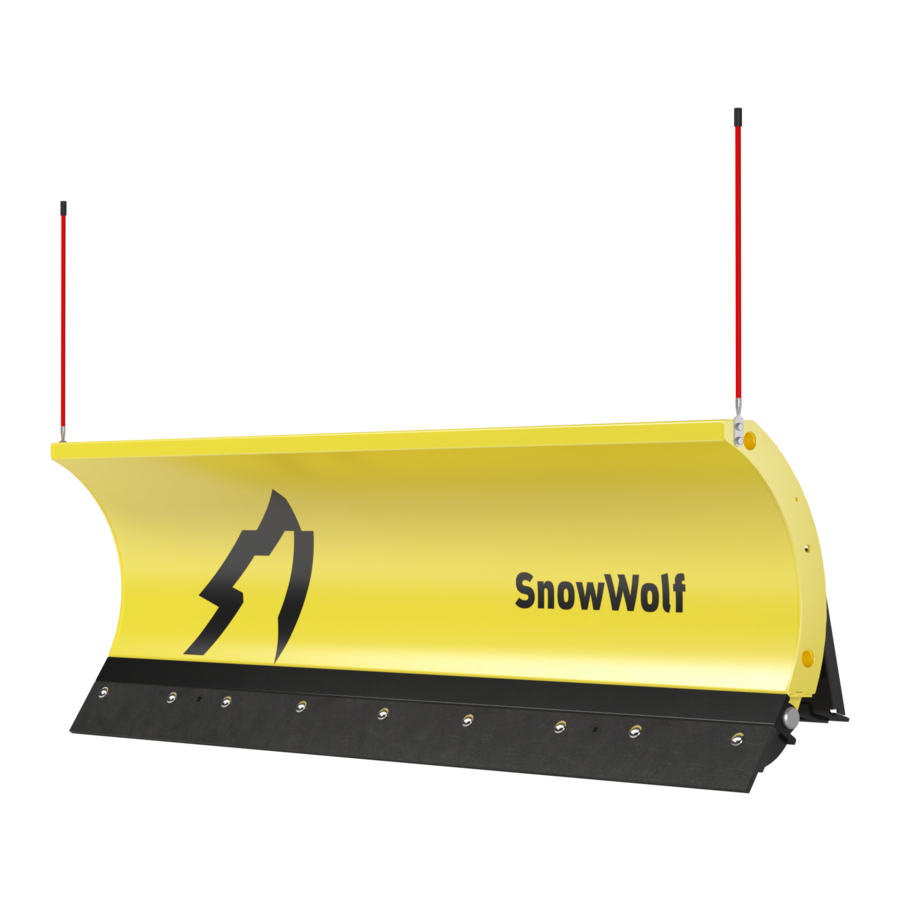

UltraPlow
™
6,000 - 15,000 lb.
!
REMEMBER:
Register your product! No claims for warranty shall be considered unless your product
registration card is completed online within 30 days of purchase. Go to: snowwolfplows.com/registration.
04/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UltraPlow and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SNOW WOLF UltraPlow

Summary of Contents for SNOW WOLF UltraPlow

  • Page 1 Operation & Maintenance Manual UltraPlow ™ 6,000 - 15,000 lb. REMEMBER: Register your product! No claims for warranty shall be considered unless your product registration card is completed online within 30 days of purchase. Go to: snowwolfplows.com/registration. 04/2020...
  • Page 2 MANUFACTURER'S WARRANTY Two-Year Limited Warranty SNOWWOLF International, hereinafter referred to as SNOWWOLF, warrants new SNOWWOLF SNOW PLOWS at the time of delivery to the original purchaser, to be free from defects in material and workmanship when properly set up and operated in accordance with the recommendations set forth by SNOWWOLF.

  • Page 3: Table Of Contents

    ............. .32 UltraPlow Operation and Maintenance Manual...
  • Page 4 ............71 UltraPlow Operation and Maintenance Manual...

  • Page 5: Introduction

    ............... .7 UltraPlow Operation and Maintenance Manual...
  • Page 6 UltraPlow Operation and Maintenance Manual...

  • Page 7: Owner Information

    Date of Purchase: local, state, and federal codes, regulations and / or laws. Follow all on-product labeling and Always use the serial number of the UltraPlow instructions. when requesting service information or when Make sure that all personnel have read this ordering parts.

  • Page 8: Attachment Identification

    Attachment Identification A-FRAME BLADE MARKER GUIDE BLADE CUTTING EDGE WEAR SHOE TRIP-EDGE TRIP SIDE WING SPRINGS ANGLE CYLINDER WEAR SHOE UltraPlow Operation and Maintenance Manual...

  • Page 9: Standard Models

    UltraPlow-132, 11-FT Standard Items • Trip Springs • Universal Skid Steer Compatible • UltraMAX Hydraulic Cylinder • Crossover Relief Valve (Standard on UltraPlow Models 96, 108, 120 & 132) Options • Wear Shoes • Spill Guard • High Carbon Cutting Edge •...
  • Page 10 UltraPlow Operation and Maintenance Manual...

  • Page 11: Safety

    ............12 UltraPlow Operation and Maintenance Manual...
  • Page 12 UltraPlow Operation and Maintenance Manual...

  • Page 13: Safety Information

    It may also be used to alert against unsafe practices. The signal word IMPORTANT identifies procedures which must be followed to avoid damage to the machine. UltraPlow Operation and Maintenance Manual...

  • Page 14: Importance Of Safety

    • Keep shields and guards in place. Replace if • The UltraPlow attachment is intended for use damaged. in snow removal. Use of this equipment in any other manner is considered to be contrary to •...
  • Page 15 • Always disconnect hydraulic connections Fire Prevention Safety between the machine and the UltraPlow before performing maintenance to the UltraPlow. • Flammable debris (leaves, grass, etc.) must be removed regularly. If flammable debris is • Always clean fluid spills. Do not use gasoline or allowed to accumulate, it can cause a fire diesel fuel for cleaning parts.
  • Page 16 UltraPlow Operation and Maintenance Manual...

  • Page 17: Operation

    .............23 UltraPlow Operation and Maintenance Manual...
  • Page 18 UltraPlow Operation and Maintenance Manual...

  • Page 19: General Information

    Operation General Information Pre-Operation Inspection Before operating the UltraPlow for the first time and each time thereafter, use the following list as a guideline during equipment inspection. Leaking fluids under pressure can enter the skin and cause serious injury or death.

  • Page 20: Attachment Inspection

    Operation Attachment Inspection Monthly Inspection • Inspect the UltraPlow for cracks, bends, or Daily Inspection excessive wear. • Check wear plates (if equipped) for wear. NOTE: Inspect the attachment by performing a walk around daily before and after use. •...

  • Page 21: Attachment Installation

    UltraPlow mounting frame. FOR ADDITIONAL INFORMATION. Slowly raise and tilt the machine’s mounting plate back until the UltraPlow is slightly off the ground Park the machine / attachment on a flat level and attachment mounting frame fully contacts the surface.

  • Page 22: Hydraulic Couplers

    Operator’s Position” on page 19. quickly damage the hydraulic system. Engage machine’s locking levers / wedges to securely fasten the UltraPlow to the machine’s mounting frame. (See the machine’s Operation Manual for the correct procedure.) Visually inspect that the wedge pins are securely fastened into the UltraPlow mounting frame.

  • Page 23: Checking Ultraplow Operation

    Engage the machine’s auxiliary hydraulics. (See the machine’s Operation Manual for correct procedure). Raise the engine RPM. Check the controls of the UltraPlow for proper operation. Install the UltraPlow male coupler (Item 1) [Figure Exit the machine. (See “Leaving The Operator’s 1] into the female coupler.

  • Page 24: Operating The Attachment

    30.) Enter the machine. (See “Entering The Operator’s Position” on page 19.) The UltraPlow has been designed to stack snow if Start the engine and release the parking brake. desired [Figure 2]. Engage the machine’s auxiliary hydraulics. (See the machine’s Operation Manual for correct...

  • Page 25: Attachment Removal

    Park the machine and attachment on a flat level hydraulic hoses. surface. Lower the lift arms and put the UltraPlow flat on Enter the machine. (See “Entering The Operator’s the ground. Position” on page 19.) Stop the engine and engage the parking brake.
  • Page 26 UltraPlow Operation and Maintenance Manual...

  • Page 27: Maintenance

    ............. .33 UltraPlow Operation and Maintenance Manual...
  • Page 28 UltraPlow Operation and Maintenance Manual...

  • Page 29: Maintenance Safety

    UltraPlow. • Always disconnect hydraulic connections between the machine and the UltraPlow before performing maintenance. • Before working or doing maintenance on this machine, shut off the engine and remove the key. Make sure the machine’s wheels are blocked.

  • Page 30: General Maintenance

    Safety signs and reflectors for damage. Replace any missing or damaged decals. • Cutting edge for wear or damage. • Hydraulic hoses and fittings for wear, damage or leaks. NOTE: Repair or replace any damaged parts. UltraPlow Operation and Maintenance Manual...

  • Page 31: Ultraplow Maintenance

    (if equipped), wait for all moving parts to come to a stop and relieve all pressure in the hydraulic lines. 5. Block and/or support the UltraPlow with proper lifting device capable of sufficiently supporting AVOID SERIOUS INJURY OR DEATH the unit's weight.

  • Page 32: Cutting Edge Trip Spring Adjustment / Replacement

    Wear Shoe Adjustment / Adjustment / Replacement Replacement (if equipped) Place blocks under the UltraPlow (both sides) to hold the wear shoe off the ground. Remove the retaining pin, spacers and remove Set trip springs after first use, then twice per the wear shoe.

  • Page 33: Side Wing Cutting Edge Replacement (If Equipped)

    Side Wing Cutting Edge Trip Edge Side Wing Cutting Edge Replacement (if equipped) Replacement (if equipped) Place blocks under the UltraPlow (both sides) to hold the side wing cutting edges off the ground. Figure 5 AVOID SERIOUS INJURY OR DEATH Securely block up the attachment before working underneath.

  • Page 34: Troubleshooting

    UltraPlow does not rotate. Plugged or kinked hose Replace hose. Check machine hydraulic oil Hydraulic fluid low. level. Check machine hydraulic oil Hydraulic fluid low. UltraPlow tilt/rotate functions level. inconsistent. Faulty angle cylinder. Replace cylinder. UltraPlow Operation and Maintenance Manual...

  • Page 35: Storage And Return To Service

    Storage And Return To Service Storage Return to Service After the seasons use or when the UltraPlow will After the UltraPlow has been in storage, it is not be in use for a period of time, perform the necessary to follow a list of items to return the following steps.
  • Page 36 UltraPlow Operation and Maintenance Manual...

  • Page 37: Parts

    ..............64 UltraPlow Operation and Maintenance Manual...
  • Page 38 UltraPlow Operation and Maintenance Manual...
  • Page 39 Parts This page left intentionally blank UltraPlow Operation and Maintenance Manual...

  • Page 40: Models 72, 84, 96

    BLADE ASSEMBLY, FOR ULTRA-96 P40096 SNOWPLOW P40002A-3 ULTRA PLOW TRIP EDGE WELDMENT 6FT P40002-L ULTRA PLOW TRIP EDGE WELDMENT 7FT P40002-M ULTRA PLOW TRIP EDGE WELDMENT 8FT P40006 PIN, UPPER PIVOT/TRIP EDGE 1-3/16” x 3” UltraPlow Operation and Maintenance Manual...
  • Page 41 P60214 BOLT, HEX, 5/16-18 x 1-1/4”, ZINC, GRADE 5 * Parts not used if crossover relief valve option is not installed on the UltraPlow 72 & 84. See No Crossover Relief parts on page 47. For items 10 or above: See “Options” on page 40.

  • Page 42: Options

    60003 WOLFWING SIDE WING KIT 60003-TE TRIP-EDGE WOLFWING SIDE WING KIT FASTTACH 50025 FASTTACH™ QUICK RELEASE WEAR SHOE WELDMENT, WEAR SHOE, W/SPACERS & P40003-K KLIK PINS P50013-1 CURB GUARD LEFT & RIGHT, See Page 64 UltraPlow Operation and Maintenance Manual...

  • Page 43: Hydraulics (72, 84, 96)

    Parts Hydraulics (72, 84, 96) Hoses ITEM PART # DESCRIPTION P50008 HOSE, 3/8” x 78”, 3000 PSI, 6FJIC-8FJIC P50008-E HOSE, 3/8” x 18”, 3000 PSI, 6FJIC-6FJIC P60082 HOSE, 3/8” x 38”, 3000 PSI, 6FJIC-6FJIC UltraPlow Operation and Maintenance Manual...

  • Page 44: Hydraulic Components

    ANGLE CYLINDER, NITRO STEEL 2” ROD, ULTRAMAX, P50006-B ULTRAPLOW * Parts not used if crossover relief valve option is not installed on the UltraPlow 72 & 84. See No Crossover Relief parts on page 43. UltraPlow Operation and Maintenance Manual...

  • Page 45: No Crossover Relief, (72, 84 Models Only)

    HOSE CLAMP P60160 PLATE, HOSE CLAMP P50008 HOSE, 3/8” x 78”, 3000 PSI, 6FJIC-8FJIC P50008-D HOSE, 3/8” x 94”, 3000 PSI, 6FJIC-8FJIC P60090 NUT, HEX, NYLOCK, 5/16”-18 P60215 BOLT, HEX, 5/16” x 2”, ZINC GRADE 5 UltraPlow Operation and Maintenance Manual...

  • Page 46: Models 108, 120, 132

    BLADE ASSEMBLY, FOR ULTRA-108 SNOWPLOW P40120 BLADE ASSEMBLY, FOR ULTRA-120 SNOWPLOW P40132 BLADE ASSEMBLY, FOR ULTRA-132 SNOWPLOW P40002-N ULTRA PLOW TRIP EDGE WELDMENT 9FT P40002-O ULTRA PLOW TRIP EDGE WELDMENT 10FT P40002-P ULTRA PLOW TRIP EDGE WELDMENT11FT UltraPlow Operation and Maintenance Manual...
  • Page 47 NUT, HEX, NYLOCK, 5/8-11, ZINC P60092 WASHER, FLAT, 5/16” SAE P60214 BOLT, HEX, 5/16-18 x 1-1/4”, ZINC, GRADE 5 For items 10 or above: See “Options” on page 46. For hydraulic hoses: See “Hoses” on page 47. UltraPlow Operation and Maintenance Manual...

  • Page 48: Options

    60003 WOLFWING SIDE WING KIT 60003-TE TRIP-EDGE WOLFWING SIDE WING KIT FASTTACH 50025 FASTTACH™ QUICK RELEASE WEAR SHOE WELDMENT, WEAR SHOE, W/SPACERS & KLIK P40003-K PINS P50013-1 CURB GUARD LEFT & RIGHT, See Page 64 UltraPlow Operation and Maintenance Manual...

  • Page 49: Hydraulics (108, 120, 132)

    Parts Hydraulics (108, 120, 132) Hoses ITEM PART # DESCRIPTION P50008 HOSE, 3/8” x 78”, 3000 PSI, 6FJIC-8FJIC P50008-E HOSE, 3/8” x 18”, 3000 PSI, 6FJIC-6FJIC P60082 HOSE, 3/8” x 38”, 3000 PSI, 6FJIC-6FJIC UltraPlow Operation and Maintenance Manual...

  • Page 50: Hydraulic Components

    COUPLER,1/2” FEMALE FLAT FACE 1/2” BODY x 3/4” SAE PORT P50010M COUPLER, 1/2” MALE FLAT FACE 1/2” BODY x 3/4” SAE PORT P60002 RELIEF VALVE, CROSSOVER, NO HOSES ANGLE CYLINDER, NITRO STEEL 2” ROD, ULTRAMAX, P50006-B ULTRAPLOW UltraPlow Operation and Maintenance Manual...
  • Page 51 Parts This page left intentionally blank UltraPlow Operation and Maintenance Manual...

  • Page 52: Models Ultraxt108, Ultraxt120, Ultraxt132

    Parts Models UltraXT108, UltraXT120, UltraXT132 Parts 1.10 ULTRA ULTRA ULTRA ITEM PART # DESCRIPTION XT-108 XT-120 XT-132 P40108XT BLADE ASSEMBLY, ULTRAXT-126 P40120XT BLADE ASSEMBLY, ULTRAXT-120 P40132XT BLADE ASSEMBLY, ULTRAXT-132 UltraPlow Operation and Maintenance Manual...
  • Page 53 SPILL GUARD 10’ P60249 SPILL GUARD 11’ For items above 9: See “Options (UltraXT Models)” on page 52. For hydraulic hoses: See “Hoses” on page 53. For hydraulic components: See “Hydraulic Components” on page 54. UltraPlow Operation and Maintenance Manual...

  • Page 54: Options (Ultraxt Models)

    60003 WOLFWING SIDE WING KIT 60003-TE TRIP-EDGE WOLFWING SIDE WING KIT FASTTACH 50025 FASTTACH™ QUICK RELEASE WEAR SHOE WELDMENT, WEAR SHOE, W/SPACERS & KLIK P40003-K PINS P50013-1 CURB GUARD LEFT & RIGHT, See Page 64 UltraPlow Operation and Maintenance Manual...

  • Page 55: Hydraulics (Xt108, Xt120, Xt132)

    Parts Hydraulics (XT108, XT120, XT132) Hoses ITEM PART # DESCRIPTION P50008 HOSE, 3/8” x 78”, 3000 PSI, 6FJIC-8FJIC P50008-E HOSE, 3/8” x 18”, 3000 PSI, 6FJIC-6FJIC P60082 HOSE, 3/8” x 38”, 3000 PSI, 6FJIC-6FJIC UltraPlow Operation and Maintenance Manual...

  • Page 56: Hydraulic Components

    COUPLER,1/2” FEMALE FLAT FACE 1/2” BODY x 3/4” SAE PORT P50010M COUPLER, 1/2” MALE FLAT FACE 1/2” BODY x 3/4” SAE PORT P60002 RELIEF VALVE, CROSSOVER, NO HOSES ANGLE CYLINDER, NITRO STEEL 2” ROD, ULTRAMAX, P50006-B ULTRAPLOW UltraPlow Operation and Maintenance Manual...

  • Page 57: Trip Edge Generations

    4.00 3.50 3.00 3.00 6.75 "CENTER PUNCH" 3.00 GENERATION 3 GENERATION 3 HOLE 3.75 3.00 3.00 5.25 "TOP PUNCH" 1.50 GENERATION 4 HOLE 2.25 GENERATION 4 4.38 HOLE "CURRENT" 6.00 GENERATION 5 GENERATION 5 3.00 UltraPlow Operation and Maintenance Manual...

  • Page 58: Options

    FLEX FRAME, A-FRAME WELDMENT, BLACK P50028 FLEX FRAME MOUNT PLATE P50029 REAR TORSION CLAM SHELL P50030 FLEX FRAME, REAR TORSION WELDMENT P60010 BOLT, CARRAIGE, 5/8-11 x 2” ZINC, GRADE 5 P60096 WASHER, FLAT, 5/8” SAE, GR8 UltraPlow Operation and Maintenance Manual...

  • Page 59: Active Edge, 18" Sectional Blade

    NUT, LOCK, 5/8-11, ZINC P50011-18-SEC BLADE, 18” P60008 BOLT, CARRIAGE, 5/8-11 x 2-1/2” P60255 RETAINING WELDMENT, 18” P60253 BUSHING, STANOFF P60254 SPRING, RUBBER P60251-K KIT, 18” SECTION (kit includes items 1, 2, 3, 4, 5, & 6) UltraPlow Operation and Maintenance Manual...

  • Page 60: Active Edge, 24" Sectional Blade

    NUT, LOCK, 5/8-11, ZINC P50011-24-SEC BLADE, 24” P60008 BOLT, CARRIAGE, 5/8-11 x 2-1/2” P60252 RETAINING WELDMENT, 24” P60253 BUSHING, STANOFF P60254 SPRING, RUBBER P60250-K KIT, 24” SECTION (kit includes items 1, 2, 3, 4, 5, & 6) UltraPlow Operation and Maintenance Manual...

  • Page 61: Wolfwing Side Wing Kit (60003)

    CUTTING EDGE, URETHANE, LEFT SIDE WING P60004-R CUTTING EDGE, URETHANE, RIGHT SIDE WING P60007 HOLD DOWN STRIP, FOR WOLFWING CUTTING EDGE P60008 BOLT, CARRIAGE, 5/8-11 x 2-1/2” P60035 NUT, HEX, NYLOCK, 5/8-11, YELLOW ZINC, GRADE 8 UltraPlow Operation and Maintenance Manual...

  • Page 62: Trip Edge Wolfwing Side Wing Kit (60003-Te)

    WELDMENT, WING, TE WOLFWING LEFT SIDE P60012R WELDMENT, TRIP EDGE, WOLFWING RIGHT SIDE P60041 SPRING, COIL, FOR TRIP EDGE WOLFWING P60042 WELDMENT, TRIP EDGE, FOR TRIP EDGE WOLFWING P60044 WOLF WING TRIP BLADE P60046 SPRING SPACER TUBE UltraPlow Operation and Maintenance Manual...
  • Page 63 Parts This page left intentionally blank UltraPlow Operation and Maintenance Manual...

  • Page 64: Ultraplow Fasttach

    Parts UltraPlow FastTach 20 15 UltraPlow Operation and Maintenance Manual...
  • Page 65 BOLT, CARRIAGE, 5/8-11 x 2” ZINC, GRADE 5 P60020 WELDMENT, FASTTACH RIGHT SIDE ULTRAPLOW P60021 WELDMENT, FASTTACH LEFT SIDE ULTRAPLOW P60022 ATTACHING BRACKET, FASTTACH, LEFT OR RIGHT, ULTRAPLOW (EAR) P60024 NUT, LOCK, 1-8, ZINC, GRADE C P60025 CONNECTING SPAN BAR, UPPER OR LOWER, ULTRAPLOW...

  • Page 66: Curb Guard

    Parts Curb Guard ITEM PART # DESCRIPTION P50013-1 PLATE, CURB GUARD (R or L Kit for Top and Center Punch) UltraPlow Operation and Maintenance Manual...

  • Page 67: Specifications

    ............71 UltraPlow Operation and Maintenance Manual...
  • Page 68 UltraPlow Operation and Maintenance Manual...

  • Page 69: Specifications

    Opt. Opt. Opt. Flex Frame Opt. Opt. Opt. 3PT Frame Opt. Opt. Opt. A Frame (black) Opt. Opt. Opt. Wolf Wing Opt. Opt. Opt. Trip Edge Wolf Wing Opt. Opt. Opt. FastTach Opt. Opt. Opt. UltraPlow Operation and Maintenance Manual...
  • Page 70 Opt. High Carbon Curb Guards Active Edge Opt. Opt. Flex Frame Opt. Opt. 3PT Frame Opt. Opt. A Frame (black) Opt. Opt. Wolf Wing Opt. Opt. Trip Edge Wolf Wing Opt. Opt. FastTach Opt. Opt. UltraPlow Operation and Maintenance Manual...
  • Page 71 Opt. Opt. Opt. Flex Frame Opt. Opt. Opt. 3PT Frame Opt. Opt. Opt. A Frame (black) Opt. Opt. Opt. Wolf Wing Opt. Opt. Opt. Trip Edge Wolf Wing Opt. Opt. Opt. FastTach Opt. Opt. Opt. UltraPlow Operation and Maintenance Manual...

  • Page 72: Dimensions

    Overall Length 47.3 in. 47.3 in. 47.3 in. 47.3 in. 47.3 in. 47.3 in. With Wings (D) Overall Cutting Width, 94.6 in. 106.6 in. 118.6 in. 130.6 in. 142.6 in. 154.6 in. With Wings (E) UltraPlow Operation and Maintenance Manual...

  • Page 73: Torque Specifications

    708 ft / lb 773 ft / lb 1000 ft / lb 386 ft / lb 545 ft / lb (289 N•m) (373 N•m) (742 N•m) (960 N•m) (1048 N•m) (1356 N•m) (523 N•m) (739 N•m) UltraPlow Operation and Maintenance Manual...
  • Page 74 UltraPlow Operation and Maintenance Manual...
  • Page 76 14311 Ewing Avenue, Burnsville, MN 55306 1-800-905-2265 snowwolfplows.com © 2020 SnowWolf...
