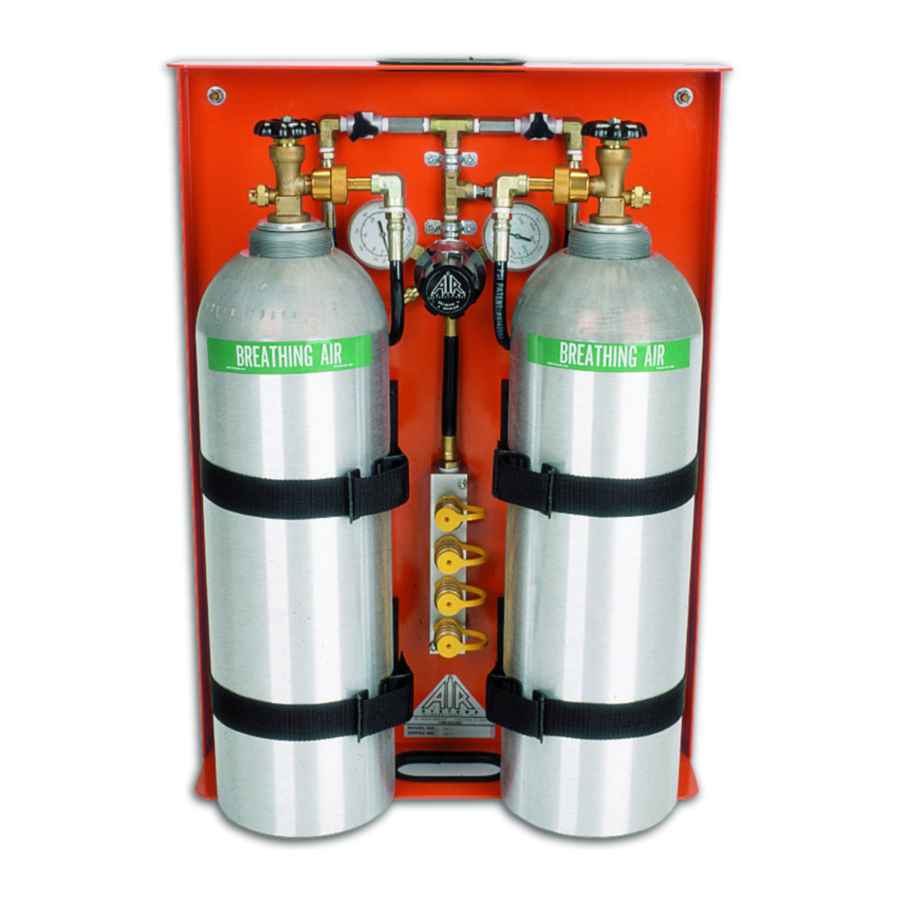

OPERATING INSTRUCTIONS AND REPLACEMENT PARTS
Models: PAK-3 and PAK-3HI
WArnInG
this manual must be read carefully and followed by all persons who have or will have the responsibility
for using or servicing this equipment. this equipment will perform as designed only if used according
to the instructions. otherwise it could fail to perform as designed, causing personal injury or death.
AIr SySteMS InternAtIonAl, Inc.
829 Juniper Crescent, Chesapeake, Va, 23320
Telephone (757) 424-3967
Toll Free 1-800-866-8100
Fax No. (757) 424-5348
www.airsystems.com.
e-mail: sales@airsystems.com
Advertisement
Table of Contents
Summary of Contents for AIR SYSTEMS INTERNATIONAL PAK-3

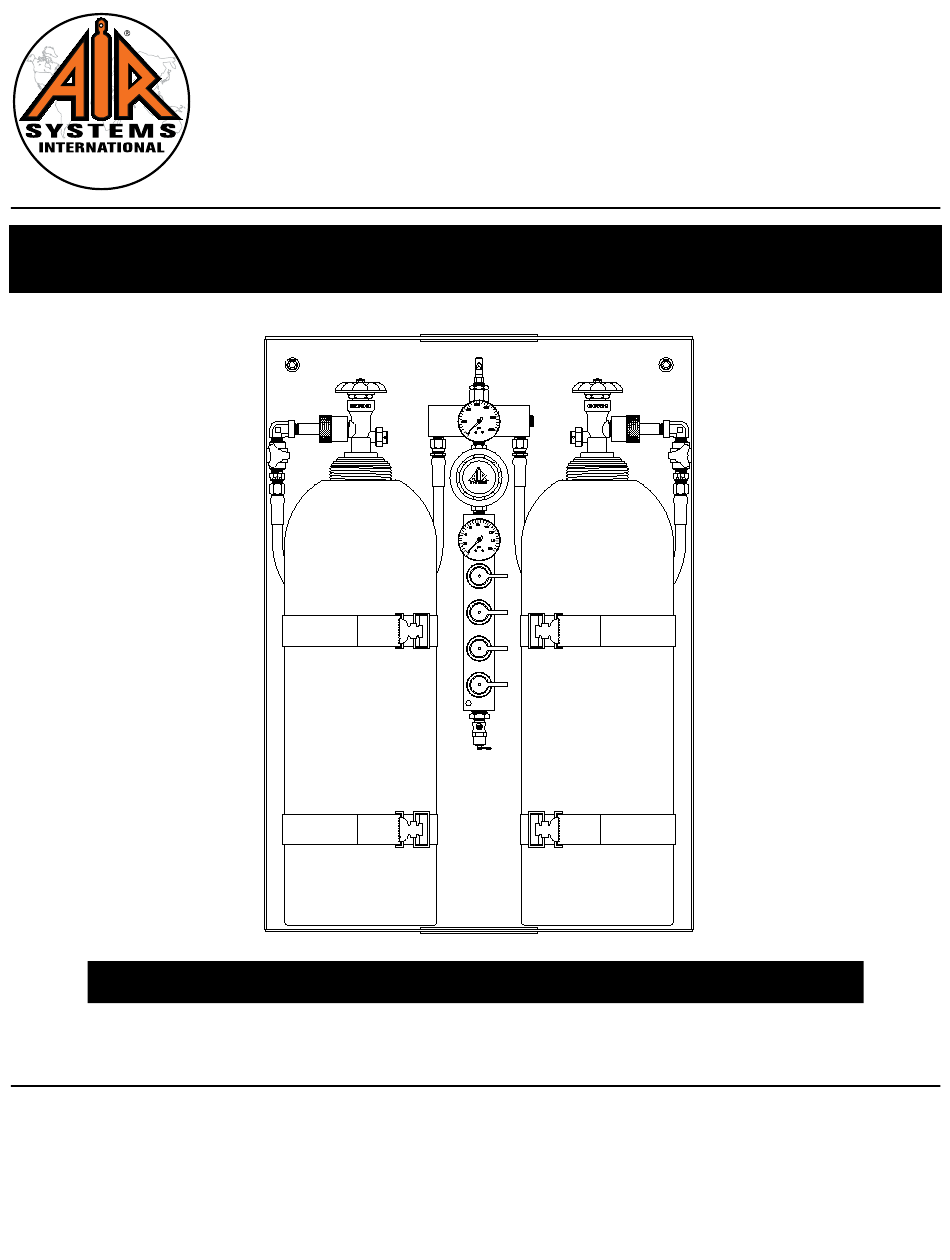

- Page 1 OPERATING INSTRUCTIONS AND REPLACEMENT PARTS Models: PAK-3 and PAK-3HI WArnInG this manual must be read carefully and followed by all persons who have or will have the responsibility for using or servicing this equipment. this equipment will perform as designed only if used according to the instructions.
-
Page 2: Specifications
Specifications Dimensions 29.5”L X 21”W X 6.5”D Weight 27 lbs. Frame Powdercoated Aluminum Whips Thermo-Plastic Hose Rated @ 5000 PSI with a 4:1 Safety Factor Low Pressure Alarm Whistle Set @ 500 PSI 5000 PSI Max Inlet Pressure / 125 PSI Max Outlet Pressure Pressure Regulator Flow Rate - 80 CFM @ 5000 PSI Inlet Pressure and 80 PSI Outlet Pressure High Pressure Auxiliary Inlet... -
Page 3: Setup Operation
Set-Up/operation INLET PRESSURE LOW PRESSURE GAUGE WHISTLE AUXILLIARY INLET CGA-347 MALE CGA-347 HAND-TIGHT PAK-3HI ONLY BLEEDER VALVE PRESSURE CHECK VALVE REGULATOR OUTLET PRESSURE GAUGE CYLINDER STRAP RESPIRATOR CONNECTION RELIEF VALVE SteP 1) Secure cylinders by tightening straps at the buckle and mating the velcro sections to prevent slipping. 2216 PSI and 4500 PSI, cylinders can be used. - Page 4 cylinder change When the cylinder in use has been depleted to approximately 500 PSI , the low pressure warning alarm will sound indicat- ing the cylinder needs to be replaced. To change a cylinder while the PORTA-PAK™ is in use: SteP 1) Open the second cylinder and check the incoming pressure gauge to verify cylinder is full.
-
Page 5: System Components
System components ITEM # DESCRIPTION PART # CHECK VALVE VC4SMMSS BLEEDER VALVE VAL030 CGA-347 HAND-TIGHT NUT/STEM SS347HT INLET PRESSURE GAUGE GA2075KB LOW PRESSURE WHISTLE AC-PA25 PRESSURE REGULATOR REG-5000NG CGA-347 MALE ADAPTER (PAK-3HI ONLY) SS4F347AM PRESSURE CAP (PAK-3HI ONLY) SS347CAP OUTLET PRESSURE GAUGE GA20160B CYLINDER STRAP HDWR113A... -
Page 6: Warranty
The purchaser shall be solely responsible for compliance with all applicable Federal, State and Local OSHA and/or MSHA requirements. Although Air Systems International believes that its products, if operated and maintained as shipped from the factory and in accordance with our “operations manual”, conform to OSHA and/or MSHA requirements, there are no implied or expressed warranties of such compliance extending beyond the limited warranty described herein. - Page 7 notes:...
- Page 8 Rev. 3 January 2019 AIr SySteMS InternAtIonAl, Inc. 829 Juniper Crescent, Chesapeake, Va, 23320 Telephone (757) 424-3967 Toll Free 1-800-866-8100 Fax No. (757) 424-5348 http://www.airsystems.com e-mail: sales@airsystems.com Printed in the U.S.A. ©Copyright Air Systems International, Inc. 2019 All Rights Reserved...
