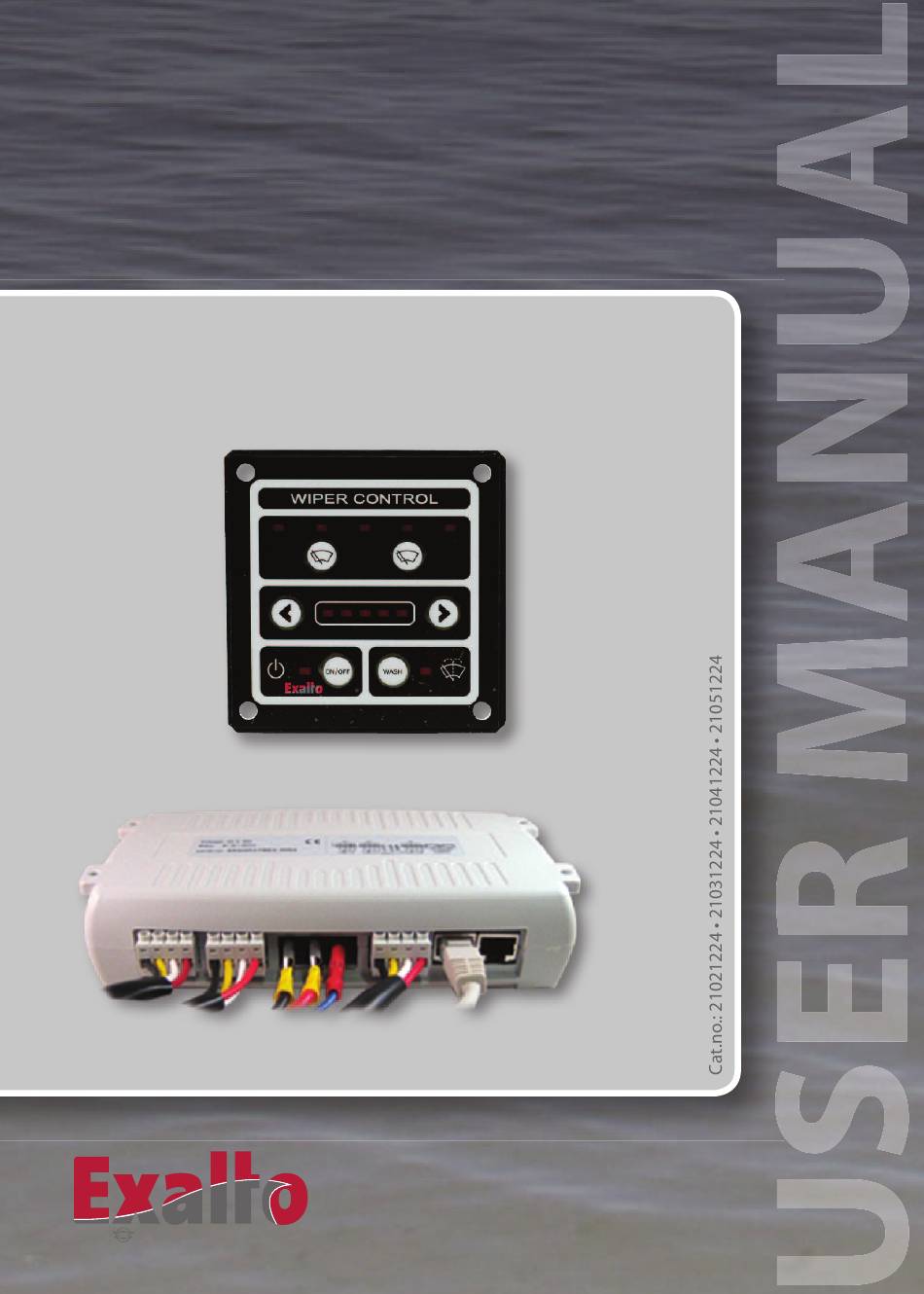

- Page 1 Exalto Wipercontrol For 2 to 5 wipers Q u a l i t y M a r i n e E q u i p m e n t...
-
Page 2: Table Of Contents
Contents 1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.1 Features . -
Page 3: General
1 General The Exalto Wipercontrol is a microcontroller-based wiper control system for up to 5 wiper motors; it provides all the functions for optimal windscreen cleaning. The control panel is connected to relais box by one serial cable (CAN BUS CABLE) with two 8 pole plugs. -
Page 4: Push Button Functions
2 Push button functions 6 7 8 9 1 – single wiper ON/OFF button 2 – single wiper ON/OFF and fault led 3 – decrease speed / increase delay in intermittent mode 4 – increase speed / decrease intermittent delay 5,6,7,8,9 –... -
Page 5: Wipe / Wash Program
After the wipe/wash cycle, the wipers will return to operate in the previous selected mode. 5 Trouble shooting Wiper fault A flashing of a wiper led indicates that the EXALTO WIPERCONTROL detects an error on a wiper. This may happen if: - the parking switch is not connected or damaged - the motor doesn’t run (internal self-resetting fuse in protection, motor is not... -
Page 6: Communication Error
6 Power supply The EXALTO WIPER CONTROL will operate correctly if powered from 10V to 30V DC. Insert the motor connectors BEFORE applying power supply. When powered, the EXALTO WIPER CONTROL will execute a lamp test and then will go to stand-by mode. -
Page 7: System Wiring (2 And 3 Wipers)
8 System wiring ( 2 and 3 wipers ) IMPORTANT: protect the power supply line(s) by a thermal/magnetic circuit breaker. Thermal/magnetic circuit breaker and the cables diameter must be sized according to the motor consumption and the regulations. B U ... -
Page 8: System Wiring (4 And 5 Wpers)
9 System wiring ( 4 and 5 wipers ) B - - + U T C B C O U T L = 5 O T ... -
Page 9: Relaisbox Connections
FAST White Low speed SLOW Yellow Min/earth Black* Park PARK * With Exalto motor also connect blue wire 53e to –M 10.1 Recommended Cable sizes Amperage Max length Min Diameter 0.1-2.5 10 m 2.5 mm2 2 .6-4 .0 10 m 4.0 mm2... -
Page 10: Controlpanel Dimensions
11 Control panel dimensions Ø 12 Cut out size of panel 13 Relais box dimensions... -
Page 11: Technical Data
All the normal precautions and the technical information contained in this manual must be used for a proper installation and use of the products. Exalto BV is not responsible of any damage caused by improper use of the products. Warranty will not cover any damage caused by improper use of the products. - Page 12 Exalto B.V. • Postbus 40 3370 AA Hardinxveld-Giessendam Nederland • T +31 (0)184 615 800 • F +31 (0)184 618 200 • E wipers@exalto.com • I www.exaltowipers.com...
