Summary of Contents for Solid State Cooling Systems TCS-110

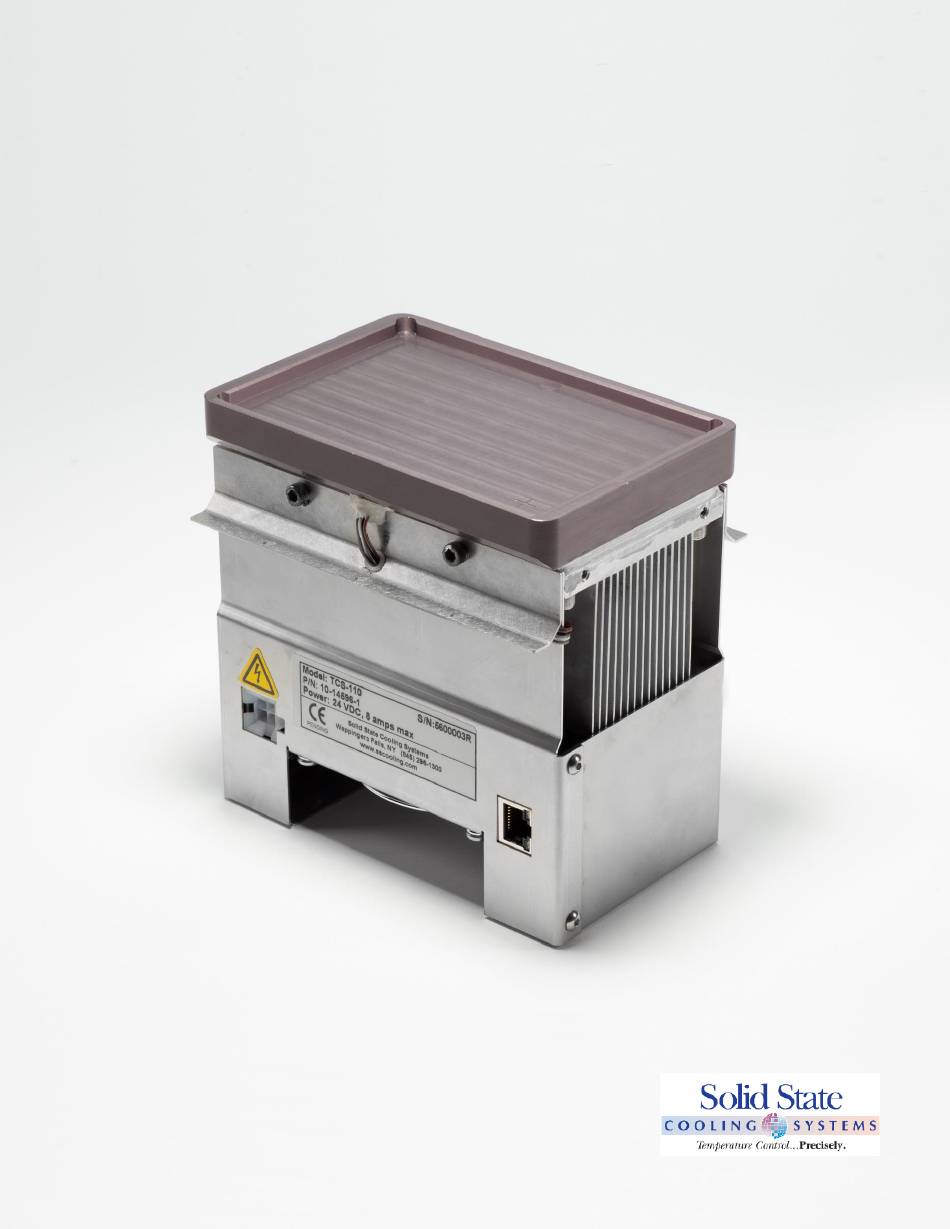

- Page 1 TCS-110 Microtiter Temperature Control Stage Precise, uniform surface temperature with integrated controller Preliminary Product Manual...
-
Page 2: Table Of Contents
TCS-110 T 52-13129-1 EMPERATURE ONTROL TAGE RODUCT ANUAL Table of Contents SAFETY PRECAUTIONS AND SYMBOLS ____________________________________________2 SECTION 1 ________________________________________________________________________3 ____________________________________________________________________3 NTRODUCTION SECTION 2 ________________________________________________________________________4 ________________________________________________________4 RELIMINARY PECIFICATIONS SECTION 3 ________________________________________________________________________6 _________________________________________________________________________6 3.1 Mechanical Installation _______________________________________________________ 7 3.2 Electrical Installation/Connections (see figure 3A) __________________________________ 8... -
Page 3: Safety Precautions And Symbols
DANGER triangle. CAUTIONS Safe operation the TCS-110 requires earth ground be connected to Pin. Do Not Operate the ▪ TCS-110 without proper grounding! Operation of the TCS-110 in any manner not recommended in this manual could compromise the ▪... -
Page 4: Section 1
ECTION _________________________________________________ NTRODUCTION The TCS-110 provides a temperature controller platform for all ANSI SBS 2004-1 microwell plates. It features a built-in controller and DC power management to provide uniform surface temperature with high heat transfer rates to repeatably control the temperature of microwell plates from 0°C to 110°C. -
Page 5: Section 2
TCS-110 T 52-13129-1 EMPERATURE ONTROL TAGE RODUCT ANUAL ECTION ___________________________________ RELIMINARY PECIFICATIONS Operating Range: 0°C to 110°C Ambient Temperature Range: 10°C to 40°C non-condensing Stability / Repeatability: ±0.1°C with constant load (even near ambient) Temperature Uniformity: ±0.5°C @ 37°C in 22°C ambient Temperature Ramp Rates Average heating ramp rate from 4°C to 99°C = 0.3°C per second... - Page 6 TCS-110 T 52-13129-1 EMPERATURE ONTROL TAGE RODUCT ANUAL Figure 1A: Typical Cooling and Heating Rates Figure 1B: Typical Heating Rate , 167 M , NY 12590 OLID TATE OOLING YSTEMS YERS CORNERS APPINGERS ALLS : (845) 296-1300 F : (845) 296-1303...
-
Page 7: Section 3
TCS-110 T 52-13129-1 EMPERATURE ONTROL TAGE RODUCT ANUAL ECTION ______________________________________________________ Figure 2: Front View Air Outlet Air Outlet Input DC Power Connector Ethernet Connector Air Inlet Figure 2: Rear View , 167 M , NY 12590 OLID TATE OOLING YSTEMS... -
Page 8: Mechanical Installation
ECHANICAL NSTALLATION Mounting: The TCS-110 is designed for mounting to a deck via an interface bracket as shown in figure 3 below. Alternatively. The TCS-110 feet have four (4) mounting holes at the bottom for mounting from below using M3 screws. -
Page 9: Electrical Installation/Connections (See Figure 3A)
NSTALLATION ONNECTIONS ( SEE FIGURE The TCS-110 comes with a 220w universal, external DC power supply (brick) with the DC power connector that plugs into the TCS- 110, it ships with a regional AC power cord A wide variety of power cords are available to support universal... -
Page 10: Section 4
OUTER OR A ERVER 1. Plug the 24VDC power brick into your AC wall outlet or connect 24VDC to the TCS-110 as per section 3.2. 2. Connect a standard CAT-5 Ethernet cable from the computer to the router, and another standard CAT-5 Ethernet cable from the router to the TCS-110 RJ-45 Ethernet jack. - Page 11 “192.168.1.88” in the TCP Client Address box. If you are connected to the unit through a router or server, enter the IP address of the TCS-110 which is specified in the final test sheet that was shipped along with the unit.
- Page 12 Figure 7: Fully Populated Graphical User Interface (GUI) 4.4 GUIDE TO USING GRAPHICAL USER INTERFACE This guide to using the TCS-110 graphical user interface, or GUI, consists of three parts: • 4.4.1: Pictures of GUI Components • 4.4.2: Explanations for Performing Common Tasks with GUI •...
- Page 13 TCS-110 T 52-13129-1 EMPERATURE ONTROL TAGE RODUCT ANUAL 4.4.1 Pictures of GUI Components (continued) Figure 10: Operating Figure 11: System Params Figure 12: System Config , 167 M , NY 12590 OLID TATE OOLING YSTEMS YERS CORNERS APPINGERS ALLS : (845) 296-1300 F...
- Page 14 Figure 13: Chiller Status/Faults Figure 14: Board ID 4.4.2 Explanations for Performing Common Tasks with GUI • Running the TCS-110 o Press the red STBY (run) button in the Operating component (Figure 10) to run the unit. • Change the setpoint o Enter a new value in the “Setpoint”...
- Page 15 Figure 15: Graph Window 4.4.2 Explanations for Performing Common Tasks with GUI (continued) • Graph TCS-110 Performance (continued) Press the Start Graph button to start graphing the parameters to the right of the button that are checked. To change the range of the Y-axis, change the Ymin and Ymax values next to either of the two Enter Range buttons and click the corresponding button to set a new range.
- Page 16 TCS-110 T 52-13129-1 EMPERATURE ONTROL TAGE RODUCT ANUAL 4.4.3 List of Nonfunctional Parameters The following is a list of parameters on the GUI whose functions are not yet fully implemented, and will thus be unusable. Each parameter is listed within the GUI component it is found in. Section 4.4.1 can be used to locate each component.
- Page 17 4.5.1 Unable to Connect to TCS-110 Via Router This section is intended for those who are connected to the TCS-110 with a router and are unable to use the graphical user interface to establish a connection. When using a router to connect your computer to the TCS-110, it is possible for the computer to assign the TCS-110 unit a different Ethernet address than the one assigned during production by Solid State Cooling.
- Page 18 Close out the GUI and reopen it following the steps outlined in Section 4.3. If this does not work, perform a power cycle on the TCS-110 and then try to connect with the GUI using Section 4.3. If this does not work and you are using a router to communicate, perform a power cycle on the router.
-
Page 19: Section 5
STAT1A?: Get TCS-110 operational status (see figure 6) FLTS1A?: Check TCS-110 for warnings or faults (see figure 7) RUN: Command the TCS-110 to begin controlling at set point. The TCS-110 will not run until it receives this command. STOP: Command the TCS-110 to stop controlling and go into standby. - Page 20 TCS-110 T 52-13129-1 EMPERATURE ONTROL TAGE RODUCT ANUAL TCS-110,10-14596-1,60-12945-1RevM1,9800001<etx> Where <etx> is “end of text” or 0x03 Figure 6 STAT1A?<Cr> Response One to three bytes returned – ASCII representation of number between 0 and 65535. Convert to binary and examine bits for data. All labeled “rsvd” = 0...
-
Page 21: Section 6
Temperature Low or High Warning: The TCS-110 temperature is outside of the user set temperature warning range, < SETTEMP- WIDTH or >SETTEMP + WIDTH. This normally occurs after a set point change until the TCS-110 reaches set point. If persistent, CAUTION contact SSCS for technical support. -
Page 22: Warranty Policy
ARRANTY OLICY This TCS-110 is covered under a two-year parts and labor warranty. The length of a warranty is product- specific, depending on the type and planned usage of the product, but will be specified in the quotation upon which a purchase order is made. Prototypes are not covered under warrantee, but will be repaired/adjusted after original shipment until they meet the agreed-upon specifications.
