Summary of Contents for Sioux Tools 15503HD

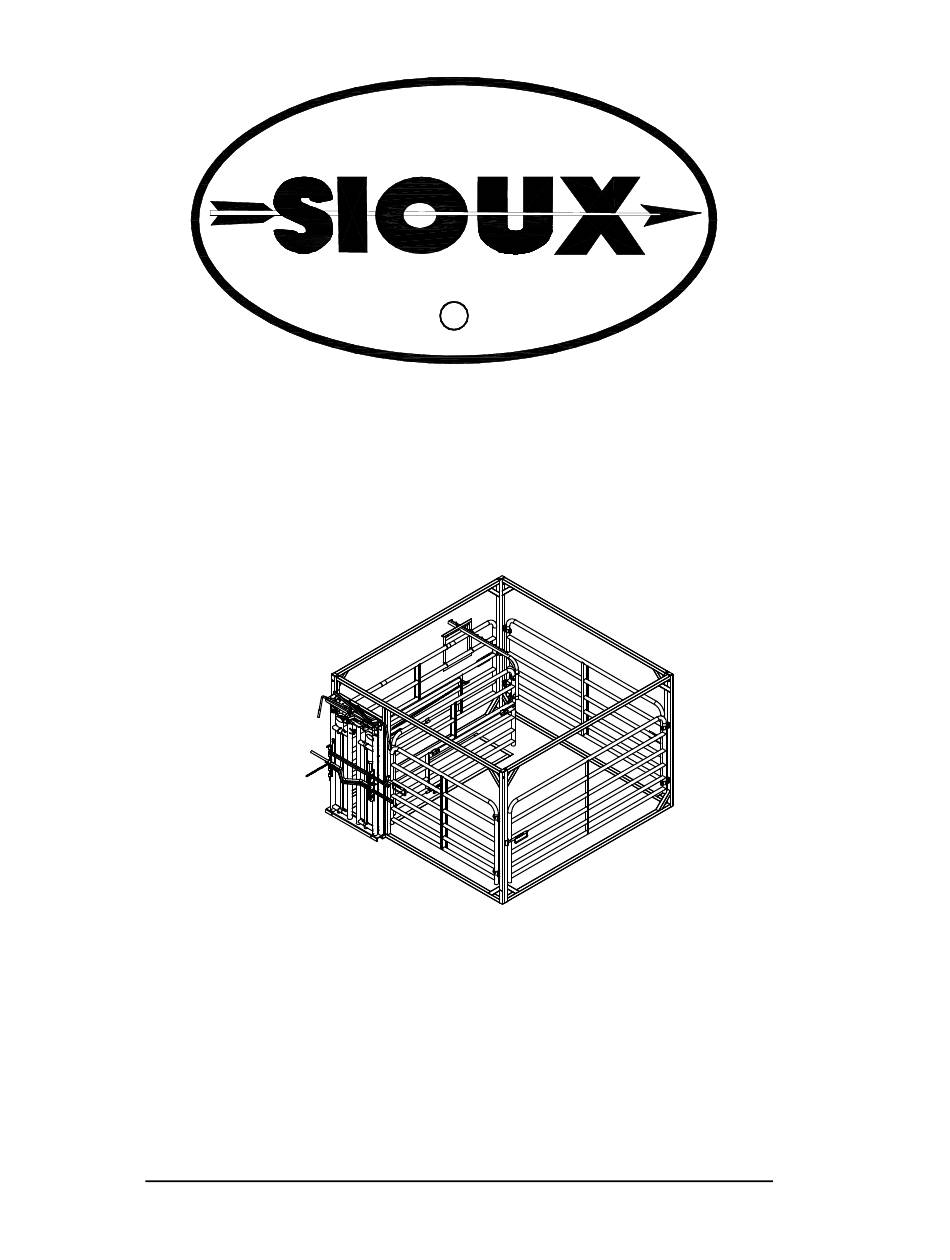

- Page 1 MANUAL NO. 15516 REV H: 11/2017 ECN 17-224 S TEEL COMPAN Y CALVING PEN CARE CENTER #15503HD PARTS & ASSEMBLY MANUAL IMPORTANT - TO THE DEALER OR ERECTOR: RETURN THIS MANUAL TO THE OWNER FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
MANUAL NO. 15516 TABLE OF CONTENTS CONTENTS..............2 SAFETY AND STATEMENT OF IMPORTANCE..3 GENERAL INFORMATION........4 EXPLODED VIEW............5 PARTS LIST..............6 PARTS IDENTIFICATION........7 - 10 ASSEMBLY INSTRUCTIONS....... 11 - 15 WARRANTY..............16 RETURN GOODS AUTHORIZATION (RGA)..17... -
Page 3: Safety And Statement Of Importance
SAFETY RECOGNIZE SAFETY ALERT SYMBOL The above symbol means “ATTENTION! BE ALERT! YOUR PERSONAL SAFETY IS INVOLVED! Note this symbol in instructions for important issues concerning your personal safety. Read each message carefully to avoid personal injury or death. SURFACE PREPARATION Install unit on a level surface to prevent tipping of Panel Assemblies. -
Page 4: General Information
MANUAL NO. 15516 GENERAL INFORMATION 1) At the time of delivery, be sure to check all bundles and parts for proper quantity and condition. If a shortage or damage has occured, DO NOT ACCEPT DELIVERY without making note on the freight or delivery receipt. -
Page 6: Parts List
PARTS LIST Default/ ITEM NO. PART NUMBER DESCRIPTION QTY. 189756 PANEL ASSY- PEN FRONT 15505 NURSING GATE ASSY CALVING PEN STANDARD PANEL 15506 ASSY. 173979 SQUEEZE GATE ASSEMBLY 168700 ASSY- STEP PLATE 158965 SQUEEZE LOCK MOUNT TUBE 198805 RATCHET TUBE WELDMENT 15513 SQUEEZE LOCK FRAME 198400... -
Page 7: Parts Identification
15503 - CALVING PEN PARTS & ASSEMBLIES ITEM #1 (QTY-1) SCALE 1:32 189756 - FRONT PANEL ASSEMBLY CONSISTING OF; (1) 189751 SLAM LATCH FRAME (1) 189755 - 7FT STANDARD GATE W/SLAM LATCH SCALE 1:32 ITEM #2 (QTY-1) 15505 - NURSING PANEL ASSEMBLY CONSISTING OF;... -
Page 8: 158965 Squeeze Lock Mount Tube
15503 - CALVING PEN PARTS & ASSEMBLIES SCALE 1:24 ITEM #4 (QTY-1) 173979 - SQUEEZE GATE ASSY CONSISTING OF; (1) 173980 7FT SLAM LATCH GATE (1) 173986 SWING GATE ITEM # 7 (QTY-1) 198805 - SQUEEZE LOCK RATCHET ITEM #8 (QTY-1) 15513 - SQUEEZE LOCK FRAME CONSISTING OF;... -
Page 9: 198400 Auto Head Gate
15503 - CALVING PEN PARTS & ASSEMBLIES SCALE 1:32 ITEM #9 (QTY-1) 198400 - HEAD GATE ASSEMBLY (OPTIONAL) ITEM #5 (QTY-1) 168700 - STEP PLATE (OPTIONAL) SCALE 1:32 SCALE 1:2 ITEM #12 (QTY-2) 157736 - 5/16" X 2 1/2" BOLT SCALE 1:1 ITEM #13 (QTY-4) 168757 - 2"... -
Page 10: 157540 Bolt - 5/16-18Unc X 1
15503 - CALVING PEN PARTS & ASSEMBLIES ITEM #16 (QTY-2) 157540 - 5/16" X 1" BOLT SCALE 1:1 ITEM #17 (QTY-8) 154063 - 5/16" FLATWASHER SCALE 1:1 ITEM #18 (QTY-14) ITEM #10 (QTY-4) 168752 - 5/16" LOCK NUT 158966 - 5/16" X 2" U-BOLT SCALE 1:1 SCALE 1:2 ITEM #22 (QTY-4) -
Page 11: Assembly Instructions
NOTE: NOT ALL PANELS & GATES ARE SHOWN FOR CLARITY FRAME CORNER 183488 15506 CONNECTOR INSTALLATION Fig. 1 DETAIL F SCALE 1 : 16 DETAIL D SCALE 1 : 16 NOTE POSITION OF SLAM LATCHES 189756 NOTE: INSTALL THIS CLIP 15506 WITH TAB INTO FRONT FRAME... - Page 12 NOTE: NOT ALL PANELS & GATES ARE SHOWN FOR CLARITY Fig. 2 STEP #5B (2X) S164174- 1/2 X 2 BOLT S154069- 1/2 WASHER S154069- 1/2 WASHER S154054- 1/2 NUT S173979 SQUEEZE GATE S168701 STEP PLATE STEP #4 (2X) 168757- (2) HINGE CLAMPS 168756- (1) HINGE PIN 154014- (1) 5/16 X 1 1/2 BOLT 157540- (1) 5/16 X 1 BOLT...
- Page 13 NOTE: NOT ALL PANELS & GATES ARE SHOWN FOR CLARITY Fig. 3 15505 DETAIL E SCALE 1 : 12 HARDWARE FOR EACH CONNECTOR CLIP, WASHER ON BOTH SIDES 183488 189756 STEP #6 Fig. 3 INSTALL THE NURSING GATE ASSEMBLY PANEL (15505) TO THE FRONT PANEL ASSEMBLY (189756) USING 2 (183488) CONNECTOR CLIPS.
- Page 14 NOTE: NOT ALL PANELS & GATES ARE SHOWN FOR CLARITY 15513 158966 (4) 154063 (8) 198805 168752 (8) 158965 157763 (2) 168752 (2) Fig. 4 STEP #7 Fig. 4 ATTACH SQUEEZE LOCK FRAME (15513) TO THE NURSING GATE AS SHOWN USING 4ea. 5/16" X 2" U-BOLTS (158966), 8ea. 5/16" FLATWASHERS (154063), AND 8ea.
- Page 15 Fig. 5 SHOWN WITH OPTIONAL HEADGATE & STEP PLATE STEP #10 Fig. 5 REMOVE ALL BANDING AND GATE SUPPORT BLOCKING FROM THE FOUR PANEL ASSEMBLIES. ADJUST ALL GATES SO THE SPRING LATCH PINS STRIKE THE CENTER OF THE SLAM LATCH PLATES. STEP #11 Fig.
-
Page 16: Warranty
LIMITED WARRANTY Sioux Steel Company warrants to the original purchaser only that the products manufactured by Sioux Steel Company are free from defects in material and workmanship under normal use and service and when properly installed for a period of one (1) year from the date of purchase. If such a defect appears during the term of this warranty, Sioux Steel Company will, at its option, repair or replace at its factory any part or component determined to its satisfaction to be defective. -
Page 17: Return Goods Authorization (Rga)
RETURN GOODS AUTHORIZATION (RGA) Any product returned to Sioux Steel Company for warranty or non-warranty consideration must have an RGA number assigned to the product and tagged onto the product that is to be returned. ANY PRODUCT BEING RETURNED WITHOUT AN RGA NUMBER WILL BE REFUSED. IT IS THE PURCHASER’S RESPONSIBILITY FOR ANY TRANSPORTATION CHARGES.
