Renogy E.LUMEN Instructions

E.LUMEN

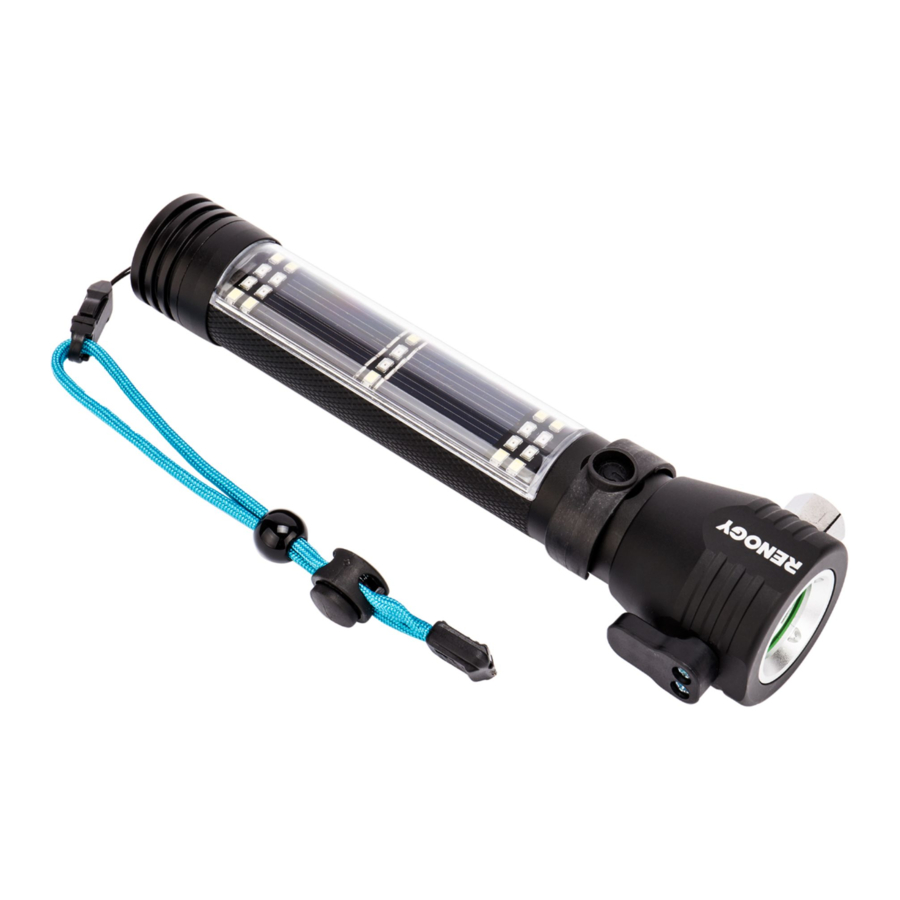

Multifunctional Solar Flashlight
Lampe de Poche Solaire Multifonctionnelle

OPERATIONS

The headlight has 3 modes: bright (100% brightness), dim
(50% brightness), and strobe. Hold on to the button for 3
seconds to switch to the sidelight.
The sidelight has two white floodlight modes: bright (100%
brightness) and dim (50% brightness). After switching to the
sidelight, you can hold the button for an additional 3 seconds to
switch to the red sidelight.
The sidelight has two red strobe modes: fast and slow. By
holding onto the button, you can switch from the sidelight
back to the headlight.
To charge your flashlight via USB or to charge a USB device,
simply unscrew the bottom cap. When charging your
flashlight with the included USB cord, the light indicator will
turn red. When the E.LUMEN has finished charging, the red light
will turn off.
To charge your flashlight via solar, simply place it directly under
sunlight. The unit can be charged with other solar panels such as
the E.FLEX5 and E.FLEX10 via USB as well.
When charging USB-powered devices, a blue light will turn on.
The E.LUMEN will turn the blue light off when the battery is
approaching low capacity and cut off any USB activity to
protect the battery. At that point, the flashlight will remain
active for approximately 30 minutes with the brightness
reduced to 30% of the normal luminance.

TECHNICAL SPECIFICATIONS

GENERAL

Material Aluminum
Dimensions
Length
Weight
0.68 lbs. / 310 g

BATTERY

Type 18650 Lithium-ion
Capacity
3.7V, 2000mAh
Protection Charging protection, Low-capacity protection

SOLAR

Cell Monocrystalline
5V, 50mA
Rating

PORTS

USB Output 5V, 1A Max.
Micro USB Input 5V, 0.5A Max

LED

Headlight 3W, 200 lumens
2W, 150 lumens
White Sidelights
Lighting Distance 200 meters, headlight
Certifications
Warranty 1 Year
C
