Summary of Contents for Tricolor HDMI–104-70

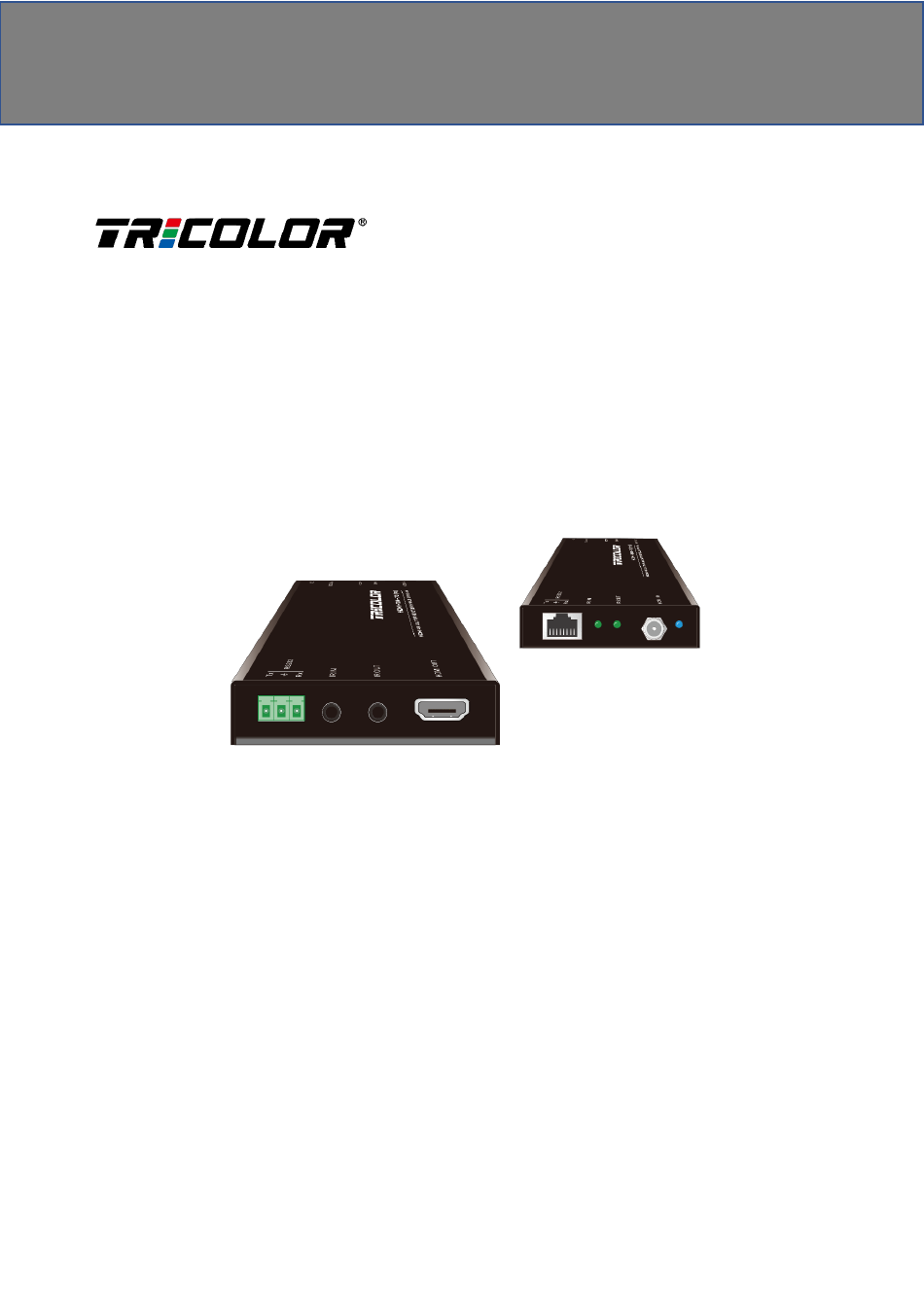

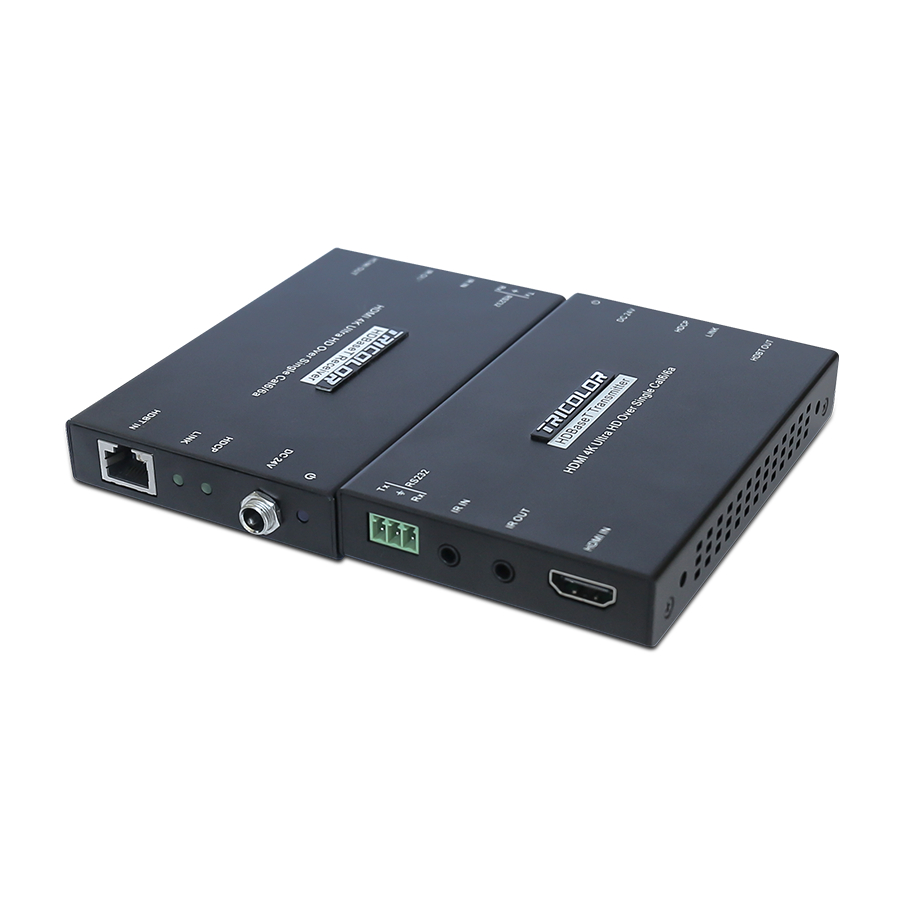

- Page 1 User Guide HDMI-104-70 HDBaseT Extender HDMI–104 Cat6/6a HDMI extender up to 230ft/70m Beijing Tricolor Technology Co., Ltd - 1 - www.chinargb.com.cn/en...
- Page 2 The symbol below means that according to local laws and regulations your product and/or its battery shall be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. Beijing Tricolor Technology Co., Ltd - 2 - www.chinargb.com.cn/en...
-
Page 3: Table Of Contents
Connector and Cable Details ..................... - 9 - TP cable termination and recommendations ..............- 9 - Infrared(IR) Distribution ......................- 10 - Troubleshooting & Maintenance ................. - 11 - No picture in display ........................- 11 - Beijing Tricolor Technology Co., Ltd - 3 - www.chinargb.com.cn/en... -
Page 4: Introduction
Remote power capability - only one external power supply is needed. EDID and HDCP pass through. CEC pass through. Two-way RS232 and IR communication. Supplied with wideband 30-60KHz infrared cables as full kit. Beijing Tricolor Technology Co., Ltd - 4 - www.chinargb.com.cn/en... -
Page 5: Application Diagrams
1x DC 24V 0.75A power supply with universal plugs, US efficiency VI 2x Pair of wall/table mount ears 10x Piece of screws for mount ears 10x Piece of rubber cushions 1x User manual Beijing Tricolor Technology Co., Ltd - 5 - www.chinargb.com.cn/en... -
Page 6: Panel Description
IR IN - Connect an IR receiver, the IR signal received from this port will be sent out via HDBaseT receiver. IR OUT - Connect an IR emitter, the triggered IR signals are received from HDBaseT receiver. Beijing Tricolor Technology Co., Ltd - 6 - www.chinargb.com.cn/en... -
Page 7: Receiver
IR IN - Connect an IR receiver, the IR signal received from this port will be sent out to HDBaseT transmitter. IR OUT - Connect an IR emitter, the triggered IR signals are received from HDBaseT transmitter. HDMI IN - Connect HDMI display here. Beijing Tricolor Technology Co., Ltd - 7 - www.chinargb.com.cn/en... -
Page 8: Specifications
Bandwidth 10.2Gbps HDCP HDCP2.2 compliant Temperature Operating 32ºF~122ºF, or 0℃~50℃ Storage -4ºF~140ºF, or -20℃~60℃ Humidity 20 ~ 90% non-condensing Power Consumption 10.8W for pair Supply Input: AC100-240V 50/60Hz, Output: DC24V 0.75A Beijing Tricolor Technology Co., Ltd - 8 - www.chinargb.com.cn/en... -
Page 9: Connector And Cable Details
Cat6a and Cat7 RJ45 connectors respectively. TIA/EIA TIA/EIA Wire color Wire color White-green White-orange Green Orange White-orange White-green Blue Blue White-blue White-blue Orange Green White-brown White-brown Brown Brown Beijing Tricolor Technology Co., Ltd - 9 - www.chinargb.com.cn/en... -
Page 10: Infrared(Ir) Distribution
IR Emitter – Included HDMI-104 series 5V IR emitter designed Infrared 3.5mm Pin-out for discrete IR control of equipment IR emitter - Mono 3.5mm Beijing Tricolor Technology Co., Ltd - 10 - www.chinargb.com.cn/en... -
Page 11: Troubleshooting & Maintenance
HDCP or there’s HDCP handshaking issue between display and source, please consult your dealer for help. Check if source and display support same maximum resolution. Beijing Tricolor Technology Co., Ltd - 11 - www.chinargb.com.cn/en...
