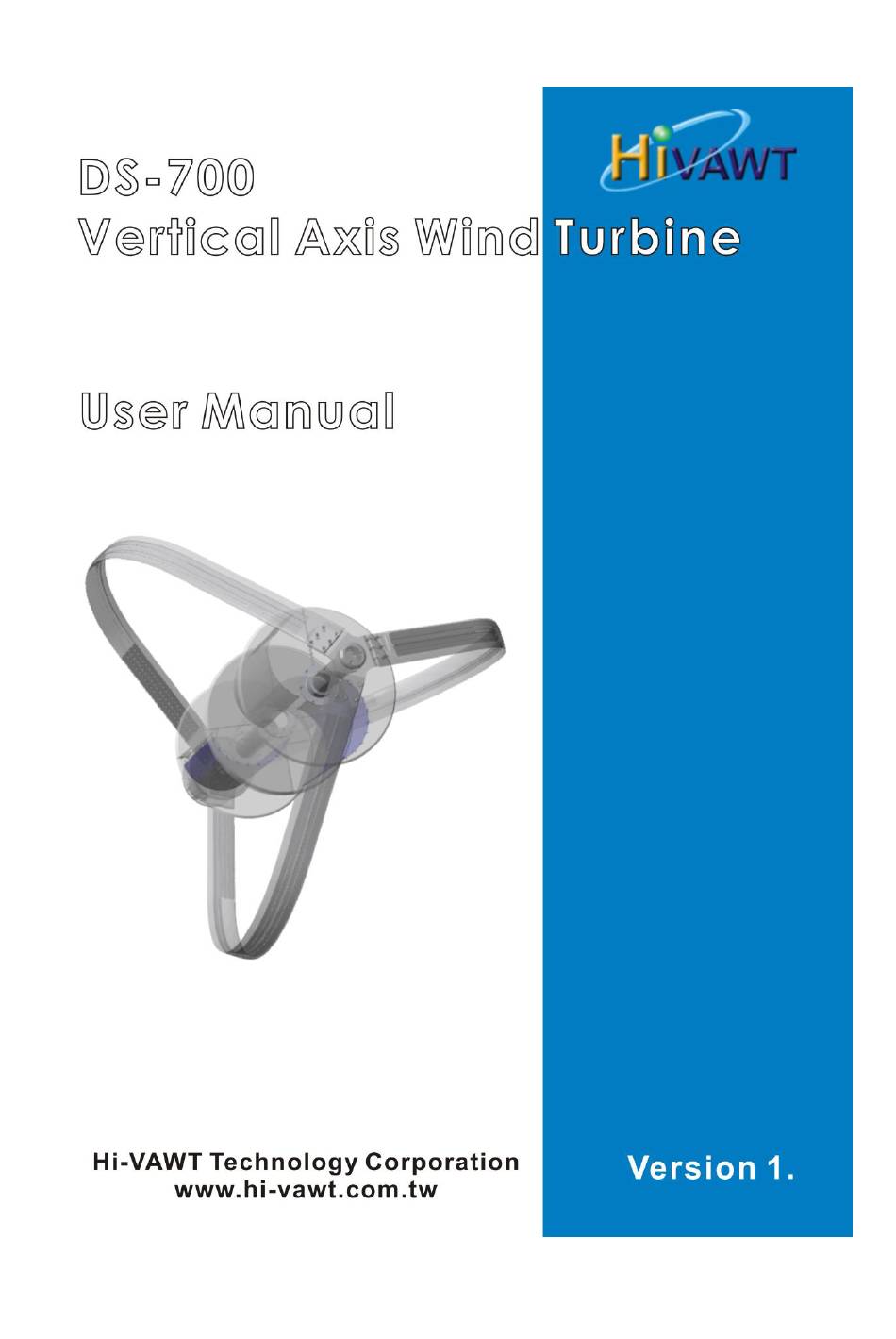

Hivawt DS-700 User Manual

Vertical axis wind turbine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hivawt DS-700

  • Page 2: Table Of Contents

    Operation ..................13 Introduction ..................14 2.1. DS-700 Specification ..............15 2.2. DS-700 Standard Packing ............... 16 2.3. DS-700 Wind Power System Controllers .......... 18 2.4. DS-700 Optional Parts ..............19 Preparation of Assembly and Installation ..........19 Selecting Location ................20 Mast Preparation ................
  • Page 3 DS-700 Wire Size ................40 DS-700 Wiring Diagram ..............41 Grounding ..................44 Fusing ................... 44 Stop Switch ..................44 Warranty ..................... 45 Table of Figures...
  • Page 4 Figure 2-1 General View of the DS-700 VAWT System ........14 Figure 2-2 DS-700 Standard Packing Contents ..........18 Figure 2-3 System Controllers................. 19 Figure 3-1 Dimension for Mast ............... 23 Figure 3-2 Optional Mast Design ..............25 Figure 3-3 Ground Foundation Construction Reference ......... 27 Figure 3-4 Foundation for Roof Installation Reference ........
  • Page 5 Table 2-1 DS-700 Technical Specification ............15 Table 2-2 DS-700 Components ................ 16 Table 5-1 Wire Sizing Reference ..............41 Table 5-2 DS-700 Wiring Size Reference (WD481000) ........42...

  • Page 6: Warning

    REQUIRES SPECIALIZED SKILLS, TOOLS AND EXPERIENCE AS WELL. FOR THE PURPOSES OF ASSEMBLING, INSTALLING, OPERATING AND MAINTAINING THE DS-700 VAWT, WE ASSUME THAT PERSONNEL WHO INVOLVED IN THE WHOLE PROCESSES HAS THE SKILLS, TOOLS REQUIRED TO DO SO. NO ONE...

  • Page 8: Disclaimer

    It should not be considered as a replacement of professional services or as a definitive text for assembling and installing the DS-700 VAWT systems. Hi-VAWT makes no warranties by either expressed or implied that the information contained in the manual is accurate or complete.

  • Page 9: Safety Precautions

    Safety must be the primary concern as you plan the location, assembly, installation and operation of the DS-700 VAWT. At all times be aware of electrical, mechanical and rotor blade hazards. This Owner’s Manual contains important instructions, guidelines and safety notes that should be followed during the installation and maintenance of the Hi-VAWT’s DS-700 VAWT.

  • Page 10: Mechanical Hazards

    1.1 Mechanical Hazards Rotating blades present the most serious mechanical hazard. The DS-700’s rotor blades are made of very strong anodized aluminum. Some edge of the blades are sharp, please do not touch those sharp blades. Even though, with the built-in airfoil, the edges of those blades are not as sharp, they still will cause serious injury when they start rotating, even at low speed.

  • Page 11: Assembly

    SECTION CAN CAUSE ELECTRICAL FIRE.  NEVER SHORT-CIRCUIT THE BATTERY IF APPLIED. 1.3 Assembly The DS-700 VAWT System is designed in “All Most Ready to Use” format and shipped with factory pre-assembled packing. The only assembly work required is Darrieus blades assembly. This user’s manual will guide you through the assembly procedures with detailed illustrations.

  • Page 12: Installation

     Use safety harnesses, safe helmets, gloves, etc.  Make sure that all batteries, if applied, are disconnected from the system throughout the installation process.  The DS-700 generator should be short-circuited to prevent unintended wind turbine rotating during the shipment. Please...

  • Page 13: Operation

    (use the Stop Switch after installation or tie the output leads together) to stop the rotor blades from rotating. The DS-700 is designed to be shut down through the use of stop switch (brake switch).  NEVER APPROACH THE TURBINE DURING OPERATION.

  • Page 14: Introduction

    2. Introduction The DS-700 is a hybrid Vertical Axis Wind Turbine (VAWT) system which combines drag-based design and lift-based design. It incorporates an S- type of Savonius rotor and three airfoil blades of egg-beater shape Darrieus to maximize the output performance.

  • Page 15: Ds-700 Specification

    Mechanically Integrated Permanent Magnet Generator. Lower Darrieus Blades Connector. Damper. 3-Phase R-S-T Generator Wires. 2.1. DS-700 Specification The following table shows the technical specification of the DS-700 Wind Turbine. Table 2-1 DS-700 Technical Specification General Dimension Rotor Diameter: 1,930 mm Height:...

  • Page 16: Ds-700 Standard Packing

    Ensure that you receive all standard components or parts for the DS-700 accordingly. If any missing parts from the original packing, please contact Hi-VAWT Technology Corporation for replacement.
  • Page 17 Vertical Axis 700W PM Generator Lower Blades Connecting Plate R.S.T. Generator Wiring Cables Mast Connector with Damper Wind Turbine Surge Wire (Connected between Damper and Flange of the Mast) Bolt Sets M10 x 30mm Button Hex Head Bolts and Nuts (Set) M8 x 30mm Button Hex Head Bolts and Nuts M20 x 60mm Hex Head...

  • Page 18: Ds-700 Wind Power System Controllers

    Figure 2-2 DS-700 Standard Packing Contents 2.3. DS-700 Wind Power System Controllers The standard wind energy MPPT charger is MAX-1000 for DS-700 VAWT off grid application. The descriptions and specifications of MAX-1000 Controllers are detailed in user’s manual respectively. Figure 2-3 shows the standard DS-700 Wind Power System...

  • Page 19: Ds-700 Optional Parts

    Figure 2-3 System Controllers 2.4. DS-700 Optional Parts This DS-700 VAWT System is designed with simplicity in mind, so there are just a few parts needed which all included in the standard package. Concerning the shipping cost and different applications applied by customers, the required mounting mast to setup the DS- 700 Wind Turbine is not included in the standard package.

  • Page 20: Selecting Location

     DO NOT install the DS-700 VAWT System at a site where anyone can easily approach the rotating blades.  DO NOT install the DS-700 VAWT System at a site surrounded by obstructions.

  • Page 21: Mast Preparation

    3.2 Mast Preparation As mentioned before, shipping charge of the mast made by Hi- VAWT will be costly. If you prefer making your own mast for DS-700 VAWT System rather than purchasing from Hi-VAWT, we will show you here how the mast can be made by your local supplier.
  • Page 22  Carefully check the surrounding area when determines the length of the mast. Avoid any existing objects that affect the performance of wind energy or cause hazards. The following Figure 3-1 shows the diagram for making the mast.
  • Page 23 Figure 3-1 Dimension for Mast...
  • Page 24 Figure 3-2 shows an optional design of the mounting mast. You may use hinge type mechanism at one side of the foundation plate to make an easy way to access the DS-700 by lowering down or lifting up the mast.

  • Page 25: Foundation Guide For Ds-700

    Figure 3-2 Optional Mast Design 3.3 Foundation Guide for DS-700 Before constructing the foundation for the DS-700 VAWT System, read these instructions carefully. These instructions are only...

  • Page 26: Ground Foundation

    intended to be a guide for concrete foundations on solid soils or suitable roof infrastructure. Please contact your local civil or structure engineer for more information. 3.3.1 Ground Foundation The foundation should be prepared as 2.20 cubic meter in dimension (1300m/m x 1300m/m x 1300m/m) depth, dug into the soil.
  • Page 27 Just remember, a solid with perfect leveled foundation is one of the key factors to achieve the success of the installation. Please refer to the Figure 3-3 for DS-700 foundation construction. Figure 3-3 Ground Foundation Construction Reference Dimension Chart...

  • Page 28: Roof Foundation

    3.3.2 Roof Foundation Installation of the DS-700 VAWT System on the roof may be much easier than it is on the ground. But special thought of the building structure has to be carefully taken into account before the installation.
  • Page 29 Figure 3-4 Foundation for Roof Installation Reference Dimension Chart 30 mm 500 mm 500 mm 60 mm 100 mm  Although, the DS-700 VAWT System is designed to be installed on the roof alternatively, but Hi-VAWT does not recommend to...
  • Page 30 DS-700 on the roof.  If you are going to install the DS-700 on the ground level, please consult your local civil engineer and carefully evaluate the nature of the soil and design of the foundation accordingly.

  • Page 31: Ds-700 Assembly And Installation

    We are strongly recommend having a crane with suitable capacity to haul up the mounting mast to desired location and also lift up the DS-700 to the mounting flange. Please refer to Figure 4-1 for your tool preparation.

  • Page 32: Ds-700 Vawt Assembly

     Preparing any extra equipments or safety devices accordingly if instructed by your local authority. 4.2 DS-700 VAWT Assembly There are only a couple of steps to assemble the DS-700. Please follow the Figure 4-2, 4-3 and 4-4 DS-700 Assembly Procedures to complete the assembly.
  • Page 33 Insert 3 M10 x 30mm Hex Head Bolts/Lock Nuts and 1 M8 x 30mm Hex Head Bolt/Lock Nut for each one of the blades on the upper blade connector. Do not lock these four bolts yet until another 3 sets of M10 x 30mm Hex Head Bolts/Lock Nuts and 1 set of M8 x 30mm Hex Head Bolt/Lock Nut inserted for Lower Blade Connector.
  • Page 34 Mast Connector/Dumper. Please use proper lifting device, such as crane, to lift the DS-700 up to the height that enough to put the Mast Connector/Damper under the main shaft of the DS-700, then insert the main shaft into the Mast Connector/Damper.

  • Page 35: Ds-700 Installation

    Fail to do so will cause the generator cables broken during break applied. Figure 4-4 DS-700 Assembly Procedures – 3 Use the M10 x 10mm Hexagon Socket Screw to lock the upper hole and M10 x 20mm Hexagon Socket Head Bolt and Nut to secure lower section with the surge wire.
  • Page 36  If you are going to install the DS-700 VAWT System at certain height, please have proper safety devices ready proceeding installation. Figure 4-5 DS-700 Installation Procedures – 1 In Figure 4-5, please insert 4 Hex Head Screws with Spring Washers...
  • Page 37 Figure 4-6 DS-700 Installation Procedures – 2 Use proper lifting device (Crane) to lift up the DS-700 above the mast flange.  There are 3 proper size of wires should be pre-installed inside the Mast  Securely connect the RST Generator Wires with these 3 pre-...
  • Page 38 Figure 4-7 DS-700 Installation Procedures – 3  Please refer to the Chapter 5 Wiring section for detail.
  • Page 39 Vertically insert the DS-700 into the Mast, and then securely lock Mast Connector/Damper with the Mast Flange by 4 Hexagon Head Bolts. After the completion of this step, you have finish the DS-700 Wind Turbine System and ready for further wiring procedures.

  • Page 40: Wiring

    All electrical systems lose energy from the resistance of the wire used. Larger wire size has smaller losses, but can be considerably more costly. Closely look at the site that the DS-700 VAWT System is to be installed and measure the following distances:...

  • Page 41: Ds-700 Wiring Diagram

     Distance between the solar panel and the DS-700 Controller.  Distance between the photodiode and the DS-700 Controller.  Distance between the DS-700 Controller and the Battery. It is recommended that the length between DS-700 Controller and Battery is no longer than 5 meters.
  • Page 42 Figure 5-1 Wiring Diagram for Wind Energy MPPT Charger (MAX-1000) MAX-1000 Wiring DS700 VASWT MAX-1000 Wind MPPT CHARGER TO USER POWER BATTERY BANK Table 5-2 DS-700 Wiring Size Reference (MAX-1000) Description Wire Size  Wind Energy MPPTCharger (MAX-1000)  Deep Cycle Battery Bank...
  • Page 43  Power Wires between AWG#10 (Within 5 Meters) charger and battery bank  Power Wires between AWG#10 Charger and wind turbine  Grounding Wire AWG#10  Power Wires between AWG#10 charger and user power  Please refer to the MAX-1000 Wind Charge Controller / Wind Energy MPPT Charger User’s Manual for further information.

  • Page 44: Grounding

    5.4 Grounding In order to protect the DS-700 Wind Turbine System against damage by lightning, static or over voltage, properly grounding the DS-700 Wind Turbine System is very important. Grounding procedures must be followed along with any local electrical codes.

  • Page 45: Stop Switch

    (Warranty Period) for products it manufactures and covers defects in materials, workmanship and quality (Defeats) in the DS-700 VAWT System. The warranty is valid from the date of invoice to the original user. The limited warranty is also transferable and applied to subsequent owners only within the Warranty Period.
  • Page 46 Hi-VAWT has the option to use new or reconditioned parts in performing repair or replacement. Hi-VAWT also reserves the right to use parts or improved design in the repair or replacement. If you purchase the product from our dealer in your area, contact the dealer for repair or replacement or you may contact us directly at the following numbers: Telephone: 8 800 550 05 65...
  • Page 47 THE USE OF ANY SUCH INFORMATION WILL BE ENTIRELY AT THE USER'S RISK. Limitations on Use Please Note, the Hi-VAWT’s DS-700 VAWT System is not intended for use as the power source of life support systems or other medical equipment or devices and Hi-VAWT makes no representation or...
