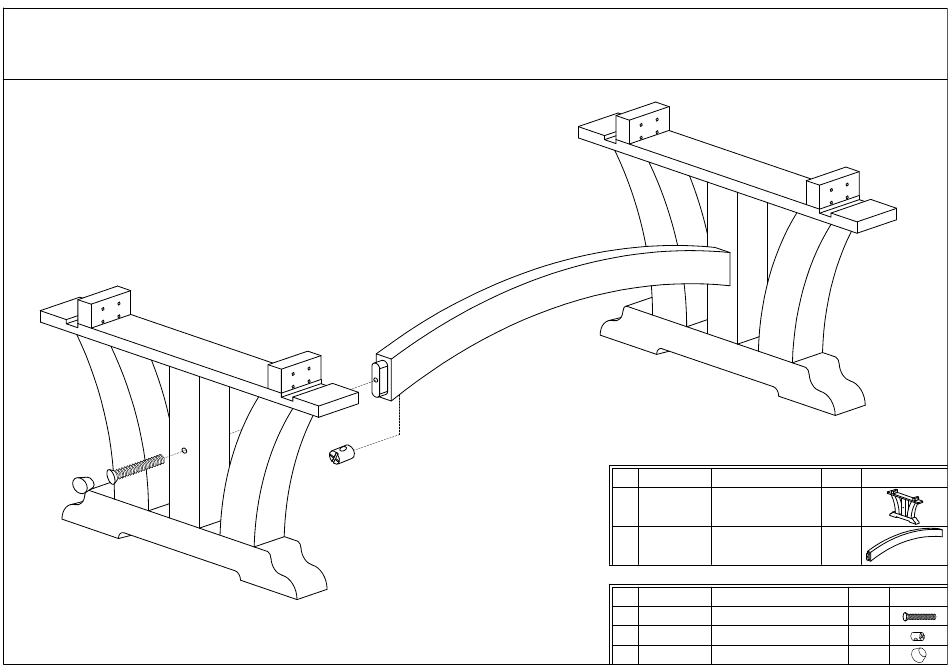

Step 1: Attach the leg runner to the legs by using Bolt(R), Plug(W) and CROSS DOWEL (V)
1
R
W
DAX POOL TABLE
Item #165665
Assembly Instruction
2
V
1
NO
NAME
SIZE
1
Legs
39 1/4" x 6" x 26 5/8"
2
Leg runner
57 3/16" x 2" x 8"
NO
NAME
SIZE
Ø5/16"X4 1/2"
R
BOLT
V
CROSS DOWEL
Ø5/16"XØ5/8"
WOOD PLUG
W
∅ 21 X 10mm
1/7
PCS
DRAW
2
1
PCS DRAW
2
2
2
Advertisement
Table of Contents
Related Manuals for Frontgate DAX POOL TABLE 165665
Summary of Contents for Frontgate DAX POOL TABLE 165665
- Page 1 DAX POOL TABLE Item #165665 Assembly Instruction Step 1: Attach the leg runner to the legs by using Bolt(R), Plug(W) and CROSS DOWEL (V) NAME SIZE DRAW Legs 39 1/4" x 6" x 26 5/8" Leg runner 57 3/16" x 2" x 8" NAME SIZE PCS DRAW...
- Page 2 DAX POOL TABLE Item #165665 Assembly Instruction Step 2: Attach the legs to the long beams by using Bolt(P),Washer(Q) and Nut(L) NAME SIZE DRAW Long beams 90 3/4" x 1 3/8" x 3" NAME SIZE PCS DRAW ∅ 3/8" BOLT Ø3/8"...
- Page 3 DAX POOL TABLE Item #165665 Assembly Instruction Step 3: Attach the legs to the short beams by using Bolt(P),Washer(Q) and Nut(L) NAME SIZE DRAW Short beams 37 13/32" x 3 3/8" x 1 1/2" Short beams 49" x 4" x 1 1/2" NAME SIZE PCS DRAW...
- Page 4 DAX POOL TABLE Item #165665 Assembly Instruction Step 4A: Locate the center piece of framed slate and position it on the cross beam assembly so that it is centered to both the length and width of the assembly (you must be very accurate with placement).
- Page 5 DAX POOL TABLE Item #165665 Assembly Instruction Step 6: Assemble the blinds completely using Dowel (A), Washer (I) and Bolt (J). Step 6 and Step 8 Step 7A: Assemble the end rails completely using Dowels (A), Washer (C), Nut (D) and Threaded Rod (B).
- Page 6 DAX POOL TABLE Item #165665 Assembly Instruction Step 9: Attach rail/blind assemblies to the slate using Dome Washer (M), Star Washer (N), Threaded Rod (O), and Nut (L). NO NAME PCS DRAW SIZE ∅ 3/8" DOME WASHER ∅ 3/8" STAR WASHER ∅...
- Page 7 DAX POOL TABLE Item #165665 Assembly Instruction Step 10: NOTE: the side pockets and corner pockets ARE different and will only work correctly one way. To install the pockets, squeeze the top of the pocket and bring it up through the pocket opening from the bottom. Be sure not to push back the pockets so they are flush against the rail;...
