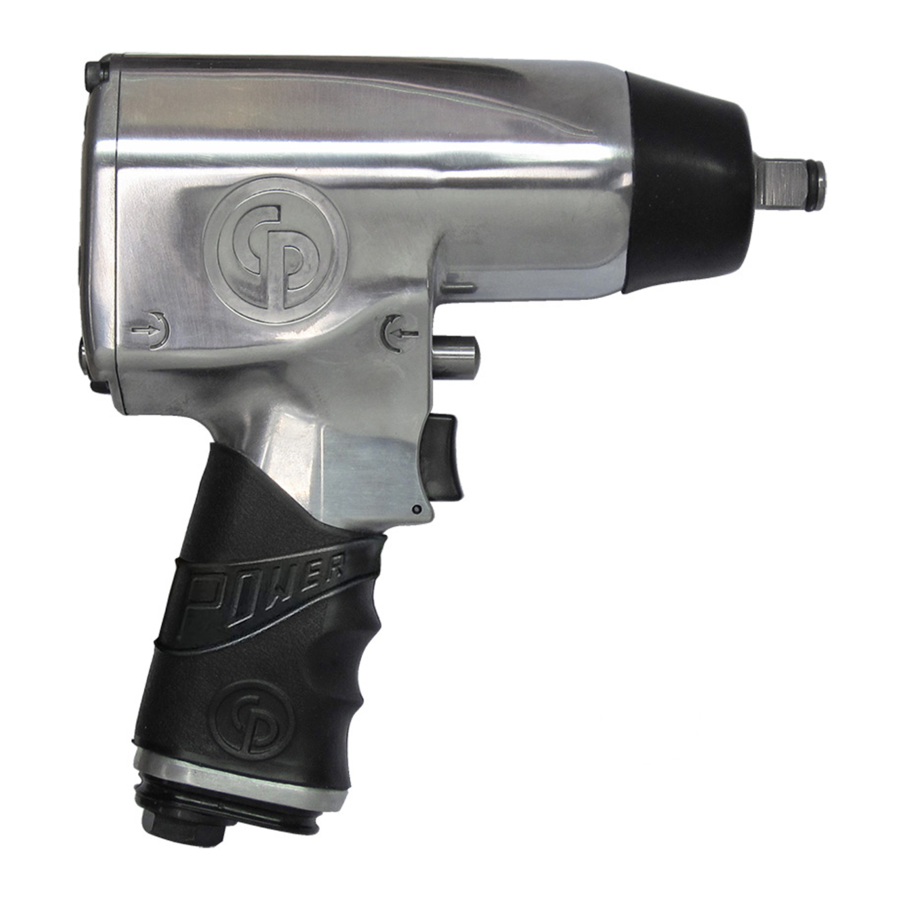

Operator's Manual
CP734H Series
Impact Wrench
To reduce risk of injury, everyone using, installing, repairing, maintaining,
changing accessories on, or working near this tool must read and
understand these instructions before performing any such task.
1/2" Sq. Dr. Model "K"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP734H Series and is the answer not in the manual?

Questions and answers

Related Manuals for CP CP734H Series

Summary of Contents for CP CP734H Series

  • Page 1 Operator’s Manual CP734H Series Impact Wrench 1/2" Sq. Dr. Model "K" To reduce risk of injury, everyone using, installing, repairing, maintaining, changing accessories on, or working near this tool must read and understand these instructions before performing any such task.
  • Page 2 CP734H Series Impact Wrench 39 38 Part Description Part Description Index Index Req'd. Req'd. CA147022 Bushing-Air Inlet (1/4 in. NPT) CA147024 Rotor CA059037 Strainer-Air KF131274 Blade Set-Rotor (6) CA142464 Spring-Throttle CA099903 Plate-Front End CA149095 Spacer CA087513 Seal CA142460 Valve-Throttle C066342...

  • Page 3: Ec Declaration Of Conformity

    Member fitting sizes shown in the diagram. States relating to machinery (98/37/EC). 1/2" (12.5mm) CA048362 (1/2") Machine Name CP734H Series Impact Wrench 3/8" (10mm) Machine Type Assembly Power Tool for Threaded Fasteners - No other use is permitted. 3/8" (10mm) 3/8"...

  • Page 4: Small Parts Kit

    CP734H Series Impact Wrench 1/2" Model L Assembly Instructions Item # Tightening torque Dir. Glue / comment 149 - 32 4.8 ft.lb - 6.5 N.m 6159948710 Safety instructions 33 - 32 3.7 ft.lb - 5 N.m 3/4 oz. (22ml) of oil in clutch...

  • Page 5: Safety Instructions

    To reduce risk of injury, everyone using, installing, repairing, maintaining, changing accessories on, or working near this tool must read and understand these instructions before performing any such task. The goal of Chicago Pneumatic is to produce tools that help Never operate the tool off of the work.
  • Page 6 SAFETY INSTRUCTIONS DO NOT DISCARD - GIVE TO USER • Our goal is to produce tools that help you work safely and efficiently. Note: So-called “click” torque wrenches do not check for potentially The most important safety device for this or any tool is YOU. Your care dangerous over-torque conditions.
  • Page 7 protective equipment when working with materials which produce Your risk from these exposures varies, depending on how often you do airborne particles. this type of work. To reduce your exposure to these chemicals: work in a • Some dust created by power sanding, sawing, grinding, drilling and well ventilated area, and work with approved safety equipment, such as other construction activities contains chemicals known to the State of dust masks that are specially designed to filter out microscopic particles.

  • Page 8: Declaration Of Conformity

    DECLARATION OF CONFORMITY (Fr) DECLARATION DE CONFORMITE ISO 28927-2 ISO 8662-7 ISO 15744 Part n° (3 axis) (1 axis) Impact wrench Models K m/s dB(A) dB(A) CP719 T025366 <2.5 CP719Q T025367 CP721 T021963 CP724H T025113 <2.5 CP726H T025114 <2.5 CP7735 8941077350 CP7735Q 8941077351...
