Summary of Contents for Allmatic KAIROS

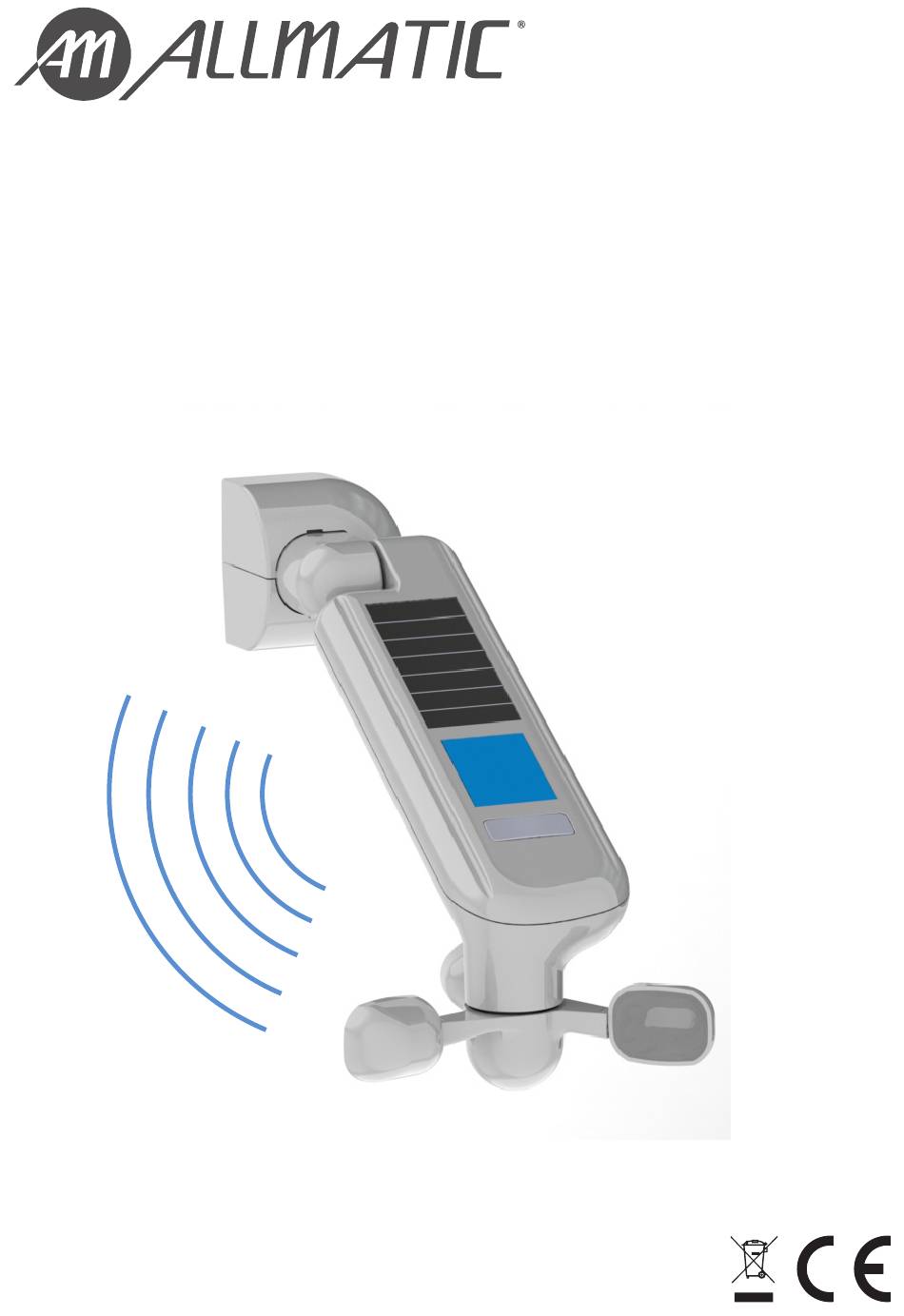

  • Page 1 KAIROS Wireless sensor light-wind-rain-temperature 6-1622652 - ENGLISH - rev.4 - 20/05/2021...
  • Page 2: Table Of Contents

    INDEX 1. GENERAL SAFETY WARNINGS 2. DESCRIPTION TABLE 1 - Sensor compatibility with ALLMATIC awning control unit. 3. PRODUCT VIEW AND TECHNICAL CHARACTERISTICS TABLE 2 - Available versions of wireless KAIROS sensors. 4. MOUNTING AND CONNECTIONS 5. SENSOR FUNCTIONALITIES AND ADJUSTMENTS TABLE 3 - Use of ADJUSTMENT MODE.
  • Page 3: General Safety Warnings

    ATTENTION! The KAIROS device is not a measuring instrument and therefore does not communicate to the control unit a detected value, but communicates the presence or absence of the affected atmospheric event. The automation management of this event is assigned exclusively to the control unit in use.
  • Page 4: Product View And Technical Characteristics

    WIND SENSOR REAR LABEL VIEW ATTENTION! The regulation trimmers and labels change depending on the sensor model in use. KAIROS KAIROS DUO KAIROS PERGOLA KAIROS SA KAIROS DUO SA KAIROS PERGOLA SA Test km/h Test Test km/h Test Test km/h Test...
  • Page 5 3.2 RADIO COMMUNICATION In wireless KAIROS sensors, communication between the device and the control unit is via radio waves at 433,92Mhz. The climate sensors must be positioned on the same wall as the awning to be protected, at a maximum distance of 20-25 meters from the control unit.
  • Page 6: Mounting And Connections

    120° WARNING! If you are using a KAIROS sensor with solar panel power it is very important to ensure that it is installed in a position that is exposed as much as possible to direct sunlight. In case the sensor is covered or shadowed by buildings or trees, the photovoltaic panel does not properly supply the sensor and therefore the buffer battery inside the sensor can be consumed early making the device stop working.
  • Page 7: Sensor Functionalities And Adjustments

    LED F . 5.2 DESCRIPTION OF THE REGULATION TRIMMERS Each KAIROS has two trimmers placed on the back of the same, thanks to which you can adjust the sensor associated with it. LIGHT SENSOR The adjustment ranges from a few lux up to a maximum of 60Klux.
  • Page 8 5.3 ADJUSTMENT OF THE SENSOR The sensor has a ADJUSTMENT MODE to be able to correctly adjust the sensors according to your needs and the environmental conditions in which you are located. Entering the ADJUSTMENT MODE you can view the current status of the sensors and, by adjusting the intervention thresholds, find the desired value of brightness, wind speed and amount of rain needed to intervene the sensor.
  • Page 9: Maintenance

    6. MAINTENANCE For the correct functioning of the sensor over the time it is recommended periodically to: • verify that the sensor is securely attached to the wall. • verify that the sensor is not damaged. • clean the top cover including photovoltaic panel, rain sensor, light sensor with a microfiber cloth WITHOUT using chemicals that could damage the sensors.
  • Page 10: Change Of Sensor Identification Code (Id)

    7. CHANGE OF SENSOR IDENTIFICATION CODE (ID) To be performed only in exceptional cases. The ID change is necessary when two sensors operate in the same range and have the same ID; this operation allows you to auto- matically change the ID. Press and hold the A button for more than 20 seconds.
  • Page 11: Drilling Drawing

    9. DRILLING DRAWING Cut out the shape below to drill the surface where the sensor will be placed. 10. PRODUCT DISPOSAL This product is an integral part of automation, and therefore must be disposed of together with it. As with installation operations, even at the end of the life of this product, dismantling operations must be carried out by qualified personnel.
  • Page 12 ALLMATIC S.r.l 32026 Borgo Valbelluna – Belluno – Italy Via dell’Artigiano, n°1 – Z.A. Tel. 0437 751175 – 751163 r.a. Fax 0437 751065 www.allmatic.com - E-mail: info@allmatic.com...
