ETI Solid State Lighting 51403141 Use And Care Manual

note: Keep your receipt and these instructions for proof of purchase.
warninG: Shut off the power at the circuit breaker or fuse panel before removing
the old fixture, ballast, or fluorescent tubes.
If you are unfamiliar with electrical installations, we recommend you contact a
qualified electrician to do the installation.
INSTALLATION
This light fixture is suitable for wall mounting or eave mounting only. It is not suitable
for ground mounting installation. The light fixture should be mounted a minimum of
6.5 ft. (2.0 m) above the ground. If two walls intersect, than the distance between the
intersecting line and the light fixture should be more than 2 ft. (0.6 m).
Shut off power at the electrical panel before beginning the installation.
1
Remove existing fixture and set aside to recycle in accordance with local
2
requirements.
Use the 2 short mounting screws to attach the mounting
3
bracket to the electrical box.
Make sure the text "GND" faces out.
White (N)
F
D
Black (L)
Green
Make the electrical connections:
5
• Black wire to black wire.
• White wire to white wire.
• Ground wire to ground.
• Connect the ground wires to the grounding screw on the
mounting bracket.
Use wire connectors to cover the wire connections and wrap
with electrical tape.
Light Head
Adjust the light heads to the desired position.
8
note: Do not mount the photocell sensor in the down position.
Model # 51403141
Use and Care GUide

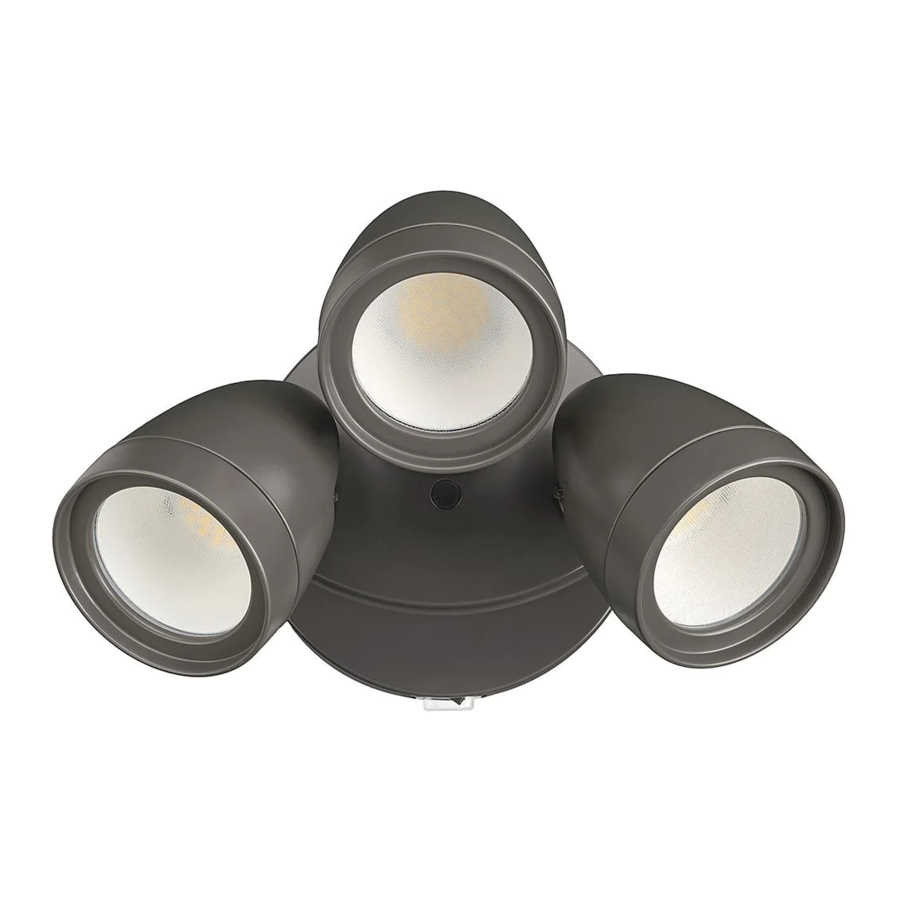

Led seCUrity LiGht with LUMen Boost™
G
C
4
Use the long mounting screw to attach the fixture to
6
the mounting bracket.
Make sure no wires are visible.
Insert the rubber plug into the hole on the fixture.
Part # sC-3hd-3600LM-8-40K-sV-BZ,
51403142 sC-3hd-3600LM-8-40K-sV-w
51404141 sC-1hd-1200LM-8-40K-sV-BZ,
51404142 sC-1hd-1200LM-8-40K-sV-w
PAckAge cONTeNTS
Part Description
A Fixture*
B Mounting Screw (long)
C Mounting Screw (short)
D Grounding Screw
E Rubber Plug
F Wire Connector
G Mounting Bracket
H Foam Gasket
I Rubber Cover
* 1-Head Security Light model numbers: 51404141, 51404142
* 3-Head Security Light model numbers: 51403141, 51403142
G
H
A
Place the foam gasket on the electrical box.
Pull the wires from the electrical box through the opening in the foam gasket.
E
B
Certification # 51403141
Quantity
1
A
1
2
1
B
1
3
E
1
1 H
1
Apply silicone sealant (not included) to
7
the edges of the fixture.
I
Photocell
If switch controlled use is preferred, turn off the photocell
9
by placing the rubber cover over the photocell.
51403142
51404141
51404142
A
C D
G
F
I
H
G
Silicone Sealant
