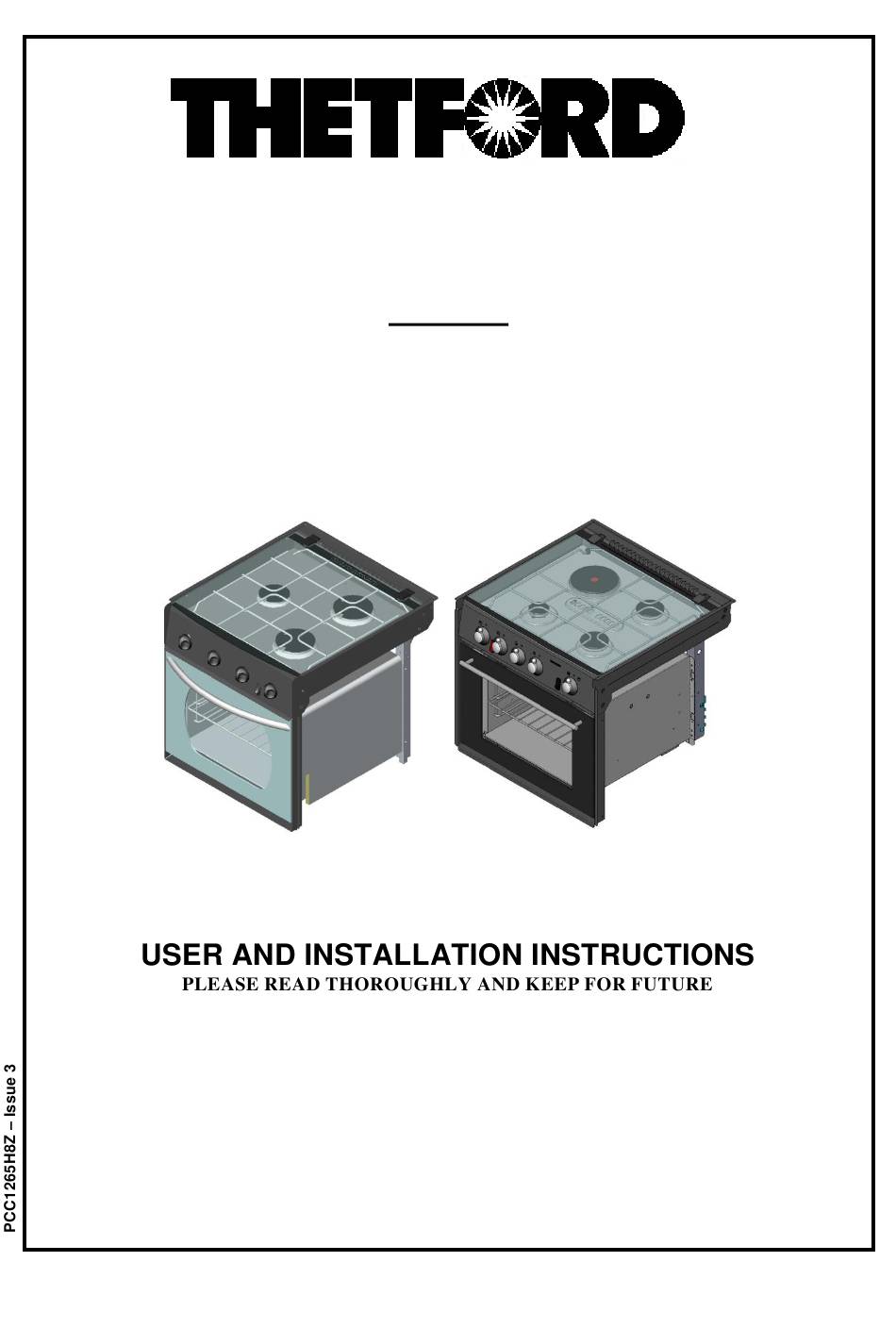

BUILD IN APPLIANCES
FOR USE WITH UNIVERSAL LPG
MODELS
SOH70XXXZ – TRIPLEX ALL GAS
SOH71XXXZ – TRIPLEX DUAL FUEL
SOH76XXXZ TRIPLEX WIDE ALL GAS
SOH76XXXZ – TRIPLEX PLUS ALL GAS
SOH77XXXZ – TRIPLEX PLUS DUAL FUEL
FOR USE IN AUSTRALIA
THETFORD AUSTRALIA PTY LTD
130-132 Freight Drive Somerton VIC 3062
TEL: 03 9358 0700
FAX: 03 9357 7060
Advertisement
Table of Contents
Related Manuals for Thetford SOH70 Z Series
Summary of Contents for Thetford SOH70 Z Series
- Page 1 SOH71XXXZ – TRIPLEX DUAL FUEL SOH76XXXZ TRIPLEX WIDE ALL GAS SOH76XXXZ – TRIPLEX PLUS ALL GAS SOH77XXXZ – TRIPLEX PLUS DUAL FUEL FOR USE IN AUSTRALIA THETFORD AUSTRALIA PTY LTD 130-132 Freight Drive Somerton VIC 3062 TEL: 03 9358 0700 FAX: 03 9357 7060...
- Page 2 TRIPLEX COOKER RANGE – Opening Widths TRIPLEX TRIPLEX PLUS & TRIPLEX WIDE SOH70XXXZ & S-OH71XXXZ SOH76XXXZ &SOH77XXXZ W = 445mm + 2.0mm – 0.0mm W = 496mm + 2.0mm – 0.0mm...
- Page 3 MINIMUM ALLOWABLE DISTANCE TO COMBUSTIBLE MATERIAL WIRING DIAGRAM...
-
Page 4: Specifications
SPECIFICATIONS MODELS WITH COPRECI TAPS AND SOMIPRESS BURNERS MODEL TRIPLEX TRIPLEX TRIPLEX PLUS All Gas 3 TYPE Dual Fuel Dual Fuel Burner CODE S-OH70XXXZ S-OH71XXXZ S-OH77XXXZ DIMENSIONS H, W, D, V³ = 36 Ltrs V³ = 36 Ltrs V³ = 36 Ltrs BURNER RATES 0.67 0.67... - Page 5 INTRODUCTION In your own interest of safety, gas appliances should be installed by competent persons. Failure to install the appliance correctly could invalidate any warranty or liability claims. This appliance shall be installed in accordance with the manufacturer’s installation instructions, local gas fitting regulations, municipal building codes, AS/NZS5601 and any other relevant statutory regulations.
-
Page 6: Operation
OPERATION Burner operation The burners on this appliance have fixed aeration and no adjustment is required. The burners should flame as follows: - Universal LPG - Normally on lighting the flames may have yellow tips and this increases slightly as the burner heats up. •... - Page 7 OPERATION Using the Electric Hotplate Ensure the electricity is switched on. The hotplate control is numbered from 1 to 6. To turn it on, rotate the knob either clockwise or anti-clockwise to the required position. Position 1 is the coolest setting. To turn the hotplate off, rotate the knob until the line or pointer on the knob lines up with the zero on the control panel.
- Page 8 OPERATION Using the Grill Ensure gas cylinder/supply is connected and turned on. In the event of a gas smell turn off at gas cylinder/mains and contact supplier. To light: Open door, push in the control knob and turn clockwise to full rate, large flame ( ). Hold a lighted match or taper to the burner and push the control knob in and hold.
- Page 9 OPERATION Using the Oven Ensure gas cylinder/supply is connected and turned on. In the event of a gas smell turn off at gas cylinder/mains and contact the supplier. To light the oven: Open door, push in the control knob and turn to full rate (Gas Mark 9, 240°C).
-
Page 10: Maintenance
OPERATION Do's and Don'ts Read the user instructions carefully before first use of the appliance. Allow the oven to heat before using for the first time, in order to expel any smells before the introduction of food. Clean the appliance regularly and remove spills as soon as they occur. Always use oven gloves when removing food shelves and trays from the oven. -
Page 11: Installation
Refer to AS/NZS 5601. Thetford recommend that provision is maintained for dispersal of unburned gas beneath the appliance. - Page 12 INSTALLATION • This appliance must be installed into an aperture, sealed off at either side in order to prevent draughts from adjoining cupboards/vents. Ensure that air vents and gas escape holes are kept clear, holes for cables and pipes must be sized to minimize air leakage between compartments. •...
- Page 13 We recommend an annual service by an authorised service agent to maintain efficient appliance performance. To arrange service, please contact your authorised local Service Agent giving full details of the model, serial number and date of purchase. Manufactured by: THETFORD Limited, Unit 6 Brookfields Way, Manvers, Rotherham,...
- Page 14 SERVICING 4. Control replacement Hob controls Disconnect from gas supply (1). Remove hob surface (2). Unscrew the corresponding pipe and thermocouple and remove from the control. Open the oven door and unscrew the 2 screws holding the thermostat probe in position and push the probe back out through the hole in the rear of oven.
-
Page 15: Fault Diagnosis
10. Removing Drop Down Oven Door Open the door and engage catch to hook on each hinge. Lift the door and pull out of front trim. If required the door inner glass may be removed for cleaning by sliding out vertically from its retaining channels. - Page 16 OVEN Flame not regulating Gas control circuit. If flame remains high after 15/20mins check thermostat located in oven. If flame low at all control positions check for blocked jet. Control tap If neither of above possible faulty tap. Yellow flame Incorrect combustion Check burner alignment correct Blocked jet...
