Summary of Contents for EKT MeiTrack A21

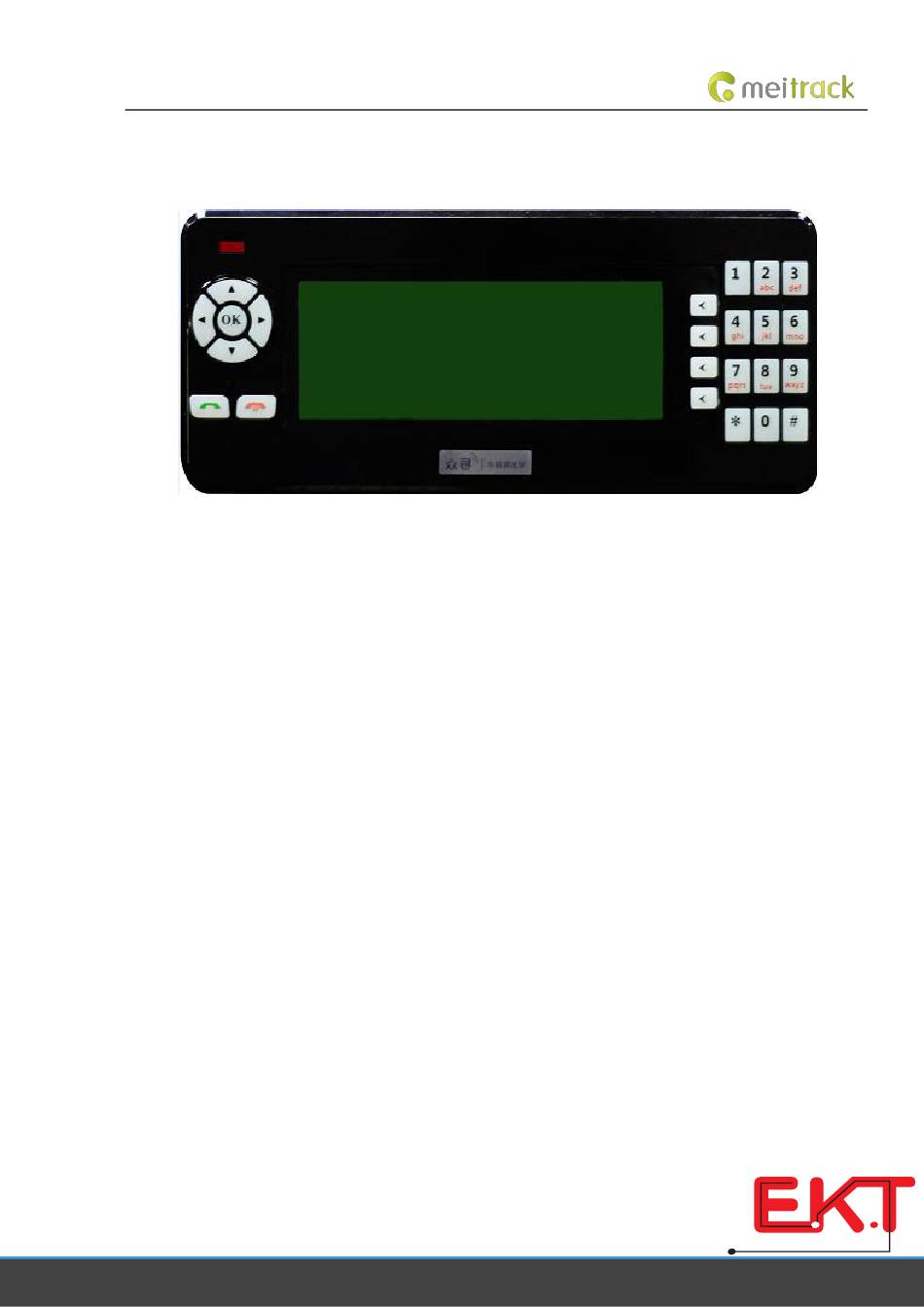

- Page 1 MEITRACK A21 LCD Display User Guide MEITRACK A21 LCD Display User Guide Applicable Model: MVT600/T1/T333 Electronics Katrangi Trading w w w . e k t . c o m...
-
Page 2: Copyright And Disclaimer
MEITRACK A21 LCD Display User Guide 1 Copyright and Disclaimer Copyright © 2015 MEITRACK. All rights reserved. are trademarks that belong to Meitrack Group. The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording. -
Page 3: Main Device And Accessories
MEITRACK A21 LCD Display User Guide 4 Main Device and Accessories A21 LCD Display Holder 8 screws 3M sticker Warranty card 5 Appearance Front View: Page Up and Page Down keys Back/Delete Menu/OK Next/Select... -
Page 4: First Use
MEITRACK A21 LCD Display User Guide Audio output USB port Panal descriptions are as follows: Item Description Answer incoming calls. Dial/Answer Dial a phone number. End the conversation. Hang-up/Back Back to the previous menu. Turn on backlight. Open the menu. - Page 5 MEITRACK A21 LCD Display User Guide Mounting the LCD display to a vehicle: Fix the LCD display with the holder to the panel under the windshield by screws; or attach the holder base to the vehicle panel by 3M sticker.
- Page 6 MEITRACK A21 LCD Display User Guide GSM signal strength Electric compass GPS status GPRS connected GPS speed GPS time & date System Menu Main Menu Submenu Inbox Platform Message Create Message Inbox Create SMS Missed Calls Call History Received Calls...
- Page 7 MEITRACK A21 LCD Display User Guide Appendix: Sending commands in batches from MS03 On the main interface, choose Management. On the Management window that is displayed, select Sending command from Use Normal. On the Sending command window that is displayed, select a single or multiple trackers from the left pane.
- Page 8 MEITRACK A21 LCD Display User Guide 7.1.2 Create Message To send a message from the tracker to the platform via GPRS. Chinese and English characters are supported. hello monMNO 004/140 Use "#" key to switch input methods between letter, number, and punctuation while editing a message. Use "Left/Right" key to select a character.
- Page 9 MEITRACK A21 LCD Display User Guide When receiving an SMS, there will be a pop-up window to show if you want to read the SMS, and the buzzer will notify by sound. The third shortcut key is to read, the forth is to exit.
- Page 10 MEITRACK A21 LCD Display User Guide There are Chinese and English available for the machine. Use "Up/Down" key to select the desired language, and then press "OK" key to confirm. Language Chinese English 7.4.2 Backlight There are four options available: 10s, 30s, 50s, and Always on. Use "Up/Down" key to select the desired option, and then press "OK"...
- Page 11 MEITRACK A21 LCD Display User Guide Voice Tip Setting 7.4.5 Set Default To restore to default factory settings. Use "Up/Down" key to select the desired option, and then press "OK" key to confirm. Confirm? Cancel 7.4.6 Version To check A21's serial number (SN) and firmware version.
- Page 12 MEITRACK A21 LCD Display User Guide Mode: TCP, cmnet IP: 125.91.12.222 Port: 8500 User name: 7.5.2 Batch Set To set parameters for multiple trackers through A21. The saved parameters will be exported from A21. Succeed: indicates the number of trackers whose parameters are set successfully through A21.
