- Page 1 M11 INSTRUCTION MANUAL...
-
Page 2: Tool Parts

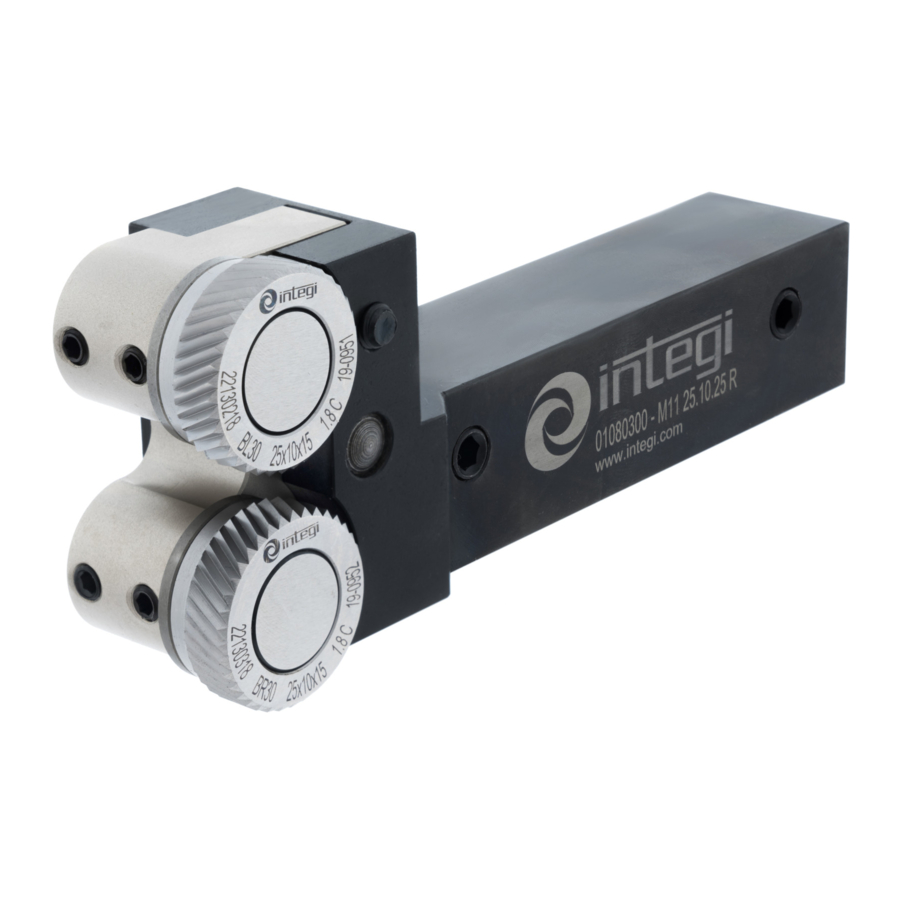

C.04 01995100 EA M5-5 Stud screw 913 M5x5 C.04 *This item is not sold individually. Table 1 Page 1 INTEGI, S.A. +34 943 174 800 - ✉ integi@integi.com / Autonomia Kalea, 5 - 48250 Zaldibar, Bizkaia – España / www.integi.com... - Page 3 M11 Instruction manual 2. FEASIBLE PATTERNS The M11 form knurling tool is conceived for knurling on pieces with diameters between 8 and 200mm. The obtained pattern depends on the knurls used as shown below. KNURLING WHEEL KNURLING PROFILE DESCRIPTION AXIS L...
-
Page 4: Troubleshooting
*Sometimes, it is not possible to increase radial feed or it just cannot be radilly fed if the workpiece is too weak. Page 3 INTEGI, S.A. +34 943 174 800 - ✉ integi@integi.com / Autonomia Kalea, 5 - 48250 Zaldibar, Bizkaia – España / www.integi.com... -
Page 5: Recommended Settings
0.20 0.18 0.15 10÷50 Brass 50÷100 0.05÷0.10 20÷25 40÷65 0.30 0.25 0.20 0.18 100÷200 200÷300 Table 4 Page 4 INTEGI, S.A. +34 943 174 800 - ✉ integi@integi.com / Autonomia Kalea, 5 - 48250 Zaldibar, Bizkaia – España / www.integi.com... - Page 6 INTEGI, S.A. Autonomía Kalea, 5 - 48250 Zaldibar (Bizkaia) - Spain +34 943 174 800 ✉ integi@integi.com www.integi.com...
