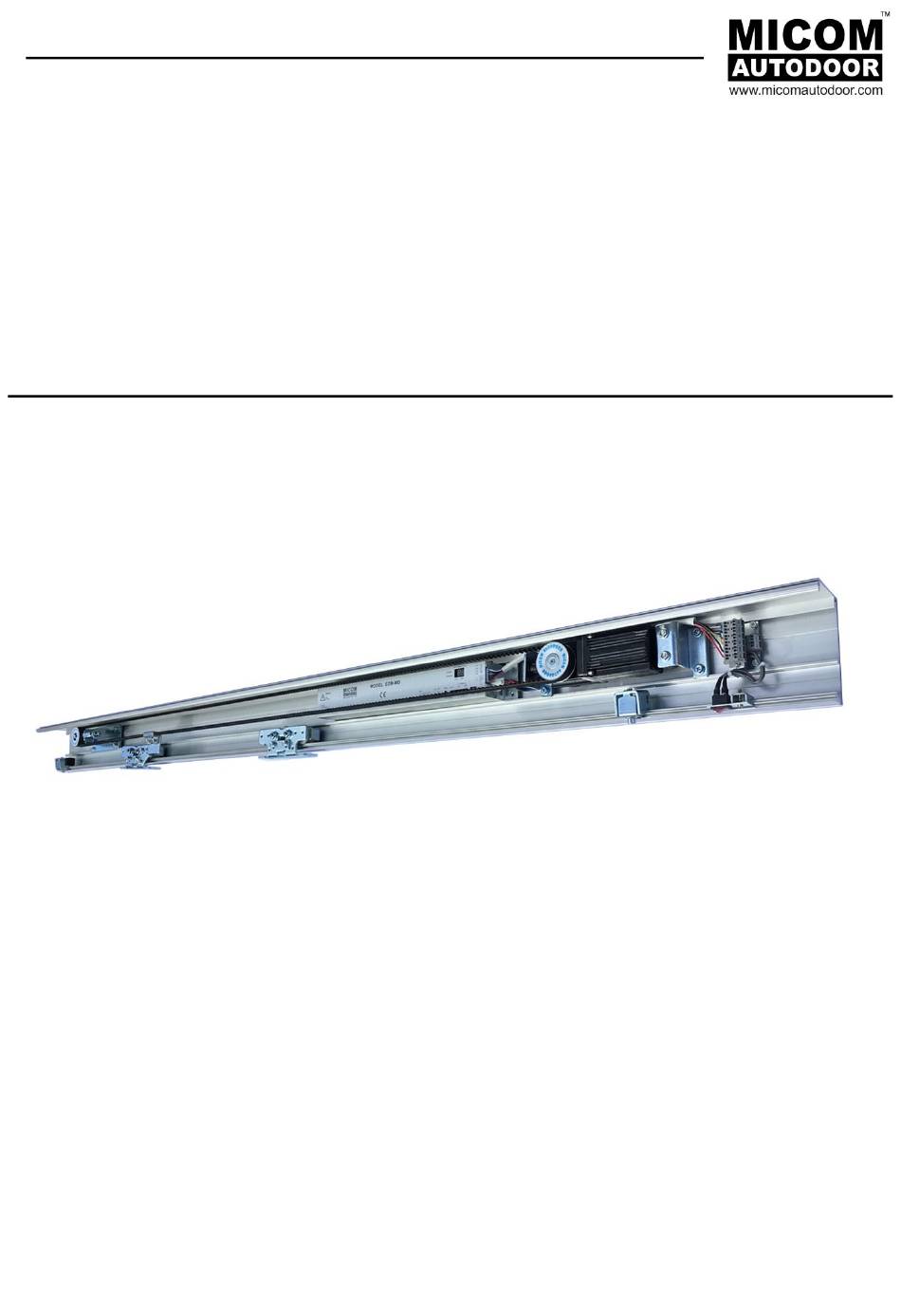

- Page 1 EDM MD-S Series Installation Manual MICOM AUTODOOR Automatic Sliding Door Operator Model: EDM MD-S Original Instructions INSTALLATION MANUAL OSAKA – JAPAN www.micomautodoor.com REVISED DATE: MARCH 2018 No. MD0004 Page 1 of 23...
- Page 2 EDM MD-S Series Installation Manual IMPORTANT SAFETY INSTRUCTIONS • It is important for the safety of persons to follow these instructions. Save these instructions. • Children being supervised not to play with the appliance. • Frequently examine the installation for imbalance and signs of wear or damage to cables, springs and mounting.
- Page 3 EDM MD-S Series Installation Manual CAUTION: Avoidance of Injury and Malfunctions • Do not switch off power supply whilst door(s) in motion. • Ensure sliding door travel area is clear before switching power switch ON. • Keep fingers, clothing & hair, clear of belt and all moving parts.
-
Page 4: Table Of Contents
EDM MD-S Series Installation Manual Contents Section Product Description 1.1 Introduction 1.2 Delivery EDM MD Series 2.1 Complete Operator Parts Installation 3.1 Base Rail 3.2 Side View Drawing 3.3 EDM-MD Front View 3.4 Mounting Doors 3.5 Smooth Operation 3.6 Power On Teaching / Learning 4.1 Teaching / Learning Operation... -
Page 5: Product Description
EDM MD-S Series Installation Manual 1. Product Description 1.1 Introduction EDM-MD Series is designed to provide a high quality yet economical automatic sliding door solution for easy open and close operation whilst offering variable function adjustment of single or double door leaves up to 100kg per leaf. -
Page 6: Delivery
EDM MD-S Series Installation Manual 1.2 Delivery MICOM EDM-MD Series can be supplied in several formats as follows: Complete Operator consisting of: Base Rail, Cover, Control Box, Connection Harness, Motor Gear Box, Con- nection Terminal, End Covers, Tooth Belt, Belt Bracket Link Assembly, Belt Connection Single & Double Door, Belt Tightening / Idle Pulley Assembly, Hanger Roller Brackets x4 and Stopper x 2. -
Page 7: Edm Md Series
EDM MD-S Series Installation Manual 2. EDM MD-S Series 2.1 EDM MD-S Complete Operator Parts Description Belt Tightening / Idle Pulley Bracket Assembly Hanger Roller Bracket with Belt Bracket Link Assembly (Single Leaf) Tooth Belt Hanger Roller Bracket with Double Roller (Standard) -
Page 8: Installation
EDM MD-S Series Installation Manual 3. Installation 3.1 Base Rail Installation CAUTION: Reduce risk of injury. Ensure installation area is clear of tripping hazards. Ensure work area is clear of pedestrians and there is a restricted pedestrian access at all times dur- ing works being carried out. -
Page 9: Edm-Md Front View
EDM MD-S Series Installation Manual 3.3 EDM-MD Front View Page 9 of 23... -
Page 10: Mounting Doors
EDM MD-S Series Installation Manual 3.4 Mounting Doors Position hanger roller brackets on top of door leaf. Ensure hanger brackets are aligned, then secure in place. Loosen hanger bracket retainer to mount doors on rail. Mount doors on rail. Adjust and secure hanger bracket retainer 2mm from underside of base rail. -
Page 11: Set Up & Operation
EDM MD-S Series Installation Manual Note: Teaching data will be stored within the control unit, even if the main power is off. Once the mains power is turned on, the stored data will be reloaded and door will continue its operation with need to re-learn it’s stoke. -
Page 12: Control Box
EDM MD-S Series Installation Manual 5.2 Control Box Assembly EDM MD Power Input Plug in 200~240VAC 2. RUN/PRG switch Slide switch to change from RUN mode to PROGRAM mode 3. TEST / UP & SET Buttons RUN Mode Only TEST Button – Used to check the basic function of the operator when servicing or in- stallation. - Page 13 EDM MD-S Series Installation Manual 4. LED Display LED Display is a visual display for the installer in order to correctly set up and operate MICOM EDM MD Operator. LED DISPLAY: LED1 : Function / Application LED2 : Parameter Value...
-
Page 14: Basic Setting Code
EDM MD-S Series Installation Manual 6. Setting 6.1 Basic Setting Code (Set the slide switch to PROGRAM) Factory Code Volume setting Function Remarks LED1 LED2 Hold Open Time 1-9sec, A:10sec, B:20sec, C:30sec, D:40sec, E:50sec F:60sec. 1～F Open High Setting of open high speed 0～A... -
Page 15: Partial Open
EDM MD-S Series Installation Manual 6.2 Hold Open Time Value Open Time (sec.) 6.3 Partial Open (Energy Saving) % Value Partial Open 6.4 Open Delay (E-Lock) Value Time Delay (After Activation) 0.1 sec 0.5 sec 1.0 sec 7. Obstruction Detection CAUTION: To avoid risk of injury to pedestrians, it is always recommended to install threshold safety devices such as safety beams or types threshold protection. -
Page 16: Closing Travel
EDM MD-S Series Installation Manual 8. EDM MD Basic Wiring 9. Specification Model MD-S-S MD-S-D Application Single Double Weight 100kg 100kg x2 Applicable door Dimension W1500xH2500 (Max) W1500xH2500 (Max) (Max) DH/DW ratio Open Door Speed Adjustable 160 - 500mm/s (11 steps adjustable) -
Page 17: Optional Accessories
EDM MD-S Series Installation Manual 10. Optional Accessories 10.1 MICOM Function Selector Switches - 4 Positions with Rotary Knob MICOM Function Selector Switches offer several options of door control. As either a rotary knob or with a secure key, allows selection of 4 to 5 separate door modes. Economic in design, MICOM Function Selectors are easy to in- stall and operate. - Page 18 EDM MD-S Series Installation Manual 10.3 MICOM Function Selector Switch - Wiring Drawing 4 Position with Rotary Knob - Available in 2 configurations 10.3.1 Rotary Function Selector Switch - 4 Position - Standard Page 18 of 23...
- Page 19 EDM MD-S Series Installation Manual 10.3.2 Rotary Function Selector Switch - 4 Positions with Push Button – Emergency Exit (Option) Page 19 of 23...
- Page 20 EDM MD-S Series Installation Manual 11. Electromagnetic Lock Wiring Page 20 of 23...
- Page 21 EDM MD-S Series Installation Manual 12. Basic Setting Table – Cut out MICOM EDM MD LED1 Function LED2 - Adjustment Factory Setting Hold Open Time 1 ~ F Steps Open High Speed (500mm/s MAX) 0 ~ A Steps Open Low Speed...
- Page 22 EDM MD-S Series Installation Manual EC Declaration of Incorporation Name of manufacturer: KENWA CO., LTD. Address of manufacturer: 6th Floor, Marutake Honmachi Bldg, 1-6-18, Chuo-Ku Osaka 541-0053, Japan In accordance with the follow- 2006/42/EC The Machinery Directive ing Directive: We hereby declare that for the partly completed machinery identified as:...
- Page 23 E-Mail: info@micomautodoor.com Copyright © 2018 MICOM Autodoor The contents of the document are the sole property of MICOM Autodoor. The direct or indirect sales, copy- ing, scanning, publication, modification or adaptation of any part of this document is prohibited without written consent of MICOM Autodoor.
