TECHNICAL MANUAL
Page n°1 of 25
Doc. Revision°:0

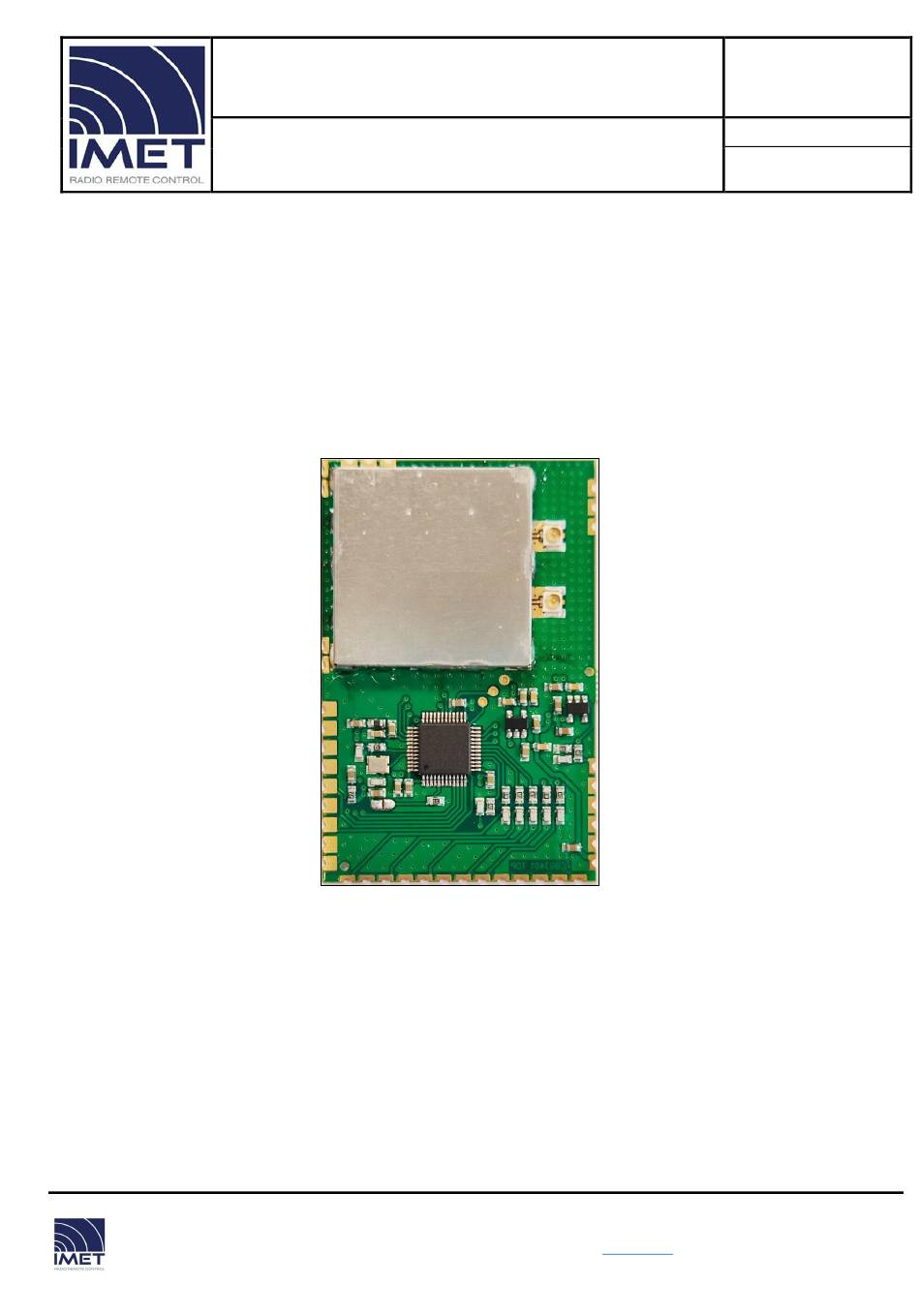

RF TRANSCEIVER MODULE 2.4GHz
B034
Date: 11/01/2021
RF TRANSCEIVER MODULE 2.4 GHz
FOR IMET RADIO REMOTE CONTROL SYSTEMS
MODEL B034
(M880 THOR2; M880 ZEUS2; KRON; M880 ZED; M880 ARES2
M880 HDC ; M880 HAC; M880 LDC and M880 LAC)
TECHNICAL MANUAL
Technical Manual file.dot
revisione n° 0
data: 24/02/2020
IMET s.r.l.
Via Ronche, 93 33077 Sacile (PN) – ITALY – Tel. (+39) 04347878 – Fax (+39) 0434 737848 P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A.
43483 CCIAA PN http//www.imet.eu e-mail:
info@imet.eu
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for IMET B034
- Page 1 RF TRANSCEIVER MODULE 2.4GHz B034 Date: 11/01/2021 RF TRANSCEIVER MODULE 2.4 GHz FOR IMET RADIO REMOTE CONTROL SYSTEMS MODEL B034 (M880 THOR2; M880 ZEUS2; KRON; M880 ZED; M880 ARES2 M880 HDC ; M880 HAC; M880 LDC and M880 LAC) TECHNICAL MANUAL Technical Manual file.dot...
- Page 2 It is strictly forbidden to reproduce any part of this manual, in any form, without the explicit written permission of the company IMET s.r.l. . The contents of this manual can be changed without notice. Every care has been taken in compiling and of the documentation contained in this manual.
-
Page 3: Table Of Contents
Device PIN Diagram and Layout ............... 12 PIN Description table ....................... 13 Mounting Details ..................... 14 Module Dimension Details .......................... 15 External Antenna for B034 ....................16 Electrical Characteristics ....................17 Approval and Certification ................18 United State ........................19 A.1.1... - Page 4 Technical Manual file.dot revisione n° 0 data: 24/02/2020 IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) – ITALY – Tel. (+39) 04347878 – Fax (+39) 0434 737848 P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A. 43483 CCIAA PN http//www.imet.eu e-mail: info@imet.eu...
-
Page 5: Device Overview And Description
The B034 module mounts two antennas with U.FL 50Ω connectors to ensure greater coverage and stability in radio communication. The B034 is assembled by welding and has its own internal voltage regulators one for the RF part and one for the microcontroller logic part and its own oscillators. -
Page 6: Main Technical Characteristics And Features
Date: 11/01/2021 Main technical Characteristics and Features B034 RF module is a Long Range 2.4GHz transceiver ideal for robust and reliable wireless solution and in particular for IMET radio remote control systems M880 series listed in the section 1.0 “Device overview”;... -
Page 7: Main Application
B034 Date: 11/01/2021 Main Application B034 is designed for industrial automation application and in particular for IMET radio REMOTE control listed in section 1.0 “Device Overview”. Main Operational characteristics and storage RF transceiver B034 is designed to operate in the following environmental condition Operating Voltage range: 3,7Vd.c. -
Page 8: List Of Available Rf Channel From 2.404Ghz To 2.479 Ghz
RF TRANSCEIVER MODULE 2.4GHz B034 Date: 11/01/2021 List of available RF channel from 2.404GHz to 2.479 GHz In the following table is reported the list of available channels than can be used by the B034 RF module List of Available Channels Channel Number Channel Frequency (GHz) 2.404... - Page 9 Technical Manual file.dot revisione n° 0 data: 24/02/2020 IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) – ITALY – Tel. (+39) 04347878 – Fax (+39) 0434 737848 P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A. 43483 CCIAA PN http//www.imet.eu e-mail: info@imet.eu...
-
Page 10: Foto Of The Device
Technical Manual file.dot revisione n° 0 data: 24/02/2020 IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) – ITALY – Tel. (+39) 04347878 – Fax (+39) 0434 737848 P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A. 43483 CCIAA PN http//www.imet.eu e-mail: info@imet.eu... -
Page 11: Device Marking Plate
Date: 11/01/2021 3.0 Device Marking plate B034 is marking with FCC ID: for Unite State as modular approval in accordance with Part 15.212 Modular Transmitter approval B034 is marking with IC ID: for Canada as modular approval according to Radio Standards Specifica- tion (RSS) RSS-210 and RSSGen. -
Page 12: Device Pin Diagram And Layout
Technical Manual file.dot revisione n° 0 data: 24/02/2020 IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) – ITALY – Tel. (+39) 04347878 – Fax (+39) 0434 737848 P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A. 43483 CCIAA PN http//www.imet.eu e-mail: info@imet.eu... -
Page 13: Pin Description Table
Technical Manual file.dot revisione n° 0 data: 24/02/2020 IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) – ITALY – Tel. (+39) 04347878 – Fax (+39) 0434 737848 P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A. 43483 CCIAA PN http//www.imet.eu e-mail: info@imet.eu... -
Page 14: Mounting Details
The B034 2.4GHz module is a surface mountable module and module dimension are shown in figure 3. The module B034 is 1,0mm (0,038”) thick with castellated mounting point on the edge. In the host PCB of the B034 module it is recommended to extend the ground plane at least 5mm (0,2”) around the module. -
Page 15: Module Dimension Details
Technical Manual file.dot revisione n° 0 data: 24/02/2020 IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) – ITALY – Tel. (+39) 04347878 – Fax (+39) 0434 737848 P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A. 43483 CCIAA PN http//www.imet.eu e-mail: info@imet.eu... -
Page 16: External Antenna For B034
Date: 11/01/2021 External Antenna for B034 The B034 module has a 50Ω ultra miniature coaxial (U.FL) connector to connect to an external 2.4GHz antenna. Modular certification of the B034 module is performed with the external antenna types listed in the following table:... -
Page 17: Electrical Characteristics
Technical Manual file.dot revisione n° 0 data: 24/02/2020 IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) – ITALY – Tel. (+39) 04347878 – Fax (+39) 0434 737848 P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A. 43483 CCIAA PN http//www.imet.eu e-mail: info@imet.eu... -
Page 18: Approval And Certification
Date: 11/01/2021 6.0 Approval and Certification RF 2.4GHz module B034 is complying with the following Directive, Standards and Regulations CE marking according to European RED Directive 2014/53/EU and 2011/65/EU and Delegated Directive 2015/863/EU on the Restriction of Hazardous Substances (RoHS) with the following reference standard ESTI EN 301 489-1:2019 V2.2.3... -
Page 19: United State
Page n°19 of 25 Doc. Revision°:0 RF TRANSCEIVER MODULE 2.4GHz B034 Date: 11/01/2021 ANNEX A - Regulatory Approval This section outlines the regulatory information for the B034 module for the following countries: • United State; • Canada; • Europe; United State B034... -
Page 20: Labelling And User Information Requirements
A.1.1 Labelling and User Information Requirements The B034 module has been labelled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the finished product into which the module is installed must also display a label referring to the enclosed module. -
Page 21: Rf Exposure
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. If the B034 module is used in a portable application (i.e., the antenna is less than 20 cm from persons during operation), the integrator is responsible for performing Specific Absorption Rate (SAR) testing in accordance with FCC rules 2.1091. -
Page 22: Canada
RF TRANSCEIVER MODULE 2.4GHz B034 Date: 11/01/2021 Testing of the B034 module was performed with the antenna types listed in Tested External Antenna Types on section 5.2. Canada The B034 module is certified for use in Canada under Industry Canada (IC) Radio Standards Specification (RSS) RSS-210 and RSSGen. -
Page 23: Approved External Antenna Type
Transmitter Antenna (from RSS-Gen , issue 5, Amendment 2 (February 2021) chapter 6.8): The B034 (26923-B034) module can only be operated with antennas with which it was approved. Transmitter may be approved with multiple antenna types. An antenna type comprises antennas having similar in-band and out-of-band radiation patterns. - Page 24 RF output power to demonstrate compliance to the specified radiated power limits. Testing of the B034 module was performed with the antenna types listed in Section 5.2 “External Antenna for B034”.
-
Page 25: Europe
Date: 11/01/2021 Europe The B034 module is an RED Directive (2014/53/EU) assessed radio module that is CE marked and has been manufactured and tested with the intention of being integrated into a final product. The B034 module has been tested to RED Directive 2014/53/EU Essential Requirements for Health and Safety (Article (3.1(a)), Electromagnetic Compatibility (EMC) (Article 3.1(b)), and Radio (Article...
