Summary of Contents for Elston Manufacturing GA-400

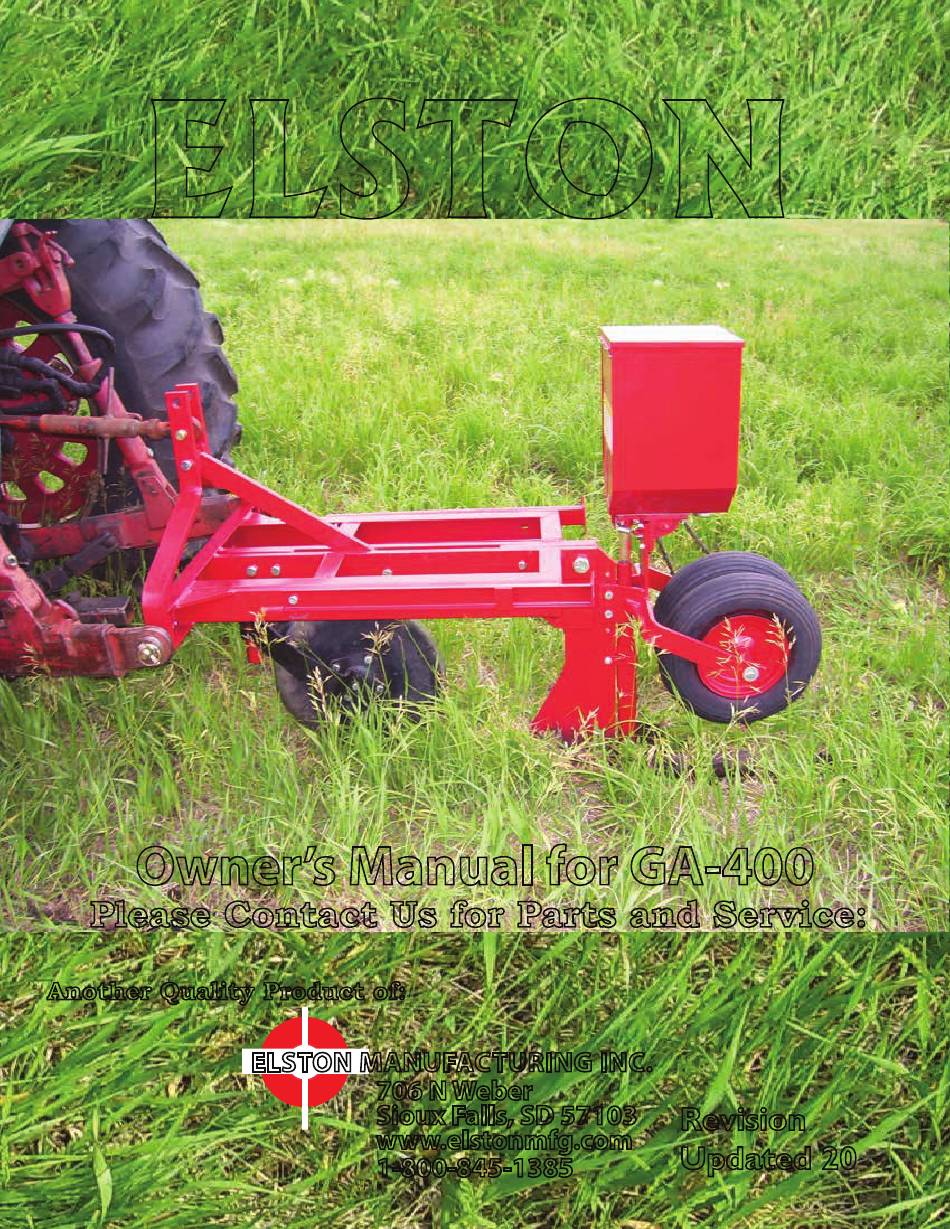

- Page 1 ELSTON Gopher Getters Owner’s Manual for GA-400 Please Contact Us for Parts and Service: Another Quality Product of: ELSTON MANUFACTURING INC. 706 N Weber Sioux Falls, SD 57103 Revision E www.elstonmfg.com Updated 2020 1-800-845-1385...
-
Page 3: Table Of Contents
Operating Tips ........................... 13 Maintenance ............................14 Every use ............................... 14 Every season or 200 lbs. of bait ......................14 GA-400 Grease Points .......................... 14 Application Rates for Gopher Getter ....................16 Standard Machine Setup ........................16 Rolled Oats Machine Setup ......................16... -
Page 4: Safety Information
Safety Information Safety Information The baits used in this machine are highly toxic and can cause serious injury or death if used improperly. Always follow all precautions on the label for the bait you use. Store bait as recommended between applications. Do not store bait in the bait box. -
Page 5: General Information
General Information General Information Thank you for purchasing a Gopher Getter from Elston Manufacturing. We are confident this product will provide you with years of service. This gopher getter works by creating an artificial tunnel. The poison is dropped into the tunnel where the gophers find it and die underground out of reach of other animals. -
Page 6: Assembly Instructions
Figure 1. Several of the pieces are of considerable weigh so please plan accordingly when removing the parts from the crate and assembling the unit. Figure 1: Parts of GA-400 as Shipped... - Page 7 Assembly Instructions Inside the bait box you will find a parts kit that includes the parts shown in Figure 2. Figure 2: Parts Kit Label Description 1” UNC 3 1/2” Hex Head Bolt w/ nut and lock washer 1/2” UNC 3” Hex Head Bolt (Grade 2) w/ nut and lock washer 5/8”...
- Page 8 Assembly Instructions Assembly of the GA400 is very straightforward and requires the installation of only seven bolts. If after reading the assembly steps below, you have any questions please refer to the parts list in the back of this manual. It presents much of the information below in a more visual way you may find easier to understand.
- Page 9 Assembly Instructions 2) Attach the lift arm tripod to the frame using the two hitch pin bolts and the ½” bolt already attached to the frame as shown in Figure 4. Note that the lock washers for the hitch pins go inside the frame.
- Page 10 Assembly Instructions 3) Attach the coulter assembly to the frame. The coulter shank is already attached to the frame and should be positioned so the shaft on the shank is closest to the front of the frame. Before bolting the coulter shank to frame, attach the coulter assembly to the coulter shank using the coulter clamp to hold it in place.
-
Page 11: Using Your Gopher Getter
Using Your Gopher Getter Using Your Gopher Getter Initial Setup You have 4 primary adjustments with this machine: the depth of the torpedo tube, the depth of cut of the coulter, the angle of the torpedo tube, and the setup of the bait box. The tire pressure should be 25 psi. -
Page 12: Setup Of Bait Box
Using Your Gopher Getter 1) Setup of Bait Box Your gopher getter is already setup for use with Elston gopher bait (milo w/0.5% strychnine). If you are using other types of poison such as oats or cracked corn or products with a lower amount of effective ingredients, you will need to replace the factory seeder slide with a seeder slide with a larger (7/8”) opening (Part # G4-208A). -
Page 13: Depth Of Coulter Blade
Using Your Gopher Getter 3) Depth of Coulter Blade The best depth is just deep enough to do the job. If it is too deep, it will be more difficult to get the gopher getter into the ground. If it is too shallow, roots will catch on the knife and tear up the ground as shown in Figure 8. -
Page 14: Angle Of Torpedo Tube
Using Your Gopher Getter The depth of the coulter can be set by loosening the set screw on the coulter clamp and moving the coulter up or down as necessary. Make sure the coulter will not hit the frame as it runs though the soil and the hub of the coulter will not run though the dirt. - Page 15 Using Your Gopher Getter To avoid extensive damage to your machine, Never backup or turn while the machine is in the ground • Always replace the shear bolt with an identical grade 2 bolt. • Never over tighten the one inch bolt attaching the knife to the frame or the shear •...
-
Page 16: Operating Tips
Using Your Gopher Getter As you start and end a pass, smoothly raise and lower the machine with the tractor upper linkage to minimize damage to the surface of the soil. In an emergency, the gopher getter can be quickly raised but may disturb a significant amount of soil. -
Page 17: Maintenance
Check if the unit needs to be greased. If so, lightly grease the unit at the grease points on the seeder casting, see Figure 12, and on the coulter hub, see Figure 13. Be careful not to over grease the seeder casting. Replace any safety decals that are no longer readable. GA-400 Grease Points Figure 12: Seeder Casting Grease Points... - Page 18 Maintenance Figure 13: Coulter Hub Grease Points...
-
Page 19: Application Rates For Gopher Getter
Application Rates for Gopher Getter Application Rates for Gopher Getter Standard Machine Setup Seeder Slide Used: Standard 5/8” (G4-208) Bait Used: Gopher Getter Bait (Milo based) Burrow Spacing (feet) 2.0 lbs/acre 1.6 lbs/acre 1.3 lbs/acre No Plate 2.7 lbs/acre 2.1 lbs/acre 1.8 lbs/acre 1 Plate 2 Plates... -
Page 20: Parts List
Coulter Assembly Coulter Blade - 18" G2-370 Seeder Assembly Tire G3-125 Packer Wheel Assembly Tripper G4-269 Frame Assembly Knife Assembly G1-100 (Complete) Parts List for GA-500 begins on Page 2-1 Please Call Elston Manufacturing for information on purchasing gopher bait (poison). - Page 21 Parts List for GA-400 Knife Assembly Ref # Description Ref # Name Part # Knife G1-103 1" x 3 1/2" Hex Head Bolt 1" Lock Washer Torpedo Tube G1-104 1" Hex Nut Torpedo Point G1-105 1/2" x 3" Hex Head Bolt (Grade 2)* 3/8"...
- Page 22 Parts List for GA-400 Coulter Assembly *Note - For 18” coulter blade, coulter shank mounts into coulter side as shown above. **Note - For 20” & 22” coulter blade, coulter shank mounts into coulter side as shown in colored version above.
- Page 23 Parts List for GA-400 Seeder Assembly Ref # Name Part # Ref # Name Part # Seeder Casting G4-200 Drain Cap G4-221P Seeder Axle G4-201 Plastic Hose (Not Shown) G4-122 Drive Gear G4-203 9-13,17 Seeder Box Assembly G4-235P Tripper G4-269...
- Page 24 Packer Wheel Assembly Parts List for GA-400 Ref # Description Ref # Name Part # Packer Wheel Bracket G3-292 3/8" x 1 3/4" Fender Washer Large Sprocket G3-283 3/8"-16 x 1" Hex Head Bolt 1/2" x 2 1/2" Hex Head Bolt...
- Page 25 Frame Assembly Parts List for GA-400 Ref # Description Ref # Name Part # Frame G5-249A 5/8" Hex Nut G5-254 5/8" Lock Washer 5/8" x 5" Hex Head Bolt Leg Spring G5-257 Cat 1 Lower Link Pin G5-255 5/8" x 3 1/4" Hex Head Bolt...
- Page 26 Parts List for GA-400 Subassemblies Blade Hub Label Name Part # Blade Flange w/ Hub G2-381 Blade Flange G2-382 Inner Bearing G2-383 Bearing Cap G2-384 1/4”-28 SAE-LT Grease N/A* Fitting *Not Available Separately...
- Page 27 Elston Manufacturing Inc. or an authorized service center freight paid by buyer. After confirmation by Elston Manufacturing, Inc. that a defect does exist in the product that is covered under this Limited Warranty then Elston Manufacturing, Inc. shall, in its sole and absolute discretion, either repair, modify or replace the product(s) and return the product(s) to the owner freight paid by Elston Manufacturing, Inc.
- Page 28 ELSTON MANUFACTURING INC. 706 N Weber Sioux Falls, SD 57103 www.elstonmfg.com 1-800-845-1385...
