Summary of Contents for Automationdirect.com SR35-KPD-REM

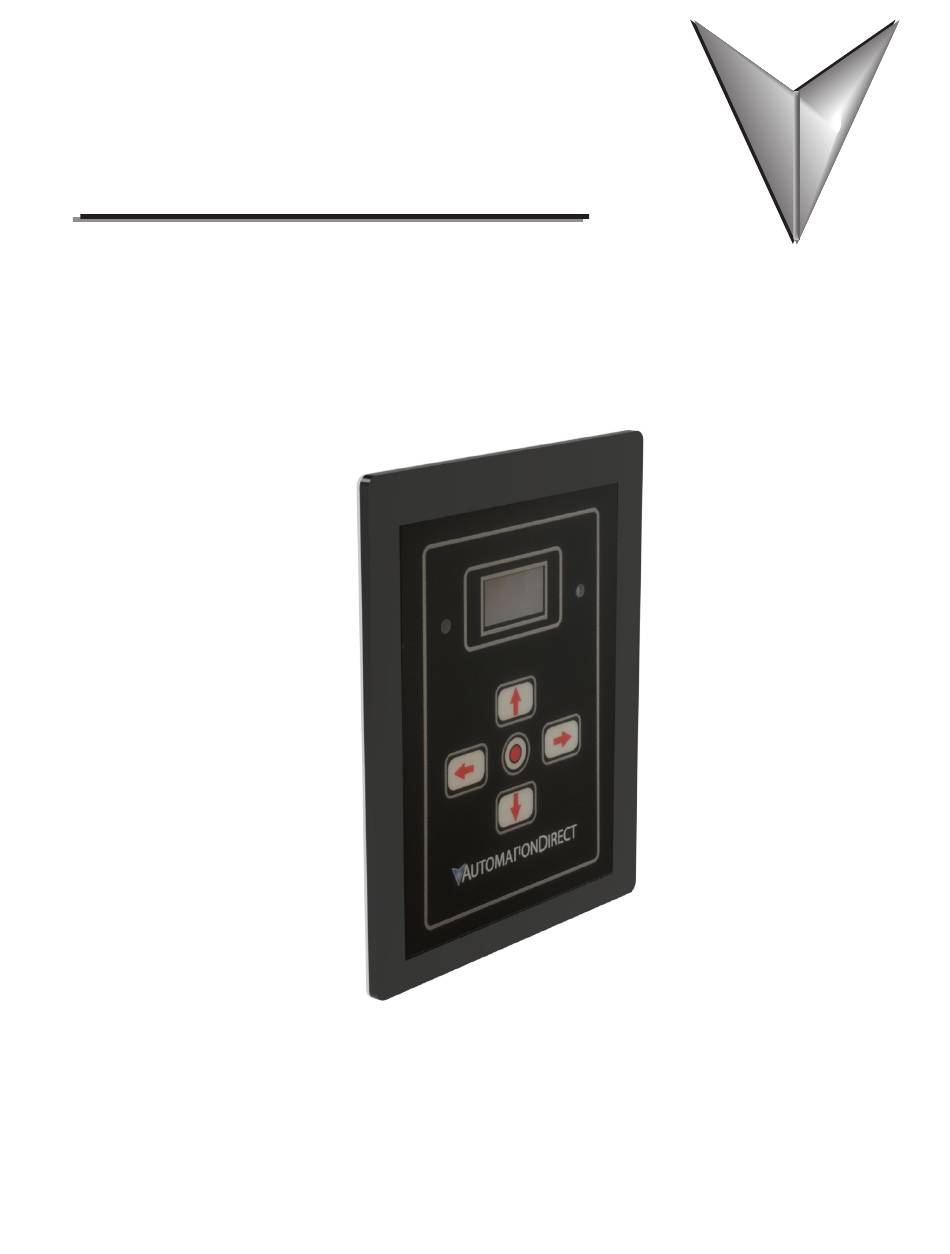

- Page 1 IP66 R emote eyPad UIde SR35-KPD-REM SR35-KPD-REM – 1st Ed. – 7/9/2020 Page 1...

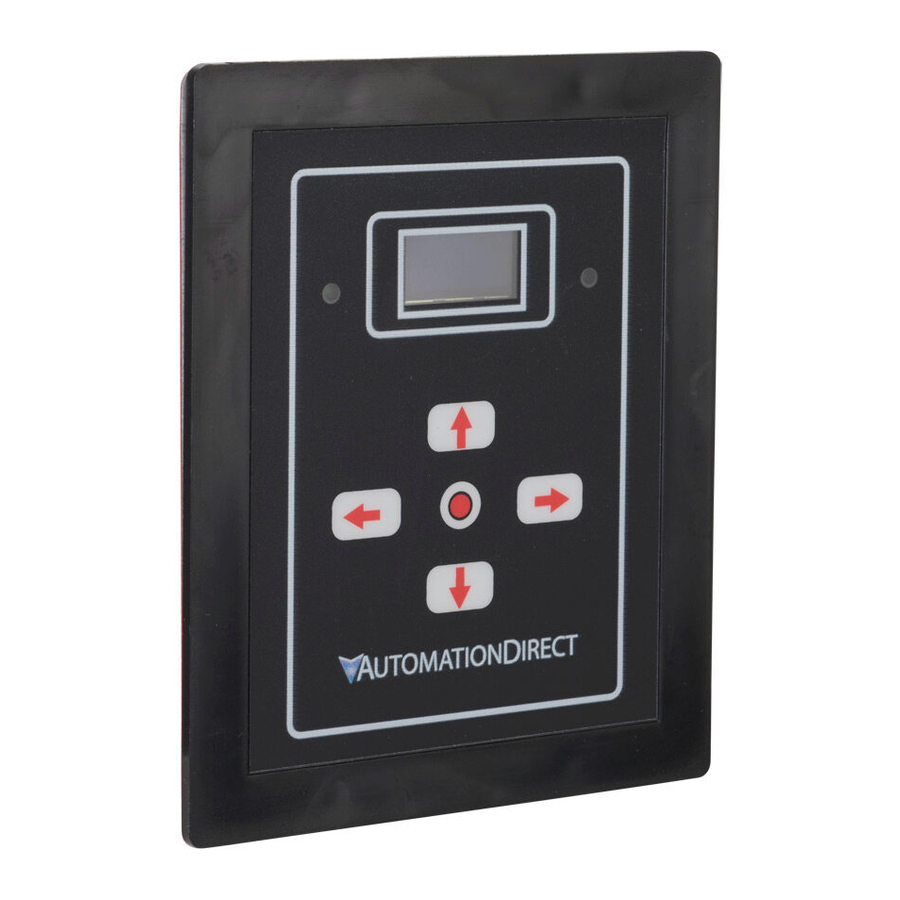

- Page 2 IP66 Remote Keypad User Guide Connection and Operation The remote keypad (SR35-KPD-REM) can be used to control, monitor and program up to 32 SR35 soft starters. The keypad is powered from the host SR35 starter and requires an Ethernet cable for communication (Modbus RTU).
- Page 3 For multiple SR35 starters connected to the keypad, the use of SR55-SPLT is highly recommended. See diagram below. CLOSE JUMPER 56 SR55-SPLT ADDRESS = 1 ADDRESS = 2 ENABLE KEYPAD POWER ON THIS UNIT ONLY Page 3 SR35-KPD-REM – 1st Ed. – 7/9/2020...
- Page 4 The following status screen will be seen: Motor Overload Level Status of READY Connected Host Navigation Control Method Wizard Local..01 (Local, Remote, (Displays Modbus) ‘ A ctive’ Keys) Modbus Address of Connected Unit Page 4 SR35-KPD-REM – 1st Ed. – 7/9/2020...
- Page 5 By pressing the Right key, the user will be taken directly to the Modbus address selection menu: Press the CENTER Address Address Use UP/DOWN keys to select address. Press CENTER to confirm. Cancel If the selected Modbus address is valid, the status screen is displayed: READY Local..01 Page 5 SR35-KPD-REM – 1st Ed. – 7/9/2020...
- Page 6 4) Use ‘Up’ or ‘Down’ keys to change address to the desired number (SR35 address). Press the ‘Center’ key to confirm 5) Remote display will return to the Status screen and display the new address RUNNING Local..02 Page 6 SR35-KPD-REM – 1st Ed. – 7/9/2020...
- Page 7 • The location allows adequate front access • The screen can be viewed o not install other equipment that generates significant heat close to the keypaD 3.58 91.0 4.41 112.0 PANEL CUTOUT DIMENSIONS PEEL OFF ADHESIVE BACKING COVER Page 7 SR35-KPD-REM – 1st Ed. – 7/9/2020...
- Page 8 IP66 Remote Keypad User Guide Firmware Update 1) Download the latest firmware version from www.automationdirect.com and copy the files to a USB flash drive 2) Power down the Remote Keypad and insert the USB flash drive 3) Power-up the remote Keypad, the update will start automatically 4) When the update is complete (status screen shown), recycle the Remote Keypad power NOTE: The host units and Keypad must have the same firmware version.
