Summary of Contents for Laser SMT-APTDORLOC

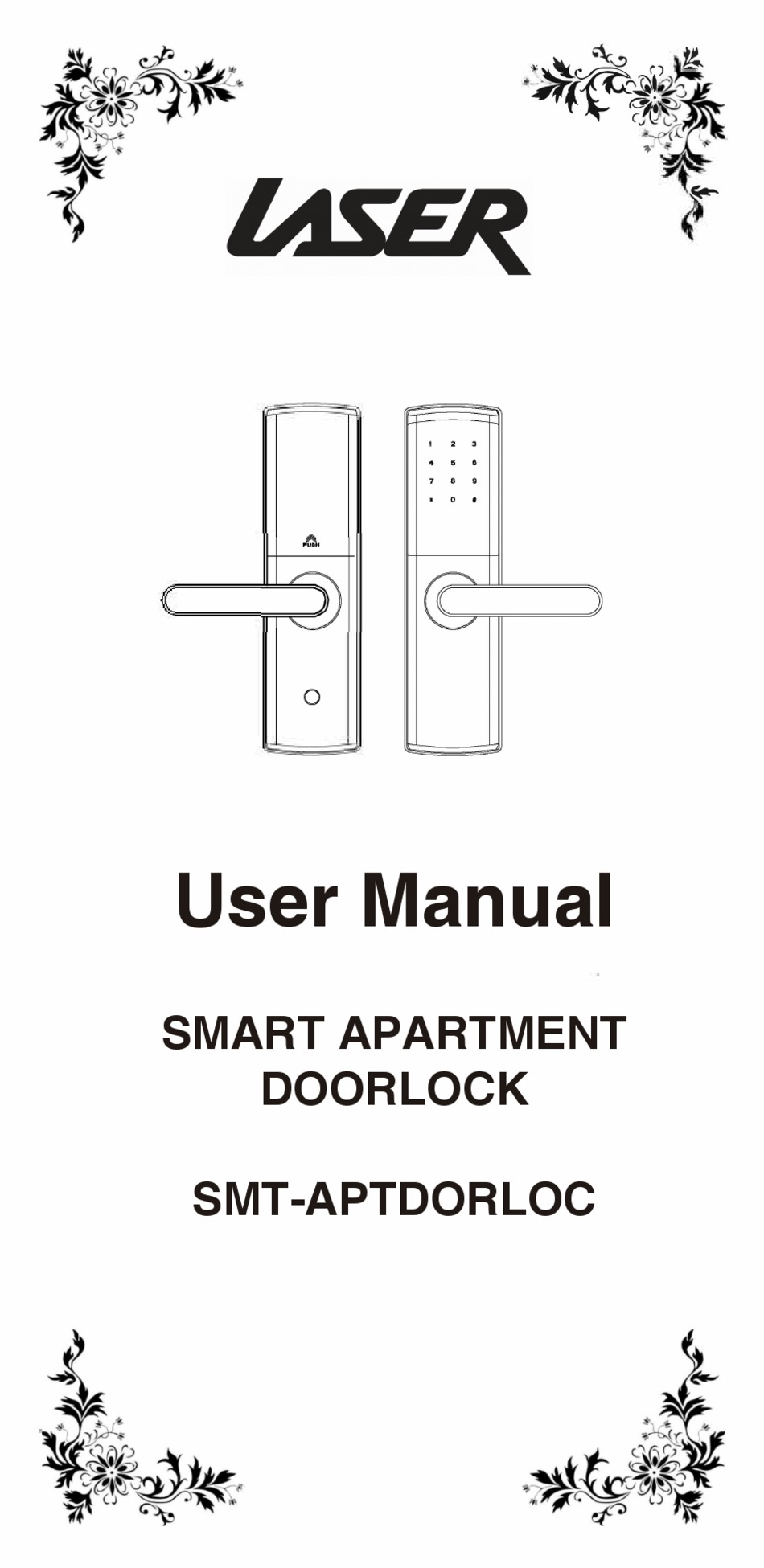

- Page 1 �"' -\ s.:> og_ �(<:ft_�, 'cf� f \-- � � User Manual SMART APARTMENT DOORLOCK SMT-APTDORLOC...
- Page 2 $Notice Thanks for choosing our product, please read this guide carefully before installing or operating. We suggest employing a professional to install, following this guide's instructions. Do not separate included items and please retain your proof of purchase for any warranty issues. Contact our distributors or customer service department if you have any questions.
-
Page 3: Front Panel Diagram
۞Diagrams 【1】Keypad 【2】Confirm 【3】Back 【5】External 5V Interface 【6】Mechanical Key 【4】Front Handle Front Panel Diagram 【1】Battery Compartment 【2】Set Button 【3】Back Handle 【5】Battery Cover 【4】Privacy Lock Back Panel Diagram 85.6 -0--... -
Page 4: Packing List
Single Latch Diagram 18.5 35.5 155 。 4-R5 Plate Box Diagram Strike Plate Diagram ۞Packing List Packing List Item Name Quantity Front Panel Back Panel Mechanical Key ID Card Square Shaft Connect Tube Fix Screw Single Latch... -
Page 5: Tools Required
۞Installation Guide Installation requirement Door thickness requires 38 - 90mm. Depth for latch is 100mm. Right Hand Left Hand Left Hand Reverse Right Hand Reverse Inside Inside Inside Inside Outside Outside Outside Outside Tools Required Pencil Tape Angle Rule Drill Drill Bits Hammer Knife... -
Page 6: Setting Guide
$Setting Guide 1. Factory Default Reset Reset the device when receiving the lock for the first time, if password was forgotten or if the keycard was lost. To reset - hold the SET button approx 7 seconds then release, the door lock will be reset. A Factory default reset will reset all users (including passwords and cards). - Page 7 3. Add User The door lock supports password user and keycard user. Only the Ad min User can add/delete users, normal users cannot. Max supported user capacity is 230, each user has a unique ID 001~230, Ad min User ID is from ID 001~009, Normal User from ID is from ID 010~230.
-
Page 8: Open Mode
Always Mode Open Always open mode means the door lock is always open, anyone can open the door without using the password or keycard. Please be mindful if using this setting. Press SET button Input admin Press 1:0N Press 3 Success or Press*# Press 2:0FF... - Page 9 $Get the APP REGISTER account LOGIN existing account Recommended APP Settings -©-...
- Page 10 Pairing Lock to the APP Put door lock into pairing mode then open the APP Home Smart NOTE: Only 2.4GHz networks are supported. 5GHz networks will not work. If your device is not found please check you are only connecting on a 2.4GHz WIFI connection.
-
Page 11: Specifications
$Specifications Item Content Zinc alloy Coating Material User Capacity(Admin 9 groups User Capacity(User) 221groups Power Supply 4.8~6.SVDC (AA*4) 6000 times/ open operating Battery Life Low Voltage Alarm �4.8V Static Current �70uA �200mA Dynamic Current ° Working Ternp. -20~55 Working Humidity 20~95% Dimensions L*W*H:260x69x25mm (Front/Back) -
Page 12: Warranty Against Defects
When requested, send us the defective Product and a copy of your receipt. Laser will cover the cost of the return delivery. Step 4: Wait for us to contact you. Once we have received your defective Laser Product for inspection, we will inform you of our assessment of your claim within 7 days.
