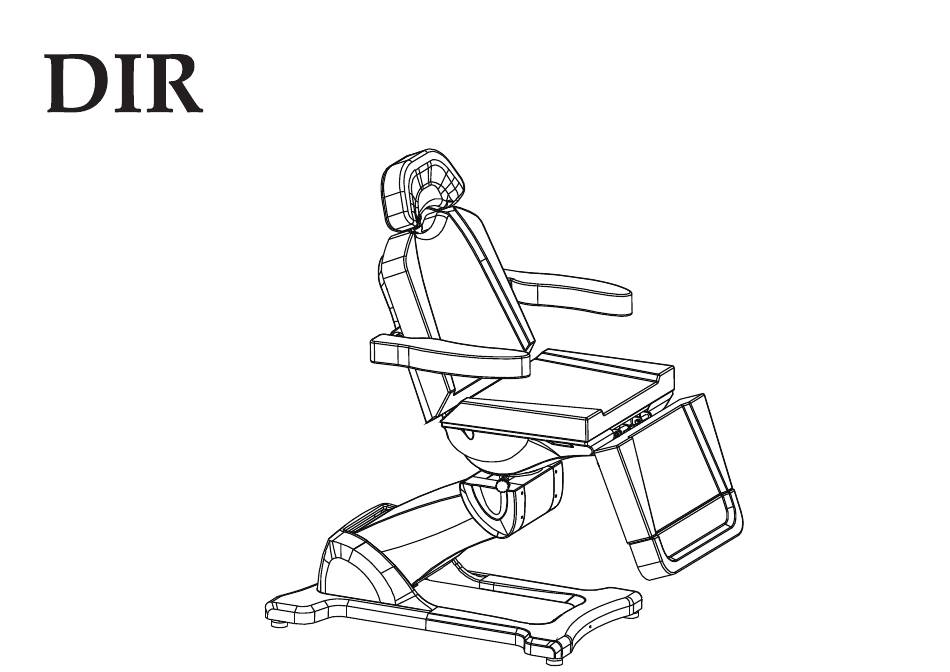

- Page 1 ® Pavo 8709 INSTRUCTION MANUAL...
- Page 2 86kg N.W. 190 lbs 180kg Max load capacity 400 lbs AC 230V/50HZ Input voltage AC 110V/60HZ DC 24V Output Voltage DC 24V 80° 70”/178cm ” / 31cm 5 ” / 13.5cm 22”/ 56cm 20”/ 51cm 15° 90°...
- Page 4 The whole bed can be inclined up and down by press- ing these buttons The inclined angle of the backrest can be adjuested up and down by pressing these buttons The inclined angle of the bottom seat can be adjusted up and down by pressing these buttons The leg can be controlled up and down by pressing these buttons...
- Page 5 The instruction (1) The height adjustment The whole bed can be inclined up and sown by pressing these buttons:...
- Page 6 (2) The backrest adjustment The inclined angle of the backrest can be adjusted up and down by pressing these buttons:...
- Page 7 (3) The bottom seat adjustment The inclined angle of the bottom seat can be adjusted up and down by pressing these buttons:...
- Page 8 (4) The footrest adjustment The footrest can be controlled up and down by pressing these buttons:...
- Page 9 (5) The pillow adjustment The inclined angle of the whole pillow can be adjusted if you press the button A. And the retroflexion of the pillow can be adjusted individually if you press the button B.
- Page 10 Button...
- Page 11 Maintenance 1. Daily cleaning You can wipe out the dust by using soft dry towel. 2. Eliminating the stubborn dirt As we all know, it is hard to eliminate the stubborn dirt by using normal dry towel. In this case, you can use soft towel with diluted neutral detergent to clean it first. And then you can use dry towel to scrub.
- Page 12 Fault diagnosis If there is something wrong when you use the product, please try to check and eliminate the wrong operation as followings. Diagnosis Operation of elimination Phenomenon 1. The function of control button 1. Try to press other control has reached to maximum.
- Page 13 Warranty The warranty period is one year. DIR warrants to you, the original buyer, that goods shall be free of defects in material and/or workmanship attributable to manufacture for one year from date of s receipt of product. Damage resulting from improper handling after merchandise is received, or from exposure to weather or extreme atmospheric conditions is not covered by the warranty.
