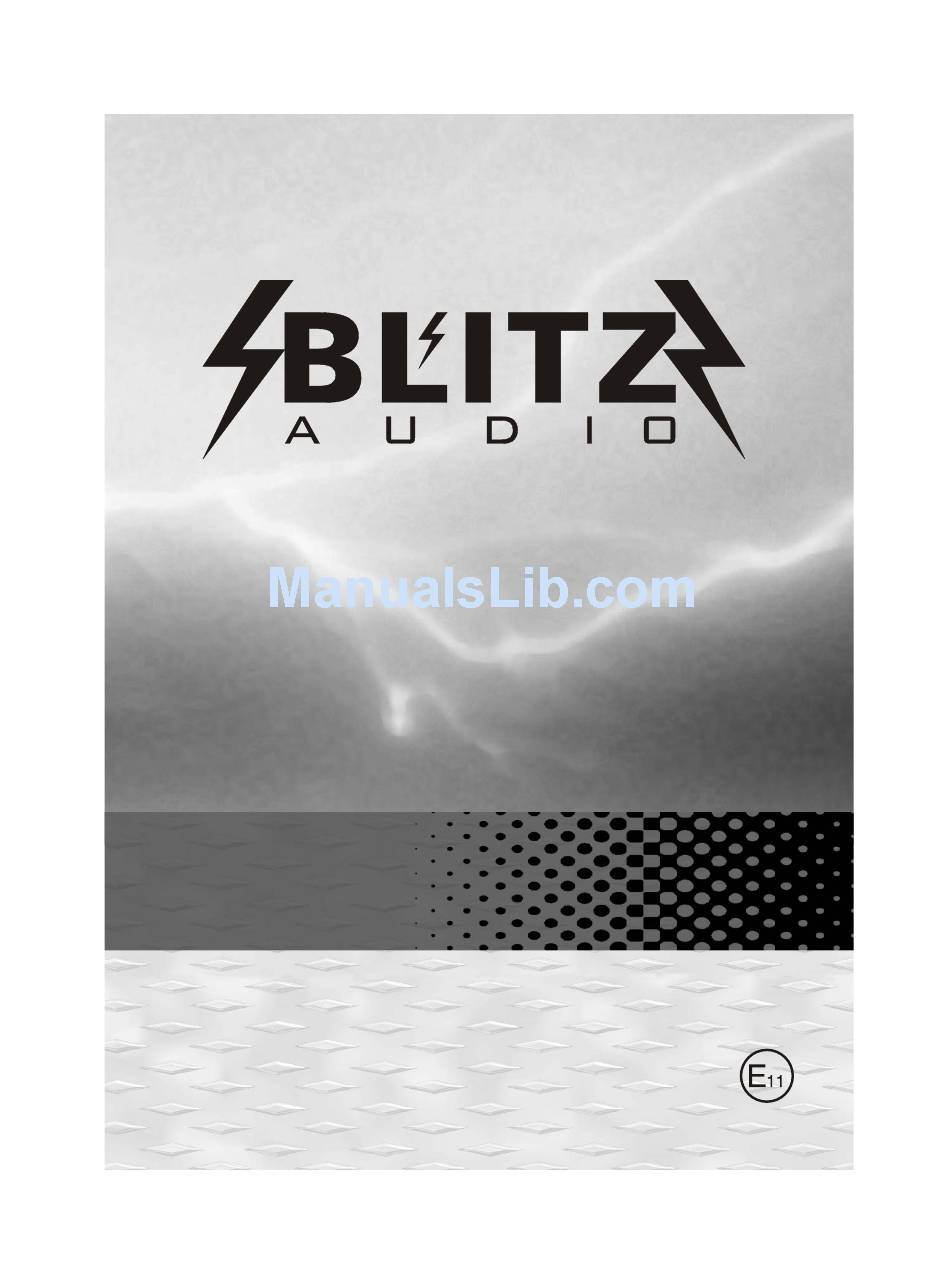

- Page 1 CLASS-D MONO BLOCK POWER AMPLIFIERS BZA-1000D / BZA-2000D OWNER'S MANUAL...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Introduction & Features Specification Features & Controls Installation & Precautions System Wiring Wiring Diagram Bridging Two Amplifiers Trouble Shooting... -
Page 3: Introduction & Features
Introduction & Features Introduction Congratulations on your purchase of a BLITZ digital amplifier. You have purchased a quality product designed and engineered to give you many years of un compromised musical service. BLITZ digital amplifiers are designed with the latest technology... -
Page 4: Specification
Specification Specification RMS at 4 Ohms RMS at 2 Ohms MAX at 2 Ohms MAX at 1.3 Ohms LOWPASS SUNSONIC PHASE 0 ~ 180 degree T.H.D S/N RATIO Input Sensitivity FREQ. Response 15Hz ~ 150Hz Dimensions(W x H x L) 10"... -
Page 5: Features & Controls
Features & Controls Features & Controls BZA-1000D / BZA-2000D BRIDGED MODE BASS BOOST DATA LINK PWR. PROT. SPEAKER POWER +REM +12V LINE LINE INPUT SLAVE MASTER PHASE INPUT SHIFT PASS SONIC LEVEL 0 180 MIN MAX FUSES REMOTE BZA-2000D ONLY... - Page 6 Features & Controls Features & Controls 1.SPEAKER TERMINAL 2.BASS BOOST CONTROL By using the BASS BOOST function, bass notes at 45Hz are emphasized as much as 18dB. 3.PHASE SHIFT SWITCH(0 ~ 180 DEGREES) Allows you to change the phase of your subwoofer from 0 to 180 degrees to help compensate for timing differences between mid and sub drivers.
- Page 7 Features & Controls Features & Controls 10.B-TERMINAL (CHASSIS GROUND) To avoid unwanted ignition noise caused by ground loops, it is essential that the Amplifier be grounded to a clean, bare, metal surface of the vehicles chassis. 11.REMOTE POWER ON To remote wire car stereo. This amplifier is turned "ON" remotely when vehicle's stereo is turned "ON".
-
Page 8: Installation & Precautions
Installation & Precautions Installation 1. Find a suitable location in the vehicle to mount the amplifier. 2. Make sure there is sufficient air flow around the intended mounting location. 3. Bolt the amplifier to the mounting surface. 4. Connect the power ground terminal to the nearest point on the chassis of the car. -
Page 9: System Wiring
System Wiring Wiring Diagram BZA-1000D / BZA-2000D BRIDGED MODE BASS BOOST DATA LINK PWR. PROT. SPEAKER BZA-1000D SUB WOOFER 2 OHM BZA-2000D SUB WOOFER 1 OHM POWER +REM +12V GROUND REMOTE TURN-ON Fuse Holder Distribution BATTERY LINE LINE INPUT SLAVE MASTER PHASE INPUT... -
Page 10: Bridging Two Amplifiers
System Wiring Bridging Two Amplifiers BZA-1000D / BZA-2000D MASTER AMP BRIDGED MODE BASS BOOST DATA LINK PWR. PROT. SPEAKER BZA-1000D SUB WOOFER 4 OHM BZA-2000D SUB WOOFER 2 OHM SLAVE AMP BRIDGED MODE BASS BOOST DATA LINK PWR. PROT. SPEAKER BRIDGED SWITCH : MASTER POSITION SLAVE MASTER... -
Page 11: Troubleshooting
Troubleshooting Troubleshooting Amplifier will not power up. Check for good ground connection. Check that remote DC terminal has at least 3V DC. Check that there is battery power on the + terminal. Check all fuses. Check that Protection LED is not lit. If it is lit, shut off amplifier briefly and then repower it. - Page 12 www.blitzaudio.com Printed in korea.
