SP Controls Epson EMP-7800 Application Note

I. Driver Features

1. Command Format

This device is controlled through RS-232.

2. RS-232 Commands

Power On Source: Video (RCA)
Power Off Source: S-Video
Volume Up Source: BNC (RGB-Analog)
Volume Down Source: BNC (RGB-Video)
Source: YCbCr (BNC)
Source: YPbPr (BNC)
Source: Computer (VGA)
Source: DVI

3. Other Driver Features

Default Power Status Feedback:
Projector Restart Lockout Timer (Default):
II. RS-232 Control Wiring

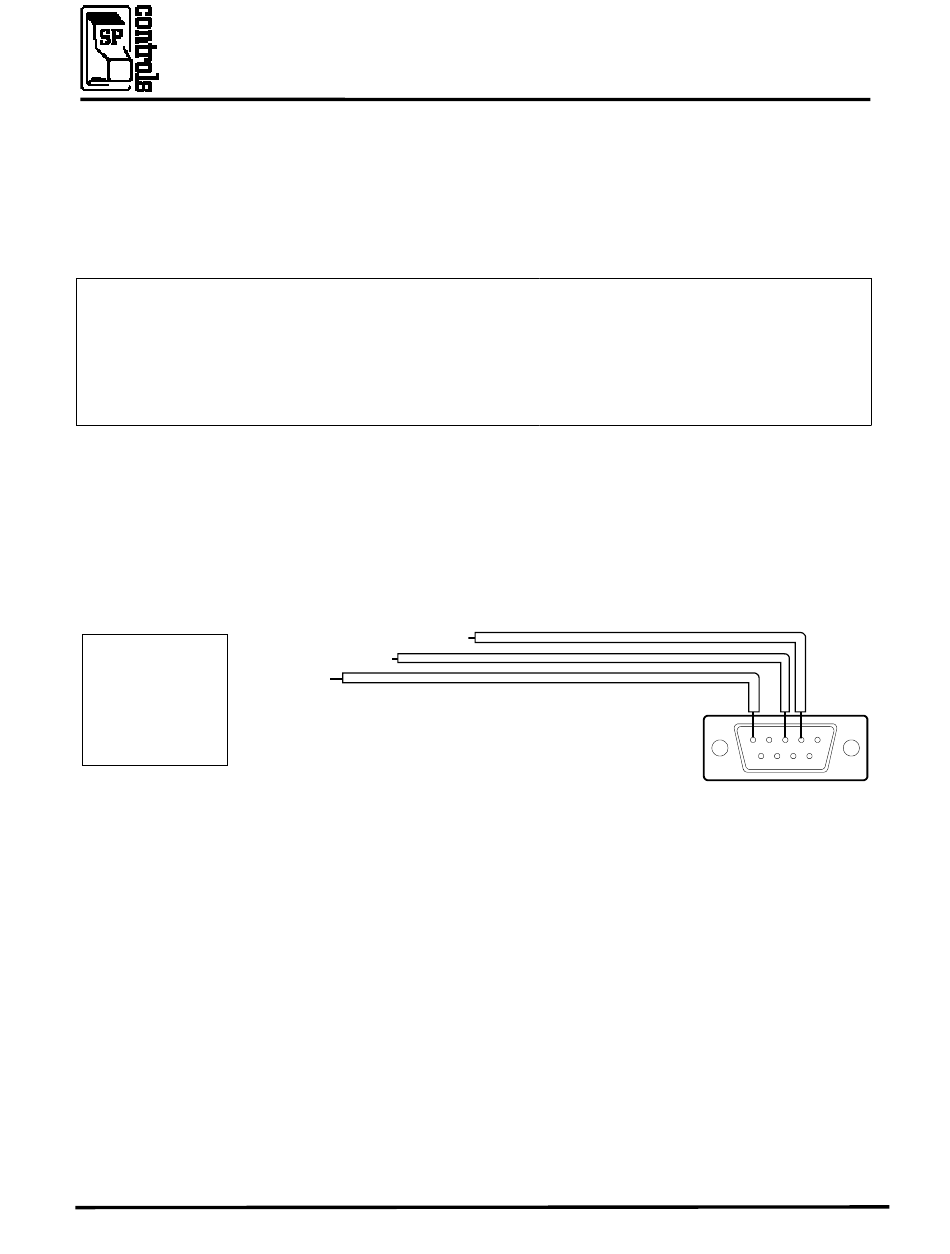

Wire RS-232 control to a female DB9 as follows:
GND to 5
SP Controls
Device
Connect female DB9 to projector port labeled Control (RS-232c).
Serial Adapters (for NRC only): None
III. Projector Configuration
The Epson EMP-7800 projector must be configured to STANDBY MODE: NETWORK ON in the
projector onscreen menu ADVANCED1. If the projector STANDBY MODE is not configured to NETWORK
ON, it may stop responding to RS-232 commands. If the projector does stop responding to RS-232
control, manually power down the Epson projector. Once the projector cools down, unplug the projector
from the outlet and allow it 15 seconds to reset. Reapply power and the projector should work normally.
Note: When the projector is placed in STANDBY MODE: NETWORK ON the projector fan remains on in
standby mode. This is normal projector behavior.
© 2004-9 SP Controls Inc.
Menu
Adj Up
Adj Down
Adj Left
Adj Right
Enter
Escape
RS-232 Power Polling
42 Seconds
TX to 2
RX to 3
SP Controls reserves the right to modify specifications without notice at any time.
SP Controls Application Note
Epson EMP-7800
Bright Up Sync Up
Bright Down Sync Down
Help Tracking Up
Resize Tracking Down
A/V Mute
E-Zoom Up
E-Zoom Down
Control Cable
(shown from front)
Revision F
