INSTALLATION AND MAINTENANCE INSTRUCTIONS
M500M Monitor Module

Specifications

Normal Operating Voltage:
EOL Resistance:
Maximum IDC wiring resistance:
Temperature Range:
Humidity:
Dimensions:
Accessories:

Before Installing

This information is included as a quick reference installation
guide. Refer to the control panel installation manual for detailed
system information. If the modules will be installed in an existing
operational system, inform the operator and local authority that
the system will be temporarily out of service. Disconnect power to
the control panel before installing the modules.
NOTICE: This manual should be left with the owner/user of
this equipment.

General Description

The M500M Monitor Module is intended for use in intelligent, two-
wire systems, where the individual address of each module is se-
lected using the built-in rotary decade switches. It provides either a
2-wire or 4-wire fault tolerant initiating circuit for normally open
contact fire alarm, supervisory, or security devices. The module has
a panel controlled LED indicator.

Compatibility Requirements

To ensure proper operation, these modules shall be connected to
listed compatible system control panels only.

Mounting

The M500M mounts directly to 4" square electrical boxes (see
Figure 2A). The box must have a minimum depth of 2
mounted electrical boxes (SMB500) are available from System
Sensor.

Wiring

NOTE: All wiring must conform to applicable local codes, ordi-
nances, and regulations. This module is intended for
power limited wiring only.
1. Install module wiring in accordance with the job drawings and
appropriate wiring diagrams.
2. Set the address on the module per job drawings.
3. Secure module to electrical box (supplied by installer), as
shown in Figure 2A.
M500-09-00
15 to 32 VDC
47K Ohms
1,200 Ohms
32˚F to 120˚F (0˚C to 49˚C)
10% to 93% Noncondensing
" H x 4" W x 1 " D (Mounts to a 4" square by 2
1 1
4 / /
2 4
SMB500 Electrical Box
". Flush
1 /
8
1
3825 Ohio Avenue, St. Charles, Illinois 60174
" deep box.)
1
/
8

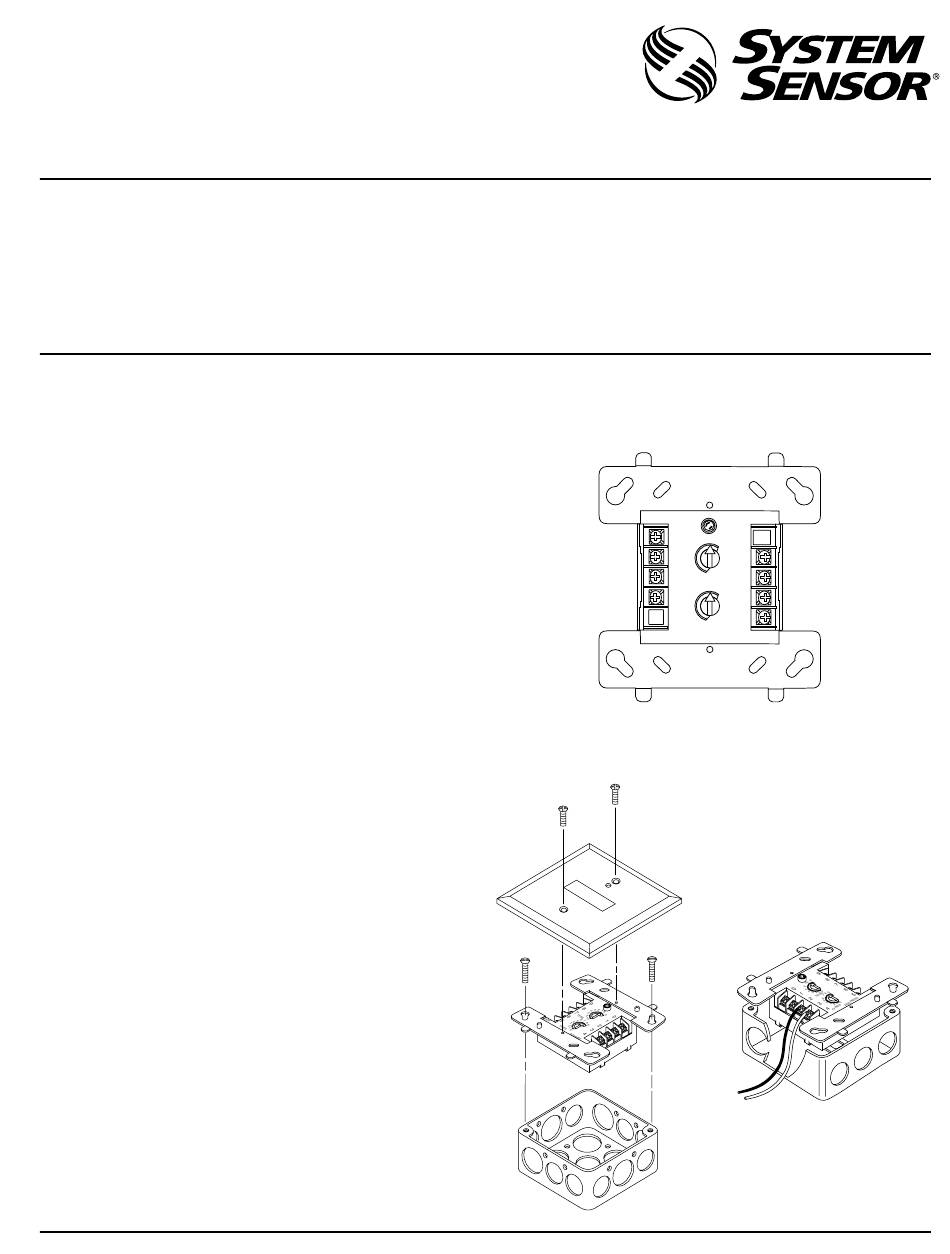

Figure 1. Controls and indicators:
9
8
7
6
5
LOOP
Figure 2A. Module mounting:
A78-2610-12
A Division of Pittway
1-800-SENSOR2, FAX: 630-377-6495
0
6 7 8 9
5
4
1
3
2
1 2
0
TENS
6 7 8 9
5
3
4
3
4
2
1
0
ONES
ADDRESS
Figure 2B:
A78-2318-06
A78-2611-10
I56-1177-03
