Thank you for purchasing our VIPER winch mount. You now own a premium custom
winch mount which allows you to use your winch with your UTV / SxS. Please note the
following instructions and heed all warnings.
• Please use common sense when operating your UTV / SxS
• Read your Winch Operators Manual and all other operator manuals, including
warning labels, before operating your UTV / SxS
• Be observant of moving parts causing entanglement, use extreme caution!
SEVERE INJURY OR DEATH MAY RESULT IF YOU ARE NEGLIGENT.
866.527.7637
www.motoalliance.com
VIPER Winch Mount
MA11906T
Polaris RZR Turbo
1
motoinfo@motoalliance.com
Advertisement
Table of Contents
Related Manuals for Motoalliance VIPER MA11906T
Summary of Contents for Motoalliance VIPER MA11906T
- Page 1 23001 Industrial Blvd, Rogers, MN 55374 / 1-866-527-7637 www.motoalliance.com VIPER Winch Mount MA11906T Polaris RZR Turbo Thank you for purchasing our VIPER winch mount. You now own a premium custom winch mount which allows you to use your winch with your UTV / SxS. Please note the following instructions and heed all warnings.

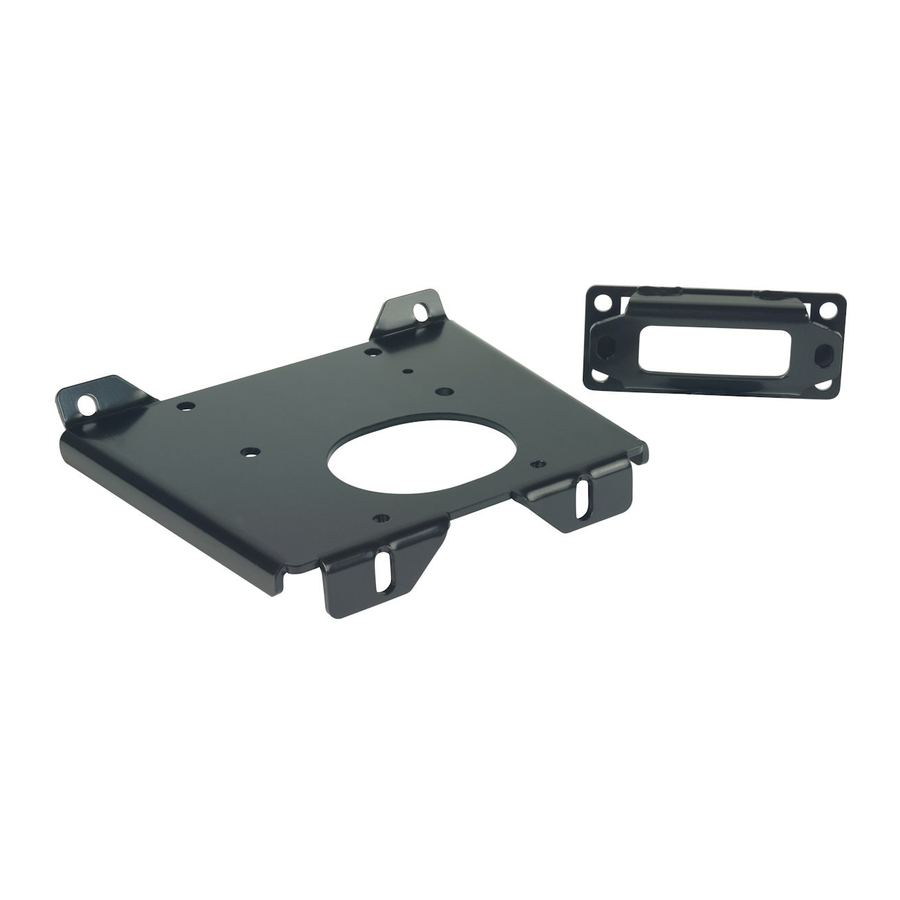

- Page 2 Please verify that all hardware and parts are included in your package. Kit Contents: Item Description MA11906T-1 Mount Plate 3/8’’-16 x 1’’ Grade 5 Carriage Bolt 3/8’’-16 Serrated Flange Nut MA11906-3 Fairlead Bracket (Second picture below) MA11906T Winch Mount Assembly View MA11906-3 Fairlead 866.527.7637 Motoinfo@motoalliance.com...
- Page 3 (8) T40 Torx screws as shown in Figure 1. Set the brush guard aside. Figure 1 3) Loosen the clear differential breather line and push the extra line down toward the differential, as shown in Figure 2, to allow the hose to be moved around later in the install. 866.527.7637 Motoinfo@motoalliance.com...
- Page 4 23001 Industrial Blvd VIPER Polaris RZR Turbo Winch Mount Rogers, MN 55374 866.527.7637 Figure 2 4) Rotate the breather hose clip 90 degrees, as shown in Figure 3, so that the cable will not contact the clip later. Figure 3 866.527.7637 Motoinfo@motoalliance.com...
- Page 5 Reattach the cable to the winch. See Figure 8 for an expanded view. 866.527.7637 Motoinfo@motoalliance.com...
- Page 6 RZR frame. The winch and mount plate will have to be lifted into place to insert these bolts. Loosely secure the mount plate using the 3/8’’ Serrated Flange Nuts (part #3). 866.527.7637 Motoinfo@motoalliance.com...
- Page 7 Proceed with the remaining Torx bolts. Install the headlight wiring harnesses. NOTE: It may be necessary to trim a small amount of plastic on the front brush guard to eliminate interference with the fairlead. 14) Reinstall the metal bumper in reverse order. 866.527.7637 Motoinfo@motoalliance.com...
- Page 8 Route the cables through the center tunnel. NOTE: Route cables away from moving, sharp or hot areas. It may be necessary to purchase an extended wiring kit depending on the vehicle size. 866.527.7637 Motoinfo@motoalliance.com...
