K44 Audio Splitter Board Kit

Introduction

The K44 has a great CW reader but one thing that slows most folks down is connecting audio
from their receiver to the K44's audio input. K1EL recommends using audio from the receiver's
audio line output jack which, in most cases, is located on the back of the radio. Usually it's in a
multi-pin DIN accessory connector, which is certainly not very convenient. The reason the line out
works so well is that it is a high impedance output, which matches the K44 audio input, and it is
unaffected by the radio's AF gain control. You can turn the AF gain control up and down and K44
copy is unaffected.
The next best option is to plug into the radio's external speaker jack. There are two problems with
this, the first is that it is a low impedance output, usually 8 ohms. The second is as soon as you
plug something into the external speaker jack, the radio's internal speaker is muted. Our
recommendation, up to now, has been to make up a Y cable but that doesn't solve the impedance
mismatch. To solve this once and for all, we designed an audio splitter board which takes the
place of a Y cable and also solves the impedance mismatch problem. Unfortunately, it doesn't
solve the AF gain adjustment issue but it's a good compromise.
The K44 Splitter board has three 1/8 inch jacks, one jack goes to your radio's external speaker
jack, a second one goes to you exernal speaker, and a third goes to the K44's audio input jack.
Use two of our 1/8 inch to 1/8 inch audio cables as shown below and you are all set.

Features

 1/8 inch (3.5mm) audio input jack. Connect this to your radio's external speaker jack.
 1/8 inch (3.5mm) speaker audio output jack. Connect this to your external speaker.
 1/8 inch (3.5mm) Hi-Z audio output jack. Connect this to the K44's audio input jack.
 K44 audio is coupled through a low level impedance transformer
 4 - 16 ohm audio input, 4 - 16 ohm speaker output and 4.7K ohm output impedance to K44.
 Audio attenuator to prevent K44 audio overload.
 Negligible effect on external speaker volume or tone.
 All connectors are on board with no flying leads or components.
 External power is not required.
 Easy assembly with large through hole components.

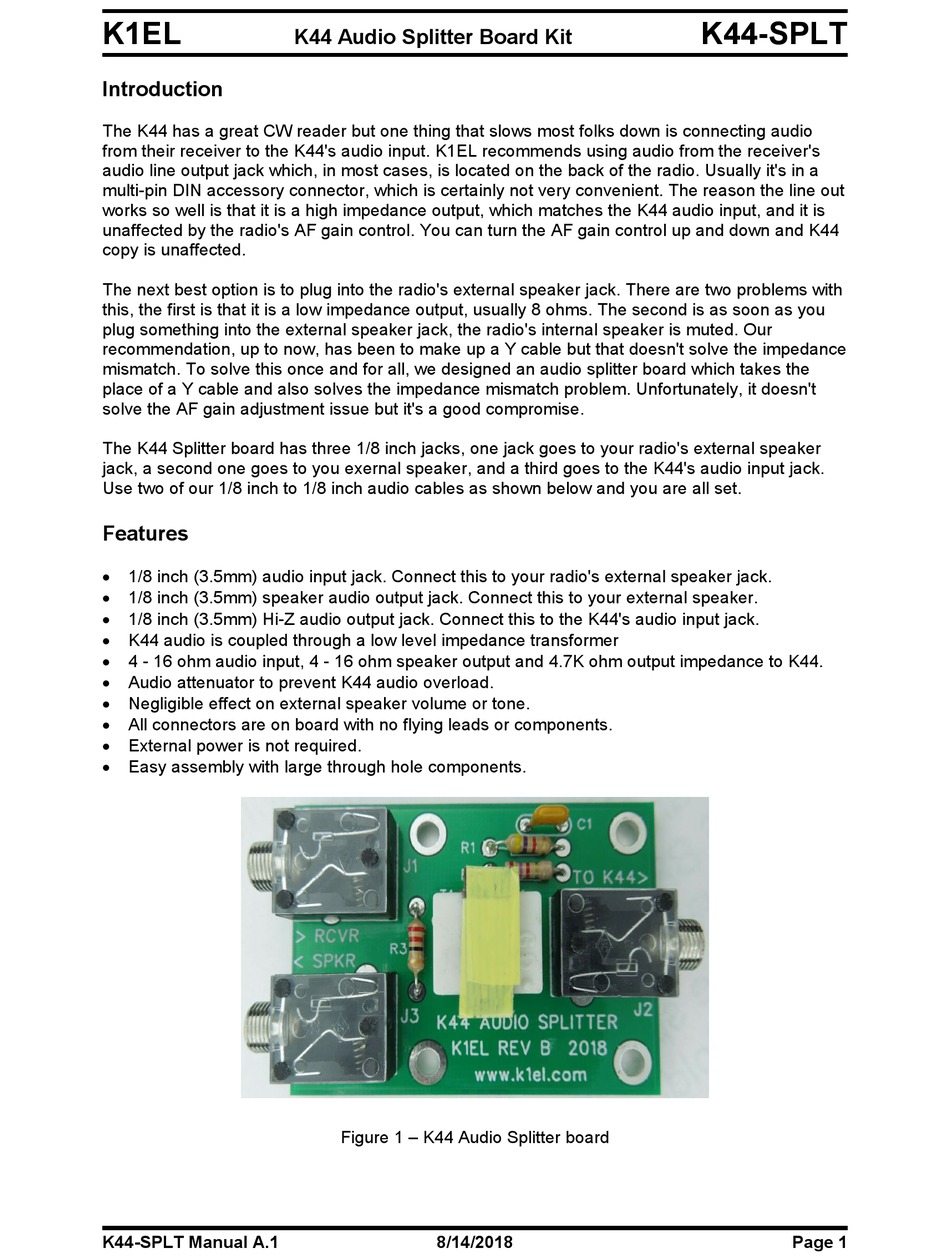

Figure 1 – K44 Audio Splitter board
K44-SPLT Manual A.1
8/14/2018
Page 1
