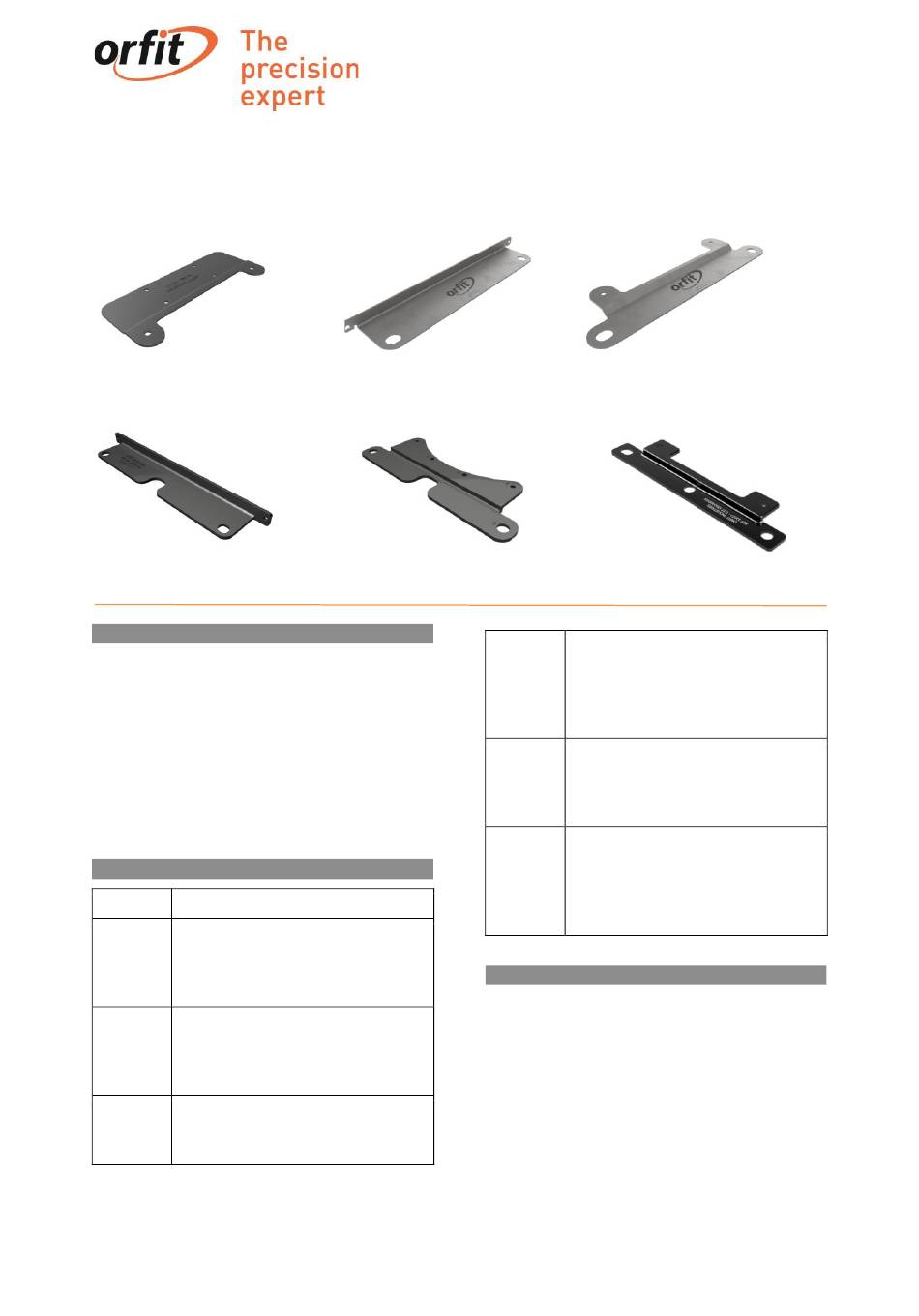

RAYCAST

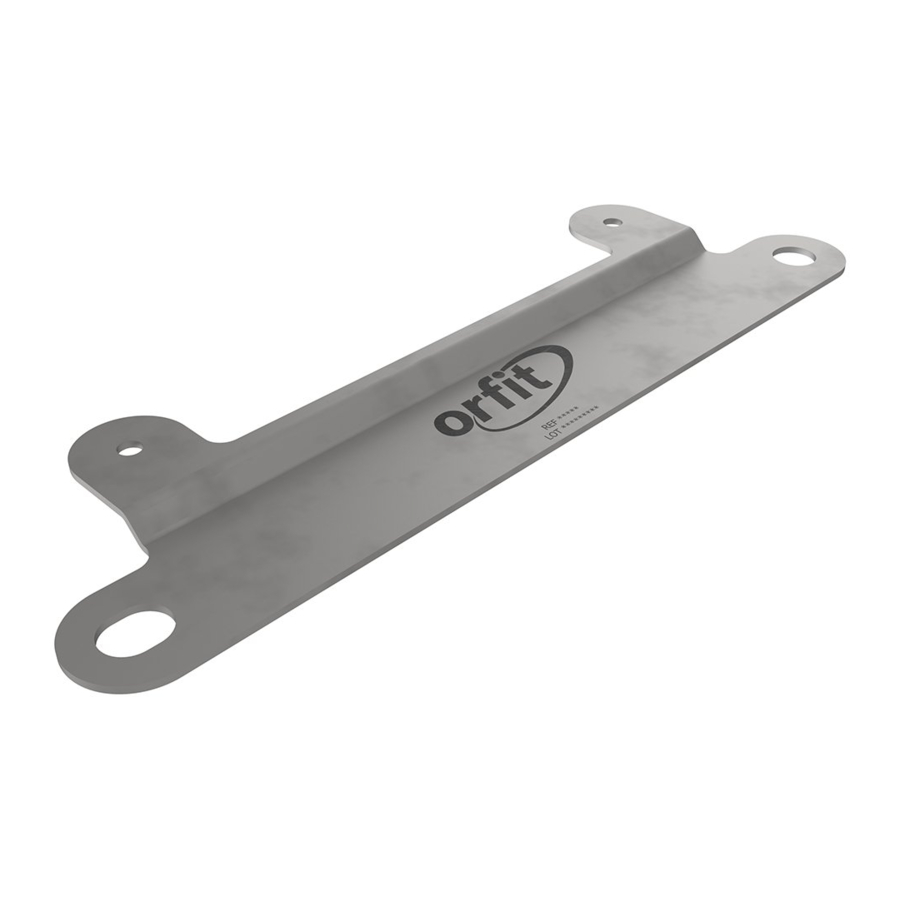

HIGH PRECISION BASE PLATE-TO-COUCH
TOP FIXATION DEVICES: ADAPTER PLATES
Article No. : 35747
Article No. : 35747/8
A. GENERAL PRODUCT INFORMATION
The products referred to in this document are
devices that connect Orfit radiation therapy base
plates to couch top fixation devices like the table
fix and two or three-pin indexing bars.
This product may only be used in combination with
immobilization masks produced by Orfit. Orfit
prohibits the use of unauthorized third-party
products in conjunction with its own products.
B. PRODUCT RANGE
Art. No.
Description
Adapter plate for Table Fix
12mm Base Plate (with screws)
35747
Except 32113 & 32117 Cyberknife base
plates
Caudal Adapter plate for 2-pin
Indexing Bar
35747/4
30mm Base Plate
For use only with two-pin bars
Adapter plate for 2-pin Indexing Bar
35747/6
12mm Base Plate
For use only with two-pin bars.
Article No. : 35747/4
Article No. : 32063
35747/8
32063
32077
C. ASSEMBLY
Art. No. 35747
Place the Table Fix onto the treatment couch and
then place the base plate – adapter plate assembly
on top. Use the four M5 x 10 bolts and Allen
wrench to fix the adapter plate to the Table Fix.
Page 1 of 4
INSTRUCTIONS FOR USE
Article No. : 35747/6
Article No. : 32077
Caudal adapter plate for 2-pin
Indexing Bar 30mm Base Plate
(MRI safe)
For use with two-pin and three-pin
indexing bars.
Adapter plate for 2-pin Indexing Bar
12mm Base Plate (MRI safe)
For use with two-pin and three-pin
indexing bars.
Adapter plate for 2-pin indexing Bar
12mm Base plate (Same 2-pin bar
position as 32110/MR) (MRI safe)
For use with two-pin and three-pin
indexing bars.
Advertisement
Table of Contents
Summary of Contents for orfit RAYCAST 35747
- Page 1 A. GENERAL PRODUCT INFORMATION Caudal adapter plate for 2-pin The products referred to in this document are Indexing Bar 30mm Base Plate devices that connect Orfit radiation therapy base 35747/8 (MRI safe) plates to couch top fixation devices like the table For use with two-pin and three-pin fix and two or three-pin indexing bars.
- Page 2 Parts list: Note: The drawing shows a black adapter plate. - 35747 – Adapter plate (Aluminium) In reality the adapter plate has a metallic grey - 35744/7 – M5 x 10 bolt (4x) colour. - 35744/3 – Allen wrench 4 mm (1x) - 35744/4 –...
- Page 3 Art. No. 32063 Verify that the adapter plate is attached in the correct manner. The shape of the adapter plate should follow the shape of the base plate, where the adapter plate is bent. This adapter plate allows to position base plates 32110 and 35751N in exactly the same position as base plate 32110/MR.
- Page 4 32174 • • 32185 33140 Note: It is prohibited to make alterations to this text without prior approval from Orfit Industries. RAYCAST® is a registered trademark of ORFIT INDUSTRIES N.V. www.orfit.com Ref. No. 31937 VERSION 14 LAST UPDATE: 14/07/2021 REVISION DATE: 14/07/2023...
