- Page 1 海斯科技-让切割更精彩 HP105 Plasma voltage torch height controller Operation Manual VISION ：1404 HEAVTH SCIENCE&TECHNOLOGY 130# MINGXING ROAD MINGHUANG TOWN CHANGZHOU CITY JIANGSU.CHINA TEL：86-0519-89182619 FOX：86-0519-89183619...
- Page 2 1.IMPORTANT INFORMATION 1.1 SERVICE ASSISTANCE AND CONTACT INFORMATION For service assistance, have the following information available: • HP105 model, part and serial number located on a label • Type of cutting application you are using 1.2 RECEIVING AND UNPACKING After receiving the HP105 you should: •...
- Page 3 When the distance gets farther ， the arc voltage increases; On opposite, the arc voltage will decrease. HP105 plasma arc voltage 第 - 3 - 页 共 23 页...
- Page 4 HP105 Plasma arc voltage height controller height controller will inspect the voltage change, then control the distance between cutting torch and material via the lift motor. So that the arc voltage is fixed, the same is the height of cutting torch.
- Page 5 HP105 Plasma arc voltage height controller ： Mounting Hole Size 2.2 Technical parameter Working voltage: DC24±10%， 50Hz/60Hz， Please prepare a isolated power, do not shared with others such as electronic 第 - 5 - 页 共 23 页...
- Page 6 HP105 Plasma arc voltage height controller valve . Especial Pay more attention the DC 24V Lift motor: DC24V DC motor Drive mode: PWM Output current：1A-4A. Working temperature: Height controller -10∽60℃ IHS style: Switch inspecting IHS (suitable for all plasma both above-water and under-water cutting)，...
-
Page 7: Parameter Settings

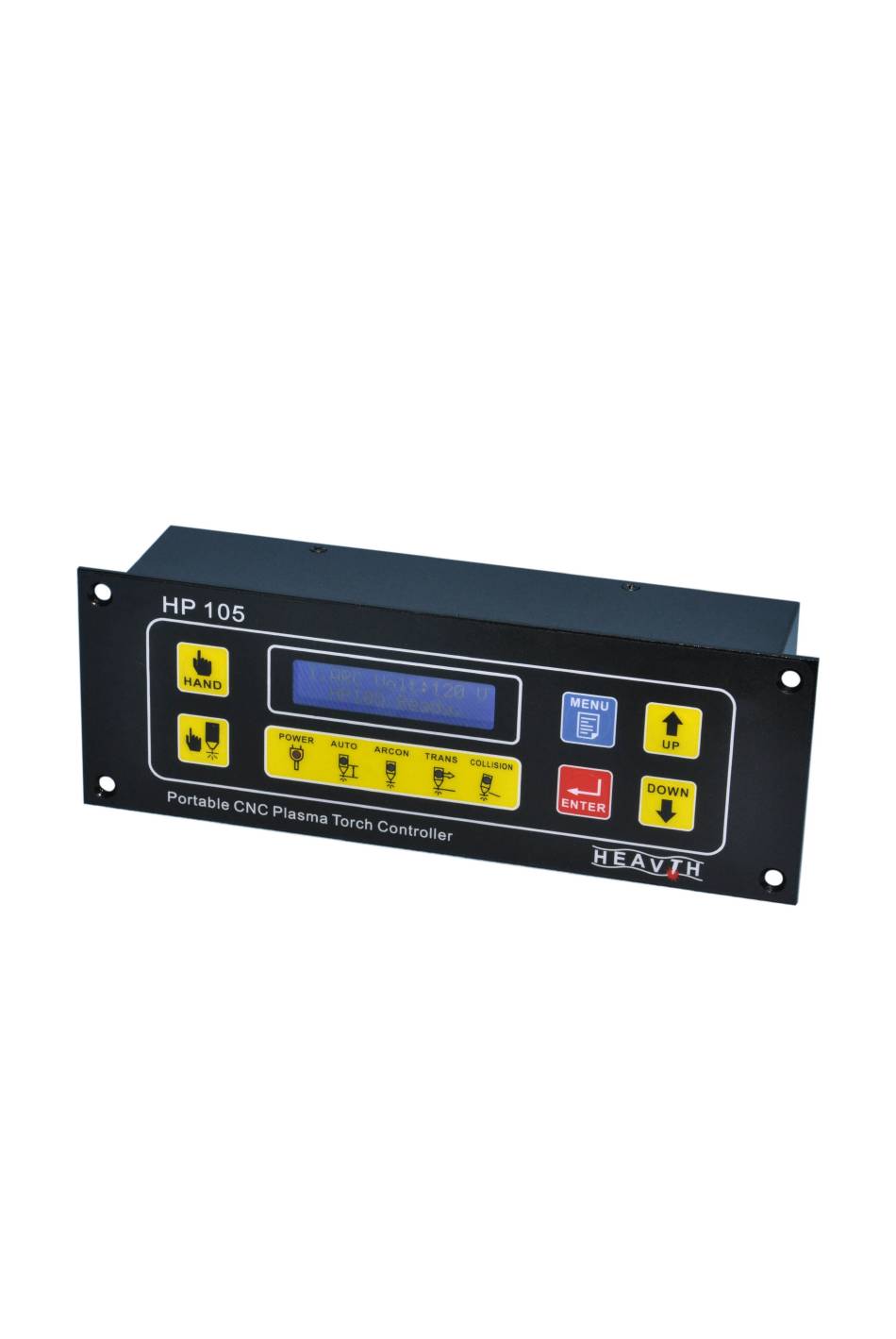

HP105 Plasma arc voltage height controller Manually 起弧测试 电源 自动 起弧 反馈 碰撞 确认 下降 Function Description: LCD: display the working status and parameters. Manual: Auto / Manual mode selection increase, alternating work. Arc test: standby press, arcing into the test mode. - Page 8 HP105 Plasma arc voltage height controller Automatic standby state, the LCD second planetary number flashing, and cycles through the following parameters： Setting arc voltage When initial positioning When arcing perforation Standby mode, press the manual key to enter the manual mode, then you must manually control the cutting height：...
- Page 9 HP105 Plasma arc voltage height controller The arrow keys to Press the Menu select the parameter Up and Down keys to Enter key to enter adjust the parameters ENTER to confirm Menu key to return Set the initial positioning time: This parameter sets the arc height, before and after start cutting torch fell across the workpiece, elevation time.
- Page 10 HP105 Plasma arc voltage height controller Enter key to enter ENTER confirm Set perforation time: When this parameter is set arc torch perforation time, according to the workpiece thickness is set. Menu Perforation higher the value, the longer the piercing time.
- Page 11 3.2 INSTALLATION CONTROLER ： The following section provides you with the procedure to follow when installing the HP105 Some of the steps direct you to other sections in this manual that provide you with more detailed instruction. 第 - 11 - 页 共 23 页...
- Page 12 HP105 Plasma arc voltage height controller 1. Determine a mounting location for the HP105. Keep the following points in mind: To avoid overheating and potential damage to the control box from cutting process fumes, DO NOT choose a mounting location directly above the torch.Find a mounting location away from the...
- Page 13 HP105 Plasma arc voltage height controller electrode is negative. When process the cutting, the arc voltage absolute value is usually higher than 100V. If so, the voltage must be divided in order to process the control in the controlling circuit.
- Page 14 HP105 Plasma arc voltage height controller Two types of IHS style of height controller 1. Plasma Shield protector IHS inspecting style The material of the protector should be metallic. They can transmit each other when it gets to the material.
- Page 15 HP105 Plasma arc voltage height controller control the plasma to arc on after IHS. 2. inductive proximity switch IHS style(switch mode: NPN Mode, 2mm, outer diameter Ф 12, the distance of screw thread:1.0mm) When this style is adopted, the client should design the tongs according the IHS cutting torch tongs sketch map which is provided by our company.
-
Page 16: Interface Circuit
HP105 Plasma arc voltage height controller By raising the J3-1,2,3 aviation plug is connected to the proximity switch. Interface Circuit Interfa Remark Signal input Output DC 24V + input Connect switching power supply. DC 24V - input Raised manually (with the... - Page 17 HP105 Plasma arc voltage height controller Proximity switch to Connected type positioning output proximity switches, 1-2 foot signal NC. Proximity switch signal When using ordinary mechanical switch input normally closed switch 1-2 pin connector pin 3 unconnected. Proximity Switch Power...
- Page 18 HP105 Plasma arc voltage height controller DC24V+ DC24V- actual arc 1：1 voltage Plasma arc Plasma arc actual 1 ： 1 arc voltage Electric lift body recommended limit switch wiring： Arc Voltage input Note: The controller built-in isolation stars platen default input 1: The actual arc voltage 1.
- Page 19 HP105 Plasma arc voltage height controller high-frequency arc-grade and reactor before. Plasma samples from the position of the rectifier output. 5. Any control cables and a plasma torch cable wiring should be as far away from (5cm above), to prevent the high-frequency signal is coupled to control, damage control and CNC systems.
- Page 20 HP105 Plasma arc voltage height controller Parameter setting screen, hold UP and DOWN at the same time more than three seconds, into the implicit parameter setting. Factory parameter name Parameter meaning Settings MAX_PWM Maximum pulse width minimum pulse width MIN_PWM...
- Page 21 HP105 Plasma arc voltage height controller Failure to maintain malfunction reason Solution Motor does not turn or Blown fuse Motor output Replace the fuse, while only operate in one need check direction whether the lift motor malfunction or jammed. MOS which damaged one...
-
Page 22: Packing List
Product Warranty Description: Thank you for choosing our products! With the serial number and the motherboard ID, Heavth Technology will provide you with a host-year service warranty and lifetime maintenance costs. The following circumstances, not a range of free services: Does not meet the warranty requirements, product number or label pasted damaged, missing,Or incompatible with the product. - Page 23 HP105 Plasma arc voltage height controller Due to environmental factors, improper use and the damage caused by irresistible factors; Without my permission, to repair damage or alteration. 第 - 23 - 页 共 23 页...
