ORVIBO W40CZ User Manual

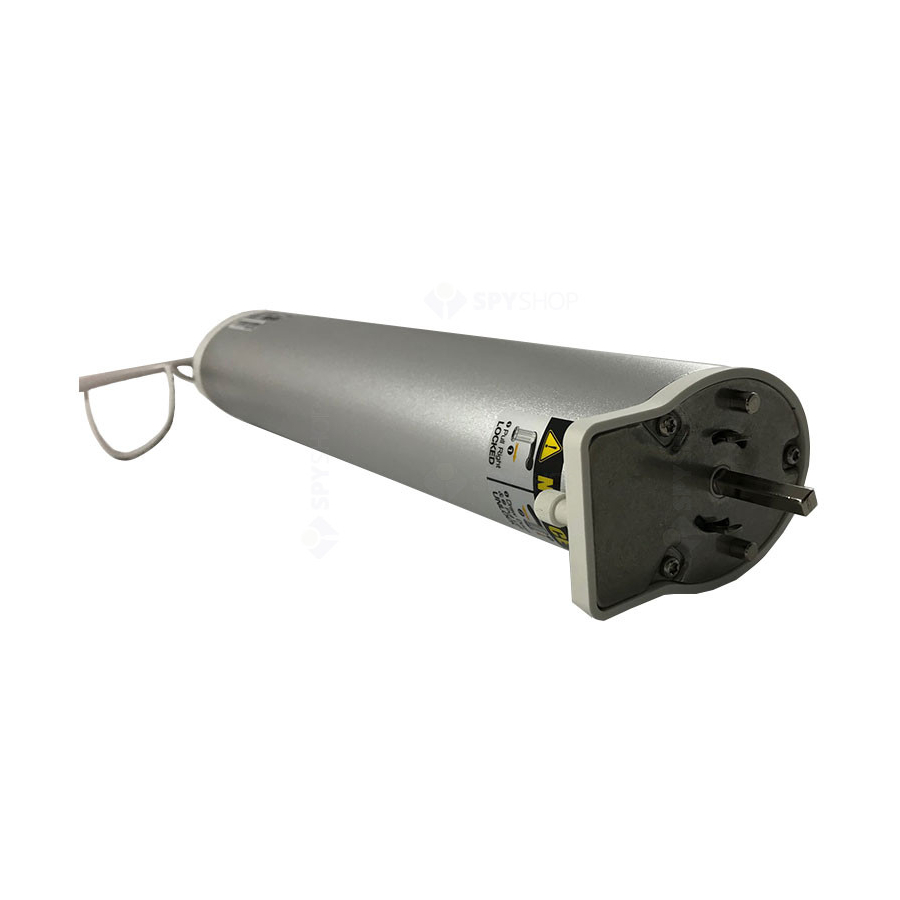

User manual - W40CZ Curtain Motor
1. Product profile
The curtain motor is the upgrade product of traditional manual curtain. It is supposed to
applied on supper tall and long curtain. It has excellent functions, like travel memory,
manual open and close, stop when meeting resistance, low noise design, linkage with
multiple device and long service time etc. It will not only solve the annoyed issues like
solar radiation, heat insulation dazzle light and private protection, but also create warm
and sweet environment to make your life more convenient. The motor can be integrated
with smart home system and controlled by App. What's more, It's can share data with
smart switch, smart socket, smart lock, Infra-red sensor and door sensor to make the
linkage with others.
2. Operation introduction
Configure the motor in smart home system.
Short press: press key for 1 seconds
Long press: press key more than 3 seconds
Network configuration:
Power on the motor, press the reset hole button for four times and long press the button
for 5 seconds at the fifth time to reset it.
Open HomeMate APP, click "+" button on the up right corner, "Shade", "ZigBee Curtain
Motor" to connect the motor.
Factory reset:
Power on the motor, press the reset hole button for four times and long press the button
for 5 seconds at the fifth time to reset it.
Detect the length of curtain rail.
a. Long press the button on the motor for 7 seconds until the LED flashing;
b. Press the button again;
c. Power off the motor;
d. Repower the motor
Change the direction of motor:
Press the button 4 times, and hold 2 sec the last two press. In first two press, light blinks
BLUE once, then in last two press, hold press until it blinks twice.
3. Specification
W40CZ
Curtain Motor
