KLOBER Uni-Line Slate Vent Fixing Instructions

The Uni-Line Slate Vent is suitable for use with 600mm x 300mm and 500mm x 250mm slates, both natural and
man-made (for other slate sizes consult Klober on +44 (0)1332 813 050).
When deciding on the position of the Uni-Line Slate Vent consider the following:
• If the vent is sited at the eaves (low-level), at least one full depth course of slates is needed below to allow free air flow.
• If the vent is fitted at the ridge-line (high-level), then at least one full course of slates must be fitted over the head of the unit.
• The vent must be located between two rafters.
• Minimum pitch 22.50°.

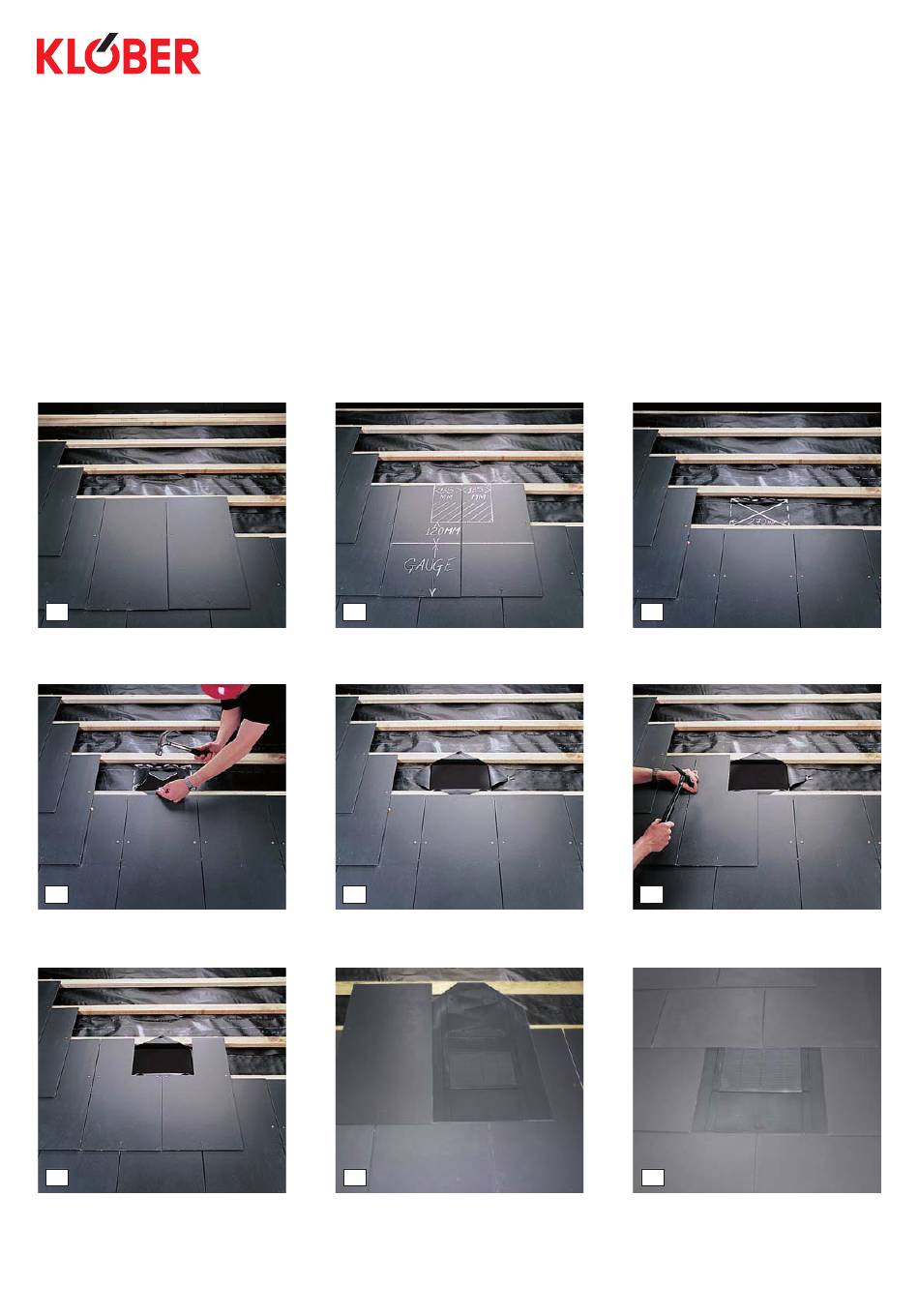

600mm x 300mm slates
1
Decide in which course the vent is to be
fitted and lay slates up to the course below.
Lay the two slates directly below the vent.
4
Cut the underlay diagonally and pin back onto
the surrounding battens and rafters. For rigid
sarking board, cut-out the rectangle.
7
Slide the vent - spigot first - into the opening.
Using the centring line on the vent, align with
the joint line of the two slates directly below.
Fix vent by nailing through centre nail holes.
UNI-LINE SLATE VENT
FIXING INSTRUCTIONS
2
Mark the area of the two slates to be
removed (hatched area shown above).
Cut out this area.
5
If required, an additional underlay seal
is available.
8
Fix the slates either side of the vent, ensuring
that they overlap the side flashing by the
correct distance. 600mm x 300mm slates
should be aligned with the vertical weather
bar (see guide marks on vent).
3
Using the cut slates as a template, mark the
underlay diagonally as shown.This is the
cut-line.
6
Fix the cut slates in position, leaving the
underlay opening exposed.
9
Continue to fix subsequent slate courses as
normal. No slate cutting of the course above
the vent is required.
