EMIT 50604 Technical Bulletin

TECHNICAL BULLETIN TB-6575
Ionizer Mounting Arm
Installation and Maintenance

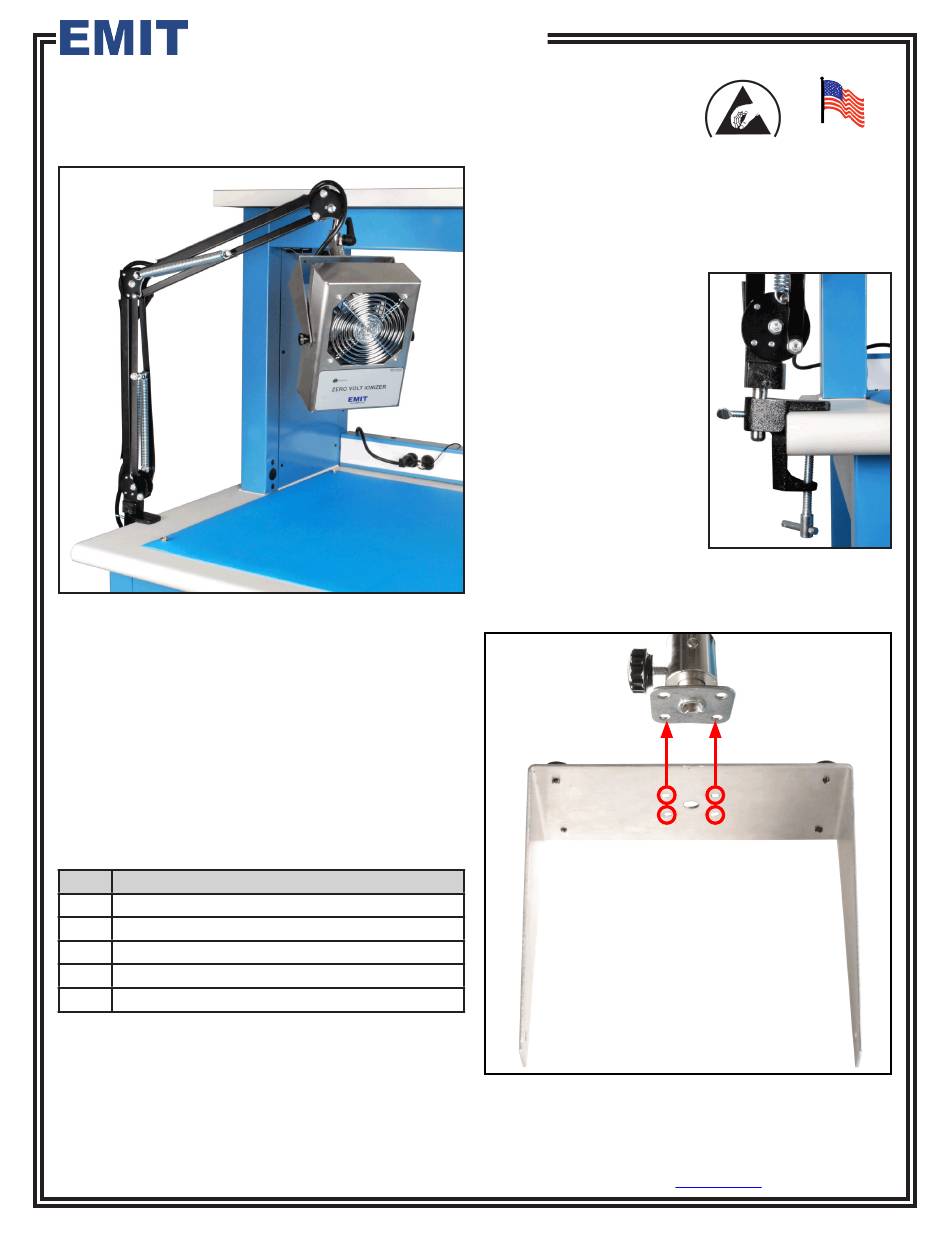

Figure 1. EMIT 50604 Ionizer Mounting Arm

Description

The EMIT 50604 Ionizer Mounting Arm is designed as a
mounting alternative for the Zero Volt Bench Top Ionizer
and Chargebuster Jr. Ionizer. The arm allows the ionizer
to be mounted off the worksurface, saving valuable work
space. The articulated movement of the arm assembly
allows the user to focus the ionizer's output directly onto
the desired areas. The Ionizer Mounting Arm includes a
C-Clamp style mounting system for ease of installation.
The 50604 Ionizer Mounting Arm is compatible with the
following EMIT items:
Item Description
50611 Chargebuster Jr. Ionizer, 120VAC
50612 Chargebuster Jr. Ionizer, with Heater, 120VAC
50663 Bench Top Zero Volt Ionizer, 120VAC, Stainless
50670 Bench Top Zero Volt Ionizer, 220VAC, Stainless
50690 Bench Top Zero Volt Ionizer, 120VAC, Aluminum
NOTE: The 50604 Ionizer Mounting Arm is not
compatible with ionizers built prior to 2011. The drill
pattern can be found on page 2. Contact customer
service for more information.
EMIT - 3651 Walnut Avenue, Chino, CA 91710 • (909) 664-9980 • Fax (909) 627-7449 • Website:
TB-6575 Page 1 of 2 March 2011

Packaging

1 Ionizer Mounting Arm with C-Clamp
4 Screws
4 Nuts

Installation

Mount the arm at the desired
location of the workbench
using the C-Clamp mounting
system. Figure 2 shows the
proper mounting of the arm
on a workbench. Tighten the
C-Clamp securely.
The neck piece on the Arm
allows for easy mounting of
an EMIT Zero Volt Bench
Top Ionizer or Chargebuster
Jr. Ionizer via its stand
assembly. The ionizer
should be mounted to the
Mounting Arm using the 4
included screws and nuts.
See Figure 3.
mounting holes on
ionizer stand
Figure 3. Installing the ionizer's stand to the Ionizer
Mounting Arm
Made in America
Figure 2. Installing the
Ionizer Mounting Arm to
a workbench
neck piece end on
the Mounting Arm
