Curtis IntelliFresh GEM5IFT Series User Manual

Dispenser stand
Hide thumbs Also See for IntelliFresh GEM5IFT Series:

Advertisement

Table of Contents

USER GUIDE
®

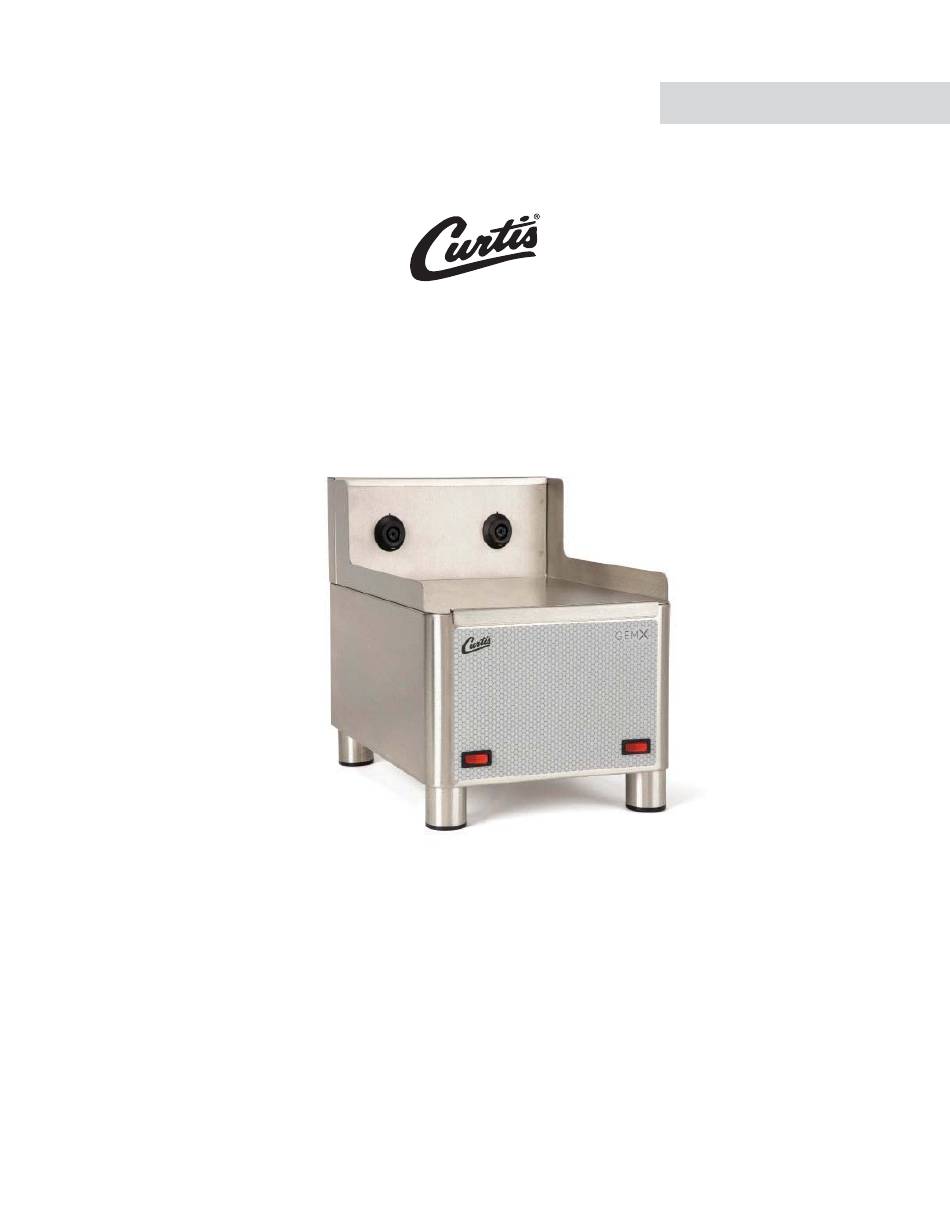

GEM5XN IntelliFresh
Dispenser Stand
See brewer user guide for brewing instructions
READ AND SAVE THESE INSTRUCTIONS
NOTICE TO INSTALLER: Please leave this booklet with the machine.
111820B
FC139 - GEM5XN, FRONT COVER
F-10127 revNC
