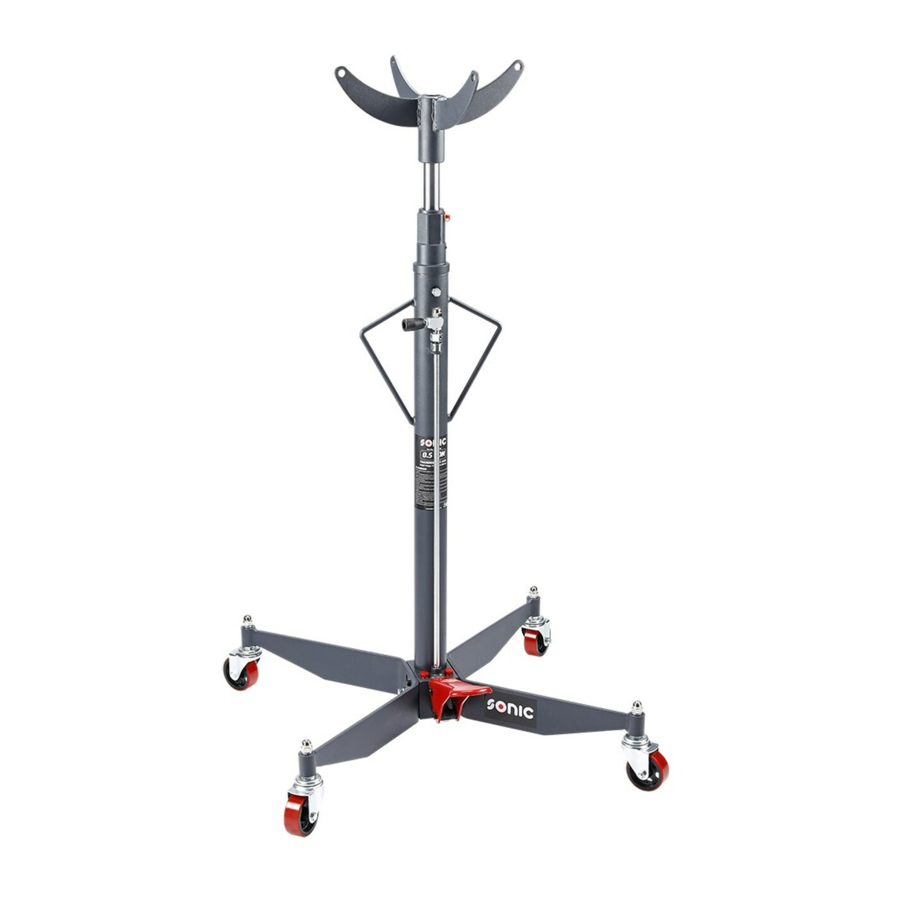

0.5t transmission jack

Advertisement

Quick Links

ART.NO 4800708
Instructions
0.5T Transmission jack
S O N I C - E Q U I P M E N T. C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4800708 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sonic 4800708

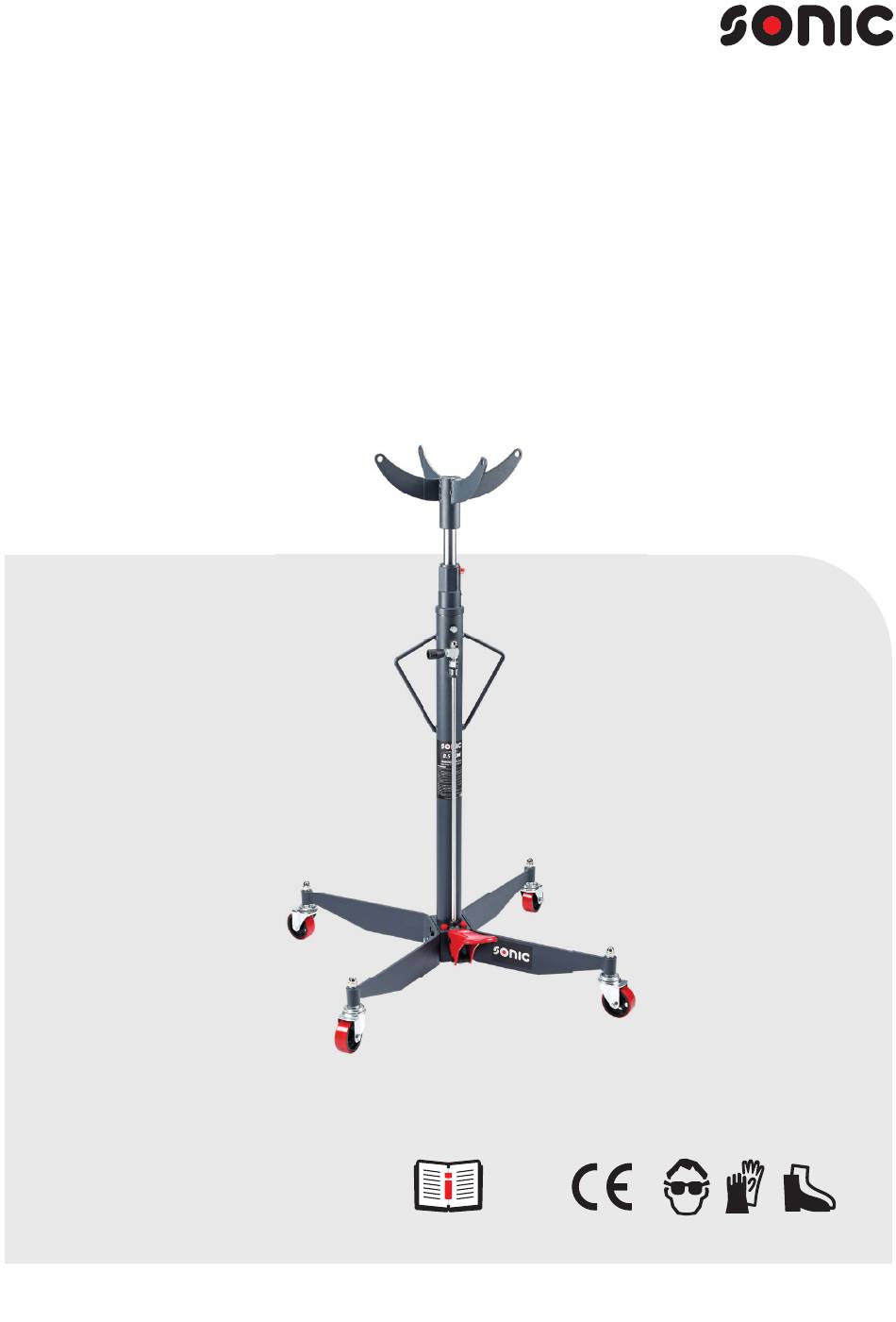

  • Page 1 ART.NO 4800708 Instructions 0.5T Transmission jack S O N I C - E Q U I P M E N T. C O M...
  • Page 2: Intended Use

    Description Saddle Technical data Piston Model 4800708 Rated capacity 0.5 ton Air vent screw Min. height 1,175mm Release valve Max.
  • Page 3 Scope of delivery After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packing materials before use. Please contact customer service if parts are missing or damaged. Description Qty’s Description Qty’s Main jack assembly Dome nuts M12...
  • Page 4 (3). Turn the two screws counterclockwise to remove them from the bottom base with the hexagon socket wrench. Fig (3) (4). Take the plate out from the base, then releasing the foot pedal. Plate Fig (4-1) Fig (4-2) (5). Put up the whole machine. Fig (5) S O N I C - E Q U I P M E N T .
  • Page 5 2. Locate the two leg stands. 3. Connect both leg stands to the bottom base by installing the four M12x25mmL bolts with four 12mm washers and four 12mm spring washers supplied. 4. Fix the four casters to the ends of the leg stands using the M12 domed nuts with 12mm washers & 12mm spring washers supplied.
  • Page 6: Before Use

    Before use Note: Carefully center load on the saddle. Ensure the load’s center of gravity is centered on the Inspection saddle and the setup is stable and secure. • Inspect the jack carefully before each use. Note: Before lowering load check to ensure all Ensure the jack is not damaged, excessively tools and personnel are clear and it is safe to worn, or missing parts.
  • Page 7: Maintenance And Lubrication

    Maintenance and lubrication Note: Ensure that no dirt gets into the system. • Set the jack in its level upright position, fill with • When not in use, store the jack in a dry location approved hydraulic jack oil. Then replace the air with saddle in lowest position.
  • Page 8 | GENERAL SAFETY WARNINGS WARNING! Read and understand all instructions, failure to follow all instructions listed below may result in serious in- jury. The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator.
