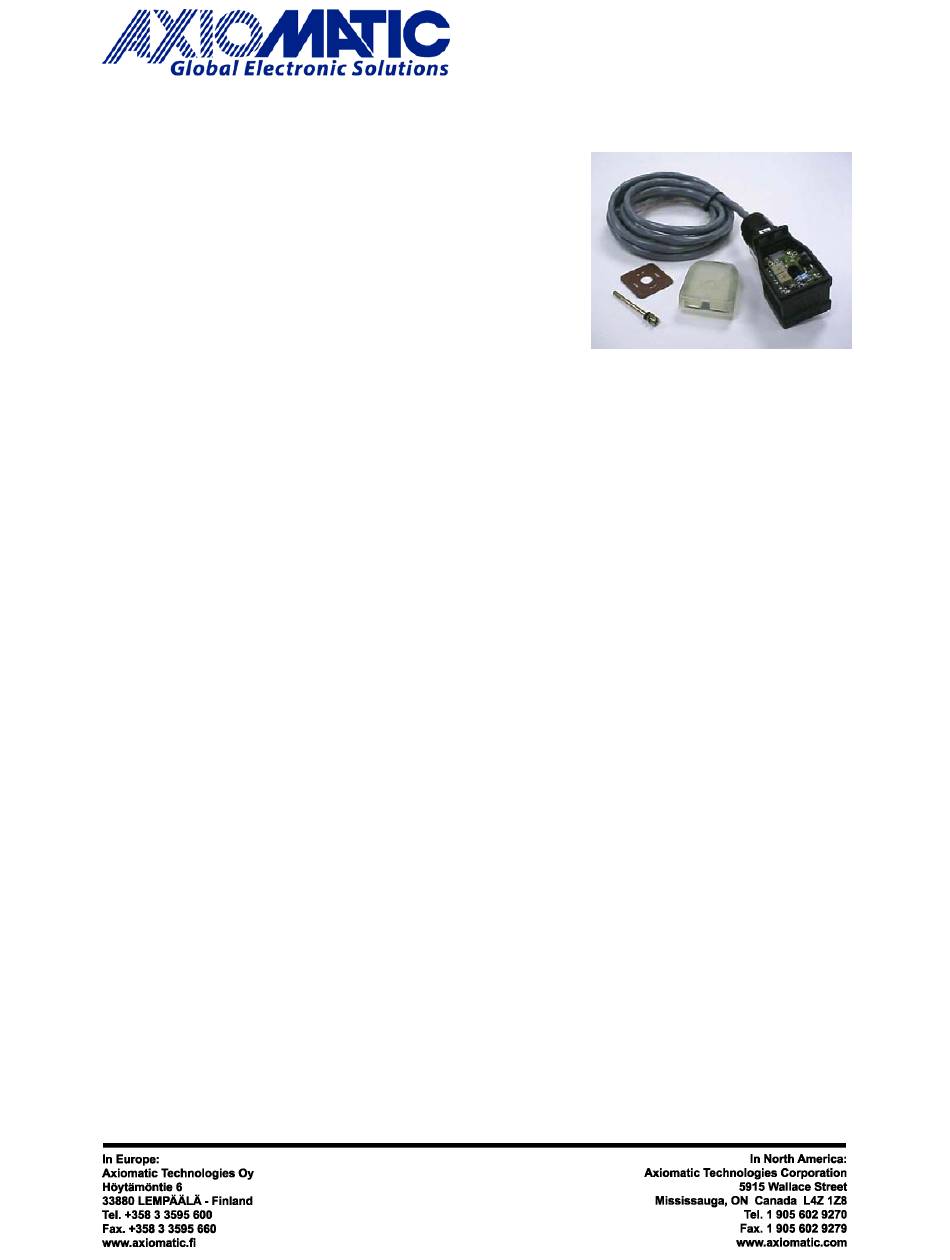

AXIOMATIC CAPVE-H-5V-XA-5C-2M Manual

Advertisement

Quick Links

CONNECTOR AMPLIFIER
FOR PROPORTIONAL
VALVES
(Economy Version)
Axiomatic Part No.:
Where x = 1 (1 Amp output version) or 2 (2 Amps output)
Function:
The amplifier supplies a solenoid valve with current proportional to an
input control (0-5 VDC or 10K potentiometer).
Features:
Maximum current adjustment does not affect minimum current setting
Adjustments accessible with a removable cover
Broad range of supply voltage (9 to 32 VDC) with no degradation in performance
Current sensing circuit maintains output current regardless of changes in input
voltage and coil resistance
Modern technology utilizing high frequency switching output (PWM)
Energy efficient design (no heat sink is required)
Simple control with a 10K Potentiometer or 0-5 VDC control signal
Maximum current output of 2 Amps (1 Amp version available)
Mates to a DIN 43650 plug on a cartridge or block style solenoid valve
Electronic limiting circuit means no internal fuses
Short circuit proof (in case of solenoid failure or miswiring)
Reverse polarity protection
IP65 protection rating
CE approvals
Can disconnect load while amplifier is powered ("Hot Swap")
Application:
Accurate control of hydraulic and pneumatic proportional solenoid
valves used in mobile construction equipment and industrial processes.
Ordering Part Numbers:
DIN coil mount, 0-5 V/pot input, 2 Amps output, 2 meter cable: CAPVE-H-5V-2A-5C-2M
DIN coil mount, 0-5 V/pot input, 1 Amp output, 2 meter cable: CAPVE-H-5V-1A-5C-2M
1.0
Introduction:
installation, set up adjustments and use of the unit with proportional solenoids.
CAPVE-H-5V-XA-5C-2M
The Technical Datasheet for the amplifier describes the
TECHNICAL DATASHEET #TD1107AX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAPVE-H-5V-XA-5C-2M and is the answer not in the manual?

Questions and answers

Summary of Contents for AXIOMATIC CAPVE-H-5V-XA-5C-2M

  • Page 1 TECHNICAL DATASHEET #TD1107AX CONNECTOR AMPLIFIER FOR PROPORTIONAL VALVES (Economy Version) Axiomatic Part No.: CAPVE-H-5V-XA-5C-2M Where x = 1 (1 Amp output version) or 2 (2 Amps output) Function: The amplifier supplies a solenoid valve with current proportional to an input control (0-5 VDC or 10K potentiometer).
  • Page 2 Description: The Economy Amplifier simplifies control of proportional solenoids by supplying a current proportional to an input control (0-5 VDC or 10K potentiometer). It accepts power supply voltages from 9 to 32 VDC. This linear solenoid driver utilizes high frequency switching output (PWM) to provide a DC current output.
  • Page 3: Technical Specifications

    Technical Specifications: All specifications are typical at nominal input voltage and 25°C unless otherwise specified. General Specifications Operating conditions -40 to +85°C (-40 to 185°F) 0 to 85% relative humidity Storage temperature -50 to 125°C (-58 to 257°F) Weight 0.45 lbs. (0.20 kg) Electromagnetic compatibility (EMC) Emission EN 50081-2 Immunity EN 50082-2...
  • Page 4: Necessary Equipment

    Adjustments (single turn trim pots) Minimum current setting CAPVE-H-5V-2A-5C-2M: 0 to 500 mA CAPVE-H-5V-1A-5C-2M: 0 to 250 mA Maximum current setting CAPVE-H-5V-2A-5C-2M: 600 to 2000 mA CAPVE-H-5V-1A-5C-2M: 300 to 1000 mA Installation Procedures: Precautions Against Leaks From The Environment • Ensure the transparent lid is firmly in place.
  • Page 5: Installation Steps

    Installation Steps • Supply voltage should be between 9 and 32 VDC. Excess voltage will damage the amplifier. Match the power supply voltage with the voltage rating of the solenoid coil. Operating the amplifier with a supply voltage lower than the solenoid rated voltage may result in reduced maximum current output.
  • Page 6: Wiring Connections

    Wiring Connections Connect the cable conductors to the power supply and input signal or potentiometer, as follows. For 0-5 VDC or Potentiometer Control: Use I-Min. screw to set up minimum speed with minimum control input. Use I-Max. screw to set maximum speed with 100% of control input. Set Up Adjustment Procedures: The location of the trim pots for the set up adjustments are shown in Section 2.3.
  • Page 7: Amplifier Settings

    Users should satisfy themselves that the product is suitable for use in the intended application. All our products carry a limited warranty against defects in material and workmanship. Please refer to our Warranty, Application Approvals/Limitations and Return Materials Process as described on www.axiomatic.com/service.html. Form: TD1107AX-07/27/09 TD1107AX...
