- Tailgate Bar & Tonneau Cover Qty: 1
- Bow Assembly Halves
- Windshield Channel
- Door Channels
- Side Belt Rails
- Corner Belt Rails
- Tailgate Retainer Brackets
- Connection Tubes
- Side Belt Rail Pins
- Tailgate Weatherstrip
-Read all instructions carefully prior to starting installation.
-Upper door frames are not included. (Sold Separately P/N DF100YJ)

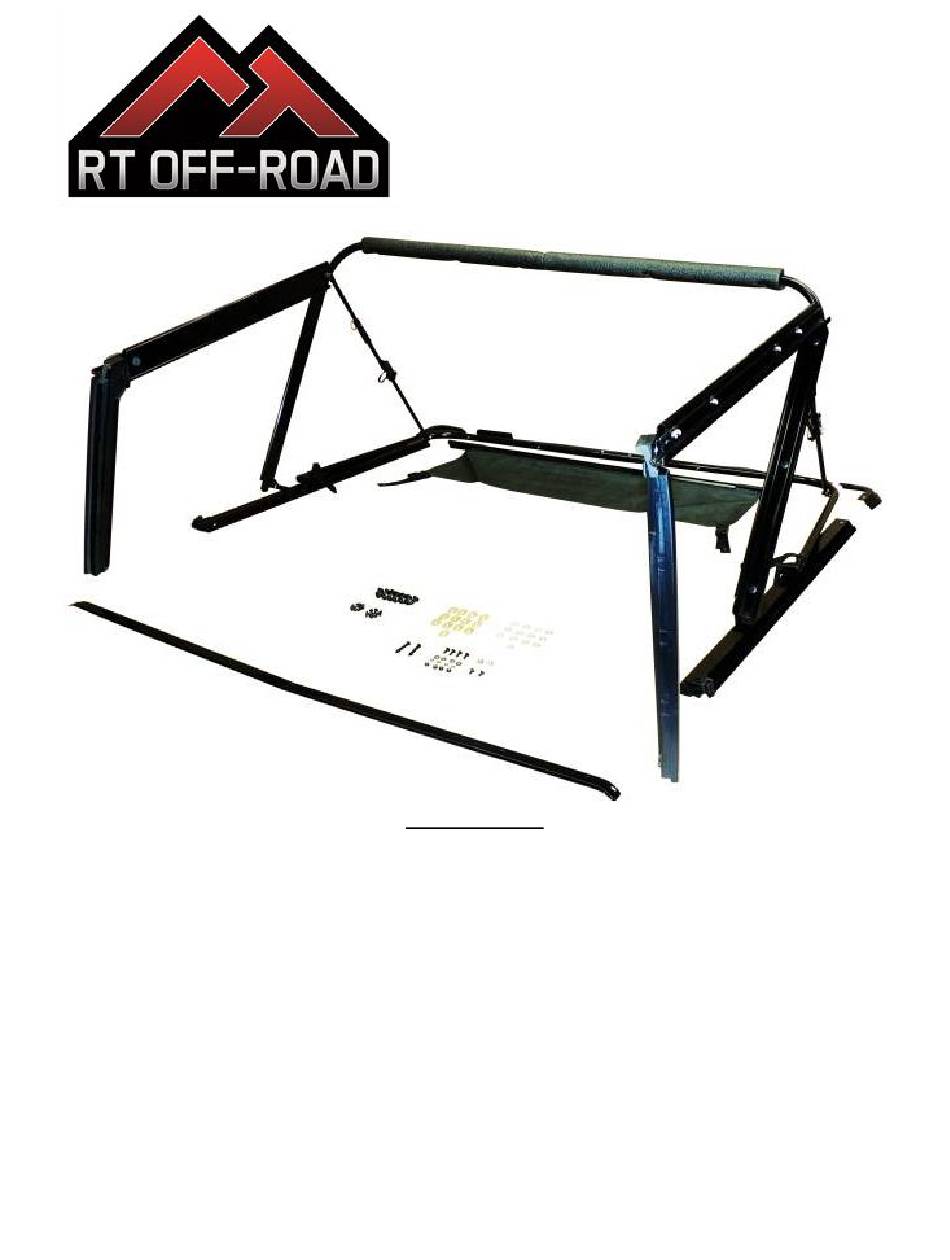

Kit Components
- #10-24 x 1/2" Phillips Machine Screws Qty: 4
Qty: 2
- #10-24 Nylon Locking Nuts
Qty: 1
- #10 Flat Washers
Qty: 2
- #10 Star Lock Washers
Qty: 2
- 5/16" Nut Plates
Qty: 2
- 5/16" Flat Washers
Qty: 2
- 5/16" Torx® Screws
Qty: 2
- #8 x 1" Sheet Metal Screws
Qty: 2
- #8 x 1/2" Sheet Metal Screws
Qty: 1
- #8 x 1/4" Sheet Metal Screws
Soft Top Hardware Kit
1987-1995 YJ Wrangler
w/ Half Steel Doors
Part Number: HK8795YJ
Qty: 4
Qty: 4
Qty: 4
Qty: 12
Qty: 12
Qty: 12
Qty: 2
Qty: 8
Qty: 12
Advertisement
Table of Contents
Related Manuals for RT Off-Road HK8795YJ
Summary of Contents for RT Off-Road HK8795YJ
- Page 1 Soft Top Hardware Kit 1987-1995 YJ Wrangler w/ Half Steel Doors Part Number: HK8795YJ Kit Components - Tailgate Bar & Tonneau Cover Qty: 1 - #10-24 x 1/2” Phillips Machine Screws Qty: 4 - Bow Assembly Halves Qty: 2 - #10-24 Nylon Locking Nuts...
- Page 2 1. Position the windshield channel on top of the windshield frame with the open part of the channel facing the front of the vehicle. -If there are existing holes: Secure the channel using the #8 x 1/4” Sheet Metal Screws. -If there are not existing holes: Use the windshield channel as a template, drill 1/8”...
- Page 3 4. Place the Corner Belt Rails on top of the rear corners of the body (they are not side specific). Line the holes in the Corner Belt Rails with the holes in the body and secure them using 5/16” Torx® Screws, 5/16” Flat Washers, and 5/16”...
- Page 4 7. Slide the Bow Assembly into the tracks at the open end (rear) of the Side Belt Rails on both sides. See Figure 8. Once both bows are installed into the tracks insert the Side Belt Rail Pins into the hole on either side of the Side Belt Rails.
- Page 5 11. Slide the Tailgate Bar into the Tailgate Retainer Brackets with the Tonneau Cover facing up. Position the straps of the Tonneau Cover on the fender well with the straps as straight as possible. Mark the location of the ring in the strap on the fender well.
