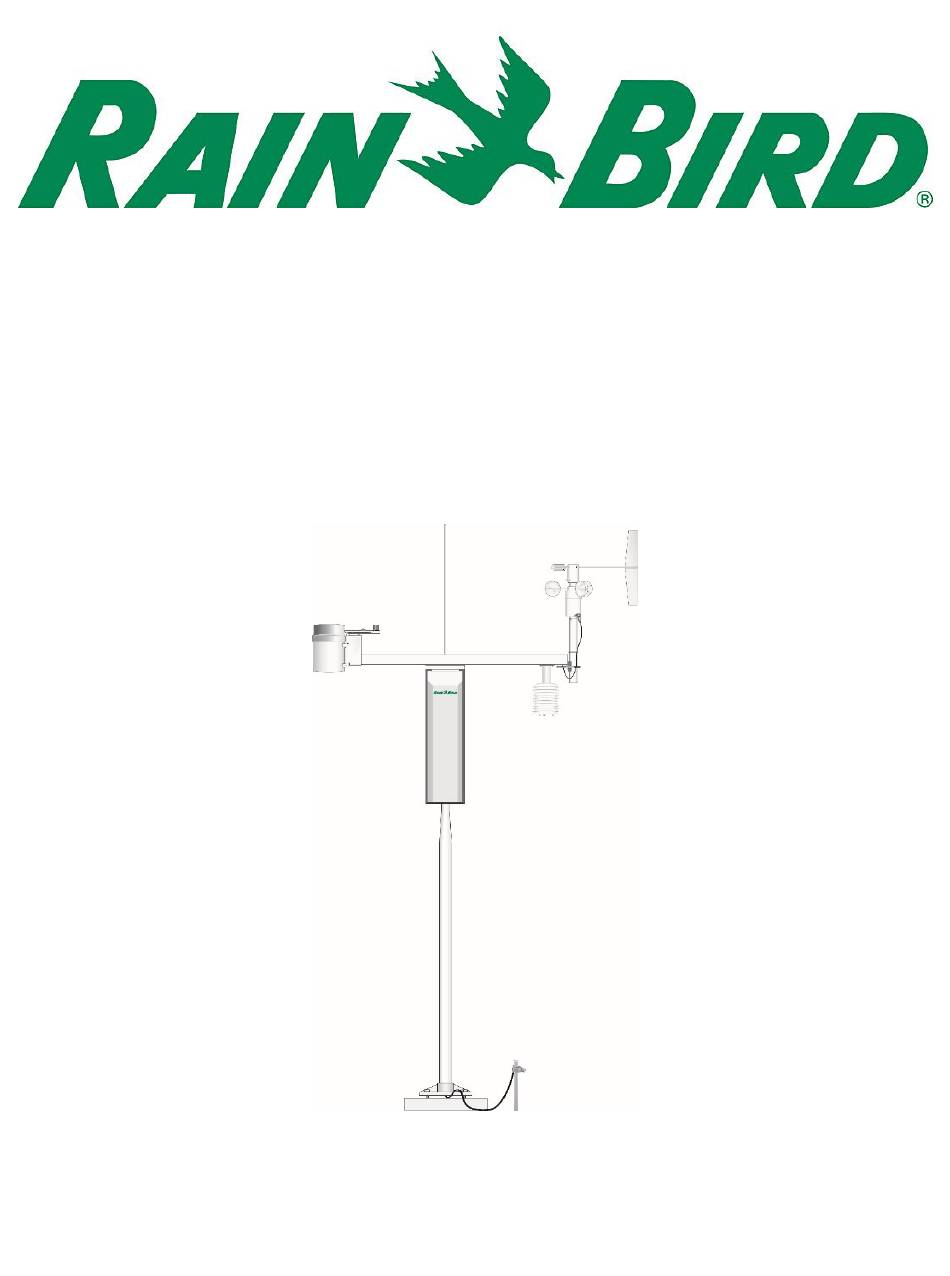

WS-PRO2 Golf Course Weather Station
Installation, Operation,
Maintenance, and
Troubleshooting Manual

May 2021
GT27145H

Advertisement

Table of Contents
loading

Related Manuals for Rain Bird WS-PRO2

Summary of Contents for Rain Bird WS-PRO2

  • Page 1 WS-PRO2 Golf Course Weather Station Installation, Operation, Maintenance, and Troubleshooting Manual   May 2021 GT27145H...

  • Page 2: Table Of Contents

    6.6.3.2 WindSonic attachment to crossarm 6.6.4 Rain gauge 6.6.5 Pyranometer 6.6.6 107 or 108 soil temperature sensor (optional) 6.6.7 Sensor connections 6.6.8 Sensor verification and clock set 6.7 Communications peripherals 6.7.1 Direct connect to WS-PRO2 station Table of Contents - i...
  • Page 3 6.7.4.1 Example radio configuration and power usage 6.7.4.2 Internal installation of the radio 6.7.4.3 External installation of the radio 6.7.4.4 Base radio installation 6.7.5 WS-PRO2 cell phone accessory kit 6.7.5.1 Cellular modems available from Campbell Scientific 6.7.5.2 Power considerations 6.7.5.3 Antenna 6.7.5.4 Establishing cellular service and configuring the cellular modem...
  • Page 4 Appendix B. Determining True North and wind sensor orientation B.1 Online magnetic declination calculator Appendix C. PS24 24 Ah power supply with 10 x 12 inch enclosure C.1 PS24 components C.2 PS24 installation Appendix D. WS-PRO2 maintenance log Table of Contents - iii...

  • Page 5: Introduction

    1. Introduction The Rain Bird WS-PRO2 Weather Station, when used in conjunction with the Rain Bird Cirrus, Nimbus II, or Stratus II Central Control system, provides the irrigation professional with a powerful tool to aid in the growing of lush, healthy, green turf grass, while conserving important resources, such as water, power, etc.

  • Page 6: Precautions

    The low voltage will carry up to 152 m (500 ft) on an 18 AWG power cable.   Carefully handle the WS-PRO2 components during transport, installation, and cleaning.   Leave the 034B wind vane in the protective cardboard sleeve until it’s ready to be installed.

  • Page 7: Initial Inspection

    3. Initial inspection Immediately upon receipt of your shipment:  1. Open shipping carton(s). Solar panel and radio frequency (RF) items (if any) may be packed in a separate box.  2. Set the large weather station carton down lengthwise on a floor or table top.  3.
  • Page 8  8. Securely tape box shut if transporting entire station to another site.  9. If at the main site, remove communications components that are installed at the calling computer. Repackage remaining components for transport to field site. FIGURE 3-3. WS-PRO2 with the Met One 034B-ETM Wind Sensor, top layer Section 3. Initial inspection     4...
  • Page 9 FIGURE 3-4. WS-PRO2, bottom layer Section 3. Initial inspection     5...

  • Page 10: Quickstart

    (p. 12))  3. Install the WS-PRO2 pole (Pole installation (p. 14)).  4. Place instrumentation enclosure on the WS-PRO2 pole, slide the enclosure to the top of the pole, and secure it with the correct orientation (Enclosure installation (p. 17)).  5. Install the crossarm and sensors (Crossarm installation procedure (p.
  • Page 11 (4) 2.5 cm x 5 cm x 30 cm (1 in x 2 in x 12 in) stakes (2) 5 cm x 10 cm x 240 cm (2 in x 4 in x 96 in) lumber (12) 8p double-head nails (8) 16p double-head nails 6 m (20 ft) form wire 0.5 m (0.5 yard) concrete...

  • Page 12: Supplies For Power And Communications Options

    AC Power Wire, conduit, and junction boxes as needed (FIGURE 4-1 (p. 8)). FIGURE 4-1. WS-PRO2 pole installation with currently-available AC power option NOTE: User supplies valve box at base of station and weatherproof enclosure for transformer (FIGURE 4-1 (p. 8)).
  • Page 13 Direct burial armored cable may be required for rocky soils or rodents (Anixter pn F-02P22BPN (phone 847- 677-2600)) or equivalent type cable (FIGURE 4-1 (p. 8)). Radio Antenna for the WS-PRO2 station. Section 4. QuickStart     9...

  • Page 14: Siting And Exposure

    5. Siting and exposure DANGER: If any part of the weather station comes in contact with power lines, you could be killed. Contact local utilities for the location of buried utility lines before digging or driving ground rods. Selecting an appropriate site for the weather station is critical to obtain accurate meteorological data.

  • Page 15: Temperature And Relative Humidity

    5.2 Temperature and relative humidity Sensors should be located over an open, level area at least 9 m (29.5 ft) (EPA) in diameter. The surface should be covered by short grass, or where grass does not grow, the natural earth surface. Sensors should be located at a distance of at least four times the height of any nearby obstruction and at least 30 m (98.43 ft) (EPA) from large paved areas.

  • Page 16: Installation

    6.12 Sealing and desiccating the enclosure 6.13 WS-PRO2 software 6.1 Base foundation installation The following components included with the WS-PRO2 are used for this installation procedure: (3) 16 mm (5/8 in) anchor L-bolts (9) 16 mm (5/8 in) nuts (1) anchor template...
  • Page 17 FIGURE 6-1. WS-PRO2 pole base installation  1. Construct the concrete form with 5 cm x 10 cm (2 in x 4 in) lumber and 16p nails.  2. Assemble the template and anchor bolts. For each bolt, place two nuts below and one nut above the template.

  • Page 18: Pole Installation

     13. Wait 24 hours before removing the concrete form.  14. Wait seven days before mounting the pole. 6.2 Pole installation The following components included with the WS-PRO2 are used for this installation procedure: (1) top pole section (tapered) (1) base pole section...
  • Page 19 (1) 6 x 19 mm (1/4 x 3/4 in) hex head self-drilling screw The pole provides a support structure for mounting the WS-PRO2 weather station components. The pole is designed to withstand winds of 45 m/s (100 mph). The lightning rod assembly is attached after the instrumentation enclosure is installed.

  • Page 20: Pole Grounding

     15. Tighten the three top nuts with the wrench. 6.2.1 Pole grounding The following components included with the WS-PRO2 are used for this installation procedure: (1) 4 AWG ground wire (1) 8 AWG ground wire (1) copper ground lug, bolt...

  • Page 21: Enclosure Installation

    FIGURE 6-4. Close-up of ground rod and 4 AWG cable 6.3 Enclosure installation The weather station data logger, power supply, sensor connection panel, communications devices, and data retrieval peripherals are mounted in the WS-PRO2 enclosure. Mount the enclosure on the pole as shown in FIGURE 6-5 (p.

  • Page 22: Ac Power Installation Procedure

     1. Remove the front lid.  2. Remove the connector cover from the back of the enclosure by loosening the Phillips screw at the bottom of the cover.  3. Loosen the mounting bracket bolts on the back of the enclosure wide enough to slide over the pole.
  • Page 23  3. Connect the primary leads of the power supply to the 100 to 240 VAC power source.  4. Connect a two-conductor cable to the secondary terminals of the power supply.  5. Route the cable from the power supply to the WS-PRO2 enclosure according to local electrical codes.

  • Page 24: Crossarm Installation Procedure

    FIGURE 6-6. Position of bulkhead connectors 6.5 Crossarm installation procedure The crossarm needs to be installed after the enclosure is mounted on the pole. You may need to temporarily remove the communications option. Mount the crossarm as shown in FIGURE 6-7 21) without the wind sensor attached.

  • Page 25: Sensor Installation

    (pyranometer) on the south side for northern latitudes and the reverse for southern latitudes. 6.6 Sensor installation The following components included with the WS-PRO2 are used for this installation procedure: (1) WS-PRO2 crossarm with sensors (FIGURE 6-8 (p.

  • Page 26: Rh And Temperature Radiation Shield Installation Procedure

    FIGURE 6-8. WS-PRO2 instrumentation mounted on the WS-PRO2 pole 6.6.1 RH and temperature radiation shield installation procedure  1. Remove the two knurled thumb screws taped underneath the crossarm.  2. Remove the yellow shipping cap from the end of the temperature/relative humidity sensor (FIGURE 6-9 (p.
  • Page 27 FIGURE 6-9. Temperature/relative humidity sensor with yellow protective cap FIGURE 6-10. Temperature/relative humidity sensor without yellow protective cap  3. Insert the temperature/relative humidity into the radiation shield until it stops.  4. Attach the radiation shield to the underside of the crossarm using the two knurled thumb screws from step 1.

  • Page 28: Wind Sensor (Wind Sensor Option -Mw)

    6.6.2 034B Wind Sensor (wind sensor option -MW) Do the following to install the 034B Wind Sensor after the crossarm is securely installed (FIGURE 6-11 (p. 24)). FIGURE 6-11. Wind and RH/temperature sensor installation Section 6. Installation     24...
  • Page 29 FIGURE 6-12. 034B mounting to pipe WARNING: The wind vane can be easily damaged if dropped or bent. Leave the 034B wind vane in the protective cardboard sleeve until it’s ready to be installed.  1. Remove the alignment screw at the base of the 034B-ET (FIGURE 6-12 (p.

  • Page 30: Windsonic 2-D Ultrasonic Wind Sensor (Wind Sensor Option -Gw)

    When the WindSonic1-ET is added to the WS-PRO2, a jumper setting must be changed (Changing the jumper (p. 26)). NOTE: Jumper is set at the factory if the WindSonic is ordered with the WS-PRO2 station. 6.6.3.1 Changing the jumper The procedure to change the jumper follows:  1. Remove the cover of the enclosure.
  • Page 31 FIGURE 6-13. Screws that secure the electronics cover  4. Remove the electronics cover to expose the printed circuit board (PCB) (FIGURE 6-14 27)). FIGURE 6-14. Removal of the electronics cover  5. Move the jumper at the top of the PCB so that it is placed over the center and right pins (FIGURE 6-15 (p.

  • Page 32: Windsonic Attachment To Crossarm

    FIGURE 6-15. Jumper set for WindSonic1  6. Replace electronics cover.  7. Tighten screws.  8. Reattach the ribbon cable to the CS I/O port.  9. Replace enclosure cover. 6.6.3.2 WindSonic attachment to crossarm  1. Remove the three Phillips screws from the end of the white mounting shaft.  2.
  • Page 33 FIGURE 6-16. WindSonic mounting shaft  4. Slide the connector and cable up through the center of the mounting shaft.  5. Plug the cable into the sensor. The connector has a key and needs to be pushed in then rotated clockwise to lock it in place (FIGURE 6-17 (p.

  • Page 34: Rain Gauge

    FIGURE 6-17. WindSonic connected to cable  6. Center the WindSonic over the three threaded screw holes on the mounting shaft and screw it in place using the three Phillips screws taken off the shaft in step 1.  7. Slide the shaft and sensor back through the U-bolt.  8.

  • Page 35: Pyranometer

     1. Pull the gold funnel up and off of the top of the rain gauge.  2. Remove the rubber band holding the tipping mechanism in place (FIGURE 6-18 (p. 31)). FIGURE 6-18. Remove rubber band from tipping mechanism  3. Adjust the bolts at the bottom of the pole as needed to get the bubble level centered.  4.
  • Page 36 FIGURE 6-19. Pyranometer leveling  2. Remove the red or green shipping cap from the pyranometer (FIGURE 6-20 (p. 32)). FIGURE 6-20. Remove red or green pyranometer cap Section 6. Installation     32...

  • Page 37: Or 108 Soil Temperature Sensor (Optional)

    The 107 and 108 temperature sensors have a –C Cable Termination option that allows them to connect to the WS-PRO2. With this option, the cable terminates in a connector that attaches to the WS-PRO2. This is equivalent to the -LC version available for some sensors.

  • Page 38: Sensor Verification And Clock Set

    FIGURE 6-21. Connecting sensor cabling to enclosure 6.6.8 Sensor verification and clock set  1. Contact Rain Bird if needed to assist with SmartWeather software setting changes necessary to activate soil temperature.  a. The station can be accessed directly using a CR1000KD keypad display at the weather station.

  • Page 39: Communications Peripherals

    232 port free for direct communications with a laptop or desktop computer using a standard RS- 232 serial cable. The data logger used in the WS-PRO2 station can communicate with more than one device at a time allowing troubleshooting to be done in the field with a laptop computer while remote communications devices are accessing the station.

  • Page 40: Phone Modem

    FIGURE 6-22. Close-up of the terminals and 9-pin ports in the WS-PRO2 (battery not shown) 6.7.2 Phone modem Phone modems enable communications between the WS-PRO2 enclosure and a Hayes compatible modem at your computer over a dedicated phone line. Phone line surge protection is built into the enclosure.

  • Page 41: Internal Installation Of Phone Modem

    6.7.2.1 Internal installation of phone modem NOTE: If the phone modem was ordered with the WS-PRO2, skip this section and go directly to External installation of phone modem (p. 38). For installation inside the WS-PRO2 enclosure, the following components are provided in the...

  • Page 42: External Installation Of Phone Modem

    6.7.3.1 Internal installation of short haul modem NOTE: If the short haul modem was ordered with the WS-PRO2, skip this section and go directly to External installation of short haul modem (p. 40). Section 6. Installation     38...
  • Page 43 For installing inside the WS-PRO2 enclosure, the following components are provided in the short-haul modem kit: (1) SC932C 9-pin to RS-232 DCE interface (1) RAD modem (1) RAD/SC932C mounting bracket (1) 130 cm (12 in) 4-wire patch cable Use the following procedure to install the short-haul modems (FIGURE 6-24 (p.

  • Page 44: External Installation Of Short Haul Modem

    6.7.3.2 External installation of short haul modem FIGURE 6-25. Short-haul modem wiring diagram Components of the short haul kit used for external connections at the WS-PRO2 enclosure are: (1) 6 m (20 ft) 4-wire patch cable (2) Direct burial splice kits (1) User-supplied 22 AWG, REA, PE-86 Filled Buried Wire (supplier: Anixter, www.anixter.com/en_us.html...

  • Page 45: Radio

    RS-232 DCE Interface and a field power cable. The SC932A is connected between the radio RS-232 port and the WS-PRO2 CS I/O port. For the field power cable, the barrel plug connects to the radio and the two-conductor pigtail connects to the 12V and G terminals of the WS-PRO2.

  • Page 46: Example Radio Configuration And Power Usage

    The WS-PRO2 station comes with a 7 amp-hour battery that is NOT designed to handle deep discharge. Discharging the battery below 11 VDC may require battery replacement. Below are some examples of power calculations.
  • Page 47 The following components are provided in the radio kit for installation inside the WS-PRO2 enclosure: (1) spread spectrum radio (1) internal antenna cable (1) enclosure mounting bracket The radio comes mounted to the enclosure bracket. Install the assembly as follows.

  • Page 48: External Installation Of The Radio

    FIGURE 6-27. Attach ribbon cable to radio CS I/O port 6.7.4.3 External installation of the radio The antenna should have been ordered with the radio kit. The following components are provided with the radio kit for antenna installation on the WS- PRO2 pole: (1) antenna cable, 150 cm (59 in) (1) adjustable angle antenna mounting bracket...
  • Page 49 FIGURE 6-28. Loosely wire tie antenna cable  5. Drape the antenna cable between the pole and the enclosure (FIGURE 6-29 (p. 45)). FIGURE 6-29. Loosely drape antenna cable over back of enclosure  6. Use the 2.125 stainless steel U-bolt to attach the adjustable angle mounting bracket to the pole.
  • Page 50 FIGURE 6-30. Slide antenna bracket U-bolt around back of the pole  b. Put a flat washer, lock washer, and a silicon bronze nut, in that order, on the ends of the U-bolt (FIGURE 6-31 (p. 46)).  c. Tighten the nuts finger tight to allow the angle bracket to rotate around the pole. FIGURE 6-31.
  • Page 51 FIGURE 6-32. Mount antenna saddle bracket NOTE: Only rotate enclosure if needed to allow aiming of the Yagi antenna to the base antenna. Keep solar radiation sensor towards the south as much as possible. Rotate wind sensor to realign as needed.  9.
  • Page 52 FIGURE 6-33. Yagi antenna mounted to saddle bracket  d. Orient the Yagi antenna so it’s aimed at the base antenna. You may have to flip the adjustable angle bracket over to get the antenna and saddle bracket to point correctly in the vertical direction.
  • Page 53 FIGURE 6-34. Wire tie antenna cable to Yagi antenna and to pole  j. Wire tie the antenna cable to the pole. FIGURE 6-35. Wire tie locations for omnidirectional antenna installation  k. Clean up the wire ties and put the cable cover back on. Section 6.

  • Page 54: Base Radio Installation

    6.7.4.4 Base radio installation The base radio kit comes with the following items. (1) RS-232 serial data cable (1) wall adapter (100 to 240 VAC, 50 to 60 Hz input; 12 VDC, 800 mA output; 1.8 m (6 ft) cable) (1) radio (1) window mount antenna with 2 m (7 ft) of cable The radio needs to be connected to an RS-232 serial port on the calling computer and powered...

  • Page 55: Ws-Pro2 Cell Phone Accessory Kit

    FIGURE 6-37. A base radio installed in an office 6.7.5 WS-PRO2 cell phone accessory kit This kit includes hardware for installing a cellular phone to an WS-PRO2 weather station. The cellular modem and antenna are ordered separately. 6.7.5.1 Cellular modems available from Campbell Scientific Campbell Scientific currently offers cellular modems that provide serial and Ethernet connectivity to numerous cellular networks.

  • Page 56: Power Considerations

    6.7.5.3 Antenna Rain Bird recommends the 2 dBd 4G/3G Multiband Omnidirectional Antenna for the cell modem in an WS-PRO2 station. This antenna is ideally suited for use with 4G and 3G cellular gateways. NOTE: Mounting hardware that comes in the box with some antennas will not be used. The cell phone kit provides the hardware needed to mount the antenna to the WS-PRO2 pole.

  • Page 57: External Installation Of A Cellular Modem

    FIGURE 6-38. Cellular modem mounted inside the WS-PRO2 (power supply not shown) NOTE: This installation procedure is for installing the CELL210. The RV50 uses a null modem cable instead of a ribbon cable and uses a power cable to connect to the SW12 or 12V terminal on the WS-PRO2.
  • Page 58 (4) 8 mm (5/16 in) stainless steel washers (4) 8 mm (5/16 in) stainless steel lock washers (4) black UV-resistant wire ties  1. Fasten the mounting hardware onto the WS-PRO2 pole by following steps 1 through 8 in External installation of the radio (p. 44).

  • Page 59: Nl241 Wi-Fi Accessory Kit

    (p. 91) for mounting options and information on the PS24. 6.7.6.3 Internal installation of Wi-Fi modem If the wireless network link kit was ordered with the WS-PRO2, skip this section and go directly to External installation of the Wi-Fi modem (p. 56).

  • Page 60: External Installation Of The Wi-Fi Modem

    (4) 8 mm (5/16 in) stainless steel washers (4) 8 mm (5/16 in) stainless steel lock washers (4) black UV-resistant wire ties  1. Fasten the mounting hardware onto the WS-PRO2 pole by following steps 1 through 8 in External installation of the radio (p. 44).

  • Page 61: Lightning Rod Installation

     7. Wire tie the antenna cable to the pole. Clean up the wire ties and put the cable cover back  8. Refer to the NL241 user manual for setting information to establish communications (https://s.campbellsci.com/documents/us/manuals/nl241.pdf 6.8 Lightning rod installation Install lightning rod as shown in FIGURE 6-40 (p.
  • Page 62 FIGURE 6-41. Grounding to lightning rod clamp  4. Strip 2.5 cm (1 in) from both ends of the 23 cm (9 in) piece of 10 AWG green ground wire.  5. Insert one end into the enclosure ground lug located at the top back of the enclosure.  6.

  • Page 63: Solar Panel Installation

    6.9 Solar panel installation FIGURE 6-42. Solar panel mounting and cabling  1. Mount the solar panel to the pole using the mounting brackets (FIGURE 6-42 (p. 59)).  2. Mount the solar panel to the pole so it faces south (northern hemisphere). Position it as high off the ground as practical, ensuring it cannot interfere with air flow or sunlight around the sensors.
  • Page 64 Table 6-1: Latitude and solar panel tilt angle Latitude Tilt angle (α) 46 to 65 degrees Latitude + 15 degrees >65 degrees 80 degrees FIGURE 6-43. Side view of solar panel shows tilt angle  3. After determining the tilt angle, loosen the two bolts that attach the mounting bracket to the panel.

  • Page 65: Battery Installation

    6.10 Battery installation FIGURE 6-44. PS150 with lid open  1. Move the PS150 power switch to the OFF position (FIGURE 6-44 (p. 61)).  2. Remove the cover from the PS150 by sliding the latch up at one end of the cover and sliding the cover down and out (FIGURE 6-44 (p.

  • Page 66: Restraining Cables

    FIGURE 6-45. PS150 to WS-PRO2 enclosure wiring 6.11 Restraining cables  1. Loosely wire tie power, communications, and grounding cable to the wire tie harness at the top of the back of the station (FIGURE 6-46 (p. 62)). Do NOT clip back the wire tie at this time.

  • Page 67: Sealing And Desiccating The Enclosure

    (p. 63)). 6.12 Sealing and desiccating the enclosure The WS-PRO2 enclosure is supplied with two desiccant packs. The desiccant maintains a low humidity in the enclosure to minimize the chance of condensation on the instrumentation. Desiccant should be changed when the internal enclosure humidity sensor measures 50% or higher.

  • Page 68: Ws-Pro2 Software

     3. Close the enclosure hasp securely. A padlock may be used on the latch for extra security. FIGURE 6-48. Desiccant installation 6.13 WS-PRO2 software A variety of different software packages are available to work with the WS-PRO2 station. Contact Rain Bird as needed for support. Section 6. Installation     64...

  • Page 69: Maintenance And Troubleshooting

    7.1 Maintenance Proper maintenance of the WS-PRO2 components is essential to obtain accurate data. Equipment must be in good operating condition, which requires a program of regular inspection and maintenance. Routine and simple maintenance can be accomplished by the person in charge of the weather station.

  • Page 70: Desiccant

    7.1.3 Desiccant Humidity is monitored inside the WS-PRO2 enclosure using the Elan HM2000 RH sensor that is incorporated in the enclosure. Change the desiccant packs when the enclosure RH exceeds 50%. The enclosure RH sensor should be changed approximately every five years.
  • Page 71 (p. 69)). NOTE: WS-PRO2 stations began shipping January 2014 with an updated radiation shield with knurled thumb screws, using the HMP60 ETS Temp/RH sensor. All information in this document is also pertinent for the HMP50-ET, HMP60-ET, and HMP60 ETR sensors.
  • Page 72 FIGURE 7-1. Exploded view of the temperature and RH sensor (adapter not shown) 2 years   Replace vane potentiometer of the 034B-ET if needed (refer to www.campbellsci.com/order/034b-et  for part number and price). To send the sensor to Campbell Scientific for potentiometer replacement, refer to the Assistance page.

  • Page 73: Procedure For Removing Rh Chip

    The data logger does not draw power from the lithium battery while it is powered by a 12 VDC supply. In an WS-PRO2 stored at room temperature, the lithium battery should last approximately 10 years (less at temperature extremes). Where the WS-PRO2 is powered most or all of the time, the lithium cell should last much longer.

  • Page 74: Troubleshooting

     6. Cycle the power to the data logger by switching the PS150 power supply to OFF then to ON, or by disconnecting and reconnecting the battery plug. The keypad should power up and the Campbell Scientific logo and text should appear on the display.  7. Call Rain Bird GSP if still no response. Section 7. Maintenance and troubleshooting     70...

  • Page 75: No Response From Data Logger When Using A Communications Peripheral

    9-pin to 25-pin serial cable Computer end Modem end  3. Make sure the communications device at the computer is properly configured and cabled (Communications peripherals (p. 35)).  4. Call Rain Bird GSP if still no response. Section 7. Maintenance and troubleshooting     71...

  • Page 76: Nan, ±Inf, Or Unreasonable Results Displayed In A Variable Or Stored In A Data Table

    FIGURE 6-21 (p. 34)).  3. Check connectors for any corrosion on pins.  4. Inspect the sensor for damage and/or contamination. If damaged, contact Rain Bird GSP for repair or purchase of a replacement sensor. 7.2.4 WindSonic1-ET diagnostic codes The WindSonic outputs a diagnostic code (Table 7-2 (p.

  • Page 77: Schematics Of Connectors

    Knowledge of schematics is not necessary for routine installation and maintenance. However, schematics may help with troubleshooting the WS-PRO2. Each connector has a small molded dot by pin 1. All of the schematics show the pinned connectors on the cables. Socketed connectors on the back of the enclosure are the mirror images of what is shown.
  • Page 78 FIGURE 8-2. Schematic of 034B-ET Wind Speed and Direction Probe and connector WS/WD Section 8. Schematics of connectors     74...
  • Page 79 FIGURE 8-3. Schematic of WindSonic1-ET Wind Sensor, soil temperature sensor (107 or 108), and connector Temp/Sonic Section 8. Schematics of connectors     75...
  • Page 80 FIGURE 8-4. Schematic of CS305-ET Solar Radiation Sensor and connector Solar Radiation Section 8. Schematics of connectors     76...
  • Page 81 FIGURE 8-5. Schematic of TE525-ET Rain Sensor and connector Rain (Precip) FIGURE 8-6. Schematic of 107 or 108 Temperature Sensor or CS616-LC Soil Volumetric Water Content Sensor and connector Temp/CS616 Section 8. Schematics of connectors     77...

  • Page 82: Power Schematics

    8.2 Power schematics FIGURE 8-7. Schematic of solar panel and connector Power 8.3 Communications modems schematics FIGURE 8-8. Schematic of short haul or phone modem and connector COMM Section 8. Schematics of connectors     78...

  • Page 83: References

    9. References EPA, (1987). On-Site Meteorological Program Guidance for Regulatory Modeling Applications, EPA-450/4-87-013. Office of Air Quality Planning and Standards, Research Triangle Park, North Carolina 27711. WMO, (1983). Guide to Meteorological Instruments and Methods of Observation. World Meteorological Organization No. 8, 5th edition, Geneva, Switzerland. The State Climatologist, (1985) Publication of the American Association of State Climatologists: Height and Exposure Standards for Sensors on Automated Weather Stations, v.

  • Page 84: Appendix A. Grounding Recommendations

    A.1 Grounding system installation To prevent lightning damage to your equipment, Rain Bird recommends installing a grounding system for the equipment (including controllers, weather stations, and central control systems). The grounding system discharges lightning-induced electrical current into the earth rather than allow the surge to pass through power wires or field wires to your equipment’s electronic...

  • Page 85: Ground Rod Stacking

    Install the connecting wire in as straight a line as possible. If you must make a turn or bend in the wire, make the turn in a sweeping curve with a minimum radius of eight inches and a minimum included angle of 90°. To minimize resistance, the copper wire must be pre-welded to the grounding rods/plates, or welded to the rods/plates using an exothermic welding process at the site.

  • Page 86: Grounding System Designs

    Stacking ground rods increases the total effective rod length, decreasing ground resistance. Joining the rods together with threaded couplers forms a secure connection so the grounding rods can be assembled quickly and easily. FIGURE A-2. Stacking grounding rods with threaded couplers can help decrease ground resistance A.2 Grounding system designs A.2.1 Design "Y"...
  • Page 87 FIGURE A-3. Design “Y” uses three groundings rods installed in radial 120 degrees “Y-shaped” configuration FIGURE A-4. Grounding system “Y can be installed as shown, or with ground enhancement material to reduce ground resistance even further Section Appendix A. Grounding recommendations     83...

  • Page 88: Design "Y" (Alternate)

    A.2.2 Design "Y" (alternate) An alternate design “Y” (shown in FIGURE A-5 (p. 84) and FIGURE A-6 (p. 85)) uses three radials in a 120 degree star (“Y”) arrangement. Each radial consists of three, 5/8”-diameter x 8-foot long copper-clad grounding rods. The first rod in each radial must be at least eight feet from the equipment.

  • Page 89: Grounding Plate Design

    FIGURE A-6. The alternate version of grounding design “Y” uses nine grounding rods to reduce ground resistance A.2.3 Grounding plate design The “Grounding Plate” design (shown in FIGURE A-7 (p. 86) and FIGURE A-8 (p. 86)) consists of one vertical 8-foot copper-clad grounding rod at least eight feet from the equipment, and a copper grounding plate (minimum dimensions 4 x 96 x .0625 in).
  • Page 90 FIGURE A-7. The” Grounding Plate” design uses one copper-clad grounding rod and a rectangular copper grounding plate FIGURE A-8. The “Grounding Plate” design may be used with or without ground enhancement material, depending on side conditions Section Appendix A. Grounding recommendations     86...

  • Page 91: Appendix B. Determining True North And Wind Sensor Orientation

    Appendix B. Determining True North and wind sensor orientation The orientation of the WindSonic “North Arrow Markers” is found by reading a magnetic compass and applying the site-specific correction for magnetic declination; where the magnetic declination is the number of degrees between True North and Magnetic North. Magnetic declination for a specific site can be obtained from a USGS map, local airport, or through a NOAA web calculator (Online magnetic declination calculator...
  • Page 92 For example, the declination for Longmont, CO (10 June 2006) is 9.67°, thus True North is 360° – 9.67°, or 350.33° as read on a compass. Likewise, the declination for McHenry, IL (10 June 2006) is –2.68°, and True North is 0° – (–2.68°), or 2.68° as read on a compass. FIGURE B-2.

  • Page 93: Online Magnetic Declination Calculator

    B.1 Online magnetic declination calculator The magnetic declination calculator web calculator published by NOAA’s Geophysical Data Center is available at: www.ngdc.noaa.gov/geomag/calculators/magcalc.shtml  . This web page calculates declination based on the latitude and longitude. You can look up your site's latitude and longitude by entering the Zip Code or the Country and City, and then clicking the Get &...
  • Page 94 FIGURE B-5. NOAA calculated declination using HTML result format Appendix B. Determining True North and wind sensor orientation     90...

  • Page 95: Appendix C. Ps24 24 Ah Power Supply With 10 X 12 Inch Enclosure

    10 x 12 inch enclosure The PS24 Power Supply is typically used when a solar-powered WS-PRO2 transmits data using a wireless communications option. However, the PS24 can be used for any situation where a larger capacity battery is desirable.
  • Page 96 FIGURE C-1. PS24 enclosure with PS150 and battery bracket FIGURE C-2. 24 Ah battery and battery cable Appendix C. PS24 24 Ah power supply with 10 x 12 inch enclosure     92...

  • Page 97: Ps24 Installation

    FIGURE C-3. Enclosure supply kit C.2 PS24 installation CAUTION: The PS24 is purposely shipped without the battery mounted in its bracket. Do not install the battery until instructed to do so.  1. Place the top enclosure bracket on the pole at approximately 10 m (3 ft) above the bottom of the pole.
  • Page 98 FIGURE C-5 (p. 94) shows the top and bottom brackets correctly positioned on the WS-PRO2 pole. FIGURE C-5. Both strut clamps and brackets on WS-PRO2 pole  4. Hook the enclosure on the top bracket as shown in FIGURE C-6 (p.
  • Page 99 FIGURE C-6. Top clamp hook side up  5. The bottom enclosure bracket should slide between the top lip of the bottom strut mount bracket and the notch directly below. Move the bottom bracket if necessary, then bolt the bottom bracket down (see FIGURE C-7 (p.
  • Page 100 FIGURE C-7. Enclosure mounted on WS-PRO2 pole  6. The bottom enclosure bracket has a small metal locking mechanism. Push up on the small Phillips screw underneath the mechanism and slide it to the left. Once in place, put a small...
  • Page 101 FIGURE C-8. Enclosure locking mechanism  7. Install the solar panel above the PS24 enclosure, and face the solar panel south (FIGURE C- (p. 98)). Appendix C. PS24 24 Ah power supply with 10 x 12 inch enclosure     97...
  • Page 102  8. Place a blanket or box over the solar panel to prevent any voltage output.  9. Route the solar panel cable and power cable coming from the main WS-PRO2 enclosure into the conduit at the bottom of the PS24 enclosure.
  • Page 103 Table C-1: Solar panel or AC connections Solar panel or AC wire color Power supply connection terminal CHG or CHARGE Black CHG or CHARGE NOTE: Polarity makes no difference. Connect one wire per CHG terminal block.  12. If the charging source is a solar panel, remove the blanket or box from the solar panel once it’s wired into the CH150, PS100 or PS150 regulator.
  • Page 104 NOTE: The power cable that carries the regulated 12 VDC power from the regulator in the external enclosure to the WS-PRO2 station enclosure has a two-pin connector on one end and tinned wires on the other.  13. Toggle the power switch on the regulator (CH100, PS100, CH150, or PS150) to the OFF position.
  • Page 105 NOTE: Since the power coming into the enclosure is regulated power coming from the external enclosure, the wiring inside the WS-PRO2 station enclosure needs to be different than the standard wiring.  17. If this is a retrofit, inside of the ET station enclosure, wires come through the enclosure wall from the POWER connector on the back of the station that used to be wired into the charge ports of the PS100 or PS150.
  • Page 106 However, it’s often wise to change the desiccant every six months.  23. Close the lids on the external enclosure and the WS-PRO2 enclosure. Appendix C. PS24 24 Ah power supply with 10 x 12 inch enclosure     102...

  • Page 107: Appendix D. Ws-Pro2 Maintenance Log     103

                                                                          Appendix D. WS-PRO2 maintenance log     103...
  • Page 108     Clean/inspect solar radiation sensor (recommended – monthly) Date OK/comments                                                 Appendix D. WS-PRO2 maintenance log     104...
  • Page 109 Replace RH chip in the HMP60-ETS temp/RH sensor (recommended – yearly) Date OK/comments       Replace desiccant bags (qty 2) inside enclosure (recommended – yearly) Date OK/comments       Calibrate solar radiation sensor (CS305-ET) (recommended – every 3 years) Date OK/comments     Appendix D. WS-PRO2 maintenance log     105...
  • Page 110 Limited warranty Products manufactured by Campbell Scientific are warranted by Campbell Scientific to be free from defects in materials and workmanship under normal use and service for twelve months from the date of shipment unless otherwise specified on the corresponding product webpage. See Product Details on the Ordering Information pages at www.campbellsci.com .
  • Page 111 Assistance Products may not be returned without prior authorization. Products shipped to Campbell Scientific require a Returned Materials Authorization (RMA) or Repair Reference number and must be clean and uncontaminated by harmful substances, such as hazardous materials, chemicals, insects, and pests. Please complete the required forms prior to shipping equipment.
  • Page 112 Safety DANGER — MANY HAZARDS ARE ASSOCIATED WITH INSTALLING, USING, MAINTAINING, AND WORKING ON OR AROUND TRIPODS, TOWERS, AND ANY ATTACHMENTS TO TRIPODS AND TOWERS SUCH AS SENSORS, CROSSARMS, ENCLOSURES, ANTENNAS, ETC. FAILURE TO PROPERLY AND COMPLETELY ASSEMBLE, INSTALL, OPERATE, USE, AND MAINTAIN TRIPODS, TOWERS, AND ATTACHMENTS, AND FAILURE TO HEED WARNINGS, INCREASES THE RISK OF DEATH, ACCIDENT, SERIOUS INJURY, PROPERTY DAMAGE, AND PRODUCT FAILURE.
