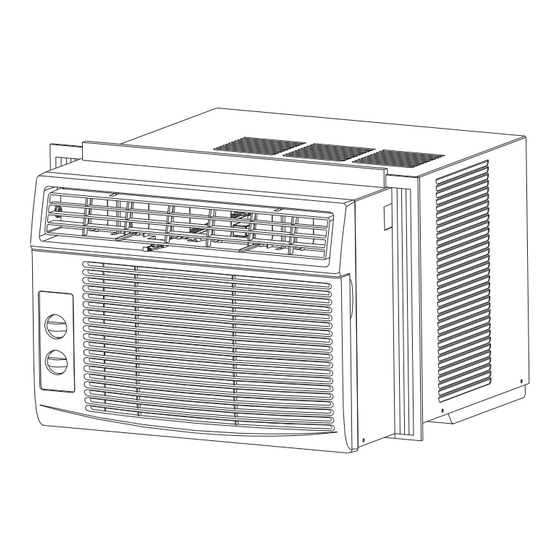

CONTENTS 1. SAFETY PRECAUTIONS..............2 2. IMPORTANT SAFETY INSTRUCTIONS ..........4 3. NORMAL SOUNDS ................5 4. AIR CONDITIONER FEATURES ............6 5. INSTALLATION INSTRUCTIONS............8 6. CARE AND CLEANING ..............12 7. TROUBLESHOOTING TIPS..............13 8. WARRANTY..................14 Read This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly.
Safety Precautions To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. WARNING This symbol indicates the possibility of death or serious injury.
Page 4
! CAUTION When the air filter is to be Do not clean the air Ventilate the room well when conditioner with water. used together with a stove, removed, do not touch the metal parts of the unit. etc. It may cause an injury. Water may enter the unit and An oxygen shortage may occur.
IMPORTANT SAFETY INSTRUCTIONS For your safety WARNING NOTE The power supply cord with Do not store or use gasoline or other flammable vapours and liquids in this air conditioner contains a current the vicinity of this or any other appliance. detection device designed to reduce Avoid fire hazard or electric shock.
AIR CONDITIONER FEATURES The controls featured in this manual are representative of many available models. Your model may offer slightly different features. Cool Mode The desired cool setting is selected by rotating the knob to the right to the appropriate location. has maximum cooling effect and airflow.
Page 8
ADDITIONAL THINGS YOU SHOULD KNOW Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with. The Cool circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly.
INSTALLATION INSTRUCTIONS Your air conditioner is designed to install in standard double hung windows with opening widths of 22 1 2 to 36 inches(572mm to 914mm) (See Fig.1). Lower sash must open sufficiently to allow a clear vertical EXTERIOR opening of 14 inches (356mm). Side louvers and the rear OFFSET WALL 22 1 2 to 36...
Page 10
HOW TO INSTALL NOTE: Top rail and Sliding Panels at each side are offset to provide the proper pitch to the rear of (5/16 ). This is necessary for proper condensed water utilization and drainage. If you are not using the Side Panels for any reason, this pitch to the rear must be maintained. Place unit on floor, a bench or a table.
Page 11
Keep a firm grip on the air conditioner, carefully Fig.5 place the unit into the window opening so the bottom of the air conditioner frame is against the window sill (Fig.5). Carefully close the window behind the top rail of the unit. Extend the side panels out against the window frame (Fig.6).
Page 12
Fig.9 Drive 3/4" (19 mm) lock ing screws through frame holes into window sash (Fig.9/10) To secure lower sash in place, attach right angle sash lock with 3/4" (19 mm) screw as shown(Fig.11). Fig.10 Fig.11 Fig.12 Cut foam seal and insert in the space between the upper and lower sashes (Fig.12).
CARE AND CLEANING CAUTION Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent chock or fire hazards. Air Filter Cleaning The air filter should be checked at least once a month to see if cleaning is necessary.
TROUBLESHOOTING TIPS Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workman-ship or materials in this appliance. Problem Solution Wall plug disconnected. Push plug firmly into wall outlet. House fuse blown or circuit breaker tripped.
WARRANTY Thank you for purchasing this FACTO product. These products have been made to demanding high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 36 months from the date of purchase. This warranty does not affect your statutory rights.
Need help?
Do you have a question about the 87795007 and is the answer not in the manual?
Questions and answers

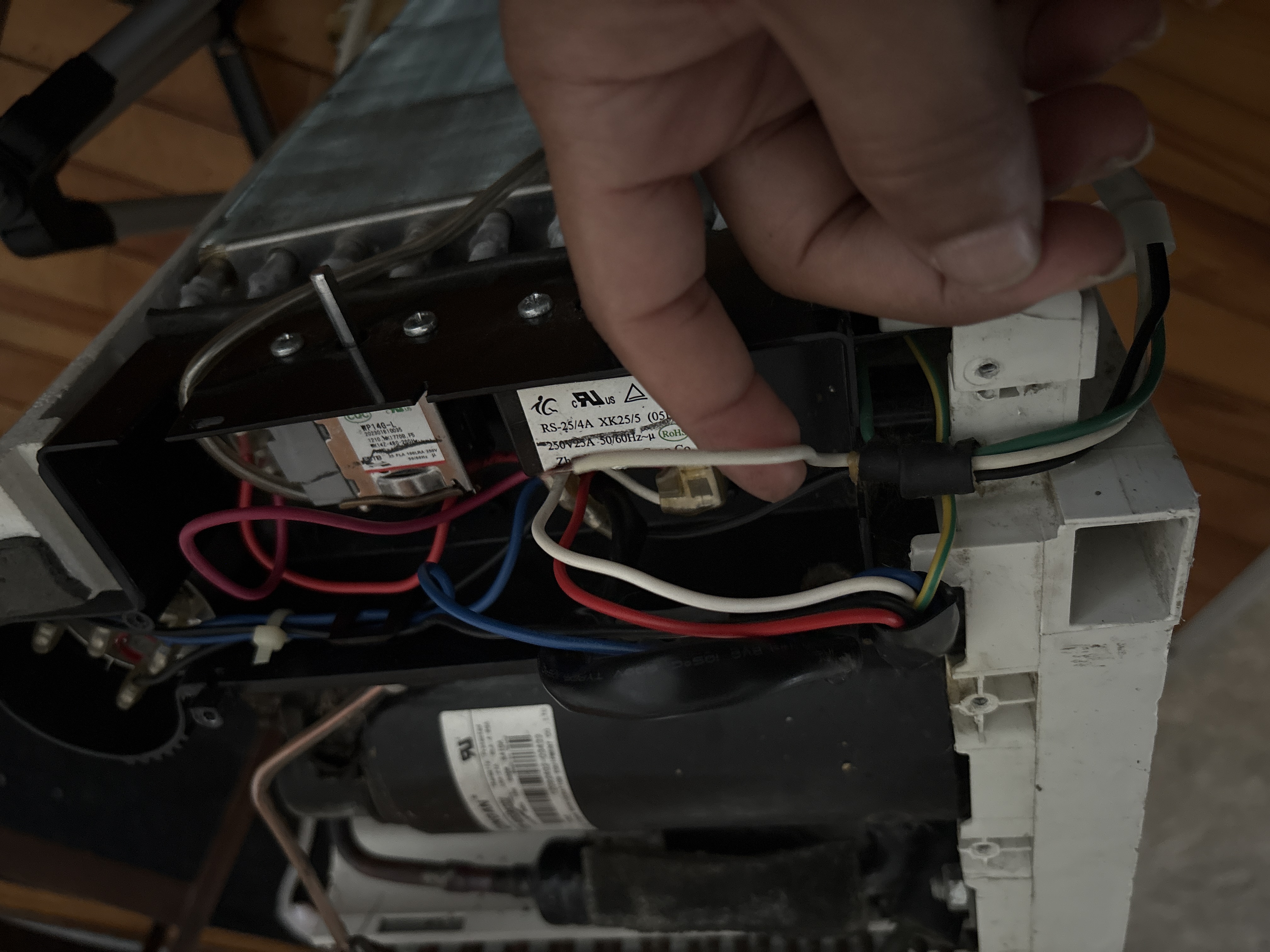

Mi aire no enciende y lo destape y tengo un cable blanco suelto no se donde va conectado o si va suelto
