Summary of Contents for SYAC-TB DIGIEYE COMPACT

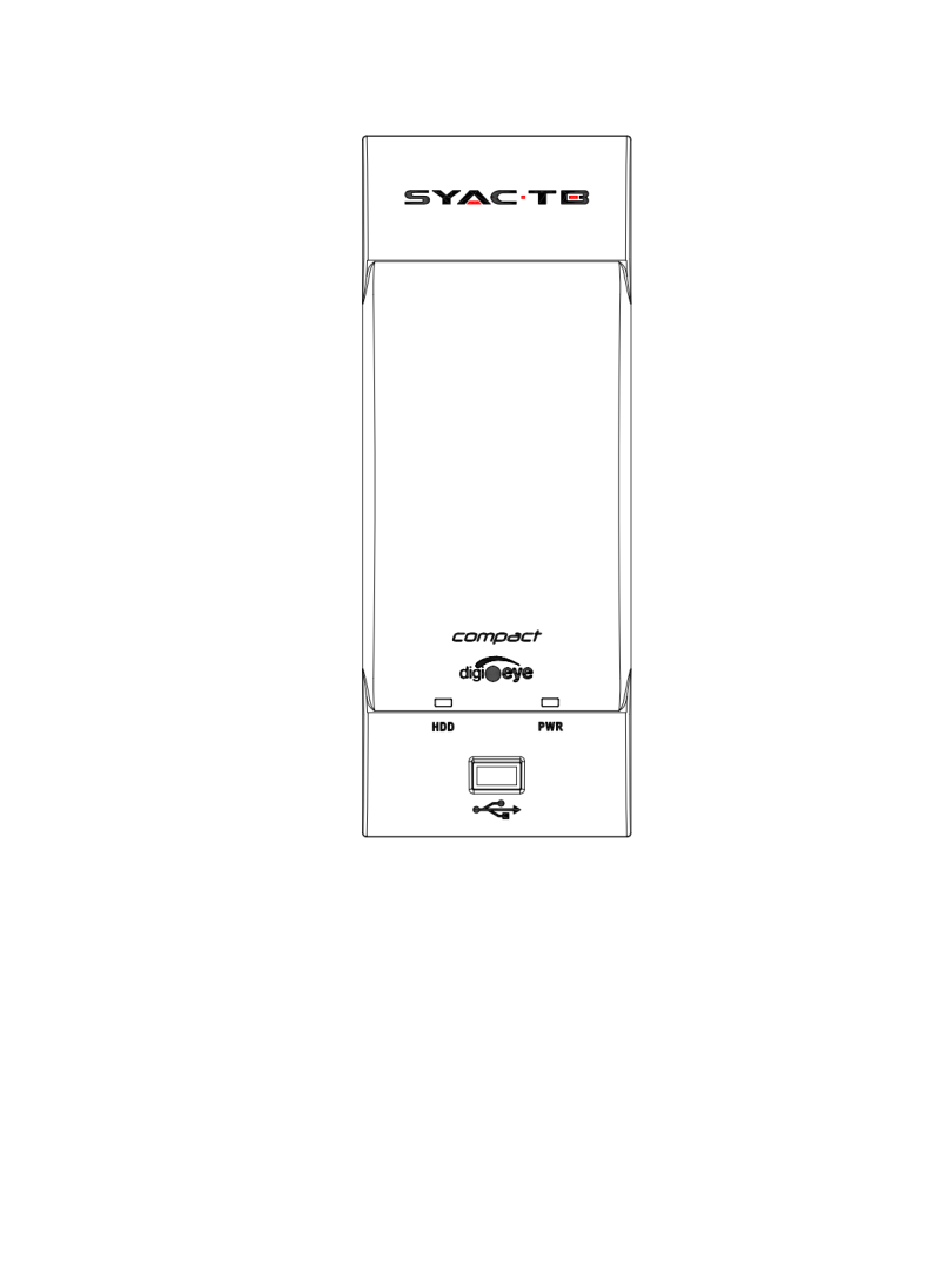

- Page 1 DIGIEYE COMPACT Quick setup V1.5 09-2016...
-
Page 2: List Of Components
DIGIEYE COMPACT 1. List of components 1 Digieye unit 1 AC 110-230V – 1 Power Documentation 2 CDROM: DC 12V 5A supply Warranty Adapter cable CD1: Manuals + Software PC CD2: Digieye installation 1 video-mux 1 terminal block 1 USB... -
Page 3: System Description
DIGIEYE COMPACT 2. System description Hard disk status LED LAN1 Primary network port RJ45 Power supply status LAN2 Secondary network port RJ45 VGA video output AUDIO Mic/Line=inputs, Spk=output HDMI HDMI video output VIDEO IN Video inputs BNC (CVBS) CVBS CVBS video output (optional) - Page 4 DIGIEYE COMPACT 3. Positioning 20 cm 20 cm Place the unit upright, on a stable and solid surface, making sure that the 4 spacers supplied (A)are well placed in the base. Check that the slots in the chassis are not obstructed. Leave the top surface free and keep a free distance of at least 20 cm all around the unit.
-
Page 5: Installation
DIGIEYE COMPACT 4. Installation Primary Secondary Monitor Monitor MAIN conv.USB-RS485 USB storage Secondary Network (f.ex. IP Cameras) (COM4) Keyboard / mouse USB conv.USB-RS485 Primary Network (f.ex. Centralization) (COM3) Primary Monitor (MAIN) / Secondary (AUX) DigiEye is able to control up to 2 video monitor outputs simultaneously. - Page 6 DIGIEYE COMPACT Refer to the below chart to configure the connections, depending on the number of monitors to be connected to the DigiEye: Configuration Interface Monitor 1 Monitor 2 A. 1 monitor (VGA) Main/Aux 1 monitor (HDMI) HDMI Main C. 1 monitor (CVBS) CVBS D.
- Page 7 Analog Cameras Connection (mod. DVR/HVR) In DVR/HVR units, connect the analog cameras through the multi-BNC adapter cables provided, to VIDEO IN ports. The DigiEye COMPACT unit is not provided with loopthrough BNC video output. Inputs/Outputs connection The DigiEye COMPACT unit is provided with: ...
-
Page 8: Initial Configuration
DIGIEYE COMPACT 5. Initial Configuration (Legacy interface) Press the button with SYAC-TB logo Press the Configuration button (tools icon) Set local parameters (“Configure” button) System name Date/time Number of analog/IP channels (for hybrid systems) Automatic recording reactivation time Network parameters setup (“TCP/IP” button) Static or dynamic IP address (DHCP) for LAN1 interfaces and, if necessary, LAN2. - Page 9 DIGIEYE COMPACT For each camera to be connected to the system: Press Camera button: for analog cameras set Input Mode =Color/BN, for IP cameras select Enable and set Model and IP Address (or perform an automatic search pressing the button Detect), followed by the button Probe/Connect to establish video connection.
- Page 10 DIGIEYE COMPACT 6. Initial Configuration (Full-HD interface – from s/w 6.0) Press the Configuration button (tools icon) and refer to the former section. At the end of system configuration press the REC button to start Video Recording. EN-UM-DGI.CO2.A Rev. 1.4...
-
Page 11: Reset To Factory Configuration
At the prompt for User / Password : enter username and password with Supervisor rights (AC) defined on the system. Factory defaults are User = SUPER and Password = SUPER. In case of User/Password loss, please contact SYAC-TB technical support. To completely reset the configuration press the following key sequence:... -
Page 12: Technical Support
CD. The latest version of the manual can also be downloaded from the restricted area of SYAC-TB site (requires registration) www.syac-tb.com To contact SYAC-TB technical support: E-mail : support.syac@techboard.it...
