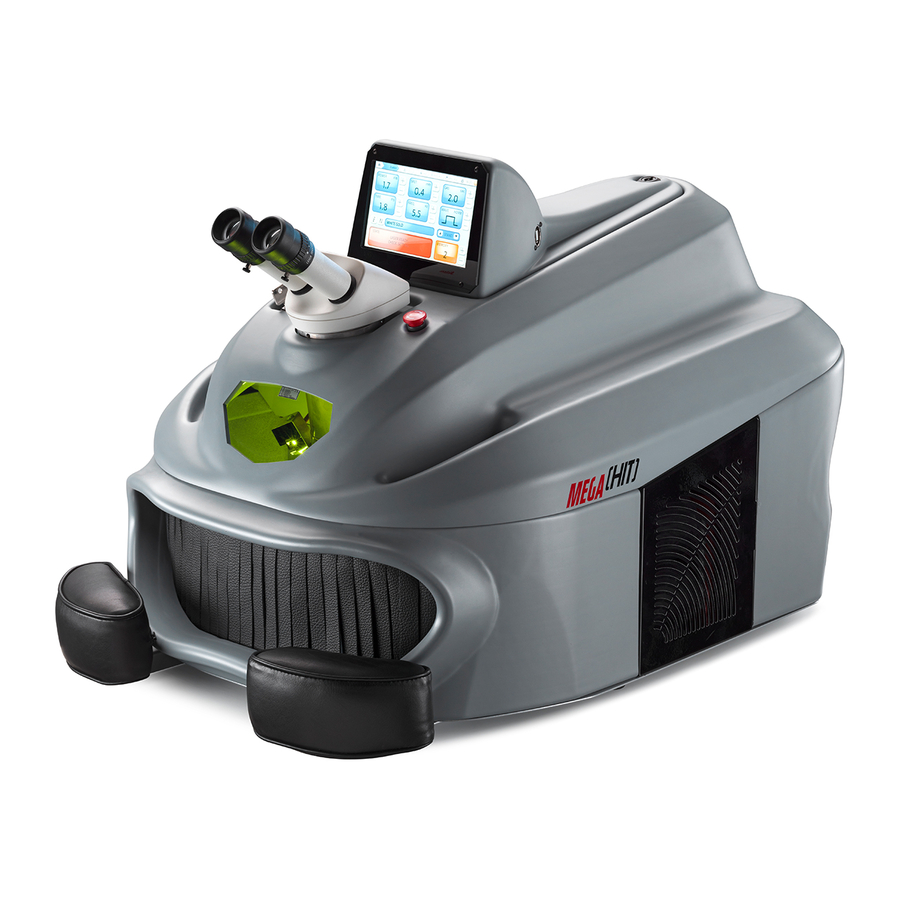

Summary of Contents for ROMANOFF ELECTROLASER MEGAHIT

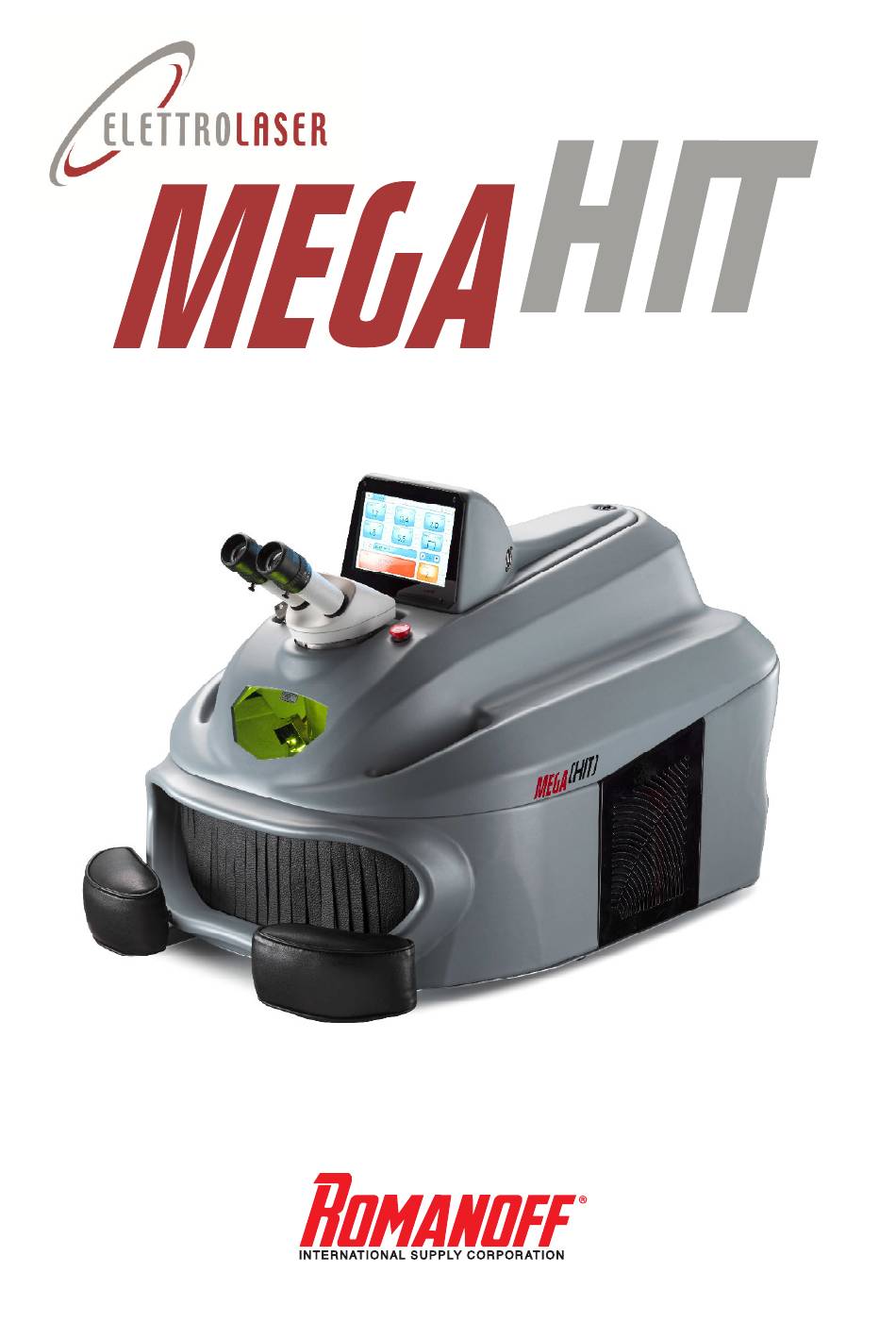

- Page 1 9 Deforest Street, Amityville NY, 11701, USA Tel: 1-631-842-2400 Sales@romanoff.com Romanoff.com...
- Page 2 Elettrolaser S.r.l. - 2 - MEGAHIT...
-
Page 3: Laser Megahit
LASER MEGAHIT GENERAL MANUAL USE AND INSTALLATION IMPORTANT Verify carefully the content of this manual with particular attention to the warnings for the installation, use and the maintenance of this machine. This device and the relative instructions are for sole rights of personnel qualified in the unit use as that one that here will be described. -
Page 4: Use Destination
USE DESTINATION The machine MEGAHIT is destined to the welding of small size products in metallic material. NOTE It isn’t allowed to change the use destination for which the system has been designed and produced. Elettrolaser S.r.l. declines every responsibility about the non-conformance use of the equipment of its production. -
Page 5: Elettlettrolaserolascontlettrolaseractualelettrolaser Scontlettrolaseractual . Lettrolaser . L . Contlettrolaseractual Gualettrolaserantee
LETTROLASER S CONTRACTUAL GUARANTEE The producer guarantees the defects absence, taking into consideration of the actual technological phase, about the new equipment type and for the duration of two years from the installation date c/o the customer included in the transportation documents. It being understood the limit of two years, the guarantee obligation spreads also to those equipment parts not produced directly by Elettrolaser S.r.l. -
Page 6: Table Of Contents
INDEX LASER MEGAHIT ........................3 GENERAL MANUAL ....................... 3 USE AND INSTALLATION ...................... 3 CONTENT GUARANTEE......................3 USE DESTINATION ......................... 4 ....................5 LETTROLASER S CONTRACTUAL GUARANTEE INDEX ......................... 6 CHAPTER 1 SYMBOLS ....................... 9 CHAPTER 2 2 SAFTEY ......................11 2.1 LASER RADIATION ABSORPTION ...................... - Page 7 CHAPTER 9 SAFETY SYSTEMS ..................42 9.1 RESONATOR SHUTTER ........................42 9.2 MICROSCOPE SHUTTER ........................43 9.3 MICROSCOPE INFRARED FILTER...................... 44 9.4 WELDING ROOM INFRARED FILTER ....................44 9.5 OPENINGS PROTECTION FOR HANDS INTRODUCTION ..............45 CHAPTER 10 SAFETY GENERAL PRESCRIPTIONS FOR LASER PLANTS IN WORKING ARRANGEMENT ........................
- Page 8 PICTURES INDEX Picture 1:Eyeball ........................... 12 Picture 2: Frontal laser warning labels ..................20 Picture 3 : Internal laser warning labels..................20 Picture 4: Back laser warning labels....................21 Picture 5: Internal controls ......................24 Picture 6: joystick controls......................25 Picture 7: Display Touch screen......................
-
Page 9: Chapter 1 Symbols
CHAPTER 1 SYMBOLS Generic warning: This symbol shows the necessity of a careful reading of the manual or the necessity of an important manoeuvre or maintenance operation. Laser warning: This symbol shows the exposition danger to the laser visible and invisible radiation. This symbol can be included also on the machine in correspondence of risk zones. - Page 10 cleaning substances and protection gas. Prefer a wide room dedicated appropriately for the machine installation. If the room is of reduced sizes use it only if well ventilated. The protection gas used to weld can gradually change the air causing indisposition or death. Assure that the air that is breathed is healthy.
-
Page 11: Chapter 2 2 Saftey
CHAPTER 2 SAFETY In this charter are discussed matters about the individual safety. The performed tests demonstrate the safety and the laser reliability when is used properly. It is however necessary that the operator is informed about the precautionary standards ready to avoid possible damages to people or to the same machine. -
Page 12: Laser Radiation Absorption
2.1 LASER RADIATION ABSORPTION The human tissue absorbs the electromagnetic radiation in different way in accordance with the wavelength of the same radiation. Both the eye both the skin have their “presetting” to accept some wavelengths and they are more refractory to absorb others. In the eye specific case, the cornea and the crystalline let pass and reach up to the retina, also with different attenuations, all the wavelengths that go from 400 to 1400 nm, or range between the light in the visible up to the infrared IRA. -
Page 13: Classification And Dangerousness
2.2 CLASSIFICATION AND DANGEROUSNESS The regulation has established different lasers dangerousness classes on the basis of their ability to produce damages to people from laser in class I (essentially safe in every condition) to the laser of class IV dangerous in different conditions. The laser of class III show the label “ATTENTION ”... -
Page 14: Radiation Vision Conditions
2.3 RADIATION VISION CONDITIONS The laser to the resonator exit is to be considered as a monochromatic light source highly corresponded and intense. For these characteristics it can be seen as a “Punctiform source” of great brightness. This allows that its “image” is after focused on the Retina in one very small spot with power density dangerousness high! If instead the beam becomes divergent and spreads on a not reflecting screen, then there will be a “large vision”... -
Page 15: Risks For The Eyes And The Skin
2.4 RISKS FOR THE EYES AND THE SKIN The cornea and the retina, if submitted to an intense laser radiation, also of short duration, or to a less intense radiation but of long duration, can burn and can be damaged in irreparable way forever. - Page 16 NOTE Don’t submit to the laser radiation materials different from those for which the machine has been manufactured The haviest collateral risk, being able to result fatal, associated to a laser device is surely represented from the electricity. This fact can happen when the warnings and the procedures imposed from the machine manufacturer aren’t respected.
-
Page 17: Chapter 3 3 Seals
CHAPTER 3 SEALS In some points the welding system presents some seals. The seals must not be, for none reason, broken or removed. The sealed parts in fact can be opened only and exclusively by Elettrolaser S.r.l. NOTE The seals breaking or removal on behalf of the customer put from the manufacturer on the laser system allows the guarantee immediate decay on all welding system. -
Page 18: Safety Labels
3.1 SAFETY LABELS The labels and the plates are applied on the equipment in conformance with the European safety rules. They must not be removed or damaged. For possible changes you can contact Elettrolaser S.r.l. Laser warning labels : Label Shape and type Sizes (mm) Laser warning... - Page 19 Laser technical data Laser N.5 104 x 25 Laser opening information Laser N.6 104 x 26 Electric warning labels Label Shape and type Sizes ( mm) Electricity warning Side 22 Elettric N.1 Side 50 Product identification label This label shows the data about the manufacturer (Ref A), the electric specifications (Ref B), the generator power (Ref C) and the risk class of the laser machine (Ref D).
-
Page 20: Labels Positioning
3.2 LABELS POSITIONING The Laser warning labels are placed frontally, inside and outside the machine in the following way: LASER N.1 LASER N.5 LASER N.2 Picture 2: Frontal laser warning labels LASER N.6 Picture 3 : Internal laser warning labels The Laser warning labels are placed behindly outside the machine in the following way: Elettrolaser S.r.l. - Page 21 LASER N.4 LASER N.3 IDENTIFICATION LABEL Picture 4: Back laser warning labels Elettrolaser S.r.l. - 21 - MEGAHIT...
-
Page 22: Chapter 4 Technical Data
CHAPTER 4 TECHNICAL DATA 4.1 LASER SPECIFICATIONS SPECIFICATIONS DESCRIPTION Feeding VAC Feeding system phases n° Frequency Hz 50-60 Absorbed medium energy KW Crystal LASER type Nd:YAG Wavelength nm 1.064 Impulse energy joule 0,1-HIT Impulse duration msec 0,5-20 Repetition frequency Hz 0,5-30 Medium power W Max peak power KW... -
Page 23: Layout And Machine Description
4.3 LAYOUT AND MACHINE DESCRIPTION The physical principle that is the basis of the laser light generation is the phenomenon of the light stimulated emission. LASER in fact is the acronym of Light Amplification by Stimulated Emition of Radiation. It means that the laser is light amplified from a chain photonic emission, originated from a first photon (light particle) that interacting with an excited atomic system, stimulates the emission of two photons and these ones interacting with other atoms give rise to an avalanche effect. -
Page 24: Chapter 5 5 Controlls Description
CHAPTER 5 CONTROLS DESCRIPTION 5.1 INTERNAL CONTROLS Picture 5: Internal controls Reference Description Emergency button Switching on and Switching off key Fumes suction fan Protection gas regulator Protection air fixed spreader Protection gas mobile spreader Led lights set inside the room Elettrolaser S.r.l. -
Page 25: Joystick Controls
5.2 JOYSTICK CONTROLS Picture 6: joystick controls Reference Description Moving the joystick lever on the top it is possible to increase the parameters values: SET UP the highlighted parameter will be underlined from a line Moving the joystick lever on the bottom it is possible to reduce the parameters SET DOWN values: the highlighted parameter will be underlined from a line Moving the joystick lever on the right it is possible to place towards right on the... - Page 26 placed on the pigeon-hole side it is possible to increase and reduce the time value from a minimum of 0.1ms to a maximum of 20 ms This area is dedicated to the visualization of the interface messages between Ref. C machine and operator;...
-
Page 27: Chapter 6 6 Instalation
CHAPTER 6 INSTALLATION Position the equipment on a bench or strong and steady support that is able to support the tooling weight (33 Kg). Before to lean the laser assure that the containing little basin of the welding material leans out from the bench and that the machine leans against four support stems (Fig. - Page 28 NOTE Apply in entry to the machine a protection gas pressure not superior to 1,5 bar MAIN SUPPLY CABLE Picture 10: Feeding cable connection and the pedal cable Connect the machine to the feeding socket 230 Vac using the feeding cable in equipment (Fig. 10) Connect the pedal shot control connector placed on the back of the machine (Fig.
- Page 29 ATTENTION: Use only the equipment cable to the machine and don’t substitute or change the connection plug. For this procedure contact always Elettrolaser s.r.l. Remove the oculars from the containers (Fig. 12) and fasten them on the machine. Screw the screw using a 2,5mm allen key and plug the connector Visor Picture: ocular...
-
Page 30: First Switching On
6.1 FIRST SWITCHING ON Assure that the stop button inside the welding room is released and not pushed (Fig.13) Picture 13: Stop button Switch on the machine carrying in ON position the general switch placed on the left side of the machine (Fig.14) ON / OFF MAIN SWITCH... - Page 31 At this point on the graphic display the initial screen will appear that will invite to the machine switching on with the indication “PRESS START “. At this point press “START” on the display. Picture 16: Switching on display NOTE Don’t carry on in the installation if the display isn’t compiled as above described.
-
Page 32: Welder Switching Off
6.2 WELDER SWITCHING OFF ATTENTION Switch off always the welder turn before the key on LOCK, to allow to the microprocessor to unload the internal condenser bench. Position the key on LOCK and wait that on the display will appear the inscription “LASER BLOCKED”... -
Page 33: Chapter 7 Maintanence
CHAPTER 7 MAINTENANCE ATTENTION In normal conditions of functioning this welder behaves as a LASER tool of class IV, with a Safety level LASER Class I; it is so a safe LASER welder and it isn’t necessary to adopt particular protection measures for the operator and for the present people ATTENTION Don’t open ever the LASER panels, also with the switched off machine there can be parts always under voltage, possible electric shock. - Page 34 • In case of break, change the protection glass-filter of the inspection window to the welding room. Use for the change only the original spare part; common glasses or not approved filters can originate some radiation leaks dangerous for the operator eyes and skin. Don’t remove ever the filter inserted in the microscope lens •...
-
Page 35: Change The Protection Slide Ar/Ar
7.1 CHANGE THE PROTECTION SLIDE AR/AR Every time that the protection slide is “dirty” is noted a reduction of the delivered power. So, to the presence of a strong concentration of metal sprays on its surface change the slide. Check periodically the protection slide of the microscope lens that is placed inside the welding room. -
Page 36: Realign The Pointing Cross
7.2 REALIGN THE POINTING CROSS It can happen that the pointing cross for the welding isn’t aligned to the effective shot point. This could verify all times that the welder is moved or lifted. Also a knock to the microscope could create the pointing cross misalignment from the effective shot point. - Page 37 Picture 19: Fastening of the Stereomicroscope So to verify the alignment, put in steady way with focus vision a sheet metal piece inside the welding room. And then hit with a low power single shot the sheet metal placed before. Looking so inside the microscope, rotate with small movements the screws 1 and/or 3 (Fig.18) up to the cross overlapping with the point where the shot has hit the sheet metal.
-
Page 38: Change Periodically The Refrigerating Liquid
7.3 CHANGE PERIODICALLY THE REFRIGERATING LIQUID It is necessary to change periodically the internal refrigerating liquid (distilled water or demineralized) with the aim to avoid the formation of micro alga inside the cooling closed circuit that could reduce or block the thermal exchange efficiency. ATTENTION It is advisable the water change every two years and in particular before or after the end of the hot season. -
Page 39: Chapter 8 Error Messages And Problems Resolution
CHAPTER 8 ERROR MESSAGES AND PROBLEMS RESOLUTION The table shows all information about the errors visualizable on the graphic display. ER.N° MESSAGE CAUSE REMEDY ERROR SIMMER The laser lamp doesn’t switch on Check the fuse Call ELECTROLASER ASSISTANCE SERVICE WORKING The refrigerating liquid doesn’t move Check the fuses and call the REFRIGERATING LIQUID... - Page 40 Elettrolaser S.r.l. - 40 - MEGAHIT...
-
Page 41: Other Anomalies
8.1 OTHER ANOMALIES PROBLEM RESOLUTION The machine switches on but is not in the START Verify the key position inside the welding room position The display shows the parameters but the laser Check the machine connection with the pedal doesn’t shot In the microscope it sees that the shutter closes the Settable power and time are too low sight and becomes dark but no effect on the welded... -
Page 42: Chapter 9 Safety Systems
CHAPTER 9 SAFETY SYSTEMS This LASER welder is equipped with a high number of safety system to avoid that the LASER radiation can in any way escare to the check of the machine. Here follow the list of these systems and their functioning description: Resonator shutter •... -
Page 43: Microscope Shutter
9.2 MICROSCOPE SHUTTER Description This device is constituted from a liquids crystal filter (LCD) that if submitted to a well careful voltage dims completely. It is placed between the 45° mirror and the focus lens of the microscope. The shutter intervenes disconnecting the operator visive route through the microscope, in the moment that the LASER impulse provokes the melting of the piece to weld. -
Page 44: Microscope Infrared Filter
9.3 MICROSCOPE INFRARED FILTER Description This filter is an optical glass opaque to the LASER radiation of 1.064 nm It appears to our eyes of light grey color and perfectly transparent. It is placed inside the microscope. (Ref.A Fig. 20) Scope The scope of this filter is to preserve the operator eyes from leaks, also if absolutely improbable in this zone, of the microscope optical route of... -
Page 45: Openings Protection For Hands Introduction
ATTENTION In case of breaking this filter will have to be necessarily changed with a new one. For the own safety, use only original and approved spare parts. 9.5 OPENINGS PROTECTION FOR HANDS INTRODUCTION Description Placed to the sides of the welder “nose”, two openings, that allow to the operator to introduce the hands and the pieces inside the welding room, are protected from curtains made of skin strips (Fig.22) Scope... -
Page 46: Chapter 10 Safety General Prescriptions For Laser Plants In Working Arrangement
CHAPTER 10 SAFETY GENERAL PRESCRIPTIONS FOR LASER PLANTS IN WORKING ARRANGEMENT 10.1 INTRODUCTION When there is the problem to verify the Plant safety, the first step to perform is to locate what can be the dangers connected to the Plant functioning. In the case that inside the Plant a LASER Equipment is installed, besides the usual Dangers deriving from the type and from the functioning way, it needs to bear a further Danger represented from the LASER Radiation (electromagnetic type radiation, prevalently infrared). - Page 47 Engineering devices For an industrial environment result to be the more opportune measures and consist of a set of shrewdnesses that, in the design, manufacturing and Plant integration phases, take into consideration of the existent dangers and devices to minimize the risk. When applicable, all is realized endowing the plant of appropriate covers that enclose both the LASER both the work zone, preventing to the dangerous radiation to reach the external side of the cover.
-
Page 48: Particular Prescriptions For Lasers Of Class Iv
10.3 PARTICULAR PRESCRIPTIONS FOR LASERS OF CLASS IV For the LASERS of class IV are prescribed the distance control, the key control, the emission warning, the attenuator. For these LASERS occur that the Manufacturer put at the User disposal a shrewdness that allows an external safety easy addition to the same LASER. -
Page 49: Residual Risks That The User Must Locate And Eliminate
10.7 RESIDUAL RISKS THAT THE USER MUST LOCATE AND ELIMINATE They are risks deriving not from the LASER but from its use. Together with the main radiation, some collateral ones exist, of visible infrared type, and ultraviolet, that for their intensity, can represent a potential danger. - Page 50 Machinery where a Laser source is inserted that has sufficient energy to interact with the working piece, and it has all functional and safety aspects of a machine ready for the use. 1.3 MANUFACTURER Person or organization that assemblies the laser system. 1.4 COMPLEX COMPONENT Element used for the equipment production, but that it cannot considered a machine not having an intrinsic function for the final use.
-
Page 51: Conformance Declaration
3.1 CONDITIONS FOR THE CONFORMANCE TO THE EMC DIRECTIVES OF MEGAHIT LASER SOURCES The Laser sources conformances defined in the title of the present paragraph to the Directives about the Electromagnetic Compatibility are valid only for the here follow listed conditions. 3.1.1 THE SOURCES DEFINED IN THE TITLE OF THE PRESENT PARAGRAPH ARE COMPLEX COMPONENTS SOLD TO BE INCLUDED AS EQUIPMENT PART OR INSTALLED SYSTEM: SO THE SOURCE OPERATIVE CONDITIONS INSIDE THE... -
Page 52: Chapter 12 Technical Assistance
CHAPTER 12 TECHNICAL ASSISTANCE For technical support, please contact us at the following: Tel: 1-631-842-2400 Sales@romanoff.com Romanoff.com We are available from Monday to Friday from 8:00 to 5:00 EST. Elettrolaser S.r.l. - 52 - MEGAHIT...
