AEDx-8xxx-xxx
Assembly Guidelines
2- or 3-channel Incremental Encoder Kit
Application Note 5435
Description
This application note gives step-by-step instructions for the alignment and installation of the AEDx-8xxx series incre-
mental encoder to a motor shaft.

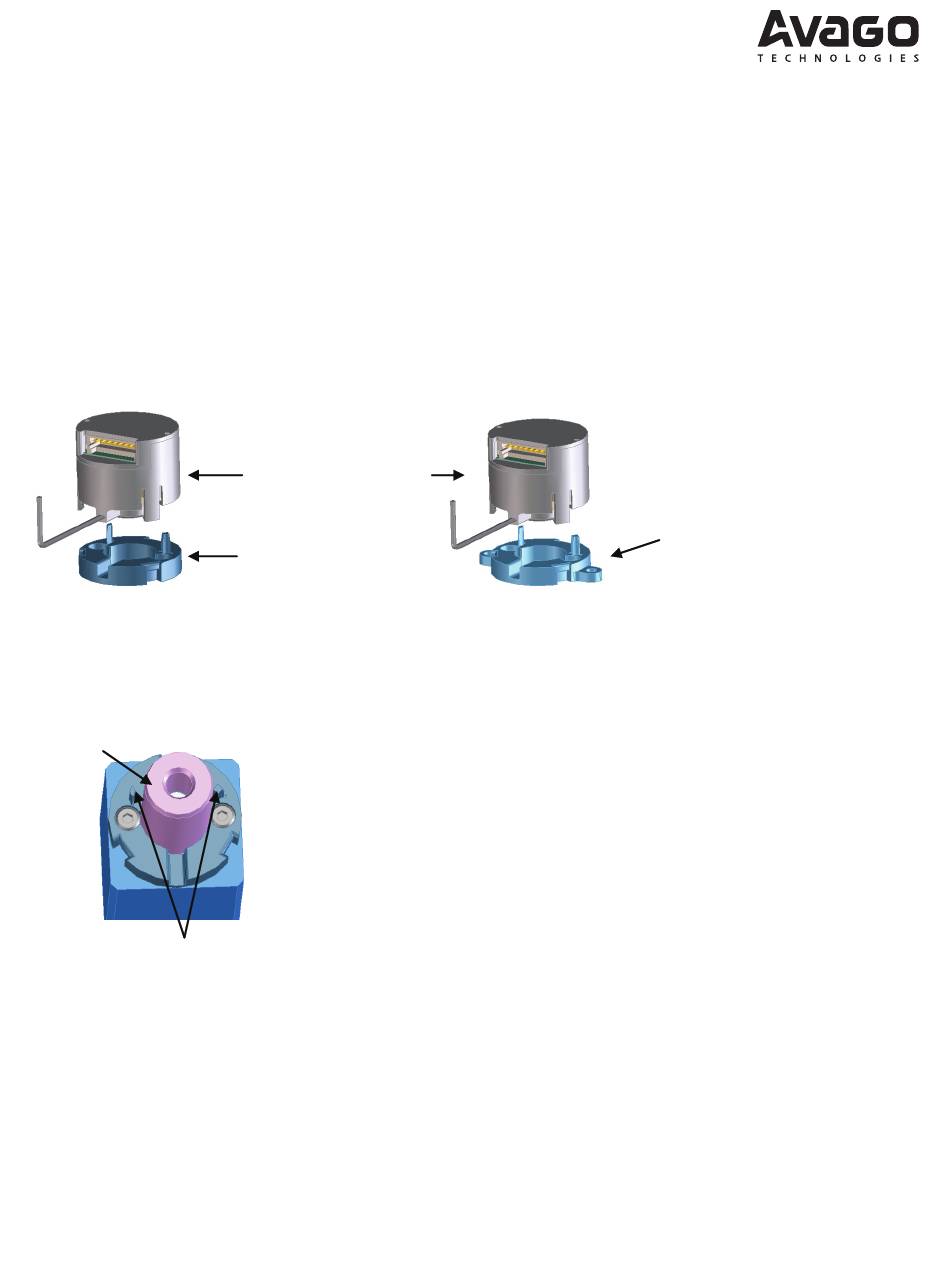

AEDx-8xxx series components
Install the Encoder to the Motor Shaft
Alignment jig
Guide poles
Delivered pre-assembled with
an Allen key attached to the
module
Plastic
base plate
Step 1. Secure the baseplate
a) Partially screw-in two M2 screws to the motor.
b) Place the jig onto the motor shaft and center it to the inner diameter opening of the
baseplate.
c) Tighten the screws firmly (recommended tightening torque is 0.6 in-lb (0.7 kgf-cm).
d) Remove the alignment jig.
External
mounting
ear option
Advertisement
Related Manuals for Avago AED -8 Series
Summary of Contents for Avago AED -8 Series
- Page 1 AEDx-8xxx-xxx Assembly Guidelines 2- or 3-channel Incremental Encoder Kit Application Note 5435 Description This application note gives step-by-step instructions for the alignment and installation of the AEDx-8xxx series incre- mental encoder to a motor shaft. Delivered pre-assembled with an Allen key attached to the module External mounting...
- Page 2 Baseplate without mounting-ears Glue required Step 2. Glue the baseplate a) Apply glue to the shaded area, as indicated, for both the mounting-ear and non- mounting-ear baseplate. Notes: 1. Glue prevents screw loosening caused by thermal stress in the plastic material, especially at high temperatures.
- Page 3 For product information and a complete list of distributors, please go to our web site: Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies in the United States and other countries. Data subject to change. Copyright © 2005-2010 Avago Technologies. All rights reserved.
