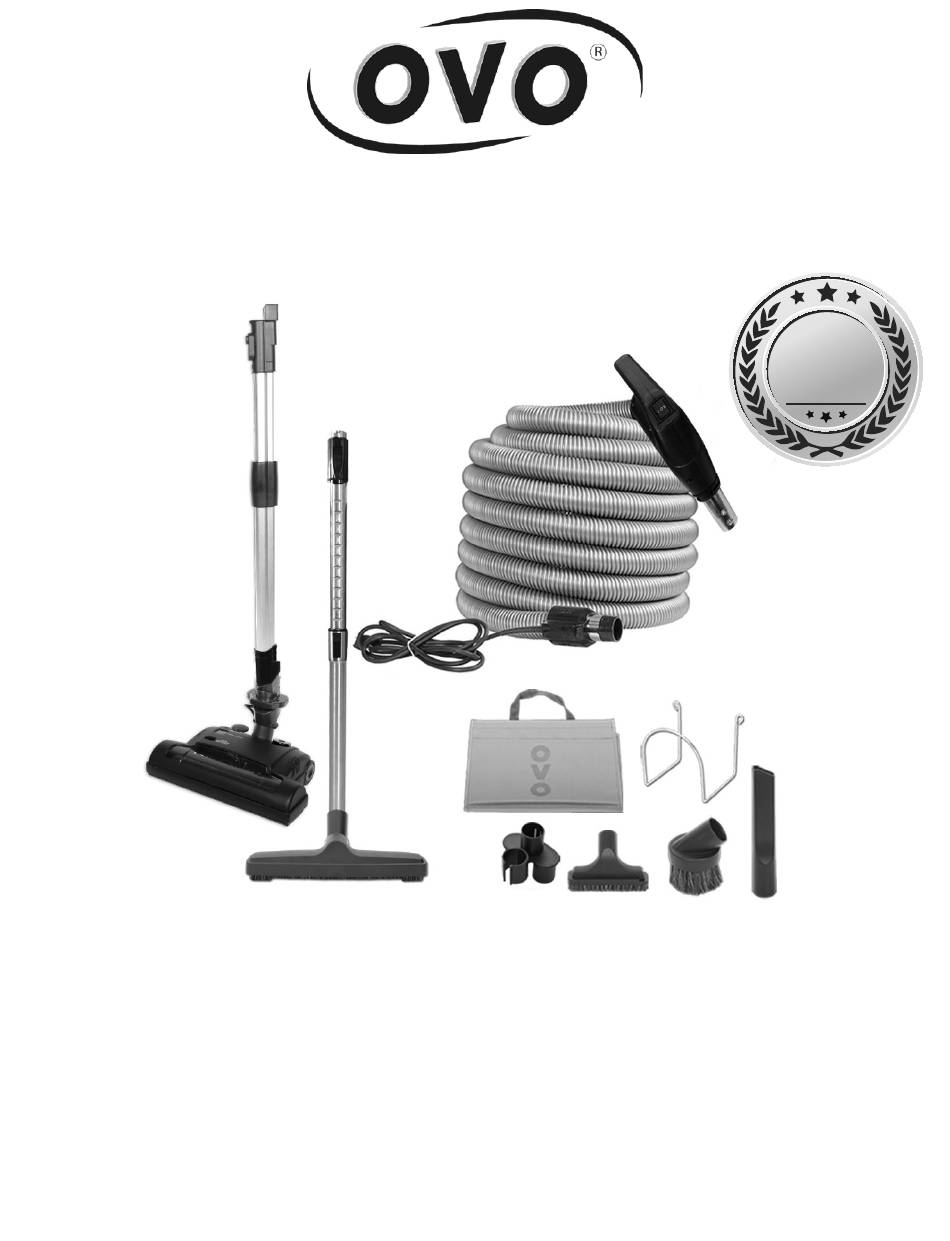

- Page 1 User Manual Carpet Deluxe attachment kit year WARRANTY Model Number: KIT-LV30/35/40-CD...
-
Page 2: Table Of Contents
Index 1. Kit inclusion ........................3 2. High-voltage hose ......................4 3. Carpet beater specification .................... 5 4. High-Voltage wand specification ..................5 5. How to use the carpet beater ..................6 6. Low-Voltage wand specification ..................7 7. Included cleaning tool ....................8 8. -
Page 3: Kit Inclusion

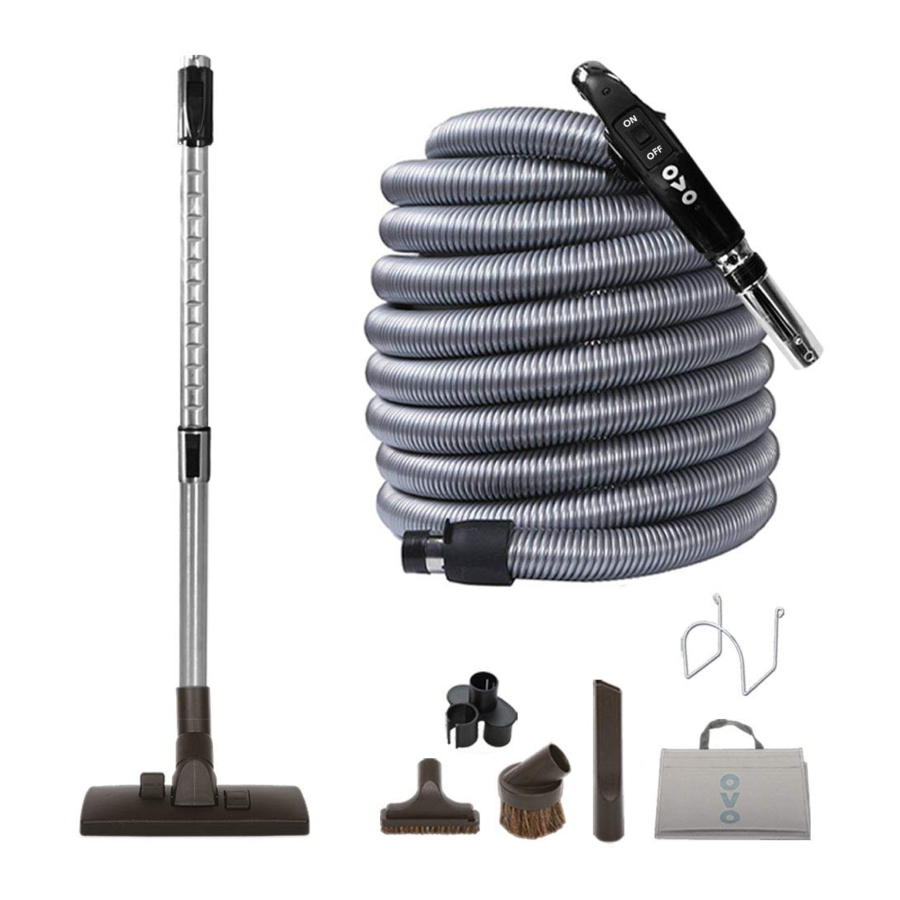

1. INCLUDED IN THE KIT 1. High-voltage hose with dual control switch 2. Adjustable Low-Voltage wand 3. Adjustable High-Voltage wand 4. Electrical carpet beater 5. 12’’ Floor brush 6. Dusting Brush 7. Upholstery Brush 8. Crevice Tool 9. Accessory Bag 10. -
Page 4: High-Voltage Hose
2. HIGH-VOLTAGE HOSE Compatibility The hose is compatible with most wall inlets. Inlets must have a 1.5’’ inner diameter in order for the hose to fit, and must have 2 low-voltage pins/metal prongs in order to turn the hose ON/OFF from the switch locat- ed on the hose handle. -
Page 5: Carpet Beater Specification
3. CARPET BEATER SPECIFICATIONS Carpet Beater (Power head) 1. Brush roll ON/OFF switch 2. Overload protector reset 3. Carpet height indicator 4. Dirt sensor 5. Carpet height adjustment 6. Handle position release 7. Wand release latch 4. HIGH-VOLTAGE WAND SPECIFICATION 1. -
Page 6: How To Use The Carpet Beater
Carpet beater (Powerhead) port Wand port Connection The OVO electric carpet beater The OVO electric wand has female To connect the wand to the electric (powerhead) has male ports to ports to connect to the electric carpet beater, align the female ports connect to the electric wand. -
Page 7: Low-Voltage Wand Specification
6. LOW-VOLTAGE WAND How to extend the wand To extend the wand, simply push on the button and pull on the wand at the same time How to connect the wand to the hose nozzle Align the hose nozzle button with the lock button on the wand and push the nozzle in the wand until you here a “click”... -
Page 8: Included Cleaning Tool
7. INCLUDED CLEANING TOOLS 12’’ Superior Floor brush Ideal for hard surfaces. Made of horse hair - Will not scratch your floor 12’’ Dusting brush Made of horse hair - Delicate and soft on furniture Upholstery brush Made of horse hair - Perfect for delicate furniture 4’’... -
Page 9: Easy Storage
8. EASY STORAGE INCLUDED Chrome hose hanger The perfect accessory to store your hose neatly. 4.5’’ 4.75’’ 4.75’’ Accessory bag 2 Large pockets to make it easy to store your accessories without making a mess in your storage room. 8’’ 20’’... -
Page 10: How To Replace The Belt
9. HOW TO REPLACE THE BELT ALWAYS DISCONNECT THE VACUUM AND THE HIGH-VOLTAGE HOSE FROM THE ELECTRICAL OUTLET BEFORE PROCEEDING WITH THE FOLLOWING MAINTENANCE. Belt Replacement The belt installed in the electric carpet beater (powerhead) makes the brush roll turn. It has been specifically designed for our electric carpet beater and is required to ensure a flawless operation. - Page 11 9. HOW TO REPLACE THE BELT (cont.) Verify/remove Remove/replace Replace the STEP 4 STEP 5 STEP 6 the belt the belt brush roll 1-Hold the opposite end of the brush If the belt is stretched or cut, pull it 1-Lift the end of the brush roll. roll in place.
-
Page 12: How To Replace The Roller Brush
10. HOW TO REPLACE THE BRUSH ROLL Always follow these procedures to verify or replace the brush roll in order to avoid damaging the carpet beater. To check if the brush roll needs to be changed, slide cardboard across the bottom plate while turning the brush roll. - Page 13 10. HOW TO REPLACE THE BRUSH ROLL (cont.) Always follow these procedures to verify or replace the brush roll in order to avoid damaging the carpet beater. Remove/replace the Replace the STEP 4 STEP 5 brush roll brush roll 1-Hold the opposite end of the brush 1- Lift the end of the brush roll to roll in place.
-
Page 14: How To Replace The Light
11. HOW TO REPLACE THE HEAD LIGHT Always follow these procedures to verify or replace the head light in order to avoid damaging the carpet beater. The light is on when the vacuum is on. If the light does not turn on, this means it is burned out and needs to be changed. -
Page 15: What To Do When Clogging
12. CLOG IN THE POWER NOZZLE If the carpet beater (powerhead) gets clogged, use the following procedure to check and clear the blockage. If the clogging is severe enough, the You will find an additional panel at power nozzle will stop operating. the bottom of the power nozzle (C). -
Page 16: Trouble Shooting
13. TROUBLE SHOOTING GUIDE 4- TROUBLESHOOTING CHECK THESE FIRST Service problems that appear to be major can often be solved easily. You can be your own troubleshooter by reviewing this guide. Problem Check Solution receptacle on nozzle. Power nozzle won’t turn ON reset reset. - Page 17 USA: www.myovo.net Canada: www.myovo.ca 1 800 776-7891 TO REGISTER YOUR WARRANTY: USA: myovo.net/register Canada: myovo.ca/registrer TO GET THE PARTS OR OTHER PRODUCTS: USA: myovo.net CANADA: myovo.ca EMAIL AT: info@myovo.net TOOL FREE: 1-800-776-7891 2044 Autoroute 440 Ouest, Laval, QC, H7S 2M9...
