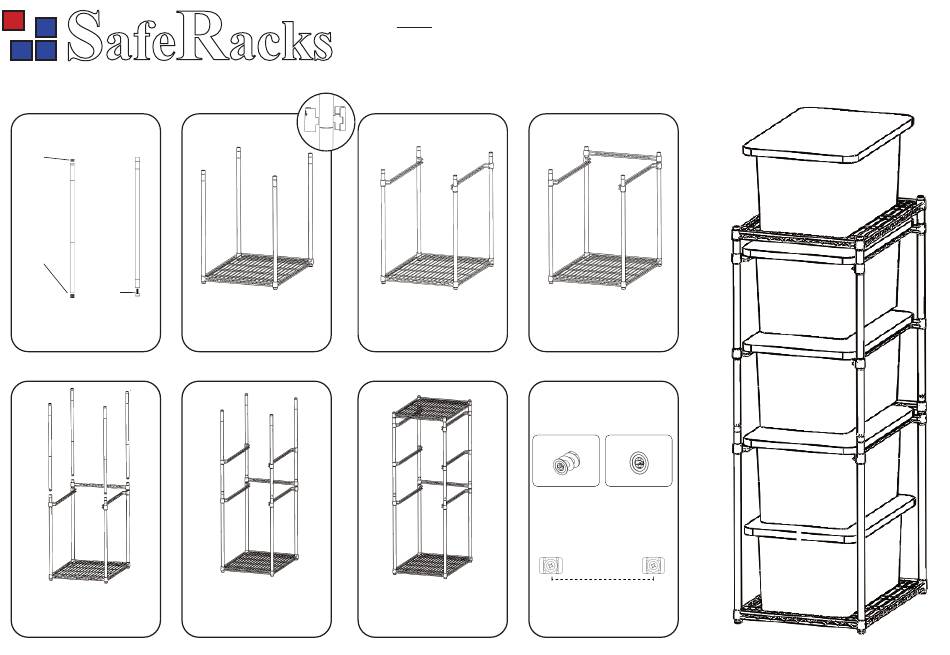

SAFERACKS Bin Rack Assembly Instructions page 2

S R
afe
1. 2.
Top
Cap
Upper Lower
Post Post
Threaded
Insert
Threaded
Foot
Connect sleeve pairs to the lowest notch
Before you begin, you may choose to
on each post. Slide lower shelf over post
assemble the posts fully, but this is not
and secure to a snug fit. (Note: A rubber
required. These instructions show the
mallet can be used to ensure the shelf is
post assembly in Step 5.
tight.
5. 6.
Connect sleeve pairs to the marked
Attach upper posts to lower posts using
notches near the middle of the upper
the threaded insert. (Note: This step can
posts. Place sliding rails on each side and
be skipped if you have already assembled
secure to a snug fit. Repeat for remaining
the posts.)
sliding rails.
acks
®
NOTE: This product holds 50 lbs per bin. Store heavier bins towards the bottom, and never
load a bin with more weight that you can safely raise above your head. Our design is for use
with 27 gallon bins only. Do not use with anything other than 27 gallon bins. Ensure the
sides of the bin are properly secured before sliding in and out.
3.
*Position sleeves slightly
above the notch, then
compress and lower until
secured to desired notch.
Connect sleeve pairs to the notches
above those in Step 2 and ensure they
are of equal height. Place sliding rails on
each side and secure to a snug fit.
7.
Connect sleeve pairs to the top of each
post and ensure they are of equal height.
Slide upper shelf over and secure to a
snug fit.
4.
Connect sleeve pairs to the next set of
notches. Slide tie support over and
secure to a snug fit. (Note: The two
notches at the top of the lower-front
posts are not used.)
8.
1. 2.
A. To secure your rack against a wall, drive the
plastic drywall anchor until the anchor is flush
against the wall. Secure the cable tie base to the
wall by inserting the metal screw into the
plastic anchor and tightening. Do not over
tighten.
21 11/16"
B. Repeat the steps above ensuring that the
center-center distance is 21 11/16". Once both
mounts are secured, use the provided cable ties
to secure the rear vertical posts to the wall.
