- Page 1 AiM Infotech Mirror Camera MX Release 1.00...
-
Page 2: Physical Connection

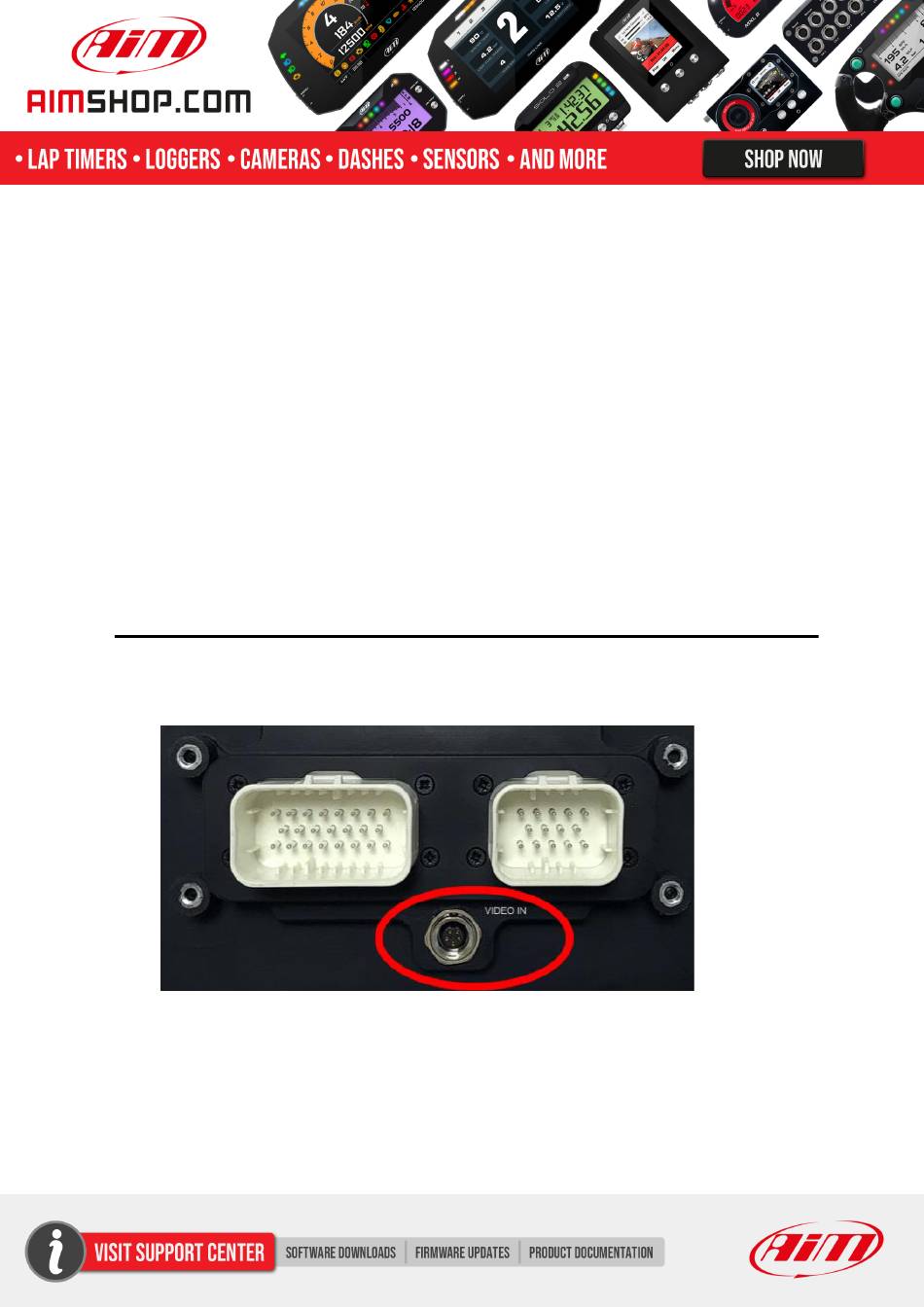

Physical connection The AiM loggers built to manage rear cameras are provided with a female metallic 5pins Binder connector, placed on the device bottom and labelled as “VIDEO IN” (following image). The Video In connector allows the connection of two different analog cameras, that may be activated as here down described. - Page 3 Single RearMaster camera (cable length: • 5m) ended with: o Male metallic 5pins Binder connector for connection to AiM loggers; o DC Power Connector (yellow) to be connected to the camera one; o Video RCA Connector (red) to be connected to the camera one.
- Page 4 AiM offers the same camera with a more reliable Binder connection (P.N.: XB1ZCAMHD00; Binder connector pinouts are specified below): The patch cables available are: • Single AiM Mirror Camera (6m length) ended with: o Male metallic 5pins Binder connector for connection to AiM loggers;...
- Page 5 (Channels tab). The “Use reverse gear” box must be ticked. o Through ECU, selecting the compatible protocol with your vehicle ECU from the ECU Stream tab. www.aim-sportline.com Release 1.00 – October 12 2018...
- Page 6 Open the Trigger Commands tab and click “Add New Command”: select “First Camera Input Page” as • a command to activate when the Gear is equal to “R”. www.aim-sportline.com Release 1.00 – October 12 2018...
- Page 7 Settings through AiM device menu The camera parameters setting must be executed from the device menu directly, as explained below: Press “MENU/<<” button. • Pressing “PREV and “NEXT”, move on the VIDEO IN icon and press “ENTER”. • The system offers the possibility to set the image format (PAL or NTSC – according to the camera •...
