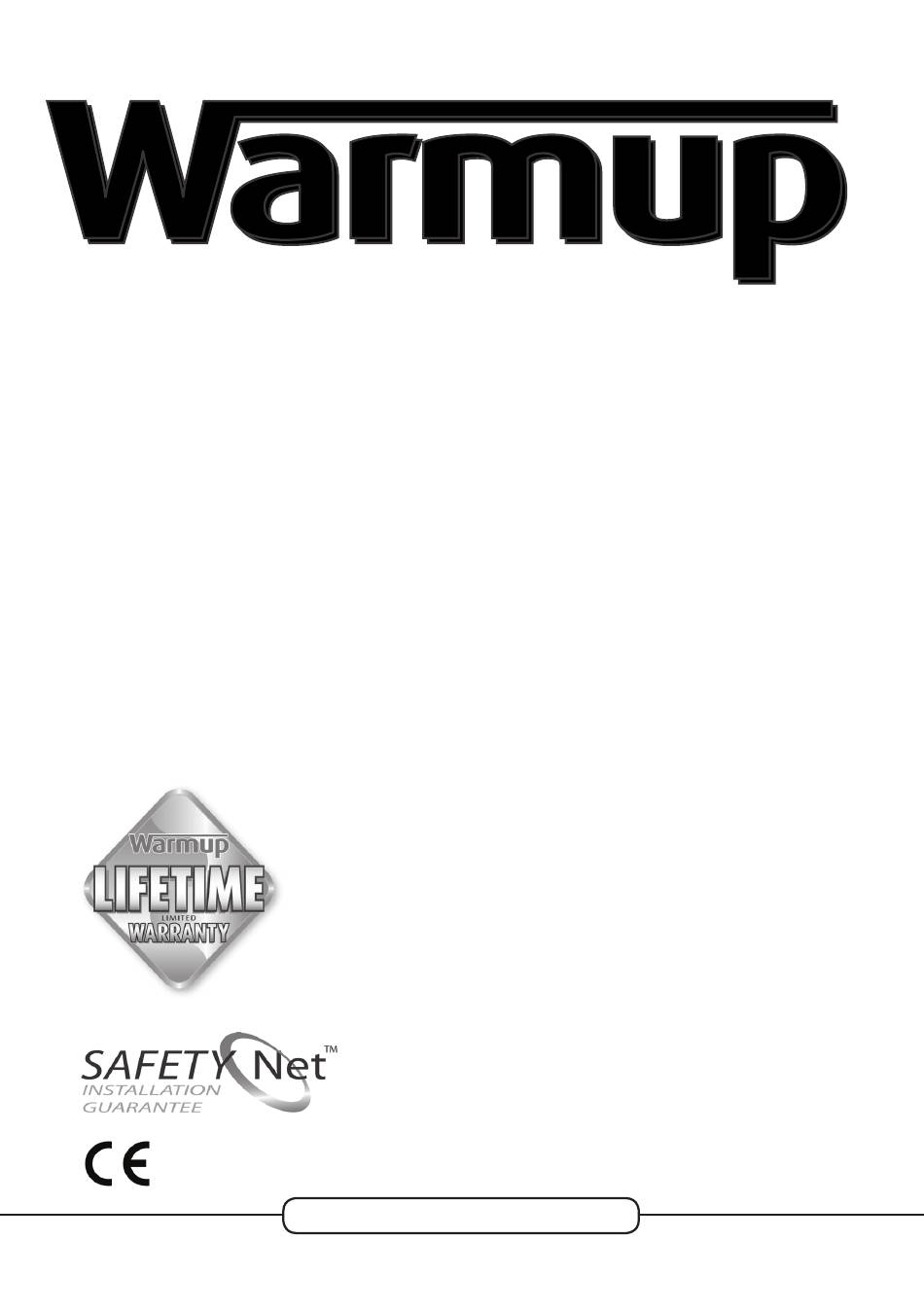

- Page 1 ® Electric Wall Heating Panel Installation Manual IMPORTANT: Read this manual before installation. Incorrect installation could damage the heater and invalidate your warranty. Technical Help line: 0845 345 2288...
-
Page 2: Table Of Contents
User Information Warranty Electrical housing, back boxes and junction Items Required boxes A Warmup® Thermostat with temperature (Back box for the thermostat must be at sensor least 35mm deep) NOTE: Only Warmup® Thermostats should be used... -
Page 3: Product Description
Product Description Warmup Electric Wall Heating Panel for Professional Installation ONLY. The Warmup Electric Wall Heating Panel is a flexible sheet heating element which complies with The Electrical Safety Regulations 1994. This product is designed for installation behind tiles or natural stone, within walls, to provide radiant heat either for small areas of a wall or for whole room heating. -
Page 4: Technical Information
IP rating IPX7 Wattage per m 150w or 200w 150W Wall Panel 200W Wall Panel Model Area Size Watts Amps Model Area Size Watts Amps WHP1 2WHP0.5 1.0m 2mx0.5m 0.65 0.5m 1mx0.5m 0.44 WHP1.5 2WHP1.0 1.5m 3mx0.5m 0.98 1.0m 2mx0.5m 0.87 WHP2.0... -
Page 5: Electrical Information
Electrical accessories needed • Electrical Back Box - A 35mm back box may be used for the all Warmup thermostats. • Junction Box - If installing more than two heaters a junction box will be required. - Page 6 Test the wall heating panel(s You must test the heater before, during and after installation to ensure that the panels have not been damaged during the installation. Using a multi-meter test the resistance of each individual heating panel. Set the multi-meter at 200 ohms setting for larger panels and a 2k ohms setting for the smaller mats.
- Page 7 Planning the installation Location of the heating panels When installing the Warmup wall heating panel it is important that the installation is design and installed carefully to avoid any harmful influence between the heating system and other electrical and non electrical installations.
-
Page 8: Important Points
Important Installation Points ALWAYS plan the installation and complete the relevant documentation provided in this instruction manual. It is important that this is placed near or at the consumer unit so that the end user has all the information needed for the Wall Panel Heating system. - Page 9 DO NOT switch on the heating panel until all adhesive and grouts have been allowed to dry as per the manufactures instructions. DO NOT attempt to carry out any DIY repairs on this product, if you damage the heater during installation contact Warmup Technical Support on 0845 345 2288.
-
Page 10: Getting Started
When tiling a wall it is important that the you ensure that the design, construction and preparation of the surface is carried out correctly. The Warmup heating panel must be installed onto a material suitable for use with the heating system. A 6mm tile backer board with a fire rating Euro class E or higher may be used. -
Page 11: Wall Heater Installation
Wall Heater installation Using a permanent marker, mark out the areas on the wall surface where the heated zones will be. ONLY install the wall heating panel in these marked zones. Mark the positions and planned route of the power lead cables as well as the temperature sensor. - Page 12 If you are installing multiple heating panels they should be connected in parallel via a junction box. Install the temperature sensor supplied with the Warmup thermostat. Fit the temperature sensor wire at least 300mm into the heated area. The sensor tip should be centred between two of the heating element runs.
- Page 13 Tiling over the Wall Heater Suitable wall Coverings The Warmup heating panels are designed to be installed behind ceramic or natural stone tiles. Adhesive and Grout The tile adhesive and grout must include an additive for flexibility and be suitable for use with underfloor heating.
- Page 14 Installation and System Documentation It is important that the following information is recorded on the control card within the manual: • Location Diagrams • Distribution of heating circuits and rated power • Heater type • Dimensions • Max operating temp •...
- Page 15 This control card along must be kept with all plans etc at the consumer unit for future reference. Date Signed Print Name Company Name Address Warmup Plc 702/704 Tudor Estate Abbey Road London NW10 7UW T:0845 345 2288 F: 0845 345 2299 www.warmup.co.uk...
- Page 16 Important System information Warmup Wall Heating System Information Wall Heating IP Rating Wattage/m² System Voltage Depth of Heating Rated heating element current of panel into conductor over current the wall shield protective device Rated Leakage Residual Current Current of Notes...
- Page 17 Wall Plan...
-
Page 18: User Information
DO not set the thermostat temperature too high. 28°C is more than adequate for most installations. The maximum temperature allowed is 40°C. • Ensure that the thermostat is programmed to be off at times when the heaters will not be needed. If you require further assistance contact Warmup Technical on 0845 345 2288. -
Page 19: Warranty
The cost of repair or replacement PLEASE NOTE: is your only remedy under this remedy under this Heaters repaired by a Warmup agent carry a 5 year guarantee which does not affect your statutory rights. warranty. Under no circumstances are Warmup... - Page 20 Warmup Plc 0845 345 2288 702/704 Tudor Estate 0845 345 2299 Abbey Road,London uk@warmup.com NW10 7UW www.warmup.co.uk Scan and visit our website The WARMUP word and associated logos are trade marks. © Warmup Plc.2013-Regd.TM nos. 1257724,4409934,4409926,5265707.E & OE. V1.0...
