HEATIT
ZM SINGLE
RELAY 16A
Installers manual
TABLE OF CONTENTS
1 Introduction
2 Statement regarding products from multiple manufacturers
3 Behaviour within the Z-Wave™ network
4 Quick Start
1. INTRODUCTION

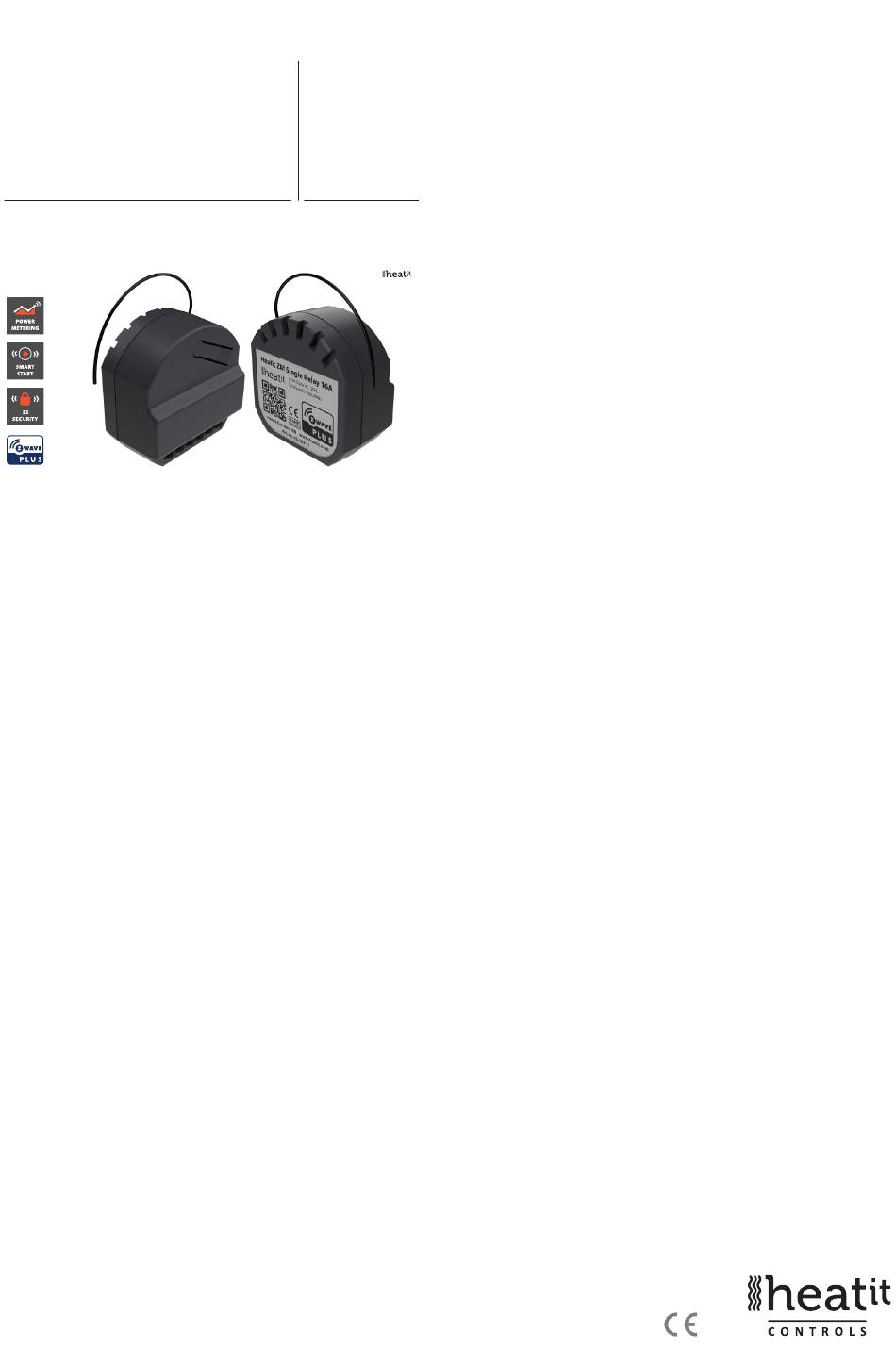

Heatit ZM Single Relay is a high power relay for inwall installations.
The relay allows you to control connected devices either through your
Z-Wave network or via a wired switch. The module is equipped with a
Firmware 1.0
16A relay and has a scene controller functionality.
01.12.2020
The device can withstand a load of max 16A /3600W at 230VAC.
Ver 2020-B
2. STATEMENT REGARDING PRODUCTS FROM MULTIPLE
Please read this before installation
This device may be used with all devices certified with the Z-Wave
Plus™ certificate and should be compatible with such devices
produced by any manufacturer. Every primary controller is different
depending on the manufacturer, their target audience and intended
use/application. Please review the functionalities implemented by the
primary controller you intend to use with our Z-Wave Plus certified
device to ensure that it provides the necessary controls to take full
advantage of our product's capabilities.
3. BEHAVIOR WITHIN THE Z-WAVE™ NETWORK
This device may be operated within any Z-Wave network with
Z-Wave-certified devices from other manufacturers. All non-battery-
operated nodes within the network will act as repeaters regardless of
manufacturer to increase the reliability of the network. On delivery, the
device does not belong to any Z-Wave network.
The device needs to be added to an existing network to communicate
with the other devices within it. Devices may also be removed from
a network. The add/remove processes are initiated by the primary
controller of the Z-Wave network.
4. QUICK START
1. Switch off the mains supply (disable the fuse).
2. Open the wall switch box.
3. Connect wires according to the labeling described in Chapter 5
4. After verifying the connections, switch the mains supply back on.
5. Set the primary controller in add mode (security/non-security).
6. Press the configuration button or switch connected to S1 x 3 times in
7. The device LED will blink in green when adding procedure has been
8. Change the value of Parameter 11 to 10% of your connected load.
MANUFACTURERS
"Installation".
rapid succession.
successfully initiated. When the device is included in the home
automation system, the LED will light up in green for 1 second.
If the device is unsuccessfully added, the LED will light up in RED for
1 second. For more information, please see Chapter 7 "Add/ Remove".
Advertisement
Table of Contents
Related Manuals for Heatit ZM SINGLE RELAY
Summary of Contents for Heatit ZM SINGLE RELAY
- Page 1 HEATIT 1. INTRODUCTION Heatit ZM Single Relay is a high power relay for inwall installations. ZM SINGLE The relay allows you to control connected devices either through your Z-Wave network or via a wired switch. The module is equipped with a Firmware 1.0...
- Page 2 If this happens, the relay cuts power to prevent failure. The device features a configuration button and an LED indicator. Heatit ZM Single Relay 16A has the following features: 10.1 Overload The device features a default 16A overload protection. The default overload is triggered if there is a power draw of more than16Amps for longer than 2 seconds, or 0.2 seconds if the measured load is more than 20A.
- Page 3 10.2 Overheating Factory Reset Figure 1 If the button is pressed for more than The device features an internal temperature sensor which prevents any 3 seconds, the GREEN LED will start Release overheating caused by external high loads. flashing. When the button has been pressed for 20 seconds, the GREEN LED will When overheating is detected, the device will: light up for 3 seconds.
- Page 4 16.2 Association Groups PARA SHORT SIZE DESCRIPTION / DESCRIPTION (BYTE) NAME COMMENT DEFAULT OF VALUE RELAY DEVICE THE MAIN DEVICE S1/Button actions. Button turns load Group 1 Lifeline. (Normally used by the Z-Wave Controller) Sends: Button on/off and sends Lifeline - Device Reset Notifications.
- Page 5 18.3 Central Scene Command Class 19. SUPPORTED COMMAND CLASSES The device supports the Central Scene Command Class. The following table lists all Command Classes supported by the Z-Wave This command class is used to perform actions chosen in the device. The device supports S0, S2 Authenticated security and controller.
- Page 6 Heatit Controls AB l Läkarvägen 4, 454 31 BRASTAD, SWEDEN Heatit Controls AB can not be held liable for typographical errors, other errors or omittances in our information. Product specifications may change without further notice. All electrical installations must be carried out by a licensed Phone: +47 61 18 77 77 l post@heatit.com –...
